◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#73149) — 78 parça

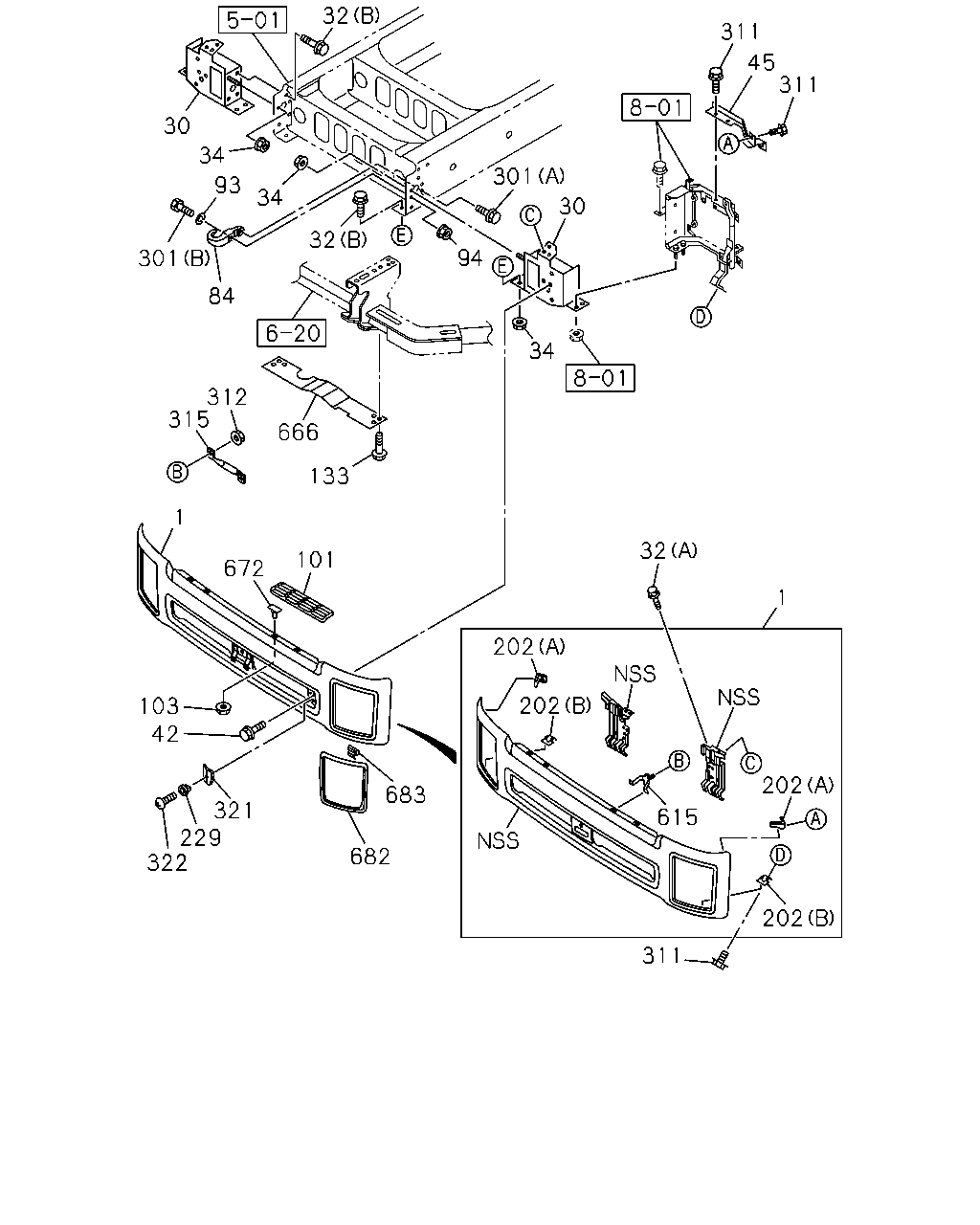

çizim 194246
32 311 45 30 301 34 30 301 32 34 93 34 94 133 666 312 315 103 672 101 32 202 615 202 202 202 311 683 682 321 229 322 84 311 42 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1204-1208 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1209- ● ●
1 BUMPER ASM; FRT
WHITE THA 		8-97425-037-0 01 1 1211- ● ●
30 BRACKET; FRT BUMPER
THA 		8-98055-264-0 01 1 1204-1208 ●
30 BRACKET; FRT BUMPER
THA 		8-98055-264-0 01 1 1209- ● ●
30 BRACKET; FRT BUMPER
THA 		8-98055-263-0 01 1 1204-1208 ●
30 BRACKET; FRT BUMPER
THA 		8-98055-263-0 01 1 1209- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA 		0-28051-235-0 10 1 1204-1208 ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA 		0-28051-235-0 10 1 1209- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1204-1208 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1209- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE THA 		0-91180-212-0 06 1 1204-1208 ●
34 NUT; BRKT,BUMPER
M12 FLANGE THA 		0-91180-212-0 06 1 1209- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1204-1208 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1209- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1204-1208 ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1209- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1204-1208 ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1209- ● ●
84 HOOK 8-98099-119-0 01 1 1204-1208 ●
84 HOOK 8-98099-119-0 01 1 1209- ● ●
93 WASHER; LK,HOOK
ID=16.2 THA 		0-91510-516-0 02 1 1204-1208 ●
93 WASHER; LK,HOOK
ID=16.2 THA 		0-91510-516-0 02 1 1209- ● ●
94 NUT; HOOK
M16 THA 		0-91110-516-0 01 1 1204-1208 ●
94 NUT; HOOK
M16 THA 		0-91110-516-0 01 1 1209- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 1204-1208 ●
101 STEP; BUMPER 8-97611-543-0 01 1 1209- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 1204-1208 ●
101 STEP; BUMPER 8-97611-542-0 01 1 1209- ● ●
103 NUT; BUMPER STEP
M6 FLANGE THA 		0-91180-106-0 04 1 1204-1208 ●
103 NUT; BUMPER STEP
M6 FLANGE THA 		0-91180-106-0 04 1 1209- ● ●
133 BOLT; PROTECTOR FIX
M12X25 FLANGE THA 		0-28661-225-0 06 1 1204-1208 ●
133 BOLT; PROTECTOR FIX
M12X25 FLANGE THA 		0-28661-225-0 06 1 1209- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1204-1208 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1209- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1204-1208 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1209- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1204-1208 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1209- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1204-1208 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1209- ● ●
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-663-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(A) THA 		8-98184-664-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-668-0 01 1 1211- ● ●
202 BRACKET; BUMPER SIDE
(B) THA 		8-98184-669-0 01 1 1211- ● ●
229 GROMMET
D=7X7 L=7.5 THA 		5-09983-007-0 02 1 1204-1208 ●
229 GROMMET
D=7X7 L=7.5 THA 		5-09983-007-0 02 1 1209- ● ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 1204-1208 ●
301 BOLT; HOOK TO FRAME
(A) M16X60 		0-10861-660-0 01 1 1209- ● ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 1204-1208 ●
301 BOLT; HOOK TO FRAME
(B) M16X70 		0-10861-670-0 01 1 1209- ● ●
311 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1204-1208 ●
311 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1209- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1204-1208 ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1209- ● ●
312 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1204-1208 ●
312 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1209- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 1204-1208 ●
315 STAY; BUMPER 8-97617-115-0 01 1 1209- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-297-1 01 1 1204-1208 ●
321 COVER; BUMPER FRT SIDE 8-97616-297-1 01 1 1209- ● ●
321 COVER; BUMPER FRT SIDE 8-97616-296-1 01 1 1204-1208 ●
321 COVER; BUMPER FRT SIDE 8-97616-296-1 01 1 1209- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1204-1208 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1209- ● ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1204-1208 ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1209- ● ●
615 BRACKET; BUMPER CENTER
THA 		8-98184-611-0 01 1 1211- ● ●
666 PROTECTOR; UNDER 8-97608-467-1 01 1 1204-1208 ●
666 PROTECTOR; UNDER 8-97608-467-1 01 1 1209- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1204-1208 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1209- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1204-1208 ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1209- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1204-1208 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1209- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1204-1208 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1209- ● ●
