Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#73144) — 118 parça
Tümü
A - GGZ5MX
B - FGZ5MX
◀

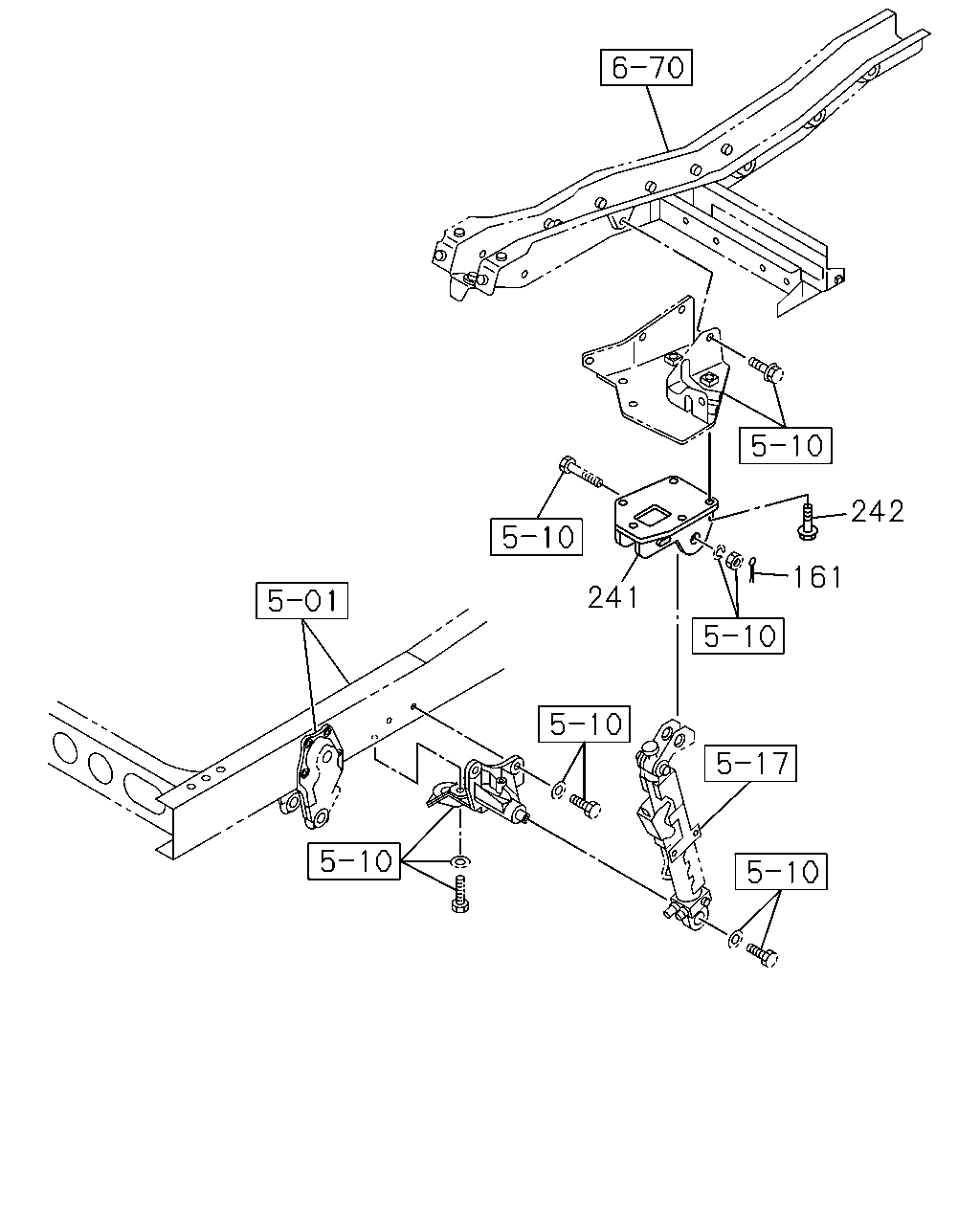

[515A] CAB TILT CYLINDER FIXING (6 parça)

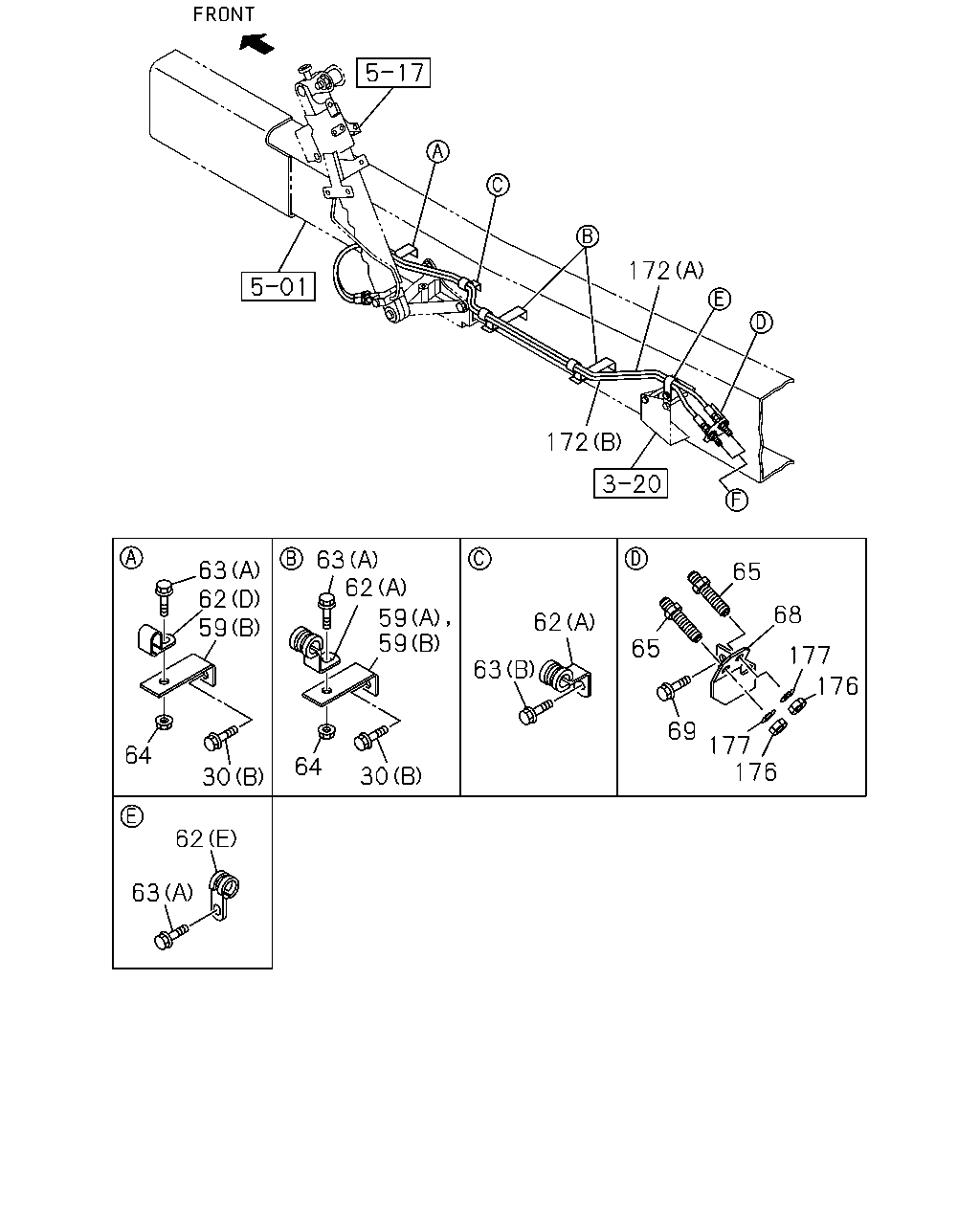

[515A] CAB TILT PIPING;FRAME SIDE (46 parça)

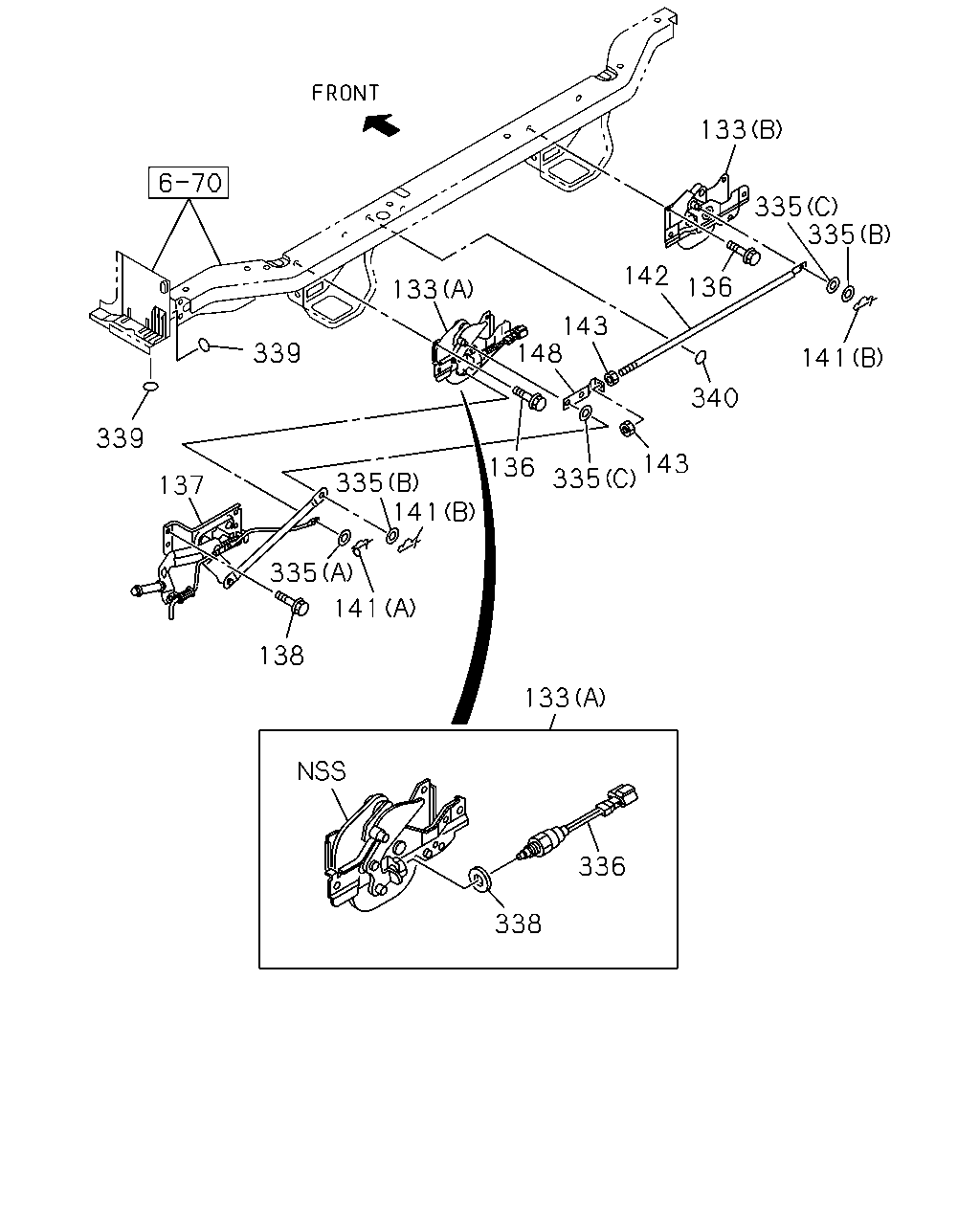

[515A] CAB REAR LOCK (34 parça)

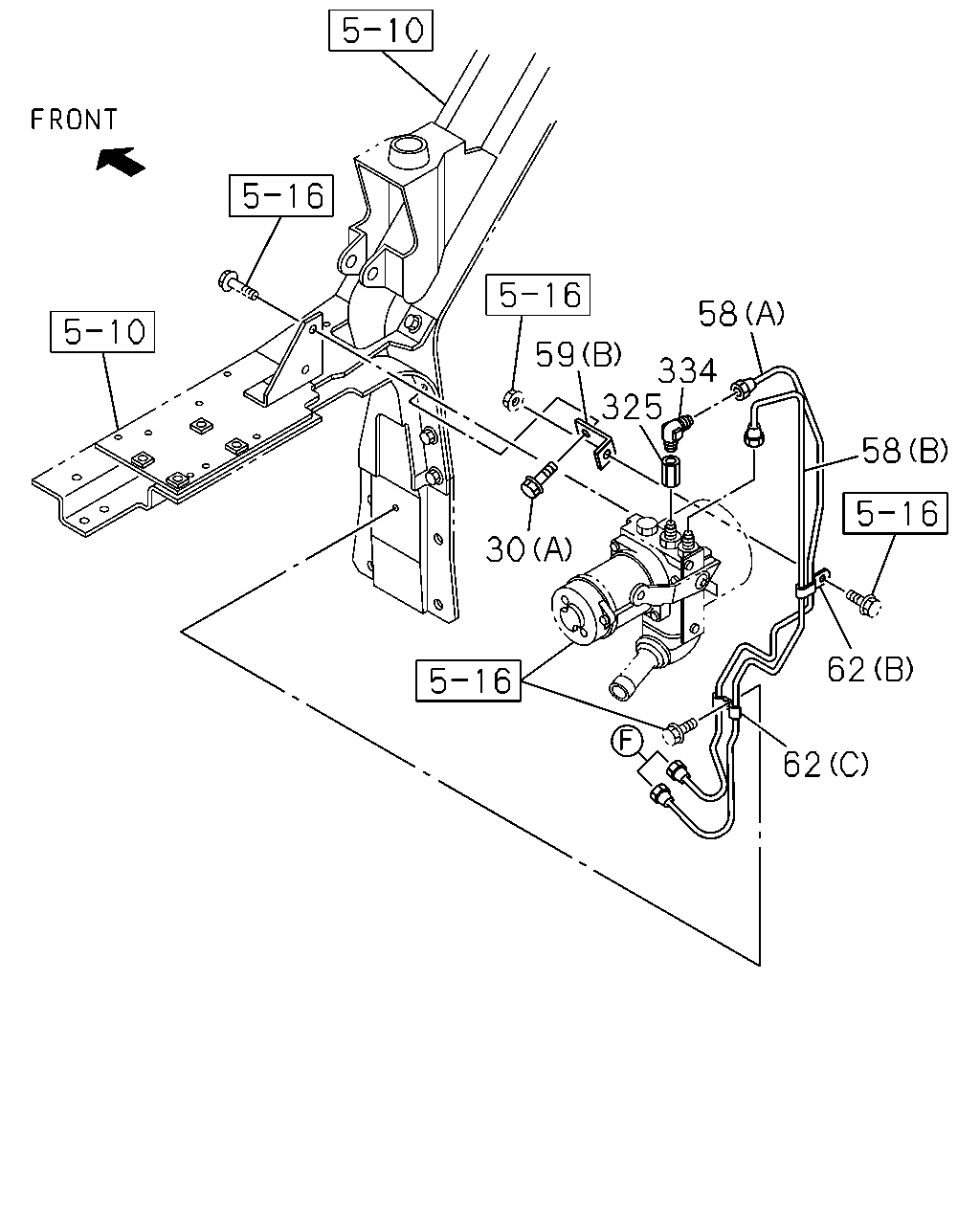

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (32 parça)
▶
241
161
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1204-1208
●
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1209-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
1204-1208
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
1209-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE THA
0-28051-025-0
05
1
1204-1208
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE THA
0-28051-025-0
05
1
1209-
●
●
176
177
177
68
65
176
65
69
63
172
172
62
59
62
63
64
59
30
59
64
62
63
62
63
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1204-1208
●
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1209-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1204-1208
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1209-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1204-1208
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1204-1208
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1209-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1209-
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
02
1
1204-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1204-1208
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1209-
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
1209-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1204-1208
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1209-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1209-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1204-1208
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1209-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM<BFA> (E) ID=24 L=27
1-09700-809-0
01
1
1204-
●
63
BOLT; CLIP
(B) M8X30 FLANGE THA
0-28650-830-0
01
1
1204-1208
●
63
BOLT; CLIP
(B) M8X30 FLANGE THA
0-28650-830-0
01
1
1209-
●
●
63
BOLT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X20 FLANGE THA
0-28650-820-0
04
1
1204-
●
63
BOLT; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M8X20 FLANGE THA
0-28650-820-0
03
1
1204-1208
●
63
BOLT; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M8X20 FLANGE THA
0-28650-820-0
03
1
1209-
●
63
BOLT; CLIP
(A) M8X20 FLANGE THA
0-28650-820-0
03
1
1209-
●
64
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1204-1208
●
64
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1209-
●
●
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1204-1208
●
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1209-
●
●
68
BRACKET; UNION
8-98109-453-0
01
1
1204-1208
●
68
BRACKET; UNION
8-98109-453-0
01
1
1209-
●
●
69
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1204-1208
●
69
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1209-
●
●
172
HOSE; FLEX,OIL TILT
(B)
8-98086-335-0
01
1
1204-1208
●
172
HOSE; FLEX,OIL TILT
(B)
8-98086-335-0
01
1
1209-
●
●
172
HOSE; FLEX,OIL TILT
(A)
8-98106-696-0
01
1
1204-1208
●
172
HOSE; FLEX,OIL TILT
(A)
8-98106-696-0
01
1
1209-
●
●
176
NUT; UNION
M12
9-09840-280-0
02
1
1204-1208
●
176
NUT; UNION
M12
9-09840-280-0
02
1
1209-
●
●
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1204-1208
●
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1209-
●
●
339
137
335
138
141
141
335
136
335
143
340
143
148
133
142
136
335
133
335
141
133
336
338
339
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1204-1208
●
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1209-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1204-1208
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1209-
●
●
136
BOLT; CAB LK
M8X20 FLANGE THA
0-28650-820-0
08
1
1204-1208
●
136
BOLT; CAB LK
M8X20 FLANGE THA
0-28650-820-0
08
1
1209-
●
●
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
1204-1208
●
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
1209-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE THA
0-28650-820-0
04
1
1204-1208
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE THA
0-28650-820-0
04
1
1209-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1204-1208
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1209-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1204-1208
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1209-
●
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1204-1208
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1209-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10 THA
0-91110-510-0
02
1
1204-1208
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10 THA
0-91110-510-0
02
1
1209-
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1204-1208
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1209-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 THA
0-91610-508-0
01
1
1204-1208
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 THA
0-91610-508-0
01
1
1209-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1204-1208
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1209-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1204-1208
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1209-
●
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1204-1208
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1209-
●
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1204-1208
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1209-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK THA
1-76798-019-0
04
1
1204-1208
●
339
SEAL; TILT HANDLE
OD=25 BLACK THA
1-76798-019-0
04
1
1209-
●
●
340
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1204-1208
●
340
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1209-
●
●
59
30
58
334
325
58
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1204-1208
●
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1209-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1204-1208
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1209-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 THA
1-47428-729-0
01
1
1204-1208
●
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 THA
1-47428-729-0
01
1
1209-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 THA
1-47428-730-0
01
1
1204-1208
●
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 THA
1-47428-730-0
01
1
1209-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1204-1208
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1204-1208
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1209-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1209-
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
02
1
1204-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1204-1208
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1209-
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
1209-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1204-1208
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1209-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1209-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
1204-1208
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
1209-
●
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1204-1208
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1209-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM<BFA> (E) ID=24 L=27
1-09700-809-0
01
1
1204-
●
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1204-1208
●
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1209-
●
●
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
1204-1208
●
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
1209-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
