◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#73143) — 159 parça
çizim 125229
112 65 202 202 203 204 205 204 203 51 48 27 535 191 191 535 51 48 27 536 51 535 535 535 191 535 535 535 191 51 536
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1204-1208 ●
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1209- ● ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1204-1208 ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1209- ● ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1204-1208 ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1209- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1204-1208 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1209- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1204-1208 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1209- ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE THA 		0-28051-235-0 08 1 1204-1208 ●
191 BOLT; BRKT FIX
M12X35 FLANGE THA 		0-28051-235-0 08 1 1209- ● ●
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1204-1208 ●
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1209- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1204-1208 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1209- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 THA 		1-51631-005-0 02 1 1204-1208 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 THA 		1-51631-005-0 02 1 1209- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 THA 		1-51631-104-0 02 1 1204-1208 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 THA 		1-51631-104-0 02 1 1209- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1204-1208 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1209- ● ●
205 WASHER; RUBBER,SHOCK
THA 		1-51631-079-0 02 1 1204-1208 ●
205 WASHER; RUBBER,SHOCK
THA 		1-51631-079-0 02 1 1209- ● ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1204-1208 ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1209- ● ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1204-1208 ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1209- ● ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1204-1208 ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1209- ● ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1204-1208 ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1209- ● ●

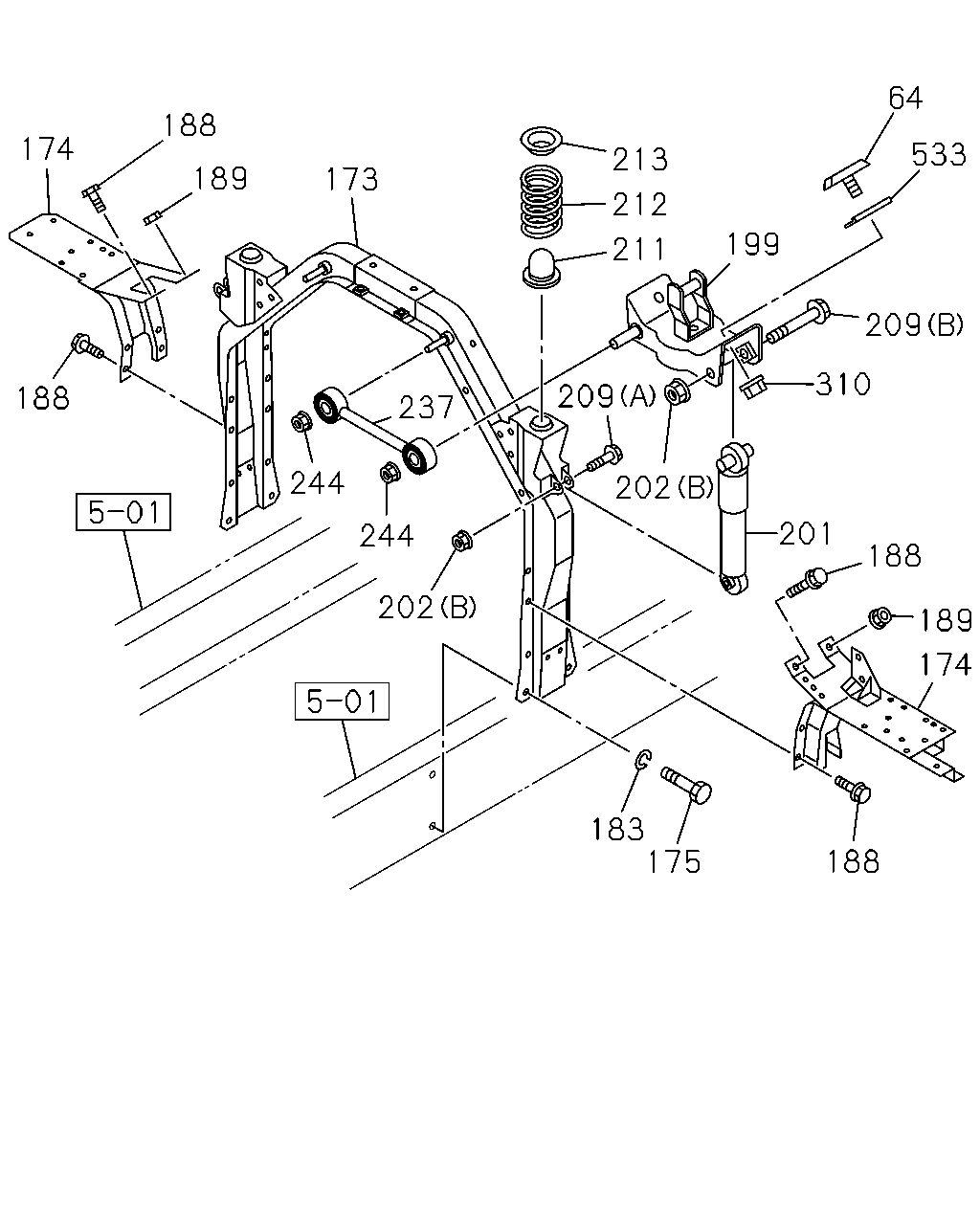

çizim 125525
64 533 213 212 211 199 209 310 209 202 237 189 188 173 174 188 244 244 202 183 175 188 174 189 188 201
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1204-1208 ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1209- ● ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1204-1208 ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1209- ● ●
174 OUTRIGGER 8-98054-839-2 01 1 1204-1208 ●
174 OUTRIGGER 8-98054-839-2 01 1 1209- ● ●
174 OUTRIGGER 8-98054-838-1 01 1 1204-1208 ●
174 OUTRIGGER 8-98054-838-1 01 1 1209- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 THA 		0-20951-440-0 08 1 1204-1208 ●
175 BOLT; MEMBER TO FRAME
M14X40 THA 		0-20951-440-0 08 1 1209- ● ●
183 WASHER; PL,MEMBER
ID=15 THA 		8-98010-627-1 08 1 1204-1208 ●
183 WASHER; PL,MEMBER
ID=15 THA 		8-98010-627-1 08 1 1209- ● ●
188 BOLT; OUTRIGGER
M12X30 FLANGE THA 		0-28661-230-0 10 1 1204-1208 ●
188 BOLT; OUTRIGGER
M12X30 FLANGE THA 		0-28661-230-0 10 1 1209- ● ●
189 NUT; OUTRIGGER
M12 FLANGE THA 		0-91180-212-0 02 1 1204-1208 ●
189 NUT; OUTRIGGER
M12 FLANGE THA 		0-91180-212-0 02 1 1209- ● ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1204-1208 ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1209- ● ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1204-1208 ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1209- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1204-1208 ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1209-1401 ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ● ●
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1204-1208 ●
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1209- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1204-1208 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1209- ● ●
209 BOLT; S/ABS
(A) M12X60 FLANGE THA 		0-28051-260-0 02 1 1204-1208 ●
209 BOLT; S/ABS
(A) M12X60 FLANGE THA 		0-28051-260-0 02 1 1209- ● ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1204-1208 ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1209- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1204-1208 ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1209-1211 ● ●
211 RUBBER; CUSHION,S/ABS
THA 		8-97926-572-0 02 1 1212- ● ●
212 SPRING; COIL 1-09580-398-1 02 1 1204-1208 ●
212 SPRING; COIL 1-09580-398-1 02 1 1209- ● ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1204-1208 ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1209- ● ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1204-1208 ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1209- ● ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1204-1208 ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1209- ● ●
310 NUT; CUSHION
M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
310 NUT; CUSHION
M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1204-1208 ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1209- ● ●

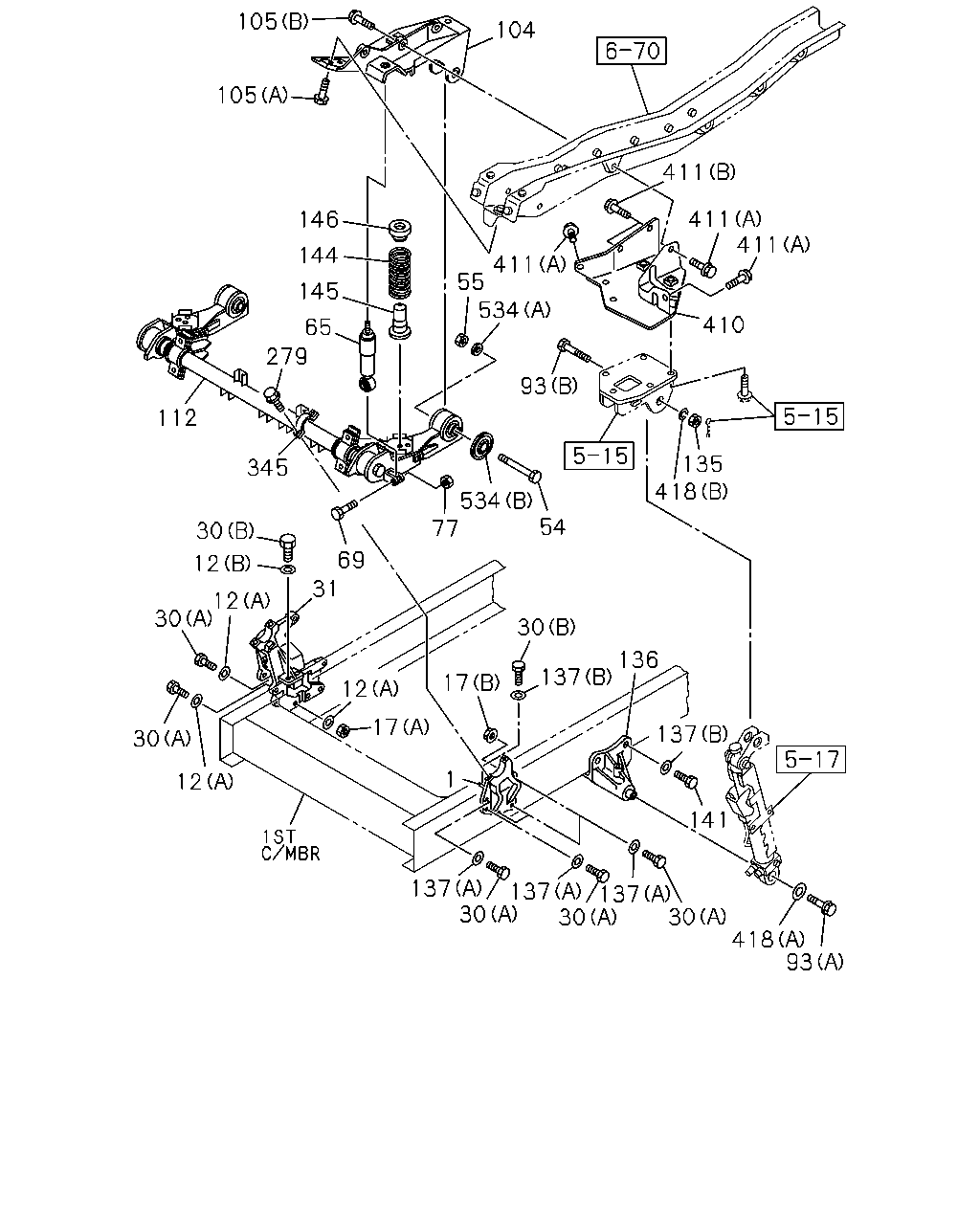

çizim 194242
93 418 30 30 30 137 141 137 136 418 135 410 411 411 411 137 137 1 137 30 17 534 54 77 93 534 55 411 104 17 12 69 12 30 30 12 30 31 12 345 112 279 65 145 144 146 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1204-1208 ●
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1209- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 12 1 1204-1208 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 12 1 1209- ● ●
12 WASHER; LK,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1204-1208 ●
12 WASHER; LK,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1209- ● ●
17 NUT; BRKT,CAB TILT
(A) M16 THA 		0-91110-516-0 06 1 1204-1208 ●
17 NUT; BRKT,CAB TILT
(A) M16 THA 		0-91110-516-0 06 1 1209- ● ●
17 NUT; BRKT,CAB TILT
(B) M16 FLANGE 		0-91180-216-0 05 1 1204-1208 ●
17 NUT; BRKT,CAB TILT
(B) M16 FLANGE 		0-91180-216-0 05 1 1209- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1204-1208 ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1209- ● ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 11 1 1204-1208 ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 11 1 1209- ● ●
31 BRACKET; CAB 1-44226-181-0 01 1 1204-1208 ●
31 BRACKET; CAB 1-44226-181-0 01 1 1209- ● ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1204-1208 ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1209- ● ●
55 NUT; RUBBER
M18 THA 		0-91110-518-0 02 1 1204-1208 ●
55 NUT; RUBBER
M18 THA 		0-91110-518-0 02 1 1209- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1204-1208 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1209- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1204-1208 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1209- ● ●
77 NUT
M12 FLANGE THA 		0-91180-212-0 02 1 1204-1208 ●
77 NUT
M12 FLANGE THA 		0-91180-212-0 02 1 1209- ● ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1204-1208 ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1209- ● ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1204-1208 ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1209- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1204-1208 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1209- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1204-1208 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1209- ● ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1204-1208 ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1209- ● ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE THA 		0-28661-030-0 08 1 1204-1208 ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE THA 		0-28661-030-0 08 1 1209- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1204-1208 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1209- ● ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1204-1208 ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1209- ● ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1204-1208 ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1209- ● ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1204-1208 ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1209- ● ●
137 WASHER; PL,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1204-1208 ●
137 WASHER; PL,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1209- ● ●
137 WASHER; PL,BRKT
(B) ID=15 THA 		8-98010-627-1 04 1 1204-1208 ●
137 WASHER; PL,BRKT
(B) ID=15 THA 		8-98010-627-1 04 1 1209- ● ●
141 BOLT; BRKT
M14X50 THA 		0-20951-450-0 04 1 1204-1208 ●
141 BOLT; BRKT
M14X50 THA 		0-20951-450-0 04 1 1209- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1204-1208 ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1209- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1204-1208 ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1209-1210 ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION
THA 		8-97948-023-0 02 1 1211- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION
THA 		1-53366-138-0 02 1 1204-1208 ●
146 SEAT; SPRING,CAB FRT SUSPENSION
THA 		1-53366-138-0 02 1 1209- ● ●
279 BOLT
M12X40 FLANGE THA 		0-28061-240-0 04 1 1204-1208 ●
279 BOLT
M12X40 FLANGE THA 		0-28061-240-0 04 1 1209- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1204-1208 ●
345 CAP; CAB 1-53458-336-3 02 1 1209- ● ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1204-1208 ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1209- ● ●
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1204-1208 ●
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1209- ● ●
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE THA 		0-28661-030-0 02 1 1204-1208 ●
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE THA 		0-28661-030-0 02 1 1209- ● ●
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1204-1208 ●
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1209- ● ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1204-1208 ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1209- ● ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1204-1208 ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1209- ● ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1204-1208 ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1209- ● ●
