5-01 — FRAME AND OTHER PARTS (#73142) — 116 parça

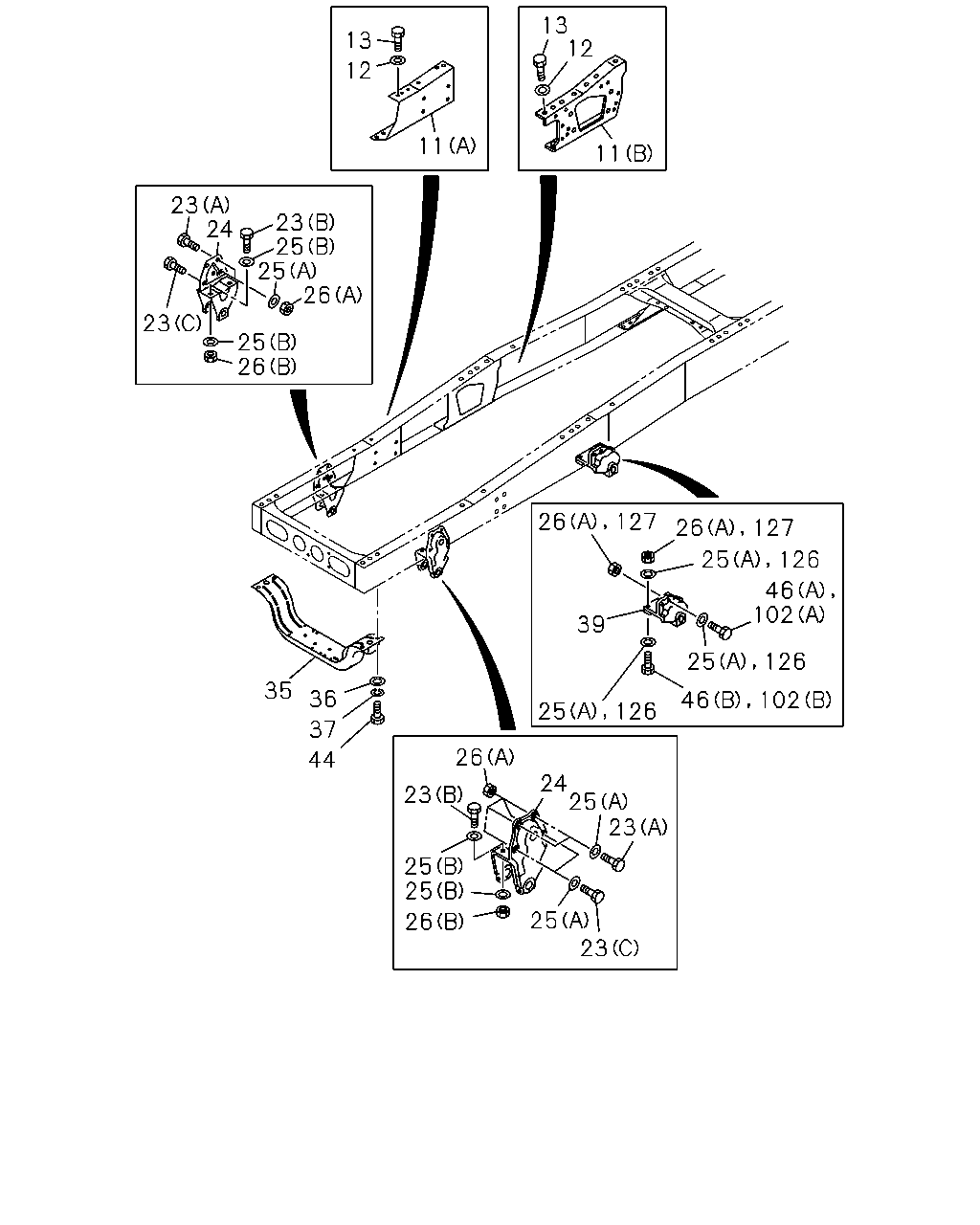

13 12 11 13 12 11 23 23 24 25 25 26 25 23 26 26 127 26 127 126 25 46 102 25 126 39 126 25 46 102 23 26 24 25 23 25 23 26 25 25 44 37 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (B) THA	8-98055-432-1	01	1	1204-	●
11	BRACKET; ENG MTG (B) THA	8-98055-433-0	01	1	1204-	●
11	BRACKET; ENG MTG (B) THA	8-98055-430-1	01	1	1209-		●
11	BRACKET; ENG MTG (B) THA	8-98055-431-0	01	1	1209-		●
11	BRACKET; ENG MTG (A)	8-98059-880-1	01	1	1209-		●
11	BRACKET; ENG MTG (A)	8-98059-881-1	01	1	1209-		●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1204-	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1204-	●
12	WASHER; PL,BRKT,ENG MTG ID=15 THA	8-98010-627-1	16	1	1204-1208	●
12	WASHER; PL,BRKT,ENG MTG ID=15 THA	8-98010-627-1	16	1	1209-	●	●
13	BOLT; BRKT,ENG MTG M14X50 THA	0-20951-450-0	12	1	1209-		●
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	1204-1208	●
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	1209-	●	●
13	BOLT; BRKT,ENG MTG M14X40 THA	0-20951-440-0	12	1	1204-	●
23	BOLT; BRKT,SPR (C) M14X50 THA	8-98097-158-0	04	1	1209-		●
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	1204-1208	●
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	1209-	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1204-1208	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1209-	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1204-	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1204-1208	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1209-	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	08	1	1209-		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1204-1208	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1209-	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	20	1	1204-	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	08	1	1209-		●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	16	1	1204-	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1204-1208	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1209-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1204-1208	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1209-	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1204-1208	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1209-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1204-1208	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1209-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1204-1208	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1209-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1204-1208	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1209-	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1204-1208	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1209-	●	●
46	BOLT; BRKT FIX (A) M14X40 THA	0-20951-440-0	04	1	1204-	●
46	BOLT; BRKT FIX (B) M14X40 THA	8-98097-157-0	04	1	1204-	●
102	BOLT; BRKT,RR SPR (A) M14X50 THA	0-20951-450-0	04	1	1209-		●
102	BOLT; BRKT,RR SPR (B) M14X50 THA	8-98097-158-0	04	1	1209-		●
126	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	12	1	1209-		●
127	NUT; BRKT M14 THA	0-91110-514-0	08	1	1209-		●

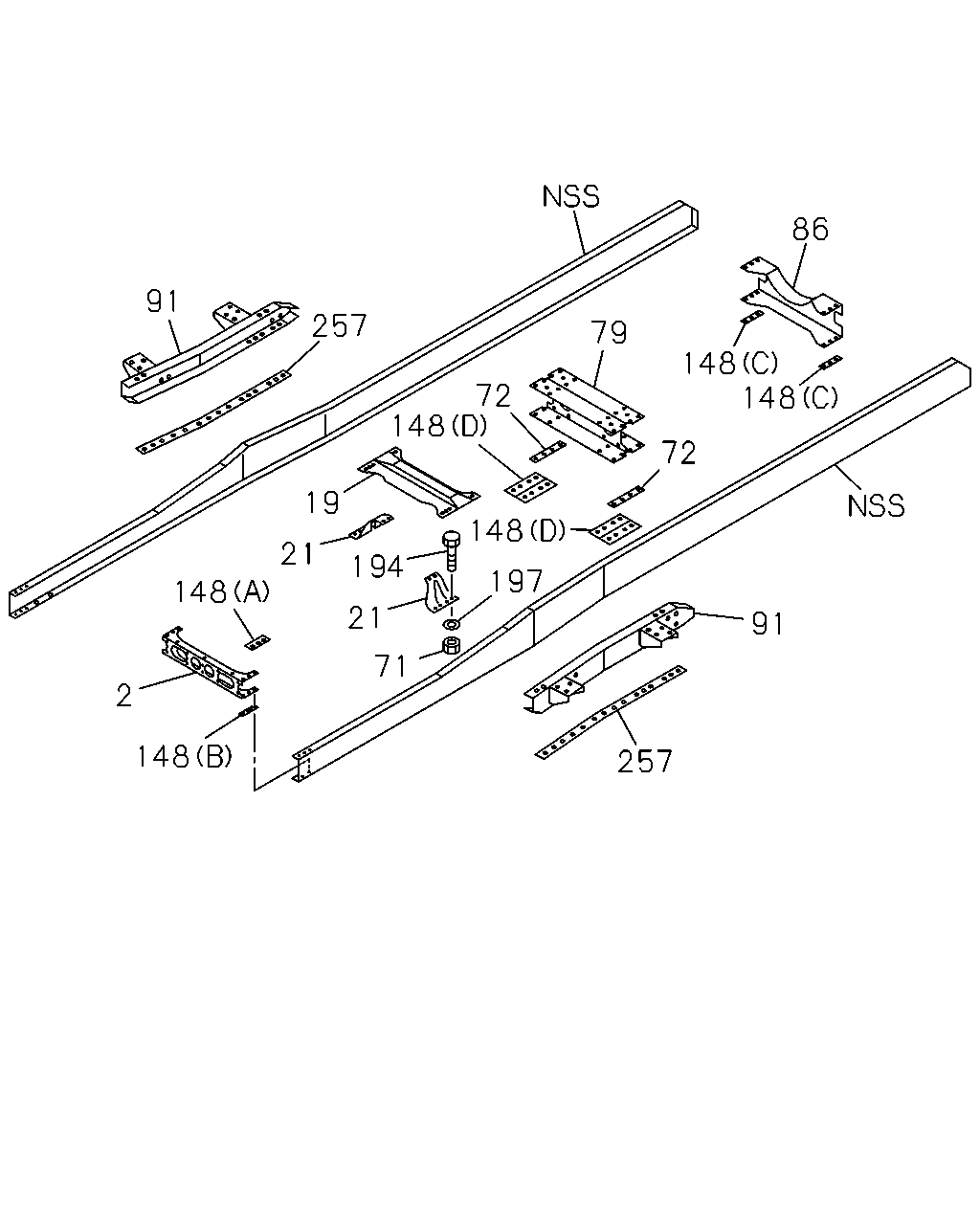

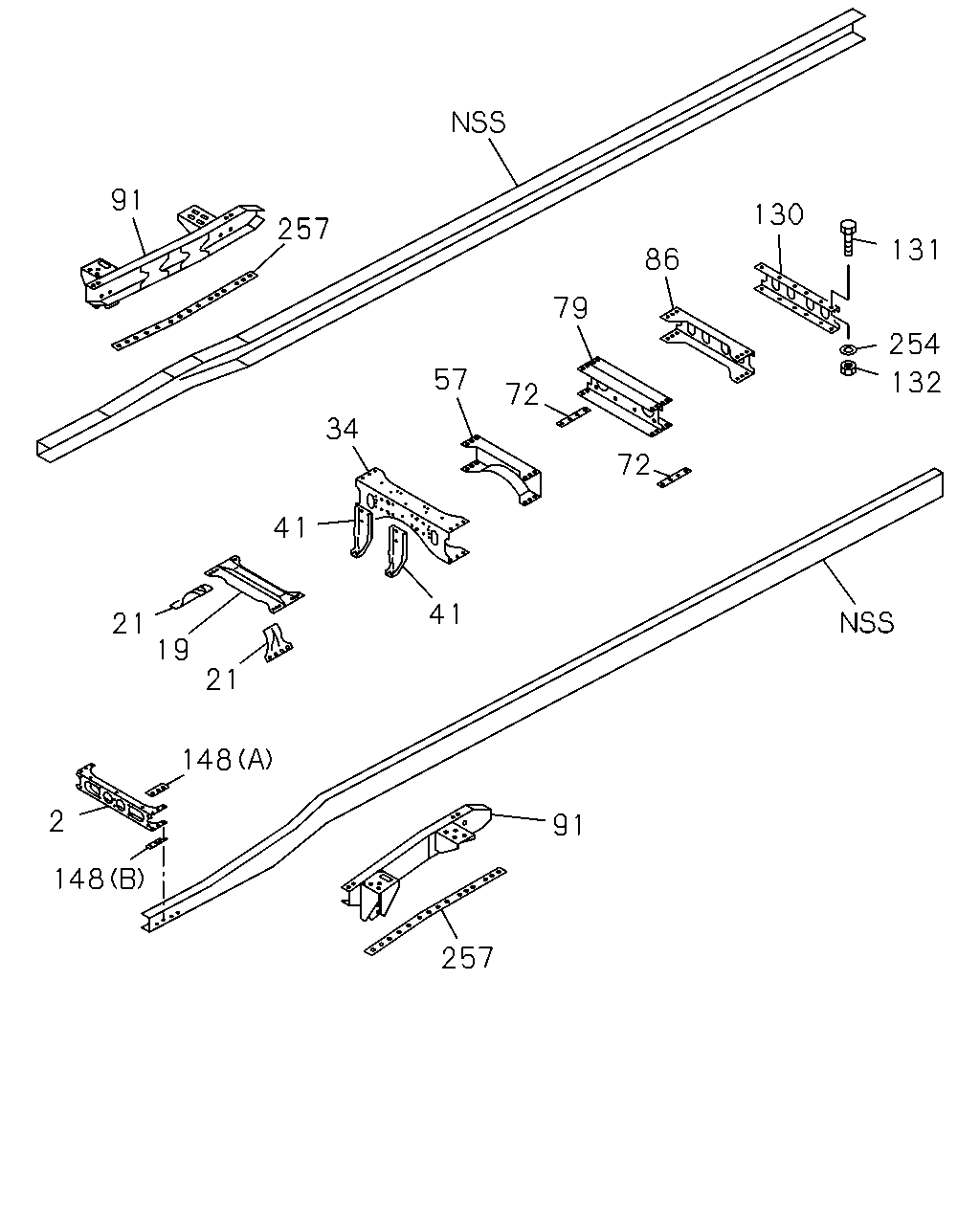

257 91 148 72 79 86 72 148 148 71 21 194 19 21 148 2 91 257 148 148 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1204-1208	●
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1209-	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1209-		●
19	MEMBER; CROSS,2ND	8-98187-273-0	01	1	1204-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1209-		●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1204-	●
71	NUT; 2ND C/MBR	8-98187-193-0	10	1	1204-	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1204-1208	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1209-	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1209-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-729-6	01	1	1204-	●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	1209-		●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1204-	●
91	FRAME ASM; SUB THA	8-97926-367-0	01	1	1209-		●
91	FRAME ASM; SUB THA	8-97926-368-0	01	1	1209-		●
91	FRAME ASM; SUB THA	8-97926-078-0	01	1	1204-	●
91	FRAME ASM; SUB THA	8-97926-079-0	01	1	1204-	●
148	SPACER; C/MBR (D) THA	8-97623-210-0	02	1	1204-	●
148	SPACER; C/MBR (C) THA	1-53168-100-0	02	1	1204-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1204-1208	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1209-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1204-1208	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1209-	●	●
194	BOLT; 2ND C/MBR M14X50 THA	8-98097-158-0	10	1	1204-	●
197	WASHER; PL,2ND C/MBR ID=15 THA	8-98010-627-1	10	1	1204-	●
257	SPACER; UNDER MBR THA	8-97926-059-0	02	1	1209-		●
257	SPACER; UNDER MBR THA	8-97925-805-1	02	1	1204-	●

91 257 131 130 86 79 72 57 34 41 21 19 21 2 148 148 41 72 254 132 91 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1204-1208	●
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1209-	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1209-		●
19	MEMBER; CROSS,2ND	8-98187-273-0	01	1	1204-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1209-		●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1204-	●
34	MEMBER; CROSS,3RD	1-53181-638-3	01	1	1209-		●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97614-136-0	02	1	1209-		●
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1209-		●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1204-1208	●
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1209-	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1209-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-729-6	01	1	1204-	●
86	MEMBER; CROSS,RR SUSP RR IMA	1-53181-757-3	01	1	1209-		●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1204-	●
91	FRAME ASM; SUB THA	8-97926-367-0	01	1	1209-		●
91	FRAME ASM; SUB THA	8-97926-368-0	01	1	1209-		●
91	FRAME ASM; SUB THA	8-97926-078-0	01	1	1204-	●
91	FRAME ASM; SUB THA	8-97926-079-0	01	1	1204-	●
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1209-		●
131	BOLT; END C/MBR M14X40 THA	0-20951-440-0	04	1	1209-		●
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	1209-		●
148	SPACER; C/MBR (D) THA	8-97623-210-0	02	1	1204-	●
148	SPACER; C/MBR (C) THA	1-53168-100-0	02	1	1204-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1204-1208	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1209-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1204-1208	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1209-	●	●
254	WASHER; PL,C/MBR ID=15 THA	8-98010-627-1	04	1	1209-		●
257	SPACER; UNDER MBR THA	8-97926-059-0	02	1	1209-		●
257	SPACER; UNDER MBR THA	8-97925-805-1	02	1	1204-	●

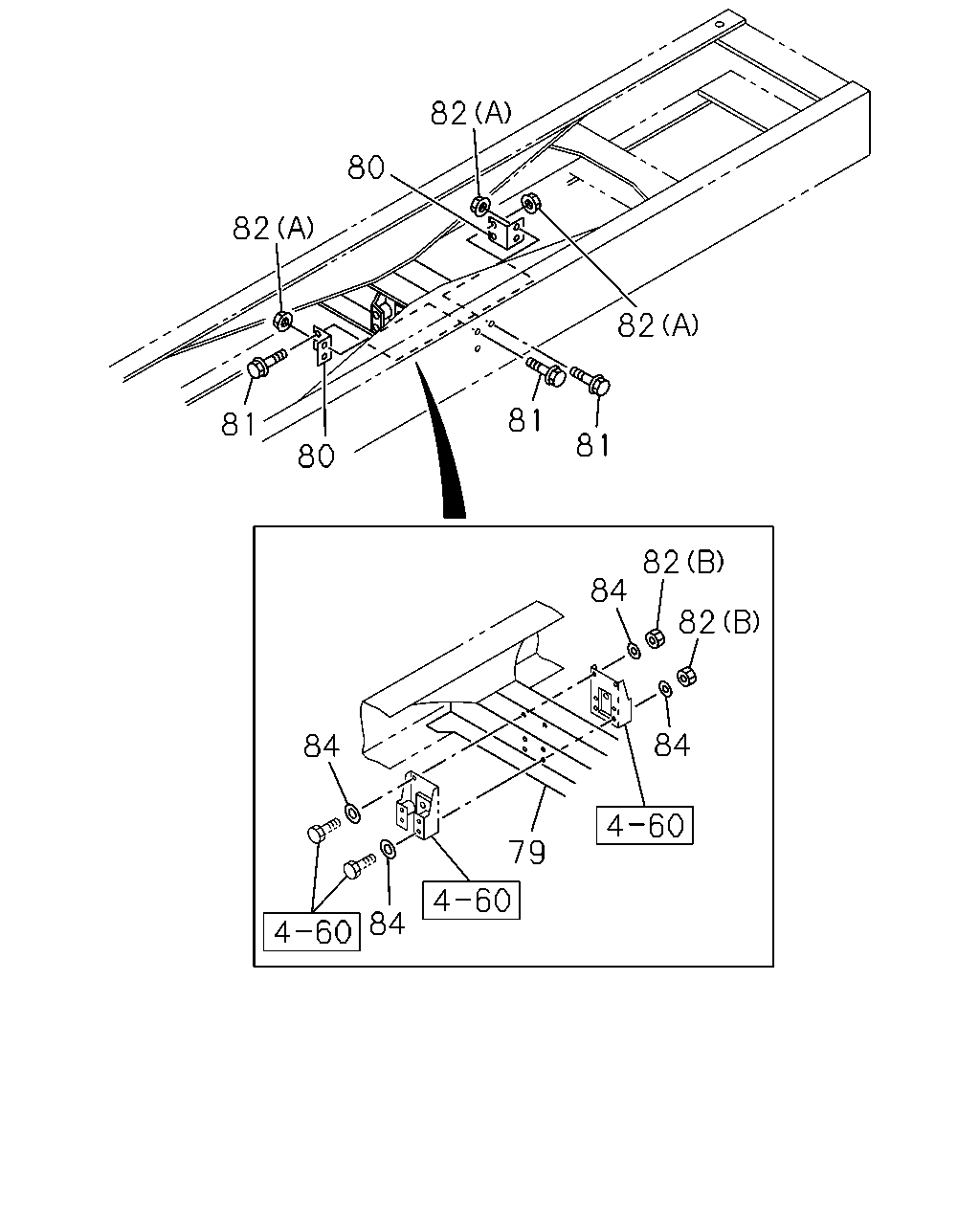

82 80 82 81 82 82 81 81 80 84 82 84 79 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1209-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-729-6	01	1	1204-	●
80	BRACKET; C/MBR THA	1-53167-610-0	04	1	1204-	●
81	BOLT; BRKT M14X35 FLANGE	0-28861-435-0	08	1	1204-	●
81	BOLT; BRKT M14X50 FLANGE	0-28861-450-0	04	1	1204-	●
82	NUT; BRKT (B) M14 THA	0-91110-514-0	04	1	1204-1208	●
82	NUT; BRKT (B) M14 THA	0-91110-514-0	04	1	1209-	●	●
82	NUT; BRKT (A) M14 FLANGE THA	0-91180-214-0	12	1	1204-	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	1204-1208	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	1209-	●	●
