4-60 — REAR SUSPENSION (#73139) — 103 parça

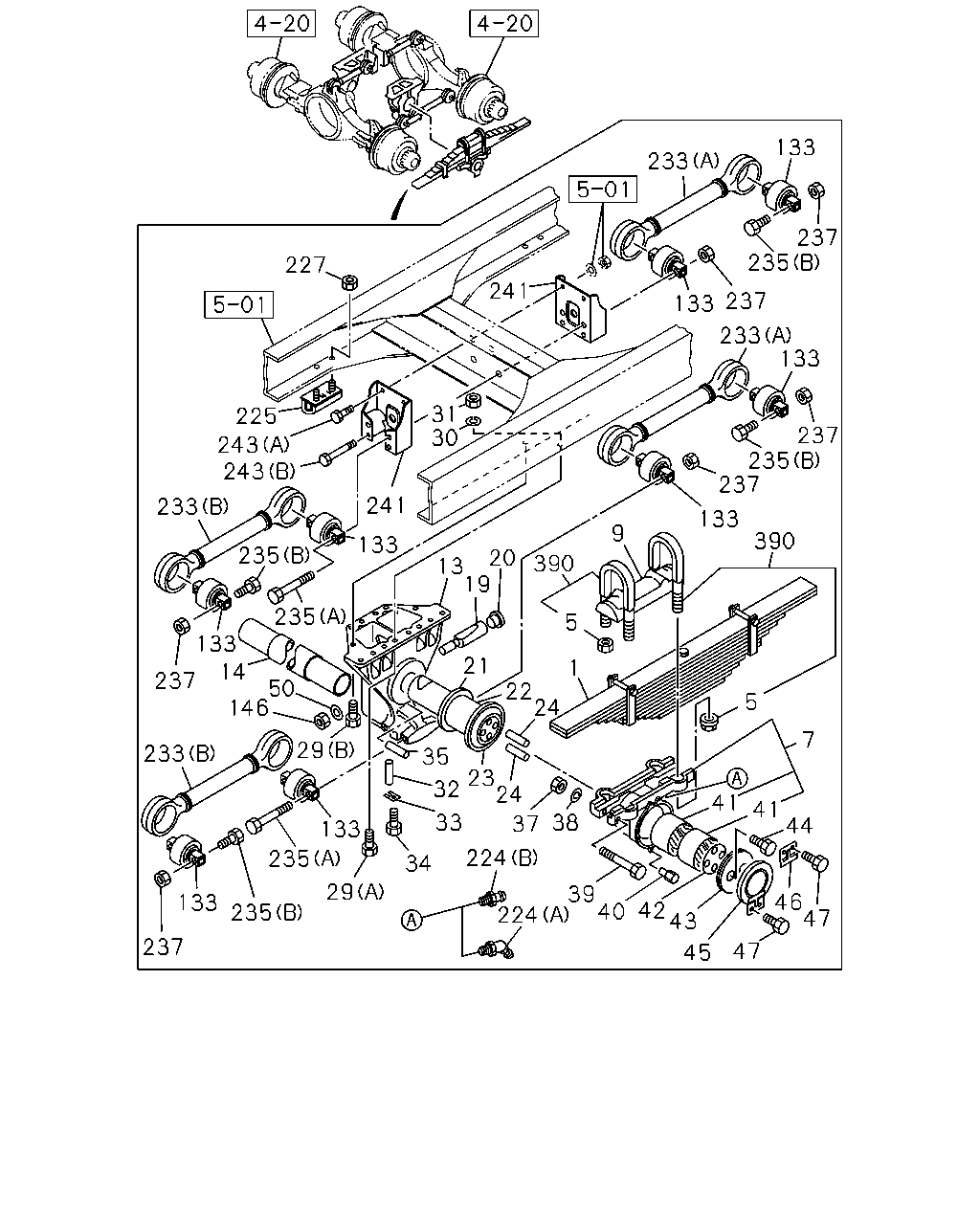

çizim 124828
233 133 237 235 237 133 233 133 237 235 237 133 390 390 20 5 9 5 7 44 41 41 47 46 47 45 43 42 40 39 38 24 1 224 224 37 24 23 33 34 32 35 29 235 235 133 237 233 133 29 146 50 14 237 133 233 243 243 225 235 133 235 241 30 31 227 241 13 19 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97922-084-0 02 1 1204-1205 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		1-51410-269-1 02 1 1206-1208 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		1-51410-269-1 02 1 1209- ● ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE THA 		1-09440-058-0 08 1 1204-1208 ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE THA 		1-09440-058-0 08 1 1209- ● ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 1204-1208 ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 1209- ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1204-1208 ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1209-1412 ● ●
9 PAD; U BOLT,RR SPR
THA 		8-98296-723-0 02 1 1501- ● ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 1204-1208 ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 1209- ● ●
14 PIPE; TRUNNION BRKT 1-51389-060-0 01 1 1204-1208 ●
14 PIPE; TRUNNION BRKT 1-51389-060-0 01 1 1209- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1204-1208 ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1209- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1204-1208 ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1209- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1204-1208 ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1209- ● ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 1204-1208 ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 1209- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1204-1208 ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1209- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1204-1208 ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1209- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1204-1208 ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1209- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1204-1208 ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1209- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1204-1208 ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1209- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1204-1208 ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1209- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1204-1208 ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1209- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1204-1208 ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1209- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 1204-1208 ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 1209- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1204-1208 ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1209- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1204-1208 ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1209- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1204-1208 ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1209- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1204-1208 ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1209- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1204-1208 ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1209- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1210- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1204-1208 ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1209- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1204-1208 ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1209- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1204-1208 ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1209- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1204-1208 ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1209- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1204-1208 ●
46 BRACKET; COVER 1-51387-015-2 02 1 1209- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 1204-1208 ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 1209- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1204-1208 ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1209- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1204-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1204-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1207-1208 ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1207-1208 ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1209- ● ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1209- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 1204-1206 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 THA 		1-51519-113-1 06 1 1204-1206 ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1204-1208 ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1209- ● ●
224 NIPPLE; GREASE,SPR SEAT
(B) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1209- ●
224 NIPPLE; GREASE,SPR SEAT
(A) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1204- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1204-1208 ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1209- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH THA 		8-97916-011-0 02 1 1204-1208 ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH THA 		8-97916-011-0 02 1 1209- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 1204-1208 ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 1209- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1207-1208 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1209- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1207-1208 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1209- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		1-51511-656-0 03 1 1204-1206 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		1-51511-659-0 03 1 1204-1206 ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1204-1208 ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1209- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1204-1208 ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1209- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1204-1208 ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1209- ● ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 1204-1208 ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 1209- ● ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 THA 		0-20951-450-0 02 1 1204-1208 ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 THA 		0-20951-450-0 02 1 1209- ● ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 1204-1208 ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 1209- ● ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1204-1208 ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1209- ● ●
