4-50 — FRONT SUSPENSION (#73137) — 63 parça

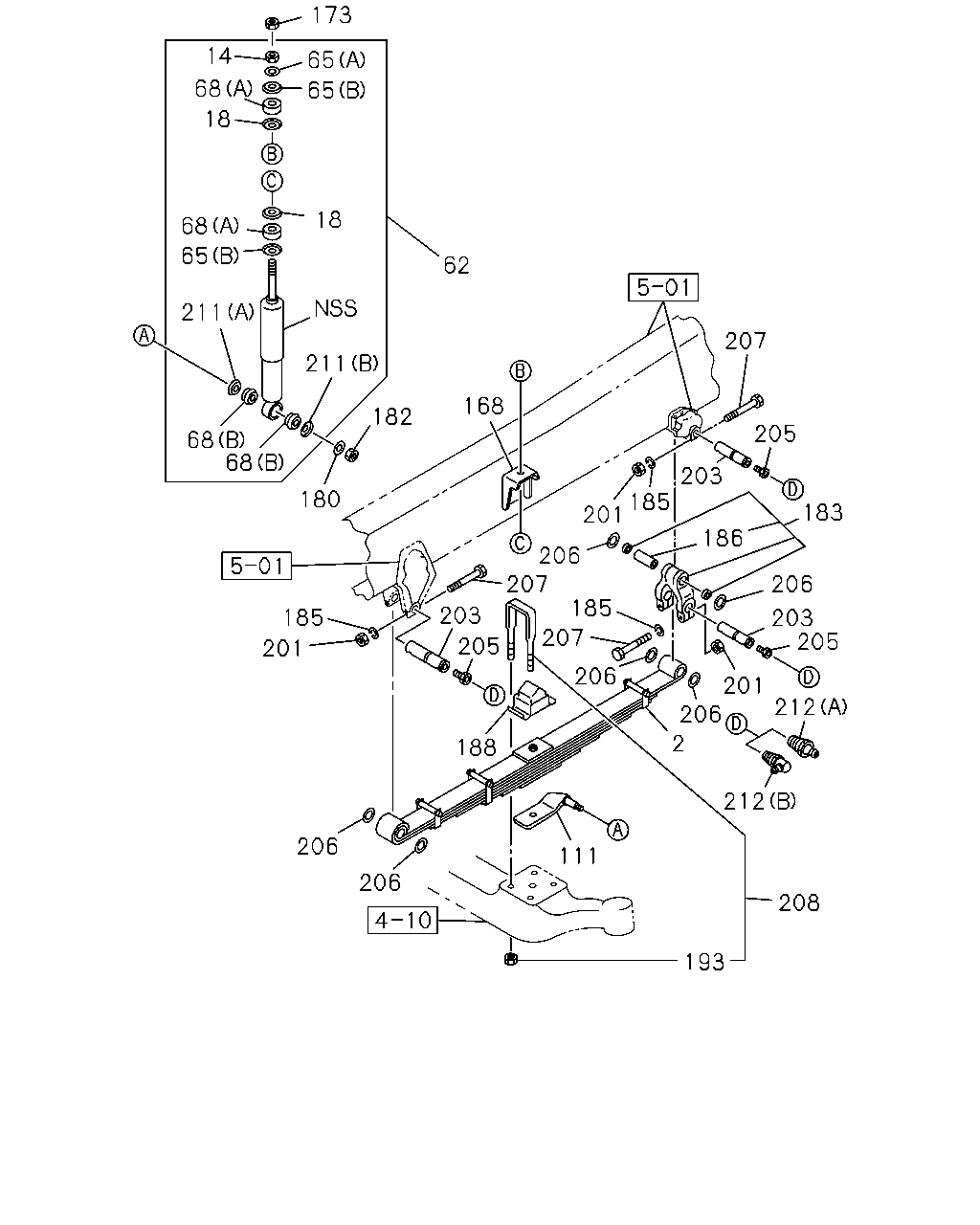

çizim 194236
173 65 14 68 65 18 18 68 62 211 211 68 68 182 168 207 205 203 201 185 206 207 203 185 201 205 188 206 206 111 193 208 212 206 2 212 201 203 205 206 183 186 185 207 206 180 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98053-737-0 01 1 1204- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98137-215-0 01 1 1204- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		1-51130-961-0 01 1 1209- ●
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 1204-1208 ●
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 1209- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1204-1208 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1209- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1204-1208 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1209- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-154-0 02 1 1204-1208 ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-154-0 02 1 1209- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1204-1208 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1209- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1204-1208 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1209- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1204-1208 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1209- ● ●
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 1204-1208 ●
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 1209- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1204-1208 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1209- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1204-1208 ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1209- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1204-1208 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1209- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1204-1208 ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1209- ● ●
180 WASHER; PL,PIN
ID=21 THA 		0-91610-520-0 02 1 1204-1208 ●
180 WASHER; PL,PIN
ID=21 THA 		0-91610-520-0 02 1 1209- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1204-1208 ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1209- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1204-1208 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1209- ● ●
185 WASHER; LK,PIN
ID=12.2 THA 		0-91510-612-0 12 1 1204-1208 ●
185 WASHER; LK,PIN
ID=12.2 THA 		0-91510-612-0 12 1 1209- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1204-1208 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1209- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-085-2 02 1 1209- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1204- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1204-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-1208 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1209- ● ●
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1204-1208 ●
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1209- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1204-1208 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1209- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1204-1208 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1209- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1204-1208 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1209- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1204-1208 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1209- ● ●
208 U-BOLT SET; FRT SPRING
L=240 		1-87870-376-2 04 1 1209- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1204-1206 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1204-1208 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1209- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1204-1208 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1209- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1204-1208 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1209- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW THA 		0-90301-610-0 04 1 1204-1208 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW THA 		0-90301-610-0 04 1 1209- ● ●
