4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#73134) — 144 parça

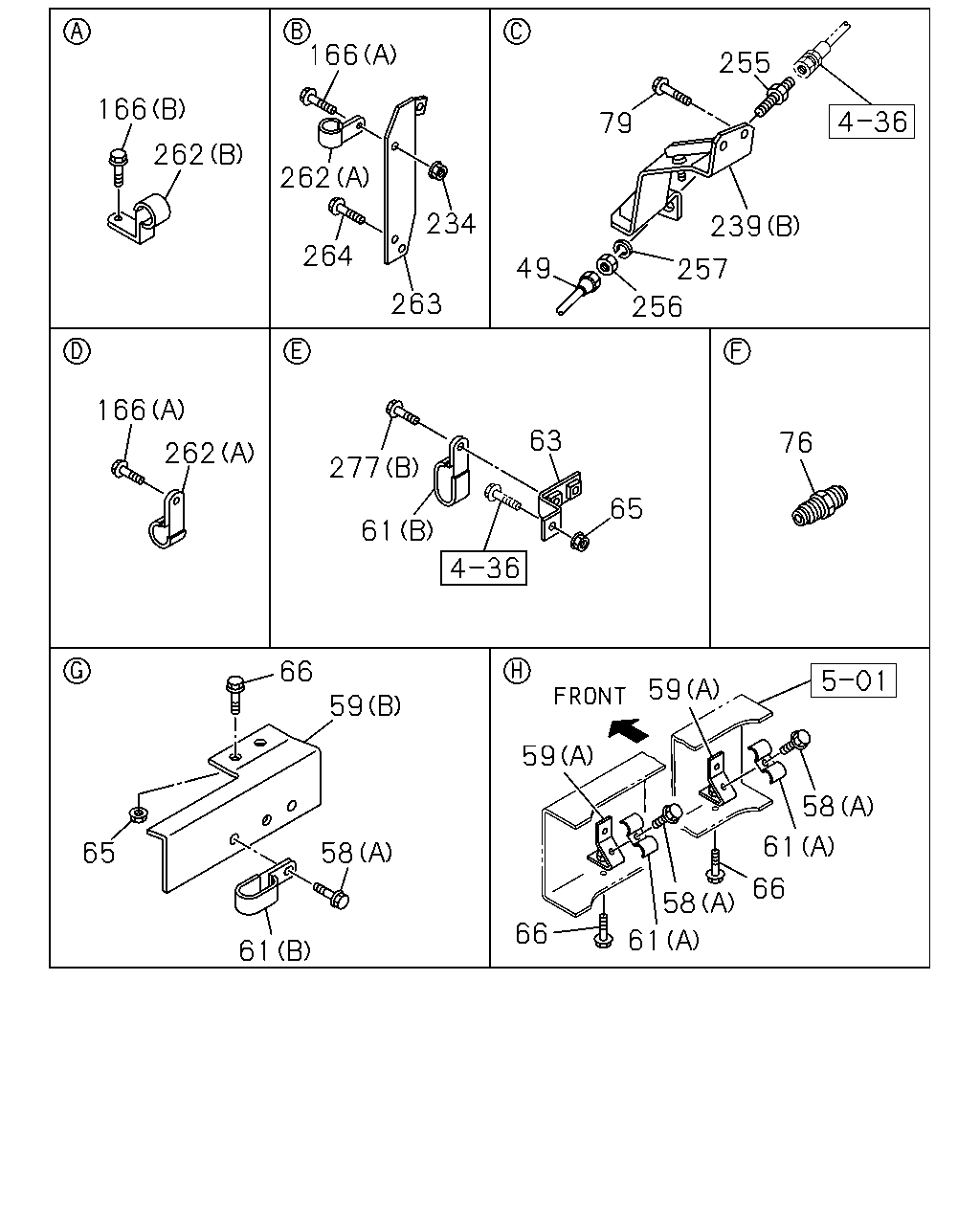

166 166 79 255 239 257 256 49 263 262 234 264 166 277 65 63 61 262 262 66 59 59 58 59 65 61 66 61 61 66 58 58 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1204-1208	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1209-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1204-1208	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1209-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1204-1208	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1209-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97618-675-0	01	1	1204-1208	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97618-675-0	01	1	1209-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1204-1208	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1209-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1204-1208	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1209-	●	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1204-1208	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1209-	●	●
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1204-1208	●
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1209-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE THA	0-28650-820-0	02	1	1204-1208	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE THA	0-28650-820-0	02	1	1209-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1204-1208	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1209-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1204-1208	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1209-	●	●
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1204-1208	●
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1209-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1204-1208	●
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1209-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1204-1208	●
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1209-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1204-1208	●
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1209-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1204-1208	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1209-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1204-1208	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1209-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1204-1208	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1209-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1204-1208	●
256	NUT; UNION M22	0-91111-522-0	01	1	1204-1208	●
256	NUT; UNION M22	0-91111-522-0	01	1	1209-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1209-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1204-1208	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1204-1208	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1209-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1209-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1204-1208	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1209-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1204-1208	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1209-	●	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1204-1208	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1209-	●	●
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1204-1208	●
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1209-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1204-1208	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1209-	●	●

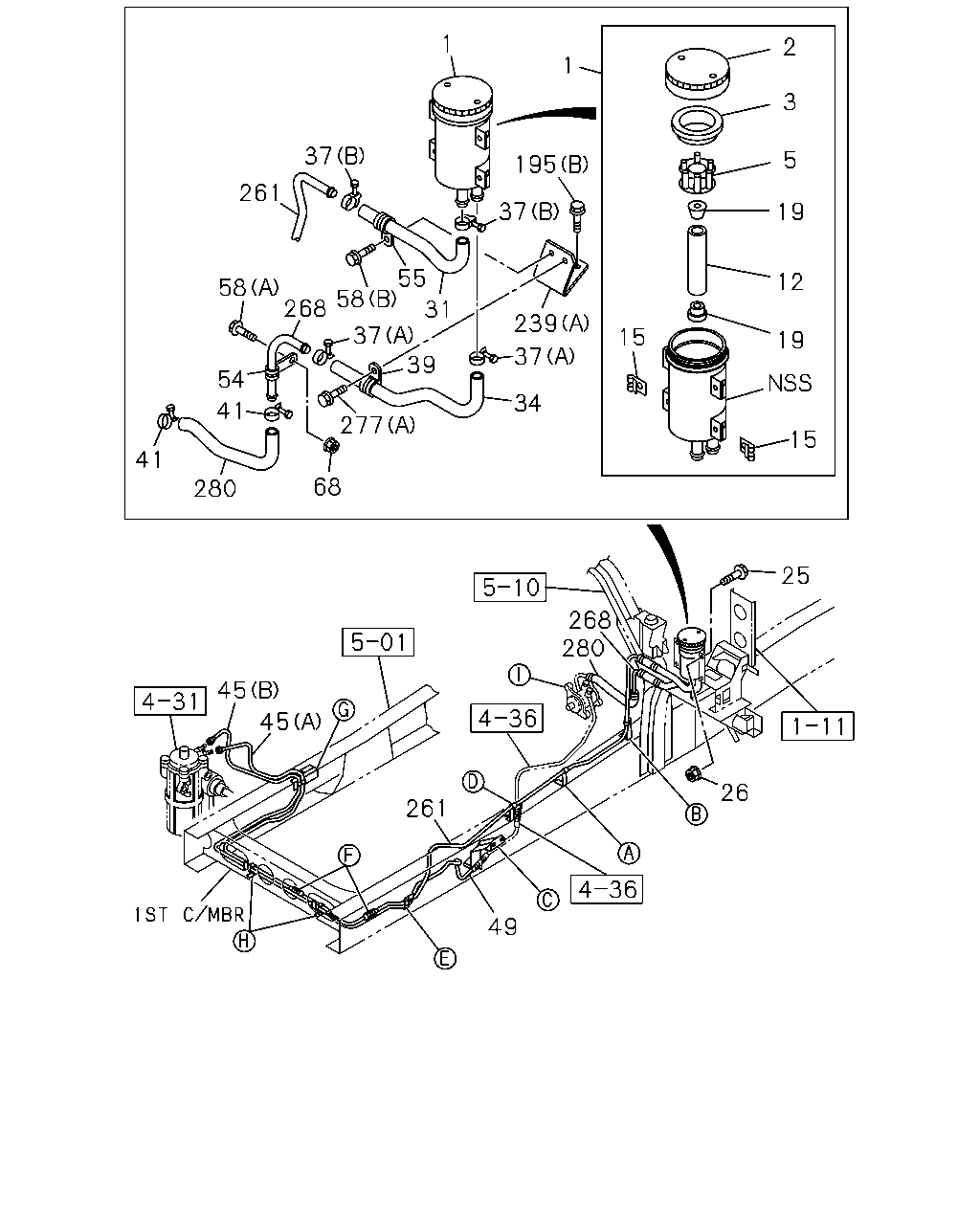

2 3 5 19 12 19 15 15 1 195 37 239 37 34 1 37 261 55 31 58 37 39 277 268 58 54 41 68 280 41 25 26 49 261 280 268 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1204-1208	●
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1209-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1204-1208	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1209-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1204-1208	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1209-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1204-1208	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1209-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1204-1208	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1209-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1204-1208	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1209-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1204-1208	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1209-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1204-1208	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1209-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	04	1	1204-1208	●
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	04	1	1209-	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1204-1208	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1209-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1204-1208	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1209-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1204-1208	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1209-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1204-1208	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1209-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1204-1208	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1209-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1204-1208	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1209-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1204-1208	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1209-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1204-1208	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1209-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1204-1208	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1209-	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1204-1208	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1209-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1204-1208	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1209-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1204-1208	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1209-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1204-1208	●
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1209-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1204-1208	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1209-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1204-1208	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1209-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1204-1208	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1209-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1204-1208	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1209-	●	●
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1204-1208	●
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1209-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1204-1208	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1209-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1204-1208	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1209-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1204-1208	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1209-	●	●

41 280 41 157 195 266 257 256 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1204-1208	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1209-	●	●
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1204-1208	●
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1209-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1204-1208	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1209-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1204-1208	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1209-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1204-1208	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1209-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1204-1208	●
256	NUT; UNION M22	0-91111-522-0	01	1	1204-1208	●
256	NUT; UNION M22	0-91111-522-0	01	1	1209-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1209-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1204-1208	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1204-1208	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1209-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1209-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1204-1208	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1209-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1204-1208	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1209-	●	●
