3-78 — FIXING PARTS; AIR PIPING (#73122) — 248 parça

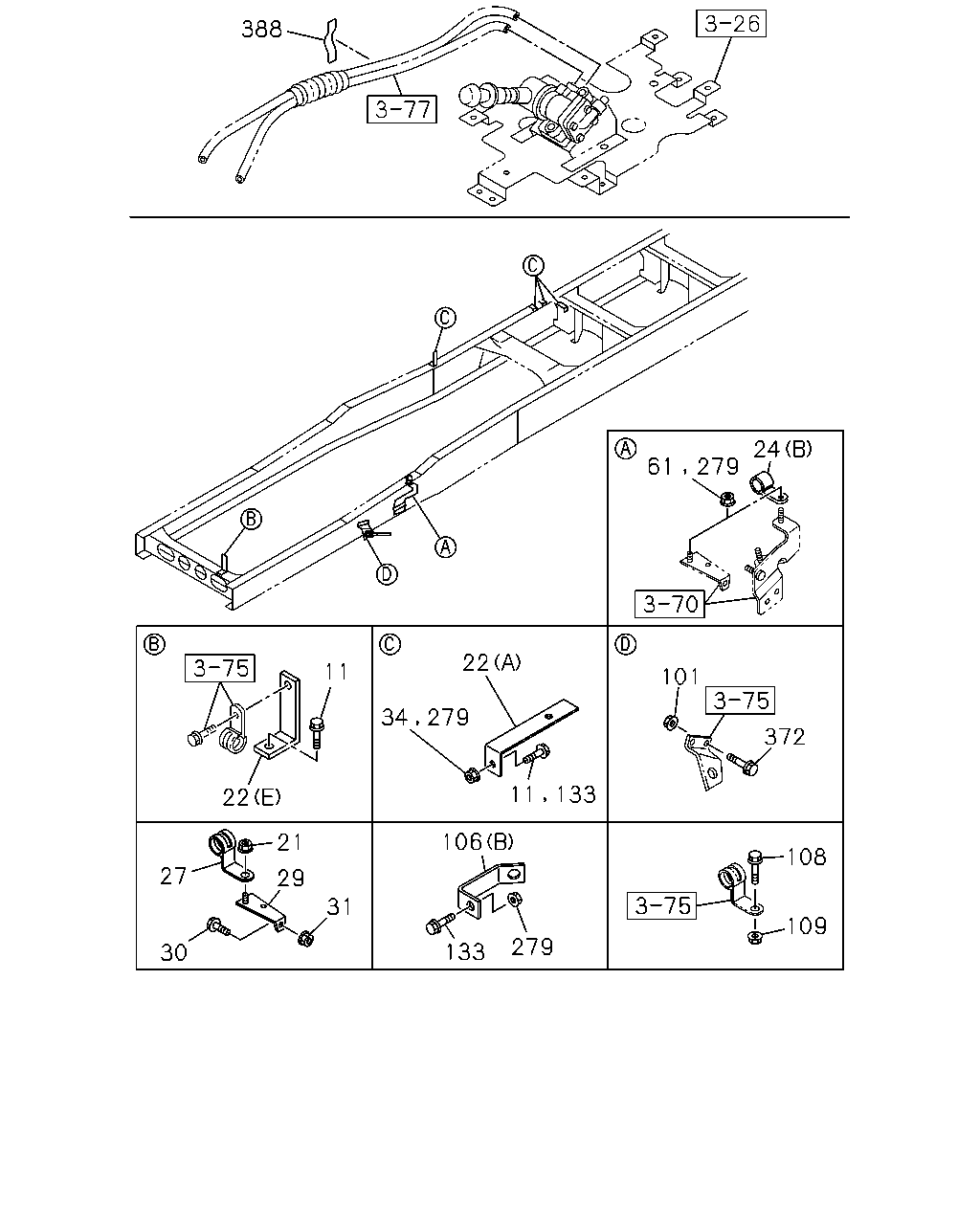

çizim 121747
388 61 279 24 11 22 22 34 279 11 133 101 372 21 27 29 31 30 106 133 279 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 06 1 1204- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1204- ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1207- ●
22 BRACKET; CLIP
(A) L=90 		1-47477-755-1 01 1 1209- ●
22 BRACKET; CLIP
(H) L=150 		1-47471-217-0 02 1 1209- ●
22 BRACKET; CLIP
(I) THA 		1-34656-009-0 01 1 1209- ●
22 BRACKET; CLIP
WHEEL BASE 4700MM<47W> (D) 		1-47471-274-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(D) 		1-47471-274-0 01 1 1209- ● ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1204- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 1204- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1204-1206 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1204-1206 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1207-1208 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1207-1208 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1209- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1209- ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1204- ●
22 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1209- ● ●
22 BRACKET; CLIP
(B) THA 		8-97925-742-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(B) THA 		8-97925-742-0 01 1 1209- ● ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1204-1208 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1209- ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1204-1208 ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1209- ● ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1204-1208 ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1209- ● ●
29 BRACKET; CLIP,AIR PIPE 8-97609-096-0 01 1 1204-1208 ●
29 BRACKET; CLIP,AIR PIPE 8-97609-096-0 01 1 1209- ● ●
30 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
30 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
31 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
31 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
61 NUT; CLIP FIX
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
61 NUT; CLIP FIX
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
101 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
101 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1209- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1209- ●
106 BRACKET; TUBE CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1209- ●
106 BRACKET; TUBE CLIP
(G) THA 		1-47477-694-0 01 1 1209- ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 02 1 1204- ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-537-0 01 1 1204-1208 ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-537-0 01 1 1209- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1204-1208 ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1209- ● ●
106 BRACKET; TUBE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 06 1 1204- ●
106 BRACKET; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 04 1 1204- ●
108 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ●
108 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 03 1 1204-1208 ●
108 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 03 1 1209- ● ●
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ●
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1208 ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1209- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1209- ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1204-1208 ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ● ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 03 1 1204-1208 ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 03 1 1209- ● ●
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 05 1 1204- ●
133 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 04 1 1204- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 07 1 1209- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
279 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 10 1 1204- ●
279 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 08 1 1204- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1204-1208 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1209- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1204-1208 ●
388 SEAL
100X40 		1-72498-022-1 03 1 1209- ● ●

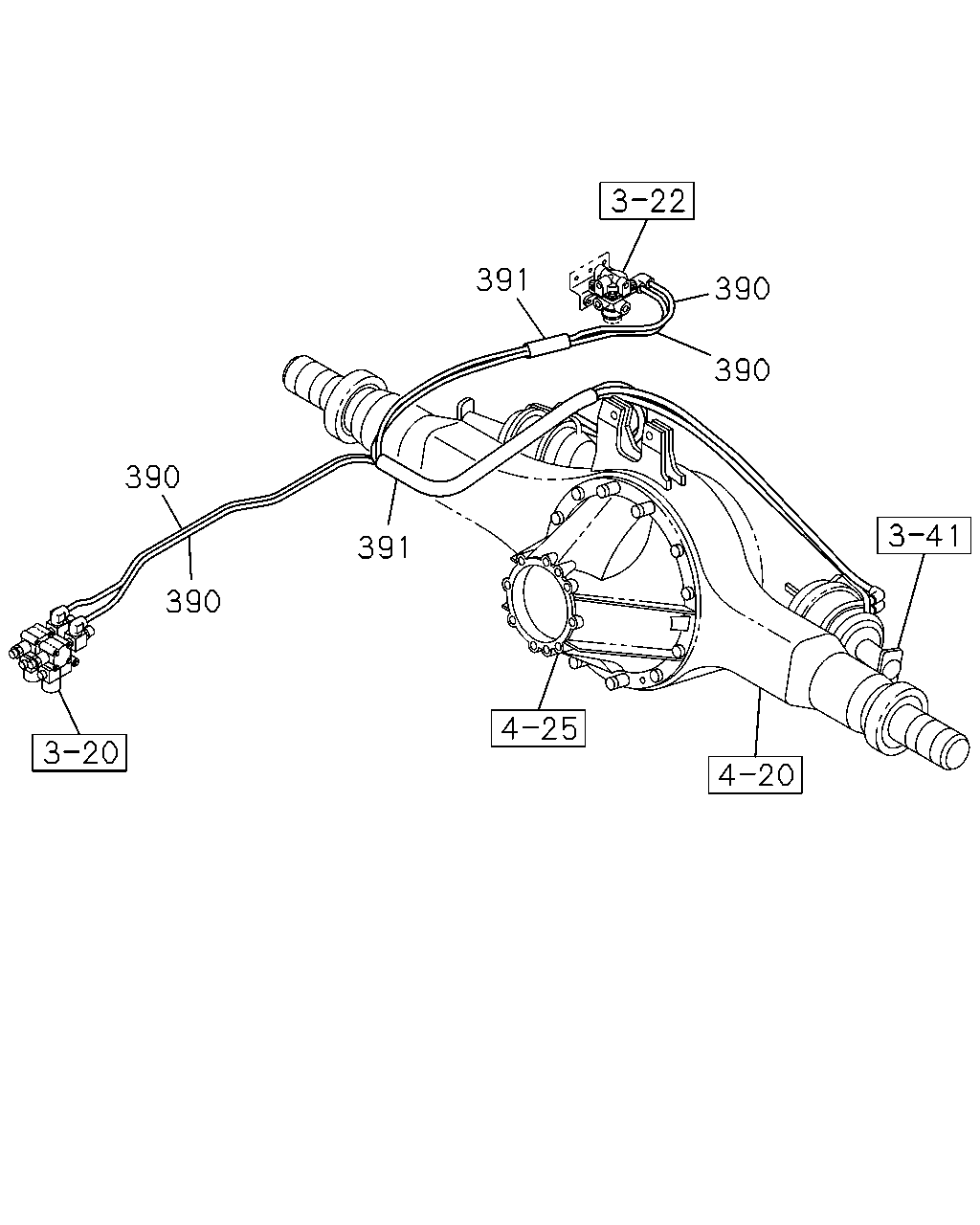

çizim 194228
390 391 390 390 391 390
BalonParca AdiParca NoAdetTipApplied Date A B
390 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 04 1 1204- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 04 1 1204- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 01 1 1204- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 01 1 1204- ●

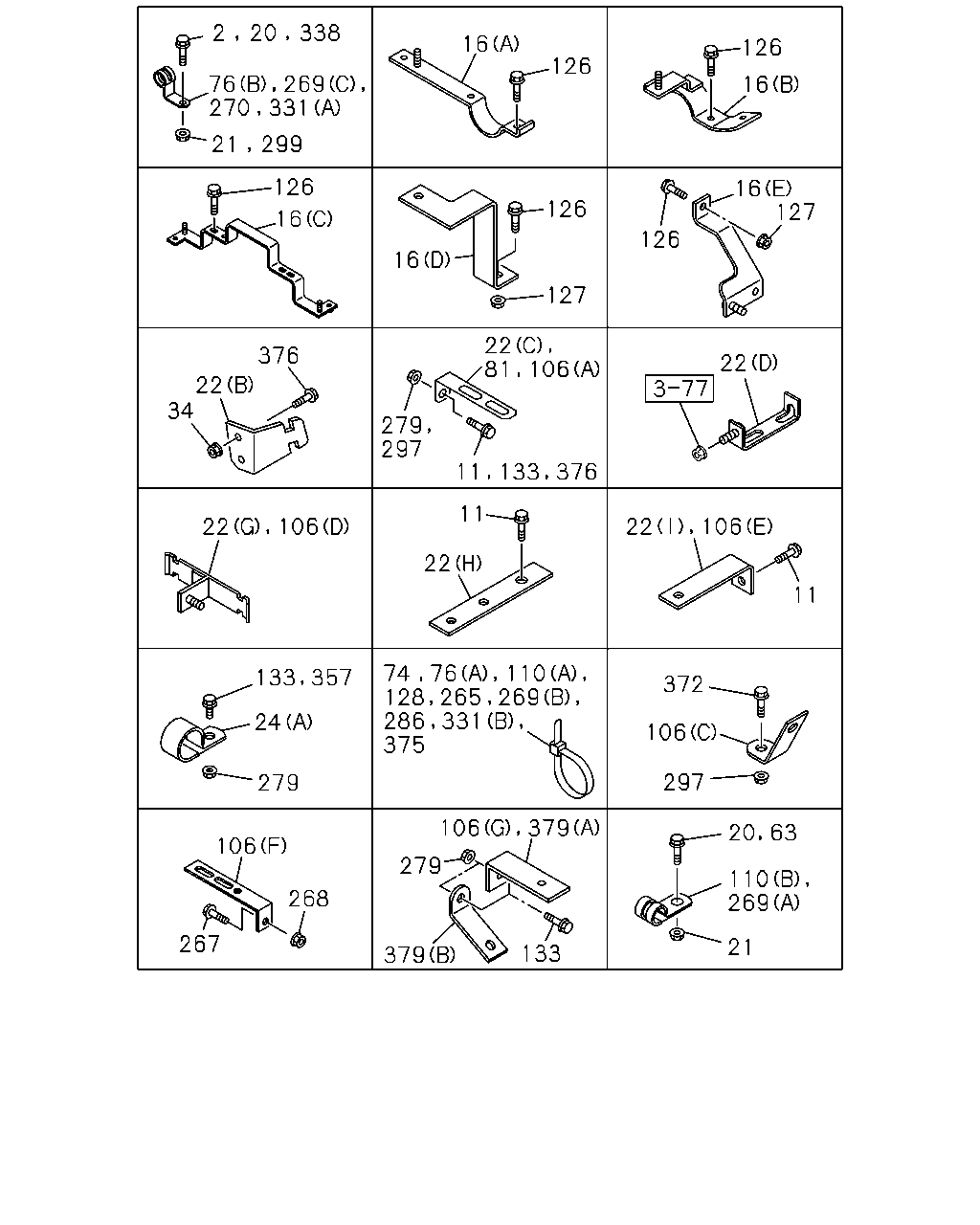

çizim 194229
2 20 338 76 269 270 331 21 299 16 126 126 16 126 16 16 126 127 126 16 127 376 22 34 22 279 81 106 297 133 11 376 22 22 106 22 11 22 106 133 24 279 74 357 76 110 128 265 269 286 331 375 372 106 297 106 267 268 279 379 106 20 63 110 269 11 379 133 21
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 03 1 1204-1208 ●
2 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 03 1 1209- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 06 1 1204- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1204- ●
16 BRACKET; PIPE CLIP
(A) THA 		1-47479-856-0 02 1 1204-1208 ●
16 BRACKET; PIPE CLIP
(A) THA 		1-47479-856-0 02 1 1209- ● ●
16 BRACKET; PIPE CLIP
(B) THA 		1-47479-857-0 02 1 1204-1208 ●
16 BRACKET; PIPE CLIP
(B) THA 		1-47479-857-0 02 1 1209- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1204-1208 ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1209- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1204-1208 ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1209- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1204-1208 ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1209- ● ●
20 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1208 ●
20 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1209- ● ●
20 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
20 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1207- ●
22 BRACKET; CLIP
(A) L=90 		1-47477-755-1 01 1 1209- ●
22 BRACKET; CLIP
(H) L=150 		1-47471-217-0 02 1 1209- ●
22 BRACKET; CLIP
(I) THA 		1-34656-009-0 01 1 1209- ●
22 BRACKET; CLIP
WHEEL BASE 4700MM<47W> (D) 		1-47471-274-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(D) 		1-47471-274-0 01 1 1209- ● ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1204- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 1204- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1204-1206 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 1204-1206 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1207-1208 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1207-1208 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1209- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1209- ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1204- ●
22 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1209- ● ●
22 BRACKET; CLIP
(B) THA 		8-97925-742-0 01 1 1204-1208 ●
22 BRACKET; CLIP
(B) THA 		8-97925-742-0 01 1 1209- ● ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1204-1208 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1209- ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1204-1208 ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1209- ● ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
63 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1208 ●
63 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1209- ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1204- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1204-1208 ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1209- ● ●
76 CLIP; NYLON TUBE
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1204-1208 ●
76 CLIP; NYLON TUBE
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1209- ● ●
76 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1204-1208 ●
76 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1209- ● ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1204-1208 ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1209- ● ●
81 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 1204- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1209- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1209- ●
106 BRACKET; TUBE CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1209- ●
106 BRACKET; TUBE CLIP
(G) THA 		1-47477-694-0 01 1 1209- ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 02 1 1204- ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-537-0 01 1 1204-1208 ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-537-0 01 1 1209- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1204-1208 ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1209- ● ●
106 BRACKET; TUBE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 06 1 1204- ●
106 BRACKET; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 04 1 1204- ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1204-1208 ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1209- ● ●
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 10 1 1204- ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 09 1 1204-1208 ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 09 1 1209- ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 1209- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE THA 		0-28050-812-0 04 1 1204-1208 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE THA 		0-28050-812-0 04 1 1209- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1204-1208 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1209- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 1204-1208 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 1209- ● ●
127 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
127 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 07 1 1209- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1204- ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1208 ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1209- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1209- ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1204-1208 ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ● ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 03 1 1204-1208 ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 03 1 1209- ● ●
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 05 1 1204- ●
133 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 04 1 1204- ●
265 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1204- ●
267 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204- ●
268 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=23 L=27 		1-09700-946-0 01 1 1209- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 02 1 1209- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1209- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 12 1 1209- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1204-1208 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1209- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1204-1208 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1209- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1204- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 1204- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 20 1 1204- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1204-1208 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1204-1208 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1209- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1209- ●
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (B) L=350 		1-09707-183-0 21 1 1204- ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1204-1208 ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1209- ● ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 07 1 1209- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
279 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 10 1 1204- ●
279 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 08 1 1204- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1209- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1204- ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ●
299 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
299 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
331 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1204-1208 ●
331 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1209- ● ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1204-1208 ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1209- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
338 BOLT; PIPE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
357 BOLT; CLIP FIX
ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA 		0-28050-810-0 01 1 1204- ●
357 BOLT; CLIP FIX
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA 		0-28050-810-0 02 1 1204-1208 ●
357 BOLT; CLIP FIX
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA 		0-28050-810-0 02 1 1209- ●
357 BOLT; CLIP FIX
M8X10 FLANGE THA 		0-28050-810-0 02 1 1209- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1204-1208 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1209- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1204-1208 ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1209- ● ●
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204- ●
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
379 BRACKET; NYLON TUBE
(B) 		1-47477-571-3 01 1 1209- ●
379 BRACKET; NYLON TUBE
(A) L=55 B=25 		1-47478-439-0 01 1 1204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
