◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#73121) — 155 parça

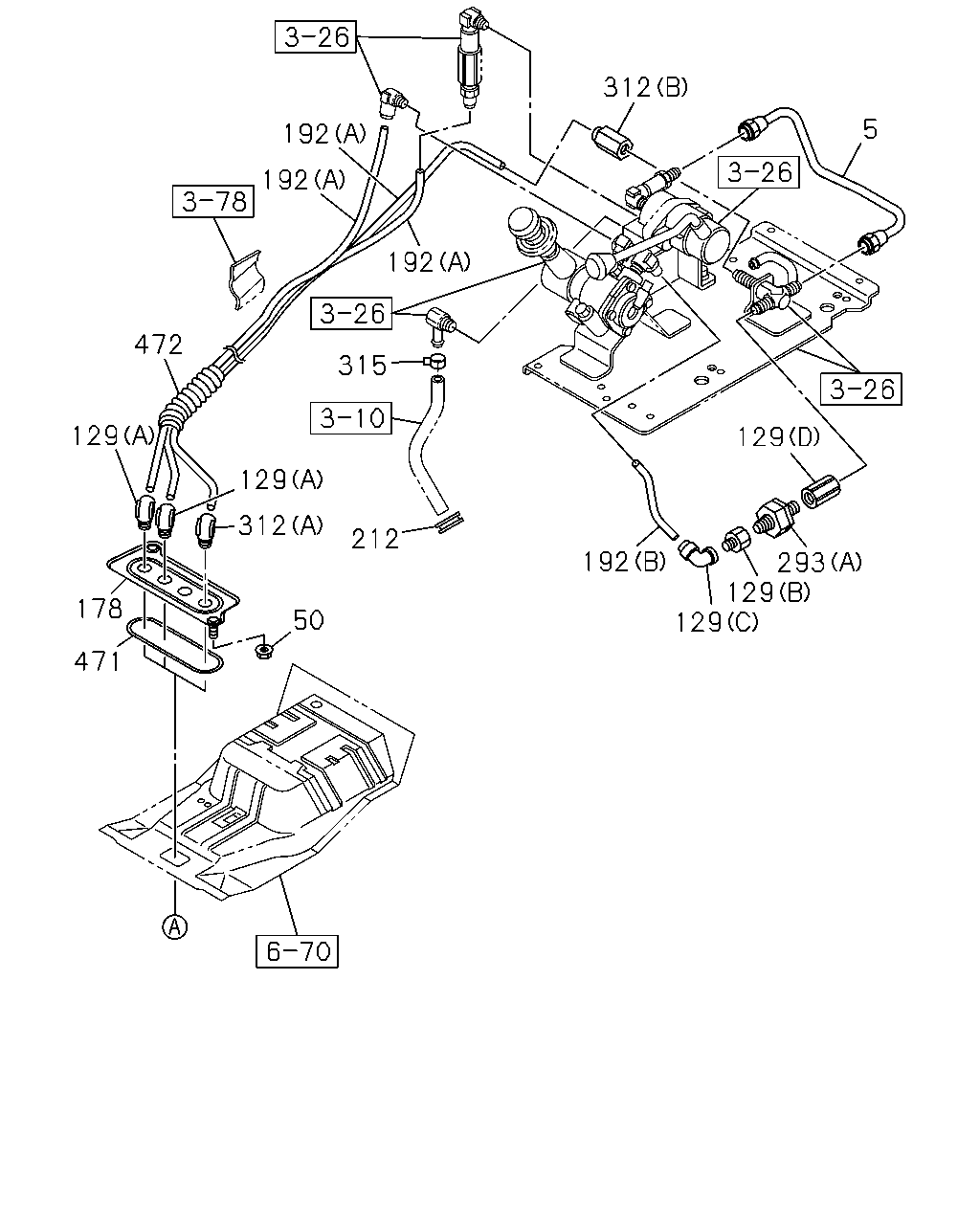

çizim 121838
192 192 192 312 315 212 129 50 192 129 293 129 129 5 472 129 312 178 471
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV
THA 		8-97610-775-1 01 1 1204- ●
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT THA 		1-09660-882-0 01 1 1204- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1204-1208 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1209- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1204- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1204- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1209- ●
178 BRACKET; UNION 8-98017-056-1 01 1 1204- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1204- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1204- ●
293 VALVE; CHECK
(B) 		1-48320-013-2 01 1 1204- ●
293 VALVE; CHECK
(A) 		1-48410-479-1 01 1 1204- ●
312 CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1204- ●
312 CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1204- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1209- ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1204- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1204-1208 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1209- ● ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 01 1 1209- ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 02 1 1204- ●

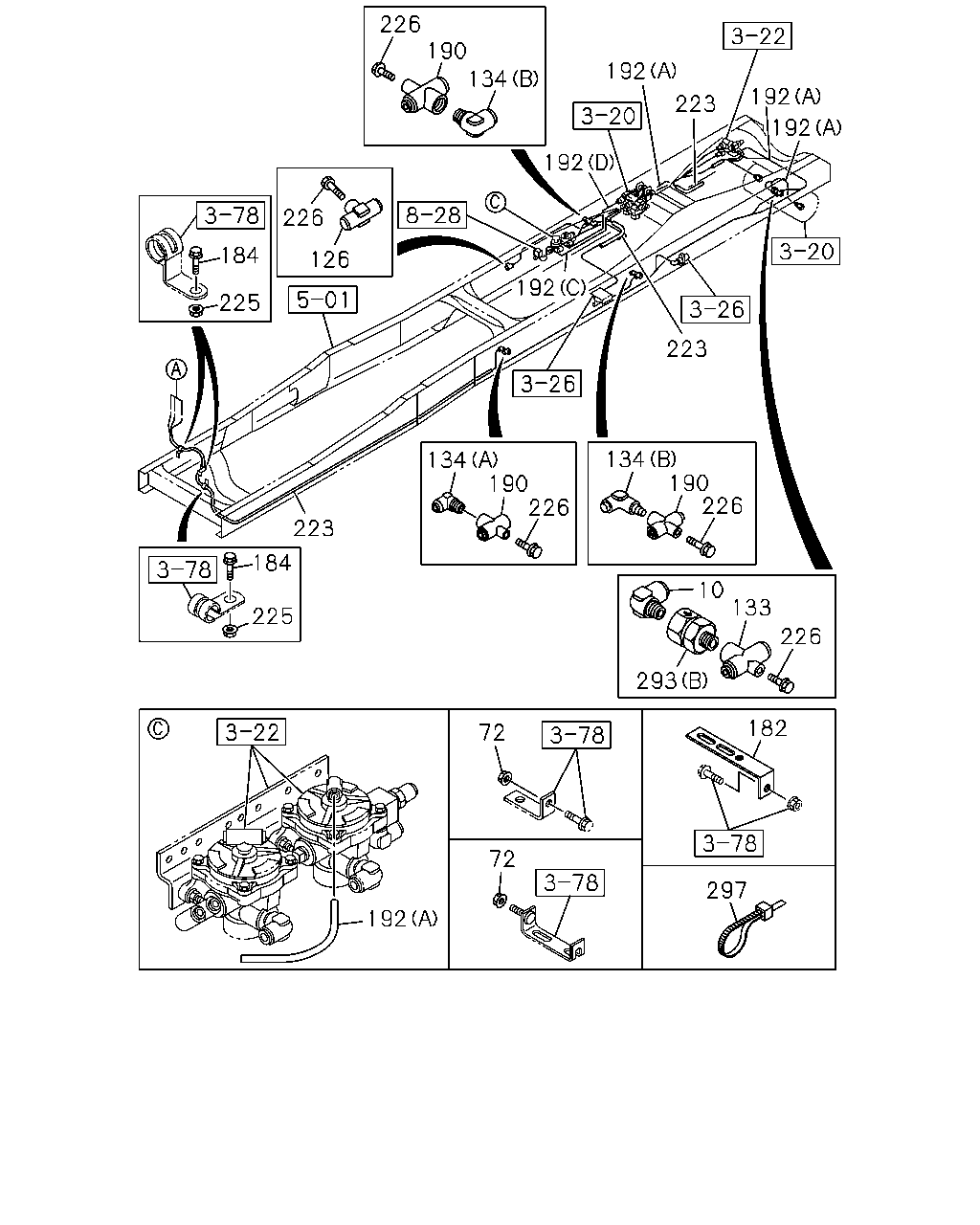

çizim 122257
226 134 190 184 225 126 226 192 192 223 192 192 223 192 223 225 184 192 72 72 297 182 293 226 133 10 134 226 190 134 226 190
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1204- ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 07 1 1204- ●
126 UNION; NYLON TUBE
WHEEL BASE 4700MM<47W> DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1204- ●
133 UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1204- ●
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 02 1 1204- ●
134 CONNECTOR
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1204- ●
182 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 01 1 1204- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1208 ●
184 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 03 1 1209- ● ●
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY THA 		1-09661-129-0 02 1 1204- ●
190 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 1204- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1204- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1204-1208 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1204-1208 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA 		1-87411-026-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 THA 		1-87411-028-0 AR 1 1204-1208 ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 THA 		1-87411-028-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1204-1208 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1209- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 1204-1208 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 1209- ● ●
225 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
225 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
226 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 02 1 1204- ●
226 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA 		0-28650-820-0 02 1 1204- ●
226 BOLT; UNION
WHEEL BASE 4700MM<47W> M8X20 FLANGE THA 		0-28650-820-0 01 1 1204- ●
226 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA 		0-28650-820-0 01 1 1204- ●
293 VALVE; CHECK
(B) 		1-48320-013-2 01 1 1204- ●
293 VALVE; CHECK
(A) 		1-48410-479-1 01 1 1204- ●
297 CLIP; BAND
L=350 		1-09707-183-0 01 1 1204- ●

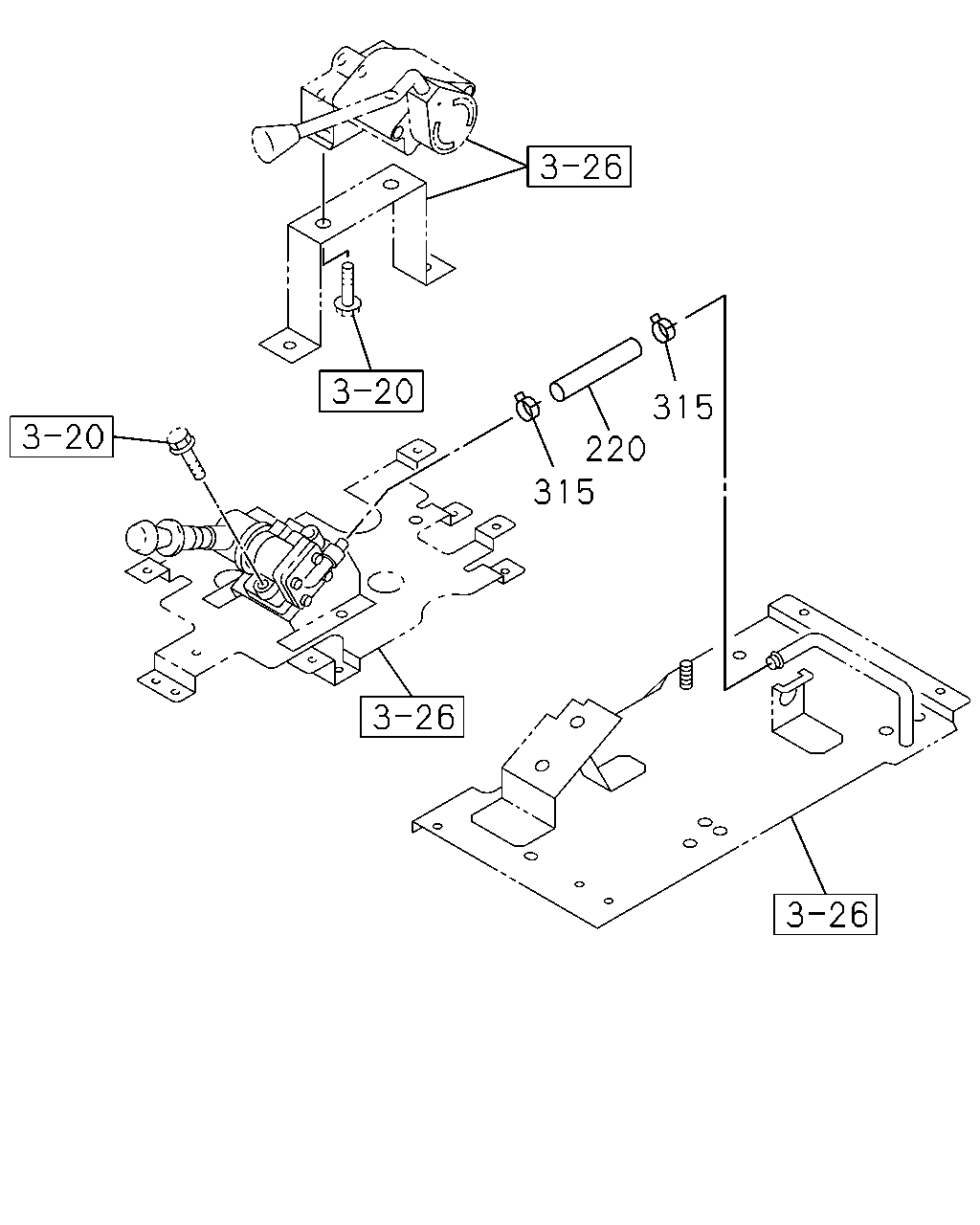

çizim 194226
315 220 315
BalonParca AdiParca NoAdetTipApplied Date A B
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1209- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1204- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1209- ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1204- ●

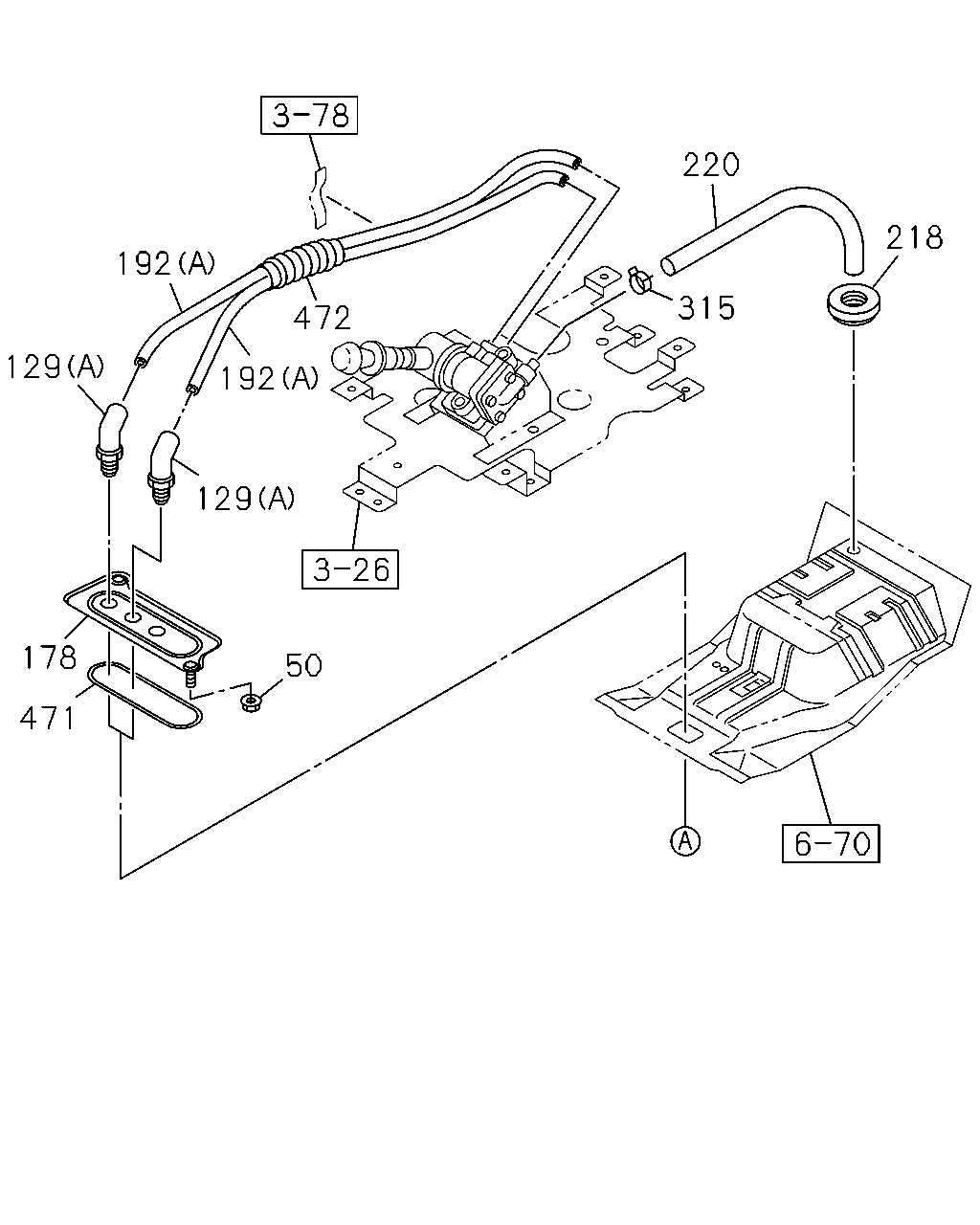

çizim 194230
192 129 178 50 129 192 472 220 218 315 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT THA 		1-09660-882-0 01 1 1204- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1204-1208 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1209- ● ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1204- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1204- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1209- ●
178 BRACKET; UNION 8-98017-056-1 01 1 1204- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1204- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1209- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1209- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1204- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1209- ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1204- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1204-1208 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1209- ● ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 01 1 1209- ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 02 1 1204- ●

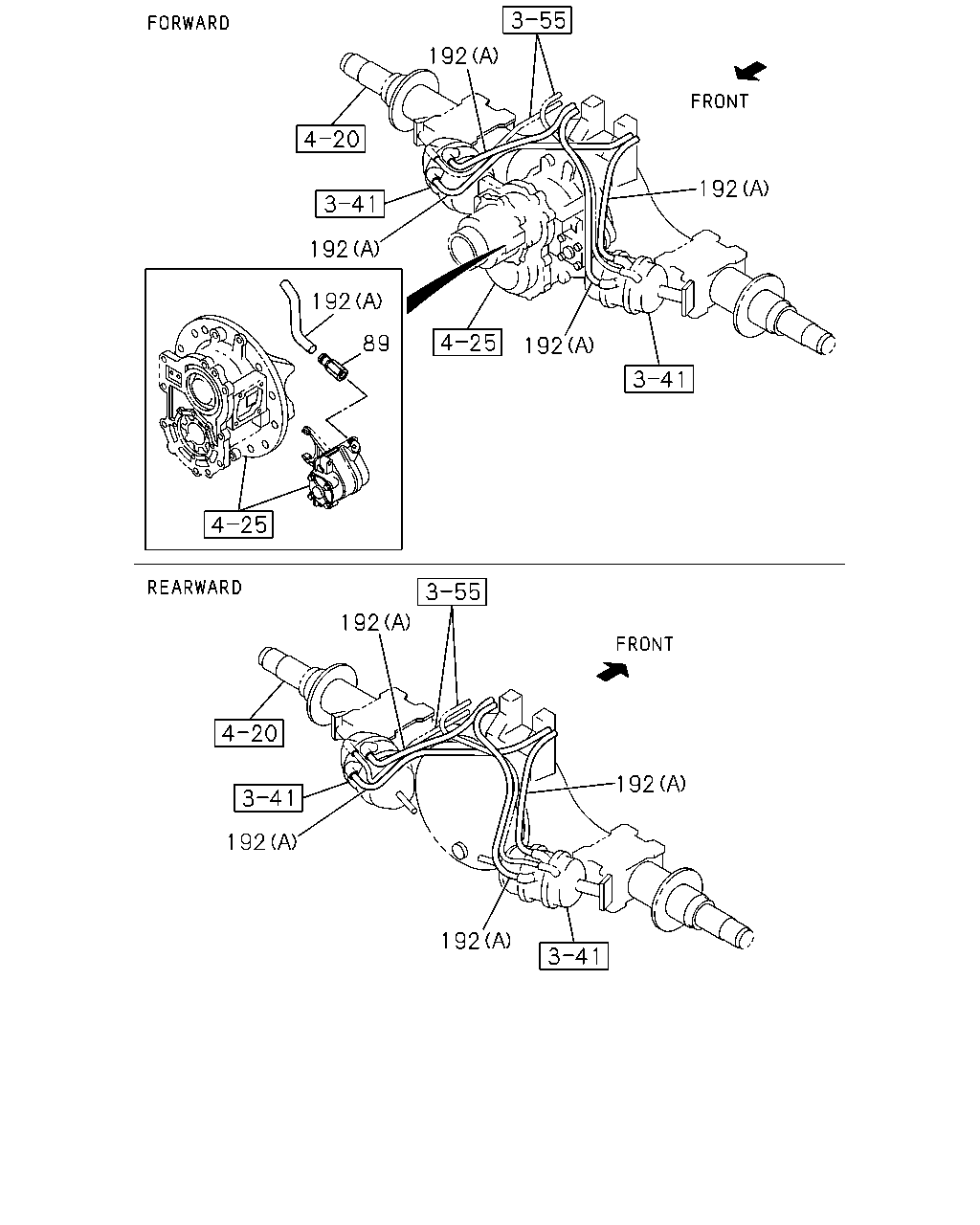

çizim 292060
192 192 192 192 192 89 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1204-1208 ●
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1209- ● ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1204- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1204- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
