3-75 — BRAKE PIPING; AIR,FRONT (#73120) — 148 parça
çizim 121832
159 159 159 15 150 98 178 8 149 51 28 31 30 29 35 32 35 122
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1204-1208 ●
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1209- ● ●
28 NIPPLE; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 1204-1208 ●
28 NIPPLE; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 1209- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 1204-1208 ●
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 1209- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 1204-1208 ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 1209- ● ●
31 BRACKET; NIPPLE 8-98094-074-0 01 1 1204-1208 ●
31 BRACKET; NIPPLE 8-98094-074-0 01 1 1209- ● ●
31 BRACKET; NIPPLE 8-98094-075-0 01 1 1204-1208 ●
31 BRACKET; NIPPLE 8-98094-075-0 01 1 1209- ● ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 1204-1208 ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 1209- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1204-1208 ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1209- ● ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1204-1208 ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1209- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1209- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1204-1208 ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1209- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1209- ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 01 1 1209- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1204-1208 ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1209- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1204- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1209- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 1304- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 1204-1208 ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 1209-1301 ● ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1204-1208 ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1209- ● ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 1209- ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 23 1 1209- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 1204-1208 ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 1209- ● ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 1204-1208 ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 1209- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 21 1 1204- ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 		5-09700-293-1 01 1 1204-1208 ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 		5-09700-293-1 01 1 1209- ● ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1204-1208 ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1209- ● ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 25 1 1204- ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 1204-1208 ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 1209- ●
178 UNION
DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 1209- ●

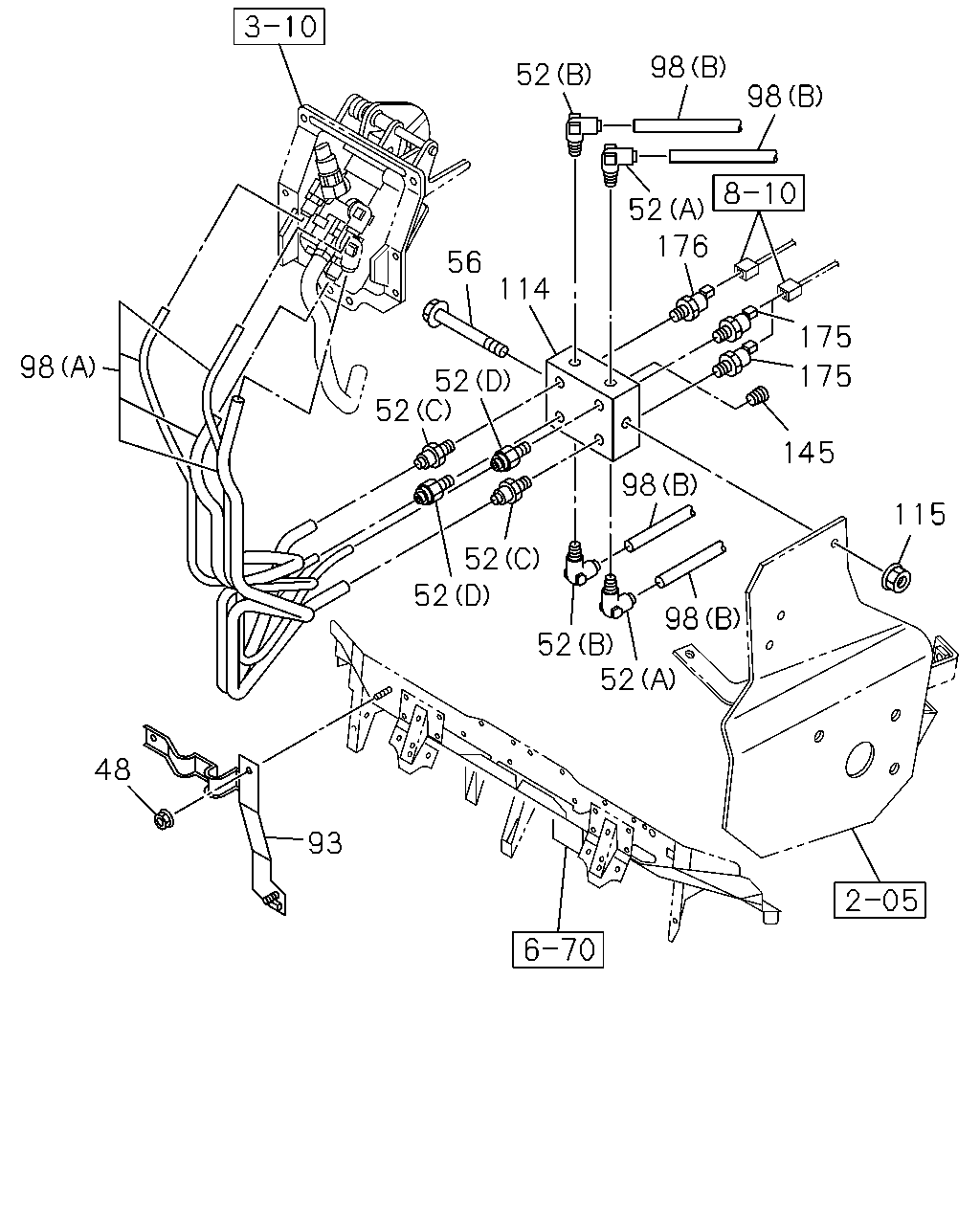

çizim 122198
52 98 98 52 175 175 145 115 98 98 52 52 52 52 52 52 56 114 98 48 93 176
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1204-1208 ●
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1209- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1204-1208 ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1209- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1204-1208 ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1209- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 1204-1208 ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 1209- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1204-1208 ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1209- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1204-1208 ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1209- ● ●
93 BRACKET; UNION,TUBE
THA 		8-98186-924-0 01 1 1204-1208 ●
93 BRACKET; UNION,TUBE
THA 		8-98186-924-0 01 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 01 1 1209- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1204-1208 ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1209- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1204- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1209- ● ●
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 1204-1208 ●
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 1209- ● ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 1204-1208 ●
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 1209- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1204-1208 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1209- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1204-1208 ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1209- ● ●

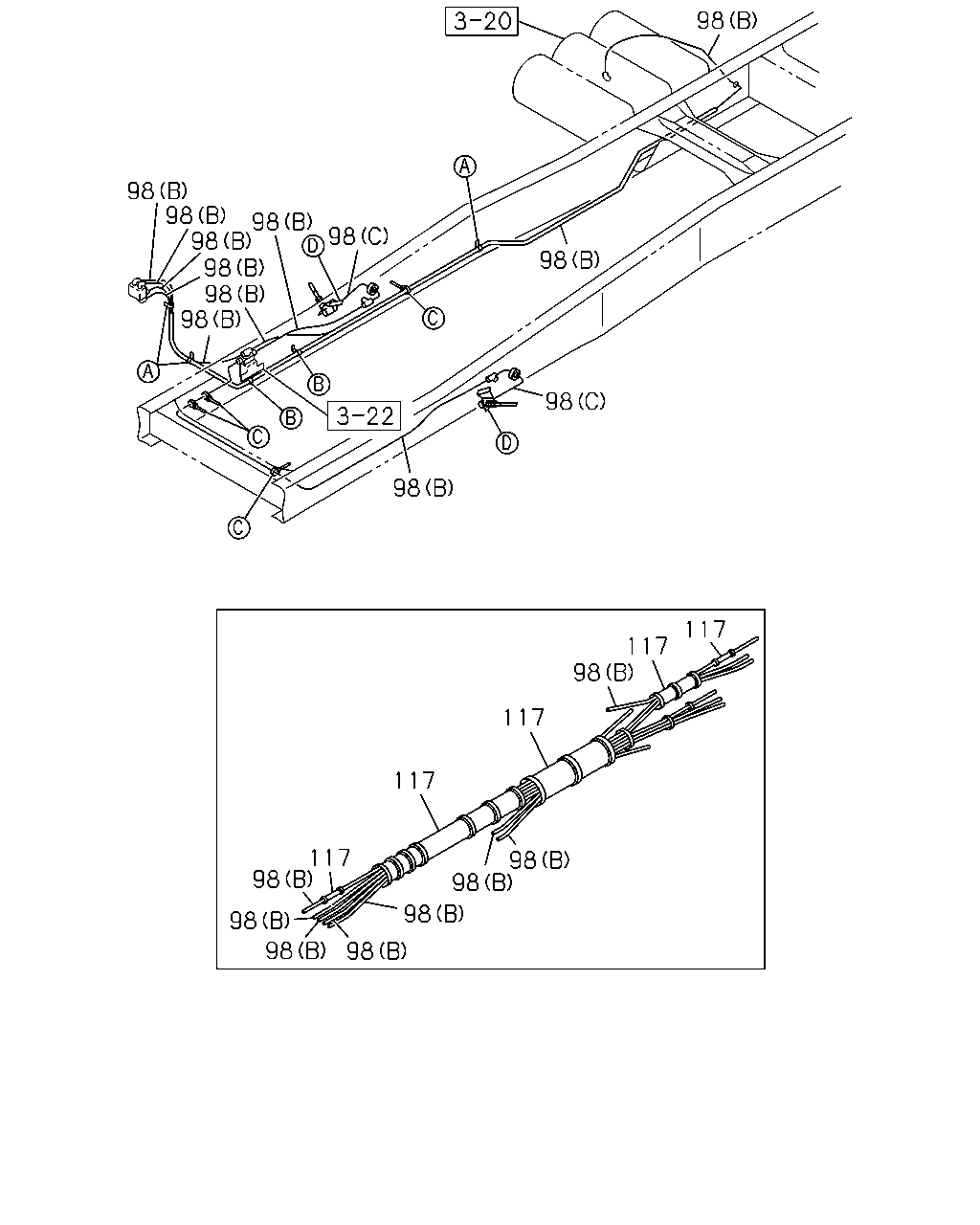

çizim 122202
98 98 98 98 98 98 98 98 98 98 98 98 117 117 117 117 98 98 98 117 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 01 1 1209- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1204-1208 ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1209- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1204- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1209- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1204-1208 ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1209- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1204-1208 ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1209- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1204-1208 ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1209- ● ●

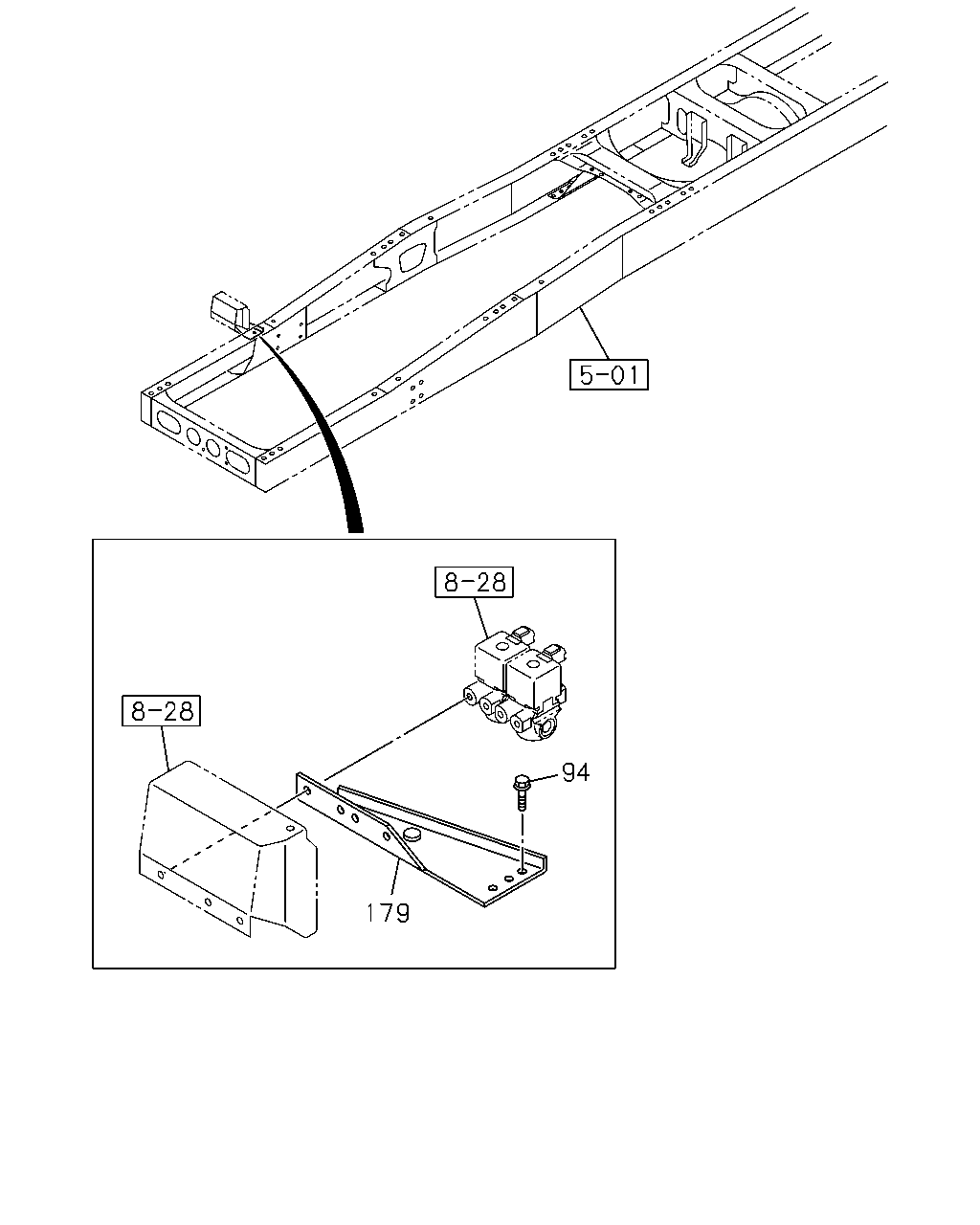

çizim 194225
179 94
BalonParca AdiParca NoAdetTipApplied Date A B
94 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1204-1208 ●
94 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ● ●
179 BRACKET; CLIP
THA 		8-98100-335-0 01 1 1204-1208 ●
179 BRACKET; CLIP
THA 		8-98100-335-0 01 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
