7-40 — INSTRUMENT PANEL AND BOX (#7312) — 112 parça
çizim 8671
18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
18 BOLT; BRKT
AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
18 BOLT; BRKT
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 9906-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9906-

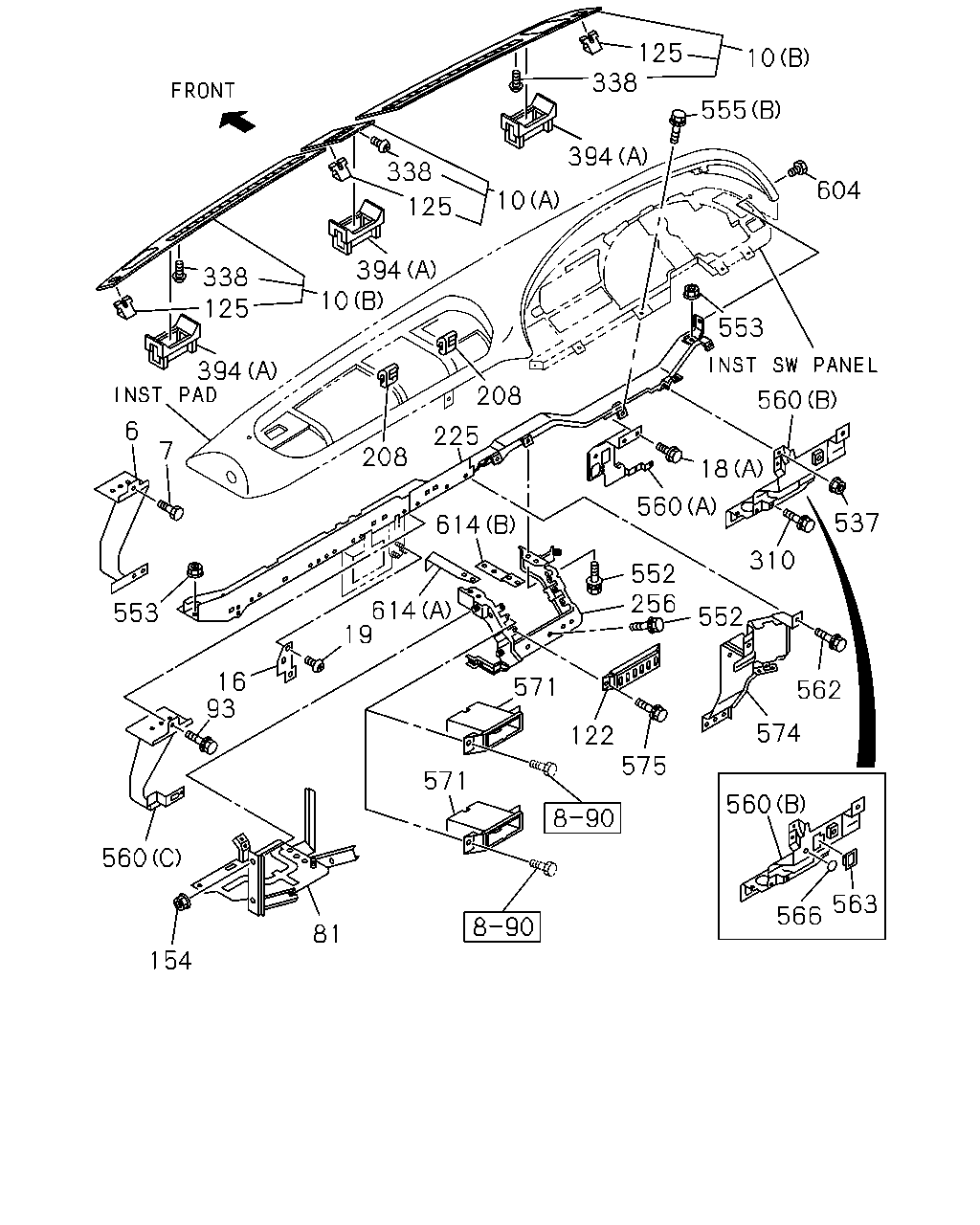

çizim 8770
125 338 10 555 394 338 604 10 125 338 125 394 10 553 394 208 560 6 225 7 208 18 614 560 537 310 552 256 614 19 553 552 16 93 571 562 574 122 575 571 560 560 563 566 81 154
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 9906-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 9906-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9906-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9906-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9906-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-5 01 1 9906-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-4 01 1 9906-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-4 01 1 9906-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
18 BOLT; BRKT
AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
18 BOLT; BRKT
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9906-
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9906-0003
81 BRACKET; ELEC CONT UNIT 1-73907-655-4 01 1 0004-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 10 1 9906-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9906-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9906-
225 FRAME; FACIA 1-65671-725-6 01 1 9906-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9906-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9906-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9906-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9906-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9906-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9906-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9906-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9906-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
560 BRACKET
(A) 		1-65680-976-2 01 1 9906-
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-0 01 1 9906-9912
560 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-760-2 01 1 0001-
560 BRACKET
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-772-2 01 1 0001-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 9906-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 9906-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 9906-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9906-9912
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0001-
571 BEZEL; POCKET 1-72438-151-1 01 1 9906-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 9906-
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9906-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
604 CLIP; INST PAD 1-09983-123-0 01 1 9906-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9906-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9906-

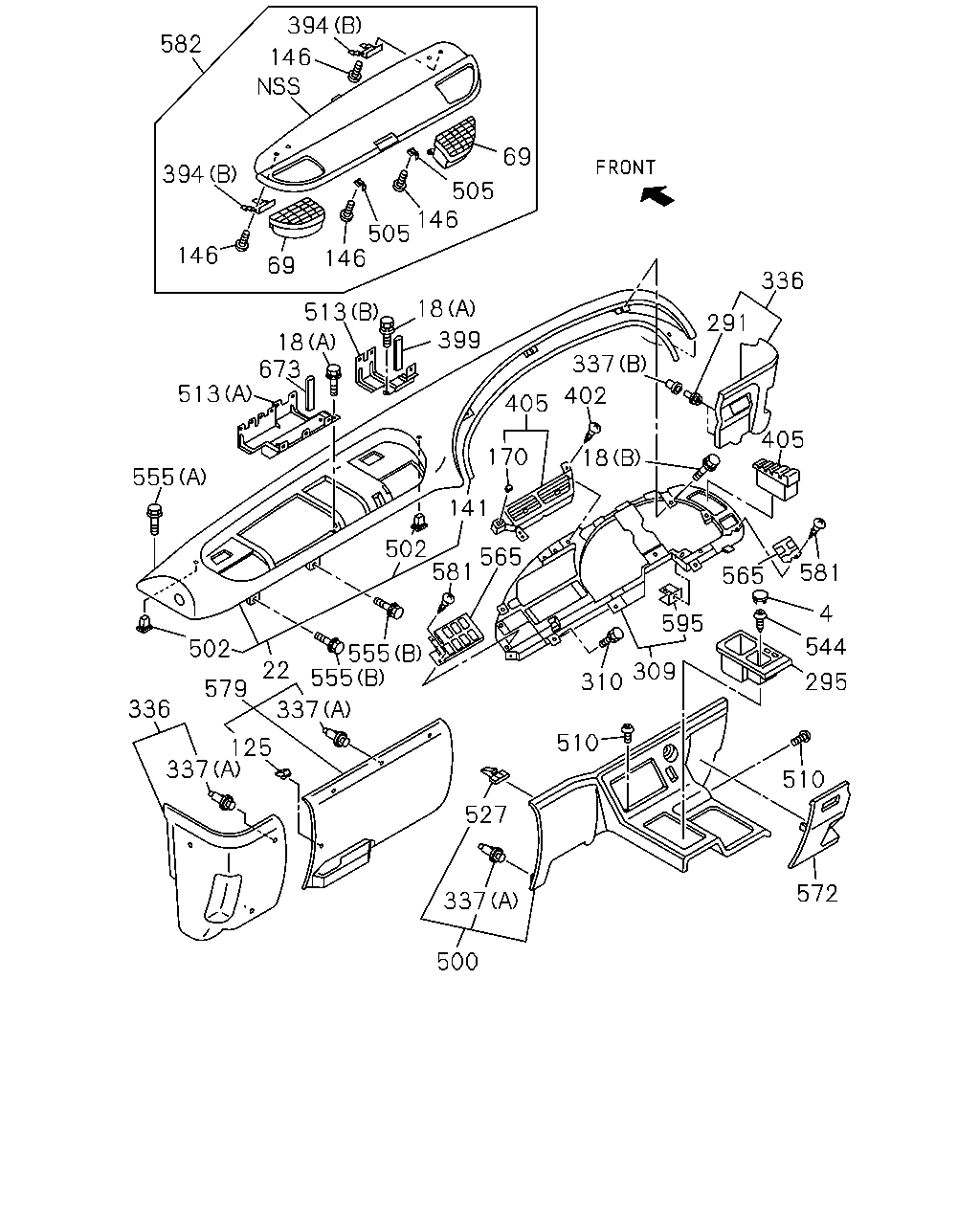

çizim 8774
394 582 146 69 394 505 146 505 146 146 69 336 18 513 291 399 18 673 337 513 402 405 405 18 170 555 141 565 581 502 581 565 4 595 555 555 544 502 22 309 310 295 579 336 337 510 125 337 510 527 572 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9906-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9906-
18 BOLT; BRKT
AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
18 BOLT; BRKT
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
22 PAD; INST 1-72317-344-1 01 1 9906-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9906-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 01 1 9906-
125 CLIP; INST PANEL 8-97217-066-0 10 1 9906-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9906-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9906-
170 COVER; HOLE 1-76367-068-0 01 1 9906-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9906-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9906-
309 PANEL; SW,INST 1-72418-009-6 01 1 9906-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9906-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9906-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9906-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9906-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9906-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9906-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9906-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9906-
399 FINISHER; HARNESS
AUTO ROUND CURTAIN<TAR> L=30 		8-94273-221-0 01 1 0006-0009
399 FINISHER; HARNESS
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> L=30 		8-94273-221-0 01 1 0006-0009
399 FINISHER; HARNESS
AUTO ROUND CURTAIN<TAR> L=50 		8-94270-377-1 01 1 0010-
399 FINISHER; HARNESS
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> L=50 		8-94270-377-1 01 1 0010-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9906-
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 9906-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 9906-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9906-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9906-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9906-
505 LOCK; LID 1-72558-024-2 02 1 9906-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9906-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9906-
513 BRACKET; RELAY
AUTO ROUND CURTAIN<TAR> (B) 		1-73907-327-3 01 1 9906-
513 BRACKET; RELAY
ZF M/T<X9E> EXC. AUTO ROUND CURTAIN<TAR> (B) 		1-73907-327-3 01 1 9906-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9906-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9906-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9906-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9906-
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9906-
572 COVER; INSPECTION 1-72437-633-0 01 1 9906-
579 COVER; INST PNL 1-72437-542-3 01 1 9906-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9906-
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9906-
595 NUT; HOOK 1-72418-013-0 11 1 9906-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-
