3-70 — BRAKE PIPING; AIR,AIR MASTER (#73119) — 136 parça

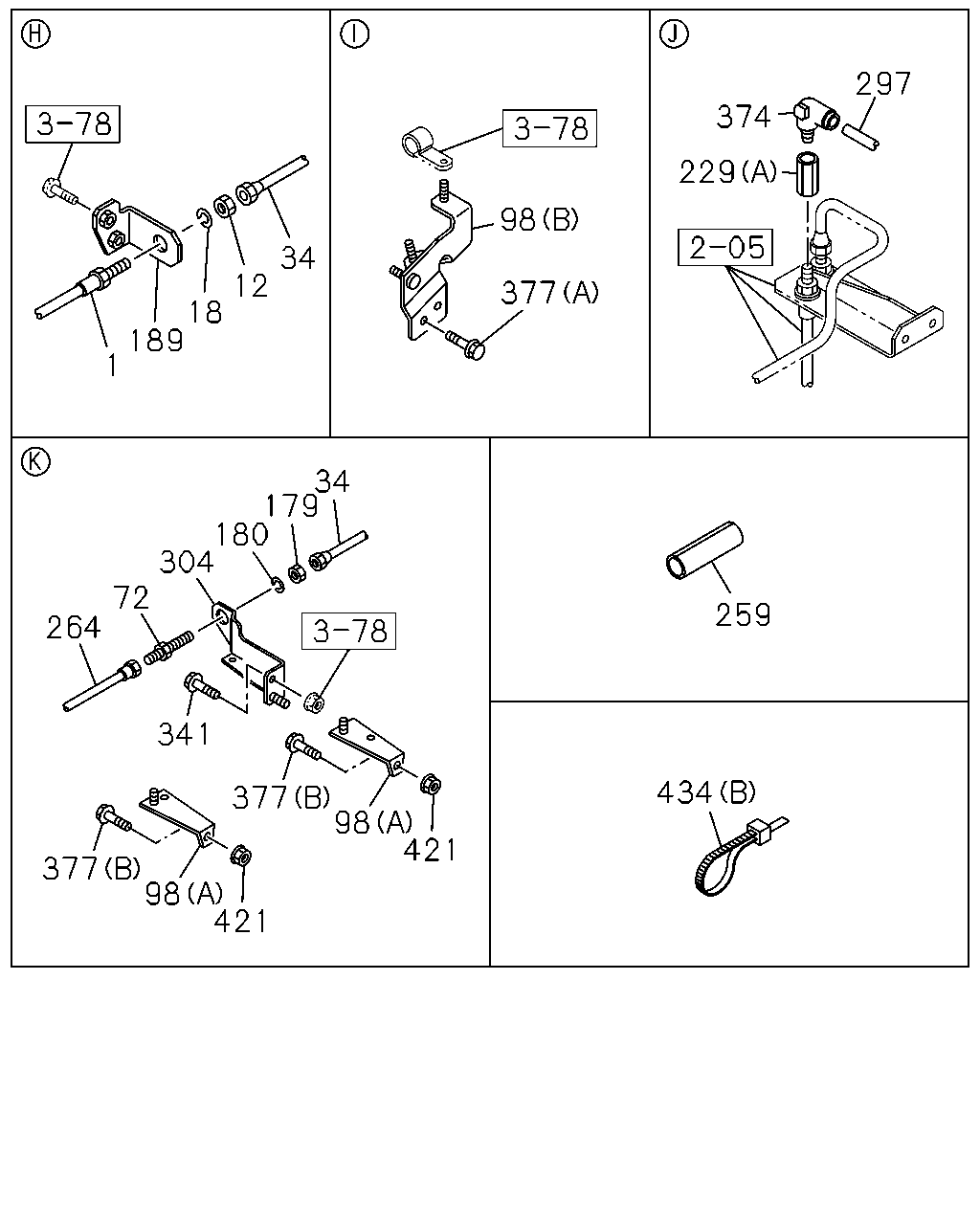

çizim 121254
1 189 18 12 34 98 377 374 229 297 264 72 304 180 179 34 341 377 98 421 377 98 421 259 434
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1204-1208 ●
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1209- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1204-1208 ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1209- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1204-1208 ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1209- ● ●
34 PIPE; AIR
L=1297 THA 		8-97925-983-0 01 1 1209- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 1204- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1204-1208 ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1209- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1204-1208 ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1209- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1204-1208 ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1209- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1204-1208 ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1209- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1204-1208 ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1209- ● ●
189 BRACKET; FLEX HOSE
THA 		8-97925-714-0 01 1 1204-1208 ●
189 BRACKET; FLEX HOSE
THA 		8-97925-714-0 01 1 1209- ● ●
229 ADAPTER; NYLON TUBE
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1204-1208 ●
229 ADAPTER; NYLON TUBE
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1209- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1204-1208 ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1209- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=100 		1-09337-022-0 01 1 1204-1208 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=100 		1-09337-022-0 01 1 1209- ● ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1204-1208 ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1204-1208 ●
304 BRACKET; UNION 8-97610-362-1 01 1 1209- ● ●
341 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1204-1208 ●
341 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ● ●
374 CONNECTOR
DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-1208 ●
374 CONNECTOR
DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1209- ● ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
377 BOLT; BRKT FIX
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1204-1208 ●
377 BOLT; BRKT FIX
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1209- ● ●
421 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
421 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1204-1208 ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1209- ● ●
434 CLIP
(B) L=250 THA 		5-09707-030-1 02 1 1204-1208 ●
434 CLIP
(B) L=250 THA 		5-09707-030-1 02 1 1209- ● ●

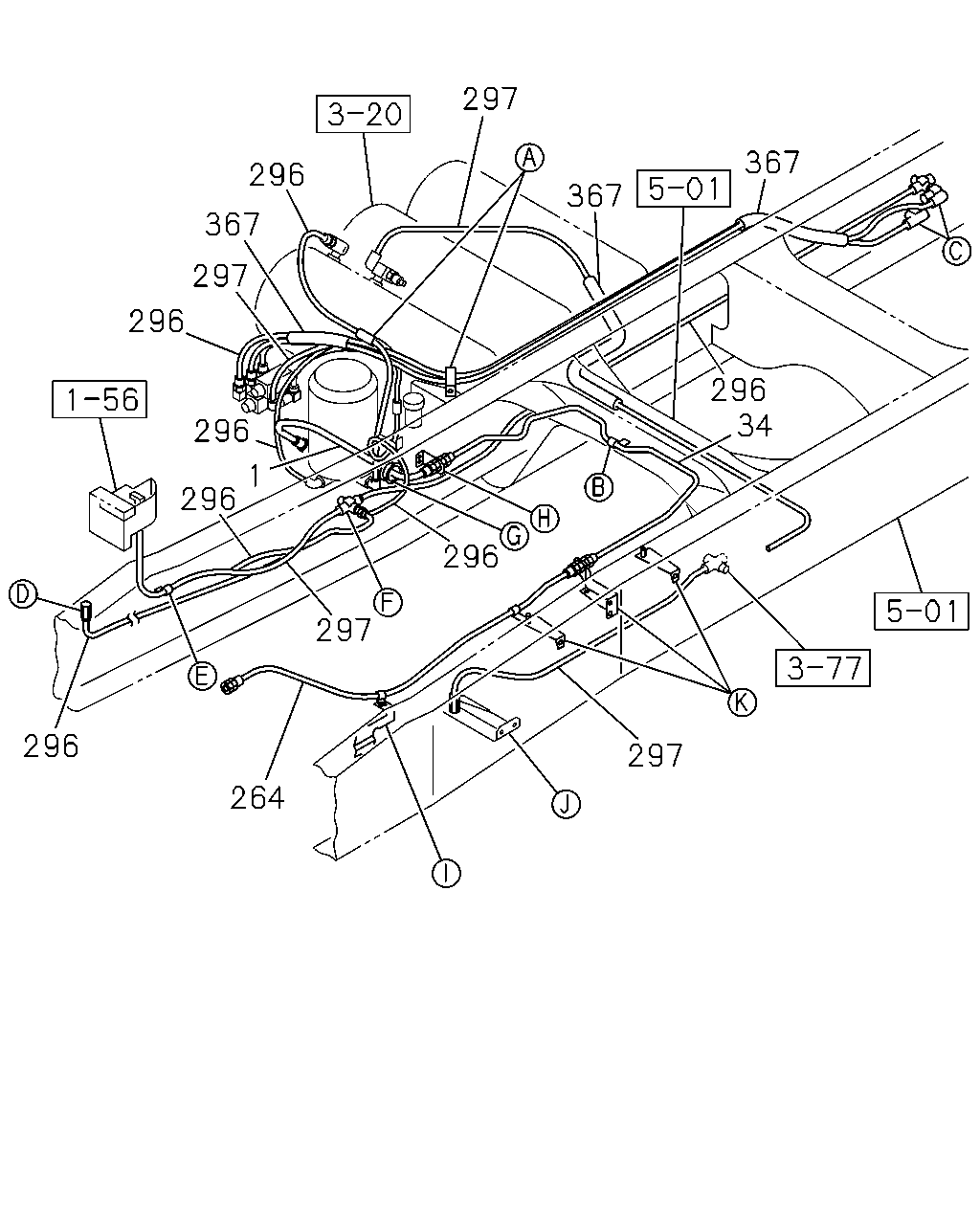

çizim 121354
296 367 297 296 297 367 367 296 296 1 296 264 297 296 296 34 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1204-1208 ●
1 HOSE; FLEX,AIR TANK 1-09363-940-0 01 1 1209- ● ●
34 PIPE; AIR
L=1297 THA 		8-97925-983-0 01 1 1209- ●
34 PIPE; AIR
L=1258 THA 		8-97618-580-0 01 1 1204- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1204-1208 ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 THA 		1-87411-016-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 1204-1208 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 1209- ● ●
çizim 121634
89 32 444 444 296 80 258 296 296 296 229 273 444 80 297 258 258 297 434 436 435
BalonParca AdiParca NoAdetTipApplied Date A B
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1204-1208 ●
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1209- ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 1204-1208 ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY THA 		1-09661-129-0 01 1 1209- ● ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1204-1208 ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1209- ● ●
89 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1208 ●
89 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1209- ● ●
229 ADAPTER; NYLON TUBE
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1204-1208 ●
229 ADAPTER; NYLON TUBE
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1209- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1204-1208 ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1209- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1209- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 STRAIGHT THA 		1-09660-964-0 01 1 1204- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1204-1208 ●
258 CONNECTOR; NYLON TUBE
(A) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1209- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1204-1208 ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 THA 		1-87411-001-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1209- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1204-1208 ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1209- ● ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1204-1208 ●
434 CLIP
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 1209- ● ●
434 CLIP
(B) L=250 THA 		5-09707-030-1 02 1 1204-1208 ●
434 CLIP
(B) L=250 THA 		5-09707-030-1 02 1 1209- ● ●
435 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
435 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ●
444 BOLT; UNION
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1204- ●
