Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#73118) — 20 parça
Tümü
A - GGZ5MX
B - FGZ5MX
◀

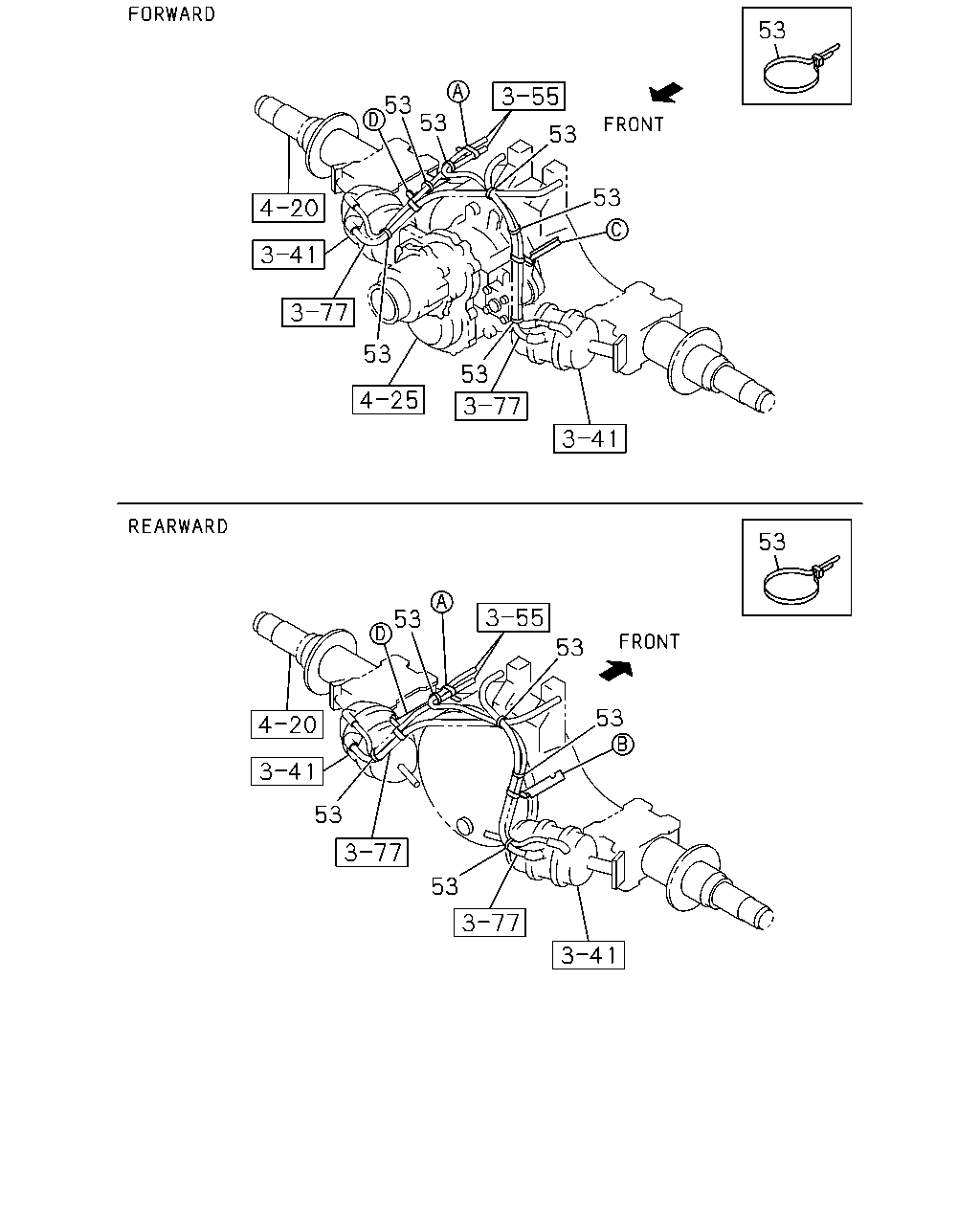

[358A] NO.1 (2 parça)

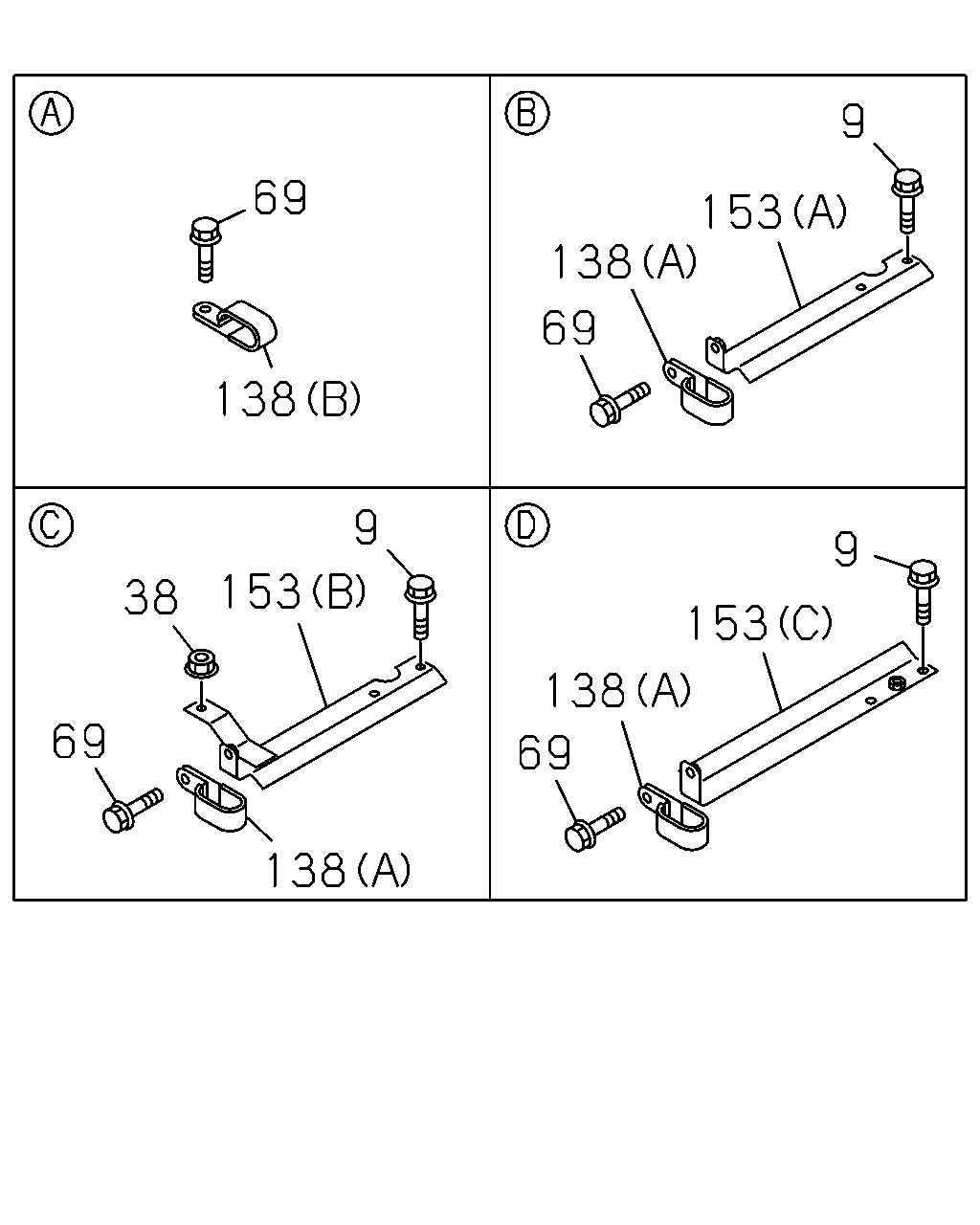

[358A] NO.2 (18 parça)
▶
53
53
53
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
CLIP; UNION
L=250
1-09707-126-0
12
1
1204-1208
●
53
CLIP; UNION
L=250
1-09707-126-0
12
1
1209-
●
●
69
138
69
138
153
9
69
38
153
9
138
69
138
153
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
08
1
1204-1208
●
9
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
08
1
1209-
●
●
38
NUT; CLIP FIX
M8 FLANGE THA
0-91180-108-0
01
1
1204-1208
●
38
NUT; CLIP FIX
M8 FLANGE THA
0-91180-108-0
01
1
1209-
●
●
69
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
05
1
1204-1208
●
69
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
05
1
1209-
●
●
138
CLIP; TUBE
(B) ID=11X2 L=20
0-95325-035-0
01
1
1204-1208
●
138
CLIP; TUBE
(B) ID=11X2 L=20
0-95325-035-0
01
1
1209-
●
●
138
CLIP; TUBE
(B) ID=11X2 L=50
0-95325-085-0
01
1
1204-1208
●
138
CLIP; TUBE
(B) ID=11X2 L=50
0-95325-085-0
01
1
1209-
●
●
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
1204-1208
●
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
1209-
●
●
153
BRACKET; NYLON TUBE
(C)
1-42129-486-1
02
1
1204-1208
●
153
BRACKET; NYLON TUBE
(C)
1-42129-486-1
02
1
1209-
●
●
153
BRACKET; NYLON TUBE
(A)
1-42129-487-1
01
1
1204-1208
●
153
BRACKET; NYLON TUBE
(A)
1-42129-487-1
01
1
1209-
●
●
153
BRACKET; NYLON TUBE
(B)
1-42129-500-0
01
1
1204-1208
●
153
BRACKET; NYLON TUBE
(B)
1-42129-500-0
01
1
1209-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
