3-41 — REAR BRAKE POWER CHAMBER (#73115) — 102 parça

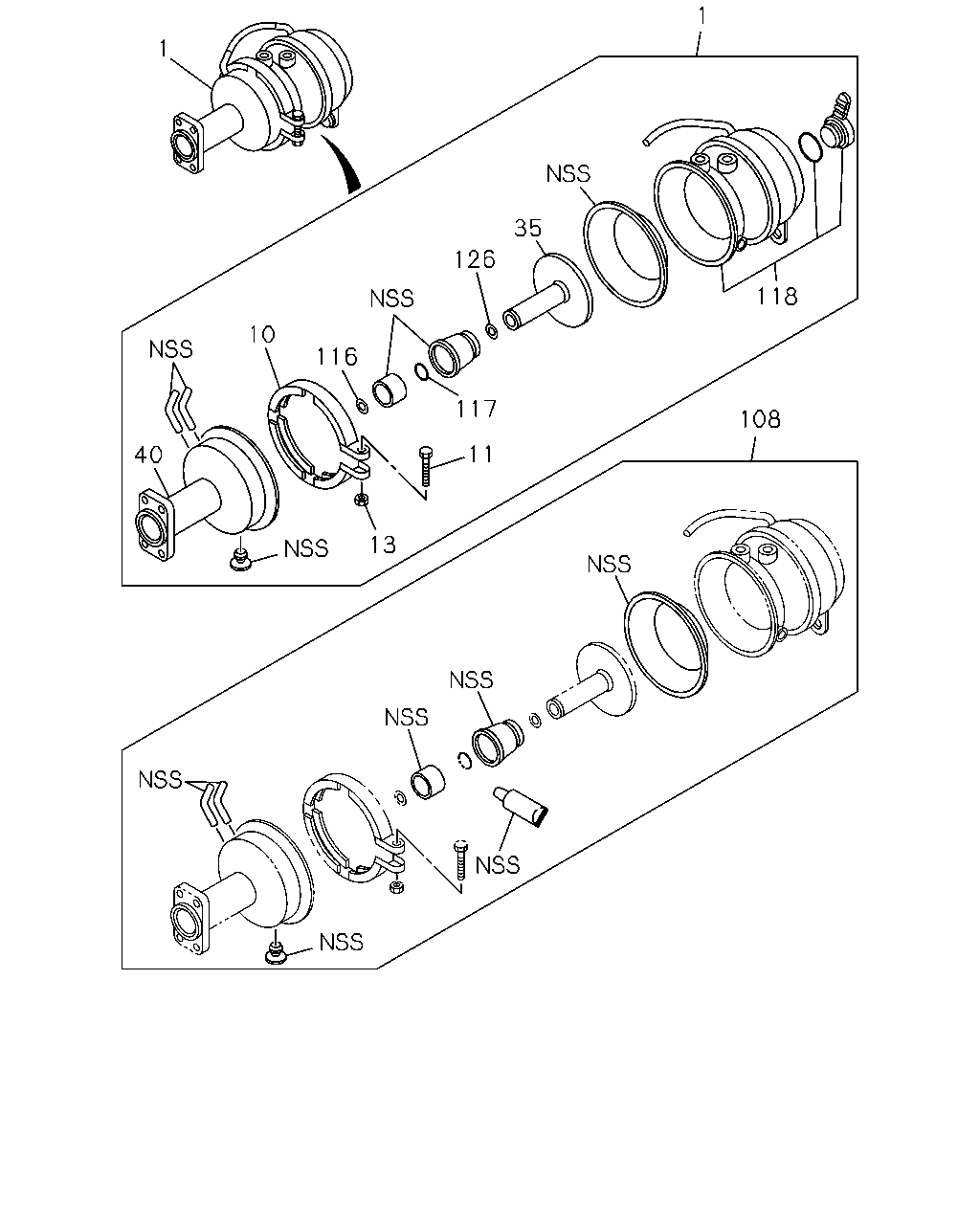

çizim 118394
1 1 40 10 116 126 35 13 11 117 118 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-083-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-083-0 01 1 1209-1301 ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-084-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-084-0 01 1 1209-1301 ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-089-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-089-0 01 1 1209-1303 ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-089-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-089-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-090-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-090-0 01 1 1209-1303 ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-090-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-090-0 01 1 1304- ● ●
10 RING; CLAMP,SPR CHAMBER
FORWARD THA 		1-48269-256-0 02 1 1204-1208 ●
10 RING; CLAMP,SPR CHAMBER
FORWARD THA 		1-48269-256-0 02 1 1209-1303 ● ●
10 RING; CLAMP,SPR CHAMBER
THA 		1-48269-256-0 02 1 1304- ● ●
10 RING; CLAMP,SPR CHAMBER
THA 		1-48269-256-0 02 1 1304- ● ●
10 RING; CLAMP,SPR CHAMBER
REARWARD THA 		8-98167-056-0 02 1 1204-1208 ●
10 RING; CLAMP,SPR CHAMBER
REARWARD THA 		8-98167-056-0 02 1 1209-1301 ● ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1204-1208 ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1204-1208 ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1209-1301 ● ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1209-1301 ● ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1304- ● ●
11 BOLT; CLAMP RING
THA 		1-48269-257-0 02 1 1304- ● ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1204-1208 ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1204-1208 ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1209-1301 ● ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1209-1301 ● ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1304- ● ●
13 NUT; CLAMP RING
THA 		1-48269-147-0 02 1 1304- ● ●
35 PLATE; ROD END,SPR CHAMBER
REARWARD THA 		8-98146-971-0 02 1 1204-1208 ●
35 PLATE; ROD END,SPR CHAMBER
REARWARD THA 		8-98146-971-0 02 1 1209-1301 ● ●
35 PLATE; ROD END,SPR CHAMBER
FORWARD THA 		8-98146-972-0 02 1 1204-1208 ●
35 PLATE; ROD END,SPR CHAMBER
FORWARD THA 		8-98146-972-0 02 1 1209-1303 ● ●
35 PLATE; ROD END,SPR CHAMBER
THA 		8-98146-972-0 02 1 1304- ● ●
35 PLATE; ROD END,SPR CHAMBER
THA 		8-98146-972-0 02 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD THA 		1-48251-134-1 01 1 1204-1208 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD THA 		1-48251-134-1 01 1 1209-1303 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA 		1-48251-134-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA 		1-48251-134-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD THA 		1-48251-135-1 01 1 1204-1208 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD THA 		1-48251-135-1 01 1 1209-1303 ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA 		1-48251-135-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA 		1-48251-135-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD THA 		1-48251-138-1 01 1 1204-1208 ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD THA 		1-48251-138-1 01 1 1209-1301 ● ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD THA 		1-48251-139-1 01 1 1204-1208 ●
40 COVER ASM; LWR,SPR CHAMBER
REARWARD THA 		1-48251-139-1 01 1 1209-1301 ● ●
108 REPAIR KIT; SPR CHAMBER
REARWARD THA 		8-98146-981-0 02 1 1204-1208 ●
108 REPAIR KIT; SPR CHAMBER
REARWARD THA 		8-98146-981-0 02 1 1209-1301 ● ●
108 REPAIR KIT; SPR CHAMBER
FORWARD THA 		8-98146-982-0 02 1 1204-1208 ●
108 REPAIR KIT; SPR CHAMBER
FORWARD THA 		8-98146-982-0 02 1 1209-1303 ● ●
108 REPAIR KIT; SPR CHAMBER
THA 		8-98146-982-0 02 1 1304- ● ●
108 REPAIR KIT; SPR CHAMBER
THA 		8-98146-982-0 02 1 1304- ● ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1204-1208 ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1204-1208 ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1209-1301 ● ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1209-1301 ● ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1304- ● ●
116 GUIDE; SPR CHAMBER
THA 		8-98146-963-0 02 1 1304- ● ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1204-1208 ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1204-1208 ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1209-1301 ● ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1209-1301 ● ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1304- ● ●
117 RING; SPR CHAMBER
THA 		8-98146-966-0 02 1 1304- ● ●
118 CHAMBER; PIGGY BACK
REARWARD THA 		1-87412-107-0 01 1 1204-1208 ●
118 CHAMBER; PIGGY BACK
REARWARD THA 		1-87412-107-0 01 1 1209-1301 ● ●
118 CHAMBER; PIGGY BACK
REARWARD THA 		1-87412-108-0 01 1 1204-1208 ●
118 CHAMBER; PIGGY BACK
REARWARD THA 		1-87412-108-0 01 1 1209-1301 ● ●
118 CHAMBER; PIGGY BACK
FORWARD THA 		1-87412-111-0 01 1 1204-1208 ●
118 CHAMBER; PIGGY BACK
FORWARD THA 		1-87412-111-0 01 1 1209-1303 ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA 		1-87412-111-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA 		1-87412-111-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD THA 		1-87412-112-0 01 1 1204-1208 ●
118 CHAMBER; PIGGY BACK
FORWARD THA 		1-87412-112-0 01 1 1209-1303 ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA 		1-87412-112-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA 		1-87412-112-0 01 1 1304- ● ●
126 SHIM
THA 		8-98146-965-0 AR 1 1204-1208 ●
126 SHIM
THA 		8-98146-965-0 AR 1 1204-1208 ●
126 SHIM
THA 		8-98146-965-0 AR 1 1209-1301 ● ●
126 SHIM
THA 		8-98146-965-0 AR 1 1209-1301 ● ●
126 SHIM
THA 		8-98146-965-0 AR 1 1304- ● ●
126 SHIM
THA 		8-98146-965-0 AR 1 1304- ● ●

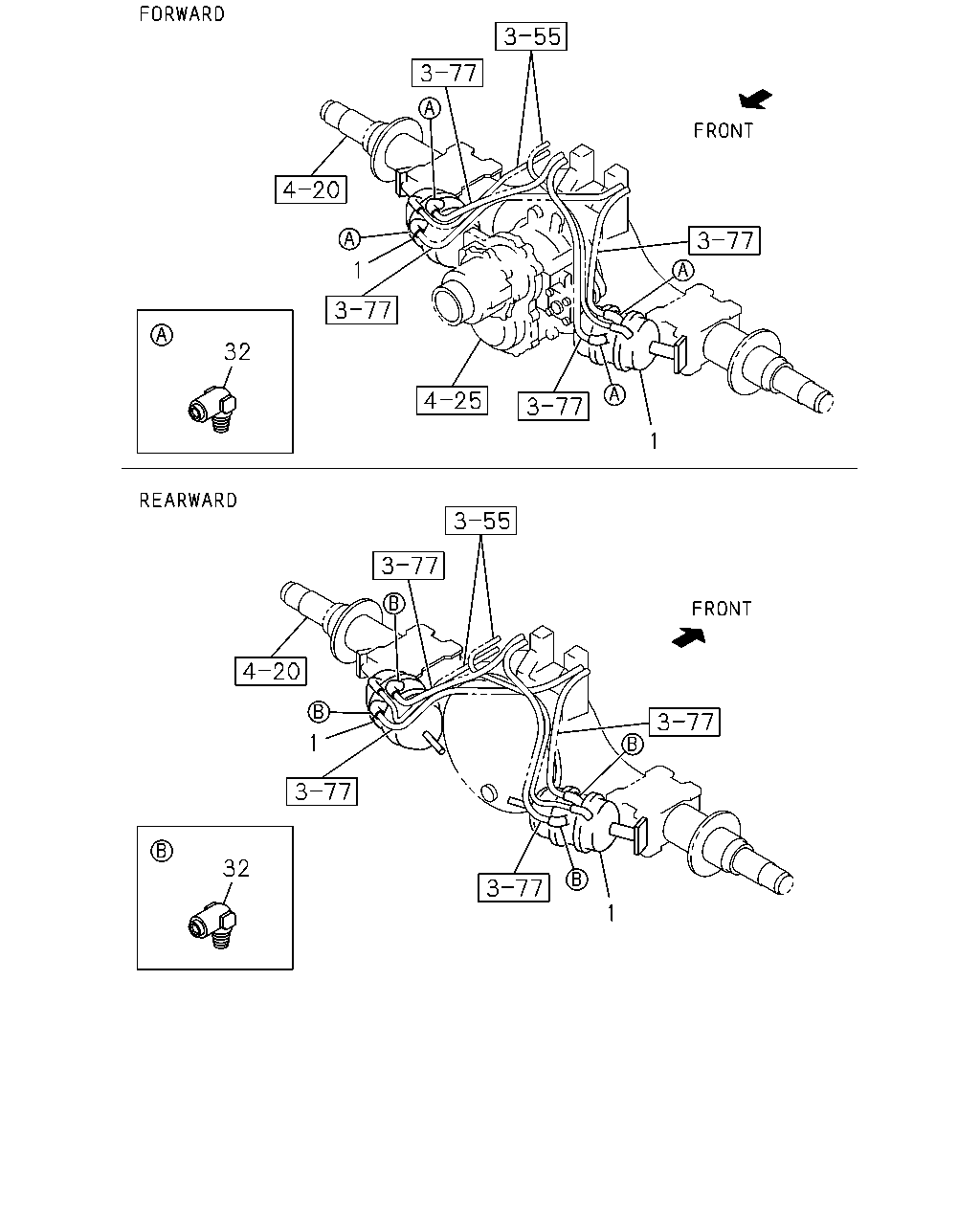

çizim 118479
1 1 32 1 32 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-083-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-083-0 01 1 1209-1301 ● ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-084-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
REARWARD 		1-87412-084-0 01 1 1209-1301 ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-089-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-089-0 01 1 1209-1303 ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-089-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-089-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-090-0 01 1 1204-1208 ●
1 CHAMBER ASM; SPRING
FORWARD 		1-87412-090-0 01 1 1209-1303 ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-090-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-090-0 01 1 1304- ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1204-1208 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1204-1208 ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1209-1301 ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1209-1301 ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1304- ● ●
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1304- ● ●
