Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#73111) — 244 parça

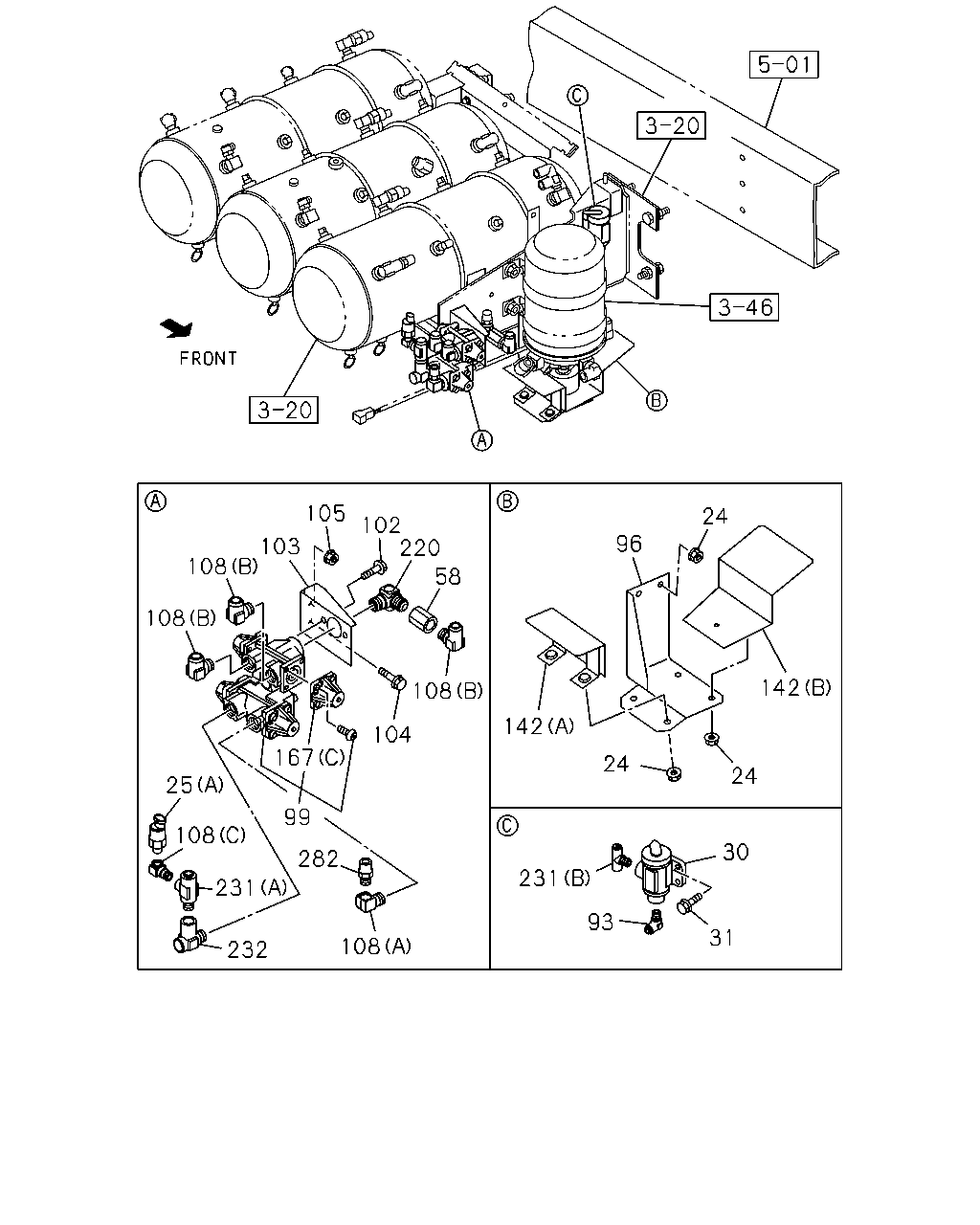

105 58 220 102 103 108 108 108 104 167 99 282 108 232 231 108 25 93 31 30 231 24 24 142 142 24 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT M8 FLANGE THA	0-91180-108-0	06	1	1204-1208	●
24	NUT M8 FLANGE THA	0-91180-108-0	06	1	1209-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	1204-1208	●
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	1209-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1204-1208	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1209-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1204-1208	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1209-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE THA	0-28650-830-0	02	1	1204-1208	●
31	BOLT; GOV TO FRAME M8X30 FLANGE THA	0-28650-830-0	02	1	1209-	●	●
58	ADAPTER M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1204-1208	●
58	ADAPTER M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1209-	●	●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW THA	1-09661-067-0	01	1	1204-1208	●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW THA	1-09661-067-0	01	1	1209-	●	●
96	BRACKET THA	8-97926-469-0	01	1	1209-	●	●
96	BRACKET THA	8-97926-469-0	01	1	1204-1208	●
99	VALVE; PROTECTION THA	1-48110-288-3	01	1	1204-1208	●
99	VALVE; PROTECTION THA	1-48110-288-3	01	1	1209-	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE THA	0-28050-816-0	02	1	1204-1208	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE THA	0-28050-816-0	02	1	1209-	●	●
103	BRACKET; PROTECTION VALVE THA	8-98093-563-0	01	1	1204-1208	●
103	BRACKET; PROTECTION VALVE THA	8-98093-563-0	01	1	1209-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE THA	0-28651-020-0	01	1	1204-1208	●
104	BOLT; BRKT,VALVE M10X20 FLANGE THA	0-28651-020-0	01	1	1209-	●	●
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	01	1	1204-1208	●
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	01	1	1209-	●	●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY THA	1-09660-693-0	01	1	1204-1208	●
108	CONNECTOR; ELBOW (C) PT1/4 2WAY THA	1-09660-693-0	01	1	1209-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	1204-1208	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	1209-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1204-1208	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1209-	●	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1204-1208	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1209-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1204-1208	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1209-	●	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1204-1208	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1209-1506	●	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1204-1208	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1209-	●	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1204-1208	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1209-	●	●
220	CONNECTOR; 3WAY THA	8-98031-238-0	01	1	1204-1208	●
220	CONNECTOR; 3WAY THA	8-98031-238-0	01	1	1209-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY THA	1-09661-027-0	01	1	1204-1208	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY THA	1-09661-027-0	01	1	1209-	●	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	1204-1208	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	1209-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1204-1208	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1209-	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1204-1208	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-	●	●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1204-1208	●
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1209-	●	●

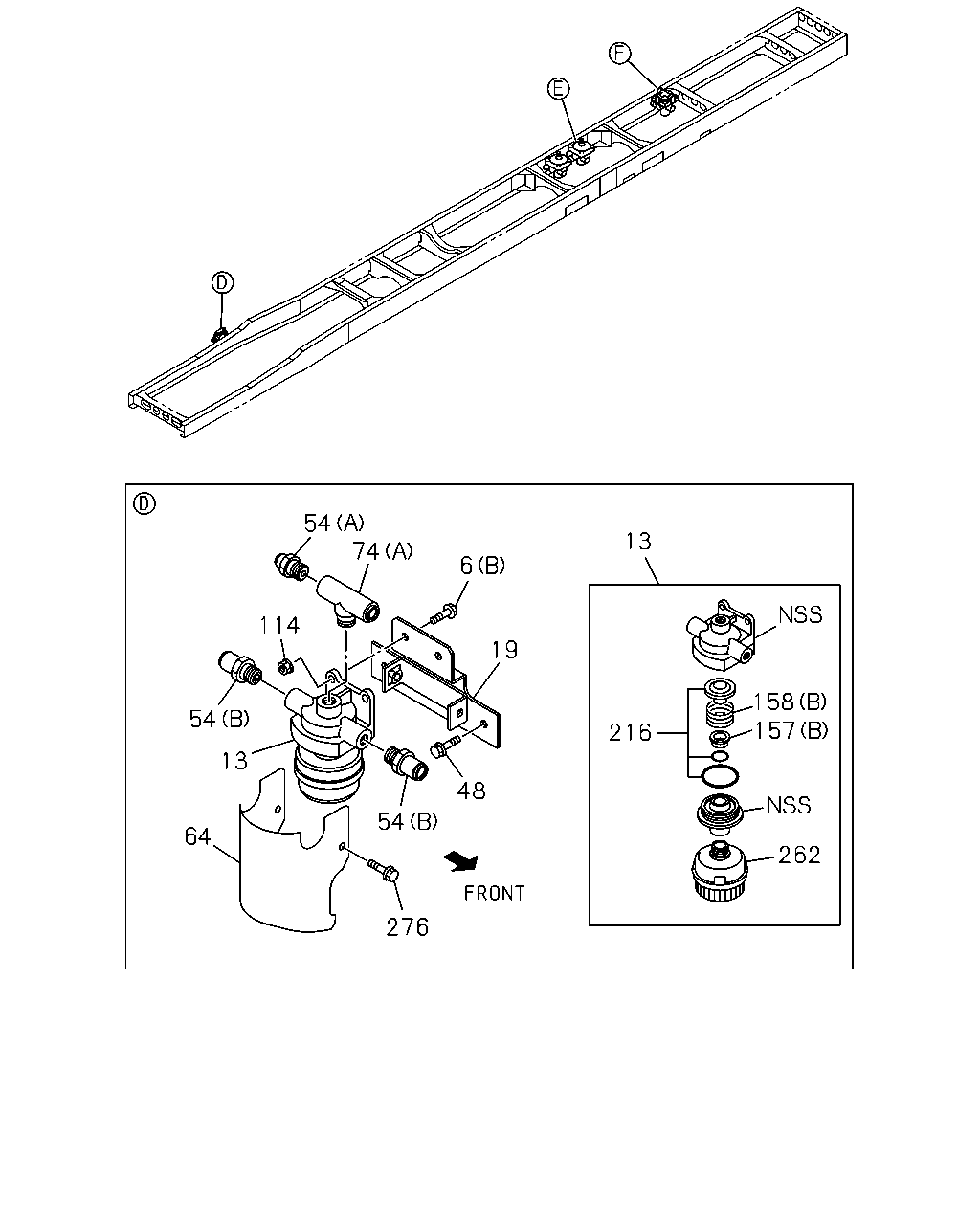

54 74 6 19 114 54 13 64 54 48 276 13 216 158 157 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1204-1208	●
6	BOLT; VLV (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1209-	●	●
6	BOLT; VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1204-1208	●
6	BOLT; VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1209-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1204-1208	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1209-	●	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1204-1208	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1209-	●	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE THA	0-28650-830-0	02	1	1204-1208	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE THA	0-28650-830-0	02	1	1209-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	01	1	1204-1208	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	01	1	1209-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1204-1208	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1209-	●	●
64	PROTECTOR; QUICK RELEASE VALVE THA	8-98043-421-0	01	1	1204-1208	●
64	PROTECTOR; QUICK RELEASE VALVE THA	8-98043-421-0	01	1	1209-	●	●
74	CONNECTOR; 3WAY (C) IMA	1-09656-708-0	01	1	1204-	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1204-	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1204-1208	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1209-	●	●
74	CONNECTOR; 3WAY (B) PT3/8 3WAY THA	1-09661-300-0	01	1	1204-	●
114	NUT; VLV M8 FLANGE THA	0-91180-108-0	02	1	1204-1208	●
114	NUT; VLV M8 FLANGE THA	0-91180-108-0	02	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1209-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1204-1208	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1209-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1204-1208	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1209-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1204-1208	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1209-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1204-1208	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1209-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE THA	0-28650-820-0	02	1	1204-1208	●
276	BOLT; PROTECTOR M8X20 FLANGE THA	0-28650-820-0	02	1	1209-	●	●

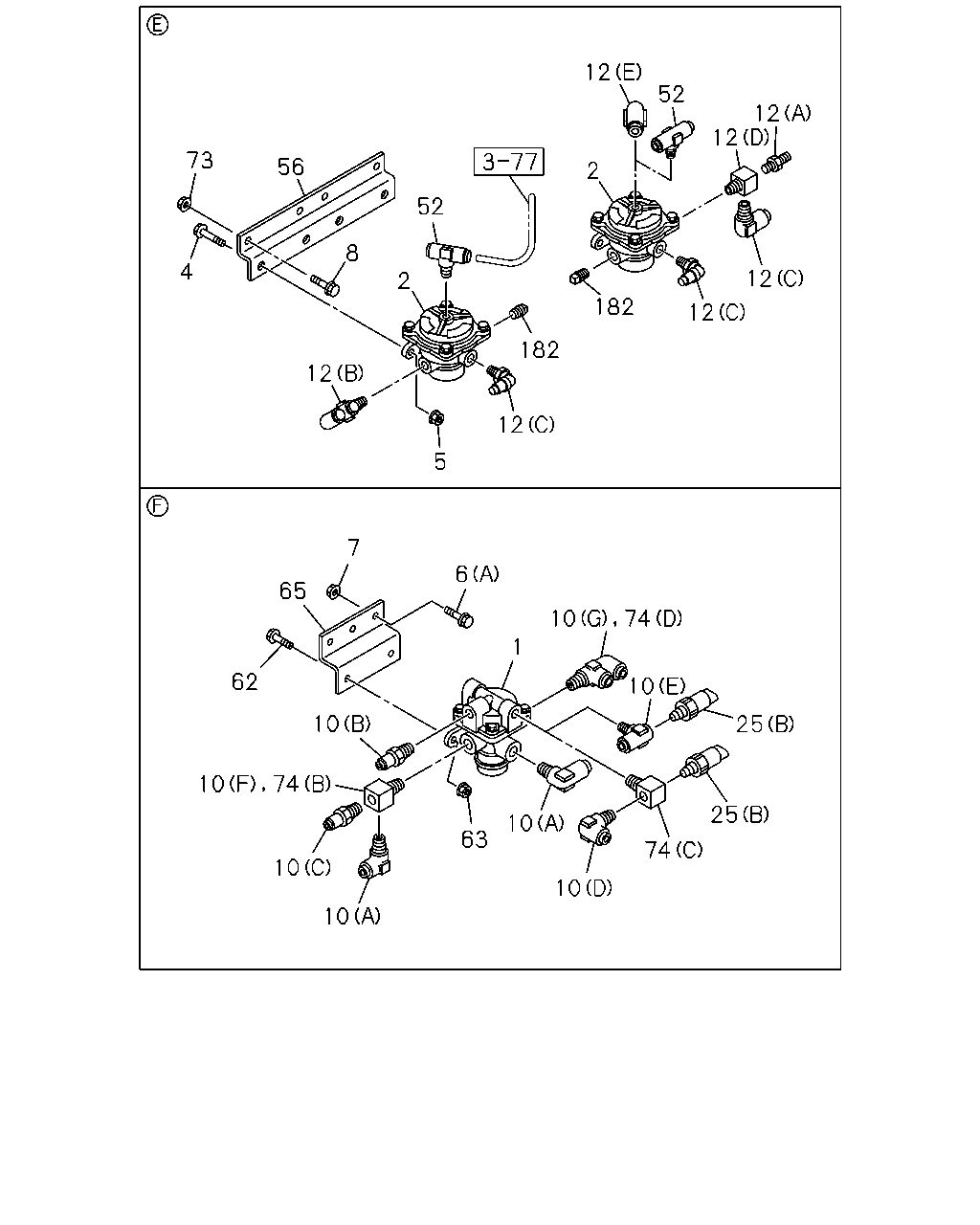

73 56 8 2 12 4 52 182 12 5 182 12 12 2 52 12 12 12 7 65 62 6 10 10 74 10 10 10 10 63 74 25 25 10 74 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	1204-1208	●
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	1209-	●	●
2	VALVE; RELAY	1-48210-875-0	02	1	1204-1208	●
2	VALVE; RELAY	1-48210-875-0	02	1	1209-	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1204-1208	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	1209-	●	●
5	NUT M10 FLANGE THA	0-91180-210-0	04	1	1204-1208	●
5	NUT M10 FLANGE THA	0-91180-210-0	04	1	1209-	●	●
6	BOLT; VLV (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1204-1208	●
6	BOLT; VLV (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1209-	●	●
6	BOLT; VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1204-1208	●
6	BOLT; VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1209-	●	●
7	NUT; RELAY VLV M8 FLANGE THA	0-91180-108-0	02	1	1204-1208	●
7	NUT; RELAY VLV M8 FLANGE THA	0-91180-108-0	02	1	1209-	●	●
8	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	04	1	1204-1208	●
8	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	04	1	1209-	●	●
10	CONNECTOR (G) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1209-		●
10	CONNECTOR (F) PT3/8 3WAY THA	1-09661-300-0	01	1	1209-		●
10	CONNECTOR (E) DIN8 & RC1/4 & R3/8 3WAY THA	8-97620-116-0	01	1	1209-		●
10	CONNECTOR (D) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1204-	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1204-1208	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1209-	●	●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	01	1	1204-1208	●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	01	1	1209-	●	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1204-1208	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-	●	●
12	CONNECTOR; RELAY VLV (E) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1209-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM<BFA> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	04	1	1204-	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1204-1208	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1209-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1209-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1204-1208	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1204-1208	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1209-	●
12	CONNECTOR; RELAY VLV (B) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1209-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) PT3/8 3WAY THA	1-09661-300-0	01	1	1204-1208	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) PT3/8 3WAY THA	1-09661-300-0	01	1	1209-	●
12	CONNECTOR; RELAY VLV (D) PT3/8 3WAY THA	1-09661-300-0	01	1	1209-		●
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	1204-1208	●
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	1209-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1204-1208	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1209-	●	●
52	CONNECTOR; RELAY VLV DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	1209-		●
52	CONNECTOR; RELAY VLV DIN8X2 & R3/8 3WAY THA	1-09660-996-0	02	1	1204-	●
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	1204-1208	●
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	1209-	●	●
62	BOLT; BRKT FIX M10X30 FLANGE THA	0-28651-030-0	02	1	1204-1208	●
62	BOLT; BRKT FIX M10X30 FLANGE THA	0-28651-030-0	02	1	1209-	●	●
63	NUT; BRKT FIX M10 FLANGE THA	0-91180-210-0	02	1	1204-1208	●
63	NUT; BRKT FIX M10 FLANGE THA	0-91180-210-0	02	1	1209-	●	●
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	1204-1208	●
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	1209-	●	●
73	NUT; BRKT M8 FLANGE THA	0-91180-108-0	04	1	1204-1208	●
73	NUT; BRKT M8 FLANGE THA	0-91180-108-0	04	1	1209-	●	●
74	CONNECTOR; 3WAY (C) IMA	1-09656-708-0	01	1	1204-	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	01	1	1204-	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1204-1208	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1209-	●	●
74	CONNECTOR; 3WAY (B) PT3/8 3WAY THA	1-09661-300-0	01	1	1204-	●
182	PLUG; RELAY VLV PT3/8 THA	9-09204-517-0	02	1	1204-1208	●
182	PLUG; RELAY VLV PT3/8 THA	9-09204-517-0	02	1	1209-	●	●

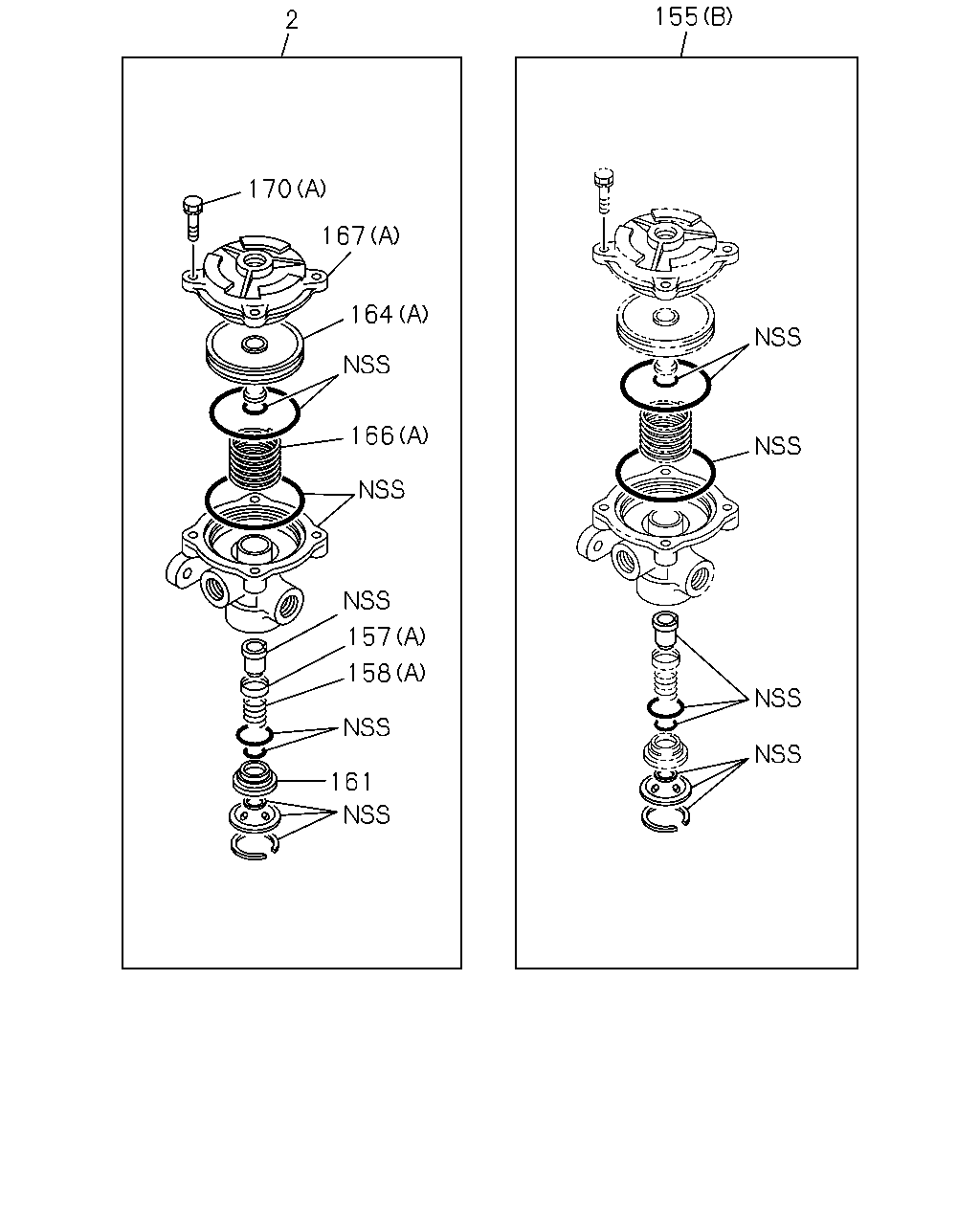

170 164 167 166 157 158 161 155 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-875-0	02	1	1204-1208	●
2	VALVE; RELAY	1-48210-875-0	02	1	1209-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	1204-1208	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	1209-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	1204-1208	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1209-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1204-1208	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1209-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1204-1208	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1209-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1204-1208	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1209-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1204-1208	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1209-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-032-0	01	1	1204-1208	●
164	PISTON; RELAY VALVE (C)	1-48219-032-0	01	1	1209-	●	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1204-1208	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1209-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	1204-1208	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	1209-	●	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	1204-1208	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	1209-	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1204-1208	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1209-	●	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1204-1208	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1209-1506	●	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1204-1208	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1209-	●	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1204-1208	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1209-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	1204-1208	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	1209-	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1204-1208	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1209-	●	●

1 155 170 167 164 164 166 157 158 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	1204-1208	●
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	1209-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	1204-1208	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	1209-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	1204-1208	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1209-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1204-1208	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1209-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1204-1208	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1209-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1204-1208	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1209-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1204-1208	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1209-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1204-1208	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1209-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1204-1208	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1209-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-032-0	01	1	1204-1208	●
164	PISTON; RELAY VALVE (C)	1-48219-032-0	01	1	1209-	●	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1204-1208	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1209-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	1204-1208	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	1209-	●	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	1204-1208	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	1209-	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1204-1208	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1209-	●	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1204-1208	●
167	COVER; VALVE (C) THA	1-48119-625-0	04	1	1209-1506	●	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1204-1208	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	1209-	●	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1204-1208	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1209-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	1204-1208	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	1209-	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1204-1208	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1209-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE THA	1-85576-451-1	01	1	1204-1208	●
	241	REPAIR KIT; PROTECTION VALVE THA	1-85576-451-1	01	1	1209-1506	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
