Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#73110) — 237 parça

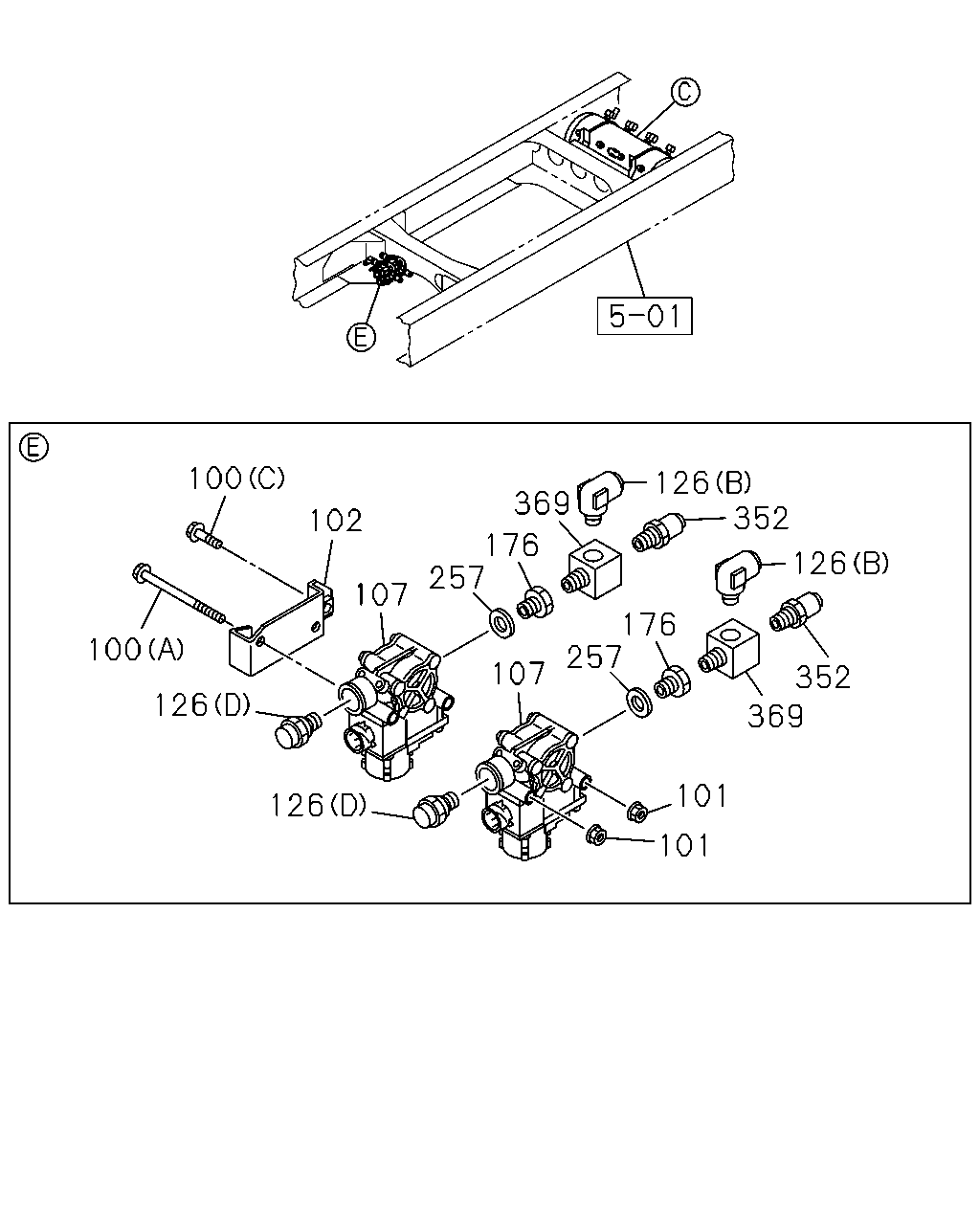

100 102 100 107 126 126 257 369 176 107 257 176 126 126 352 369 101 101 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1204-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE	0-28055-814-0	02	1	1204-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA	0-28650-830-0	02	1	1204-	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	02	1	1204-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> THA	8-98131-043-0	01	1	1204-	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA> THA	1-48240-115-0	02	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1204-1208	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1209-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW THA	1-09660-696-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	06	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1204-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22 THA	1-09650-494-1	06	1	1204-	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5 THA	9-09571-422-0	02	1	1204-	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1204-	●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM<BFA> PT3/8 3WAY THA	1-09661-300-0	02	1	1204-	●

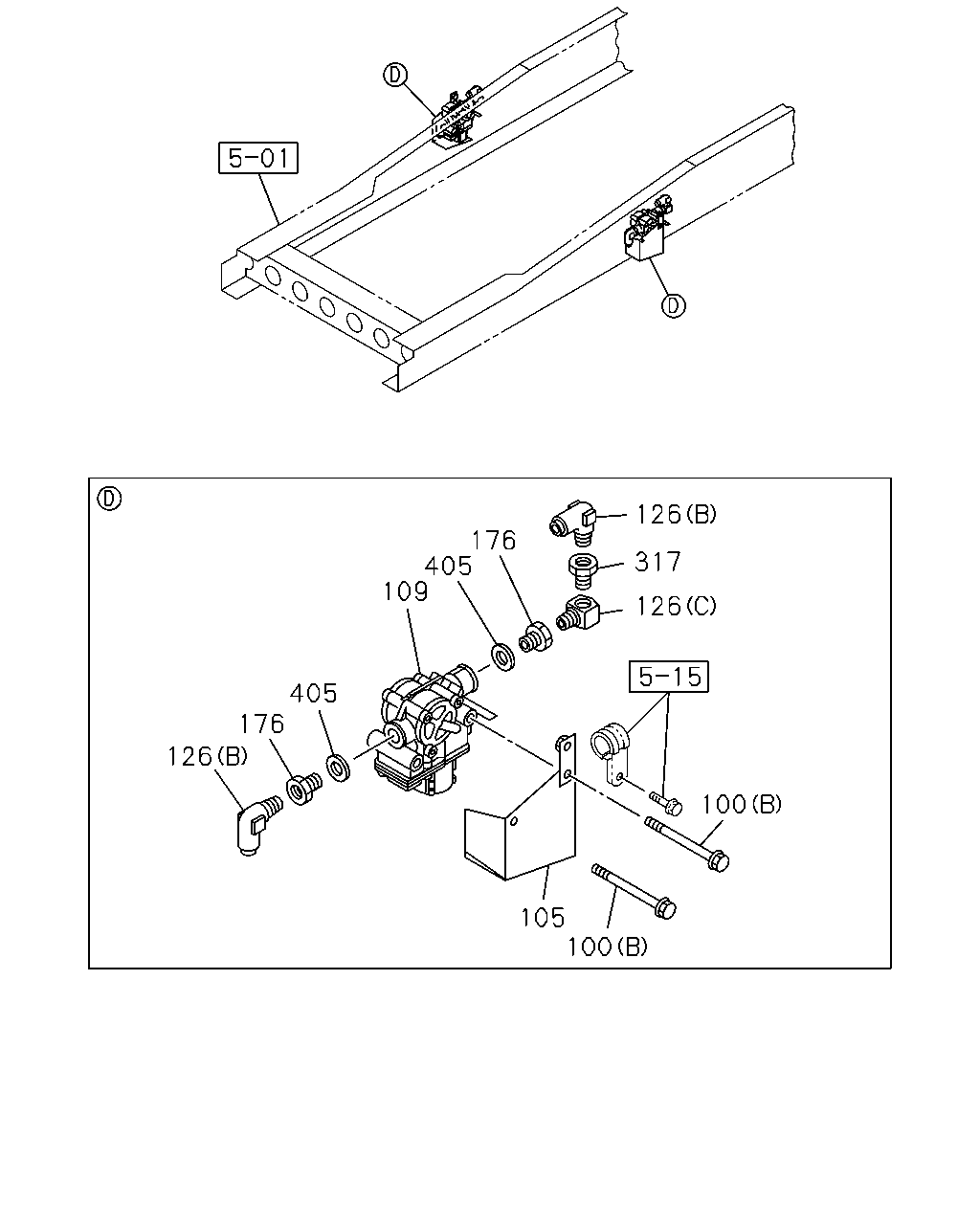

126 317 100 100 105 126 126 176 405 109 405 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1204-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE	0-28055-814-0	02	1	1204-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA	0-28650-830-0	02	1	1204-	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	8-98061-815-0	01	1	1204-	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	8-98081-578-0	01	1	1204-	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA> THA	1-48240-115-0	02	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1204-1208	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1209-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW THA	1-09660-696-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	06	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1204-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22 THA	1-09650-494-1	06	1	1204-	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> PT3/8 THA	1-09664-210-0	01	1	1204-	●
405	GASKET ANTILOCK BRAKE SYSTEM<BFA> ID=22.5 THA	9-09571-422-0	04	1	1204-	●

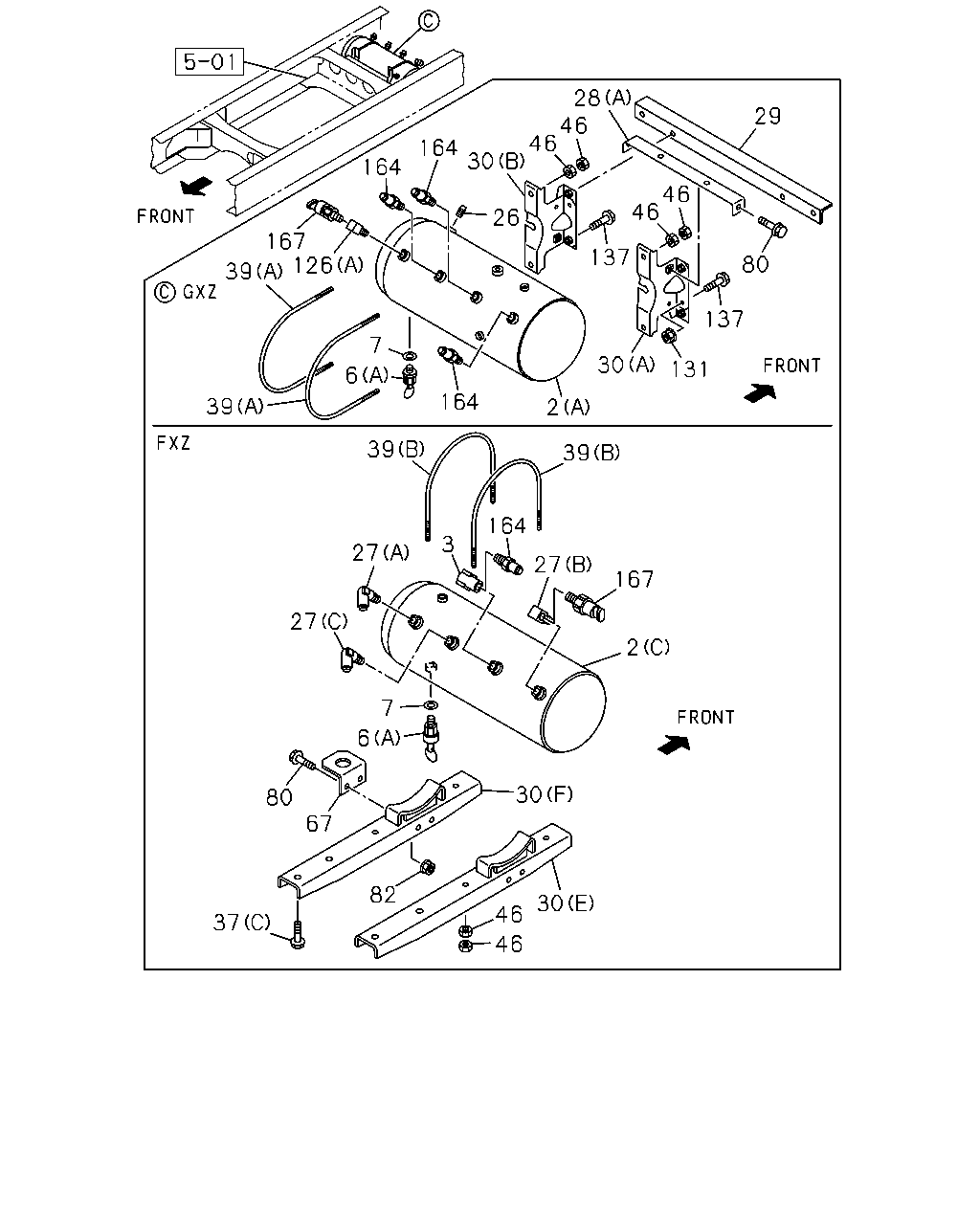

28 29 46 46 30 164 164 167 39 26 46 46 137 80 137 131 30 2 164 126 7 6 39 39 39 164 27 3 27 167 2 27 7 6 80 67 37 82 46 46 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR (C)	8-98207-596-0	01	1	1209-		●
2	TANK; AIR (B)	8-98207-597-0	01	1	1204-1208	●
2	TANK; AIR (B)	8-98207-597-0	01	1	1209-	●	●
2	TANK; AIR (A)	8-98207-594-0	01	1	1204-	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1204-1208	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1209-	●	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1209-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1209-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1204-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1204-1208	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1204-1208	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
26	PLUG; SUB AIR TANK PT3/8 THA	9-09204-517-0	01	1	1204-	●
27	UNION; ELBOW,AIR TANK (B) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1209-		●
27	UNION; ELBOW,AIR TANK (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1209-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1204-1208	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1209-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1209-		●
28	BRACKET; AIR TANK (B) THA	8-97618-088-1	01	1	1204-1208	●
28	BRACKET; AIR TANK (B) THA	8-97618-088-1	01	1	1209-	●	●
28	BRACKET; AIR TANK (A) THA	8-98085-710-0	01	1	1204-	●
28	BRACKET; AIR TANK (C) THA	8-98093-562-1	01	1	1204-1208	●
28	BRACKET; AIR TANK (C) THA	8-98093-562-1	01	1	1209-	●	●
29	BRACKET; AIR TANK THA	8-97619-245-1	01	1	1204-	●
30	BRACKET; AIR TANK,SUB (E) THA	8-98099-710-0	01	1	1209-		●
30	BRACKET; AIR TANK,SUB (F) THA	8-98099-711-0	01	1	1209-		●
30	BRACKET; AIR TANK,SUB (A) THA	8-97619-246-2	01	1	1204-	●
30	BRACKET; AIR TANK,SUB (B) THA	8-97619-247-2	01	1	1204-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1204-1208	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1209-	●	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1204-1208	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1209-	●	●
37	BOLT; AIR TANK (C) M12X40 FLANGE THA	0-28651-240-0	04	1	1209-		●
37	BOLT; AIR TANK (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1204-1208	●
37	BOLT; AIR TANK (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1209-	●	●
37	BOLT; AIR TANK (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1204-1208	●
37	BOLT; AIR TANK (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1209-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1209-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1204-1208	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1204-	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●
67	STAY; SUB TANK	8-98099-781-0	01	1	1209-		●
80	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1209-		●
80	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1204-	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1204-1208	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1209-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE THA	0-91180-108-0	02	1	1209-		●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1204-1208	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1209-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW THA	1-09660-696-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	06	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1204-	●
131	NUT; BRKT FIX M12 FLANGE THA	0-91180-212-0	01	1	1204-	●
137	BOLT; BRKT M12X35 FLANGE THA	0-28651-235-0	06	1	1204-	●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-		●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	03	1	1204-	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5 THA	8-97609-249-0	01	1	1204-1208	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5 THA	8-97609-249-0	01	1	1209-	●	●

39 27 39 2 7 30 46 46 30 46 46 37 6 6 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR (C)	8-98207-596-0	01	1	1209-		●
2	TANK; AIR (B)	8-98207-597-0	01	1	1204-1208	●
2	TANK; AIR (B)	8-98207-597-0	01	1	1209-	●	●
2	TANK; AIR (A)	8-98207-594-0	01	1	1204-	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1209-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1204-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1204-1208	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1204-1208	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
27	UNION; ELBOW,AIR TANK (B) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1209-		●
27	UNION; ELBOW,AIR TANK (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1209-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1204-1208	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1209-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1209-		●
30	BRACKET; AIR TANK,SUB (E) THA	8-98099-710-0	01	1	1209-		●
30	BRACKET; AIR TANK,SUB (F) THA	8-98099-711-0	01	1	1209-		●
30	BRACKET; AIR TANK,SUB (A) THA	8-97619-246-2	01	1	1204-	●
30	BRACKET; AIR TANK,SUB (B) THA	8-97619-247-2	01	1	1204-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1204-1208	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1209-	●	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1204-1208	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1209-	●	●
37	BOLT; AIR TANK (C) M12X40 FLANGE THA	0-28651-240-0	04	1	1209-		●
37	BOLT; AIR TANK (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1204-1208	●
37	BOLT; AIR TANK (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1209-	●	●
37	BOLT; AIR TANK (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1204-1208	●
37	BOLT; AIR TANK (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1209-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1209-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1204-1208	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1204-	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●

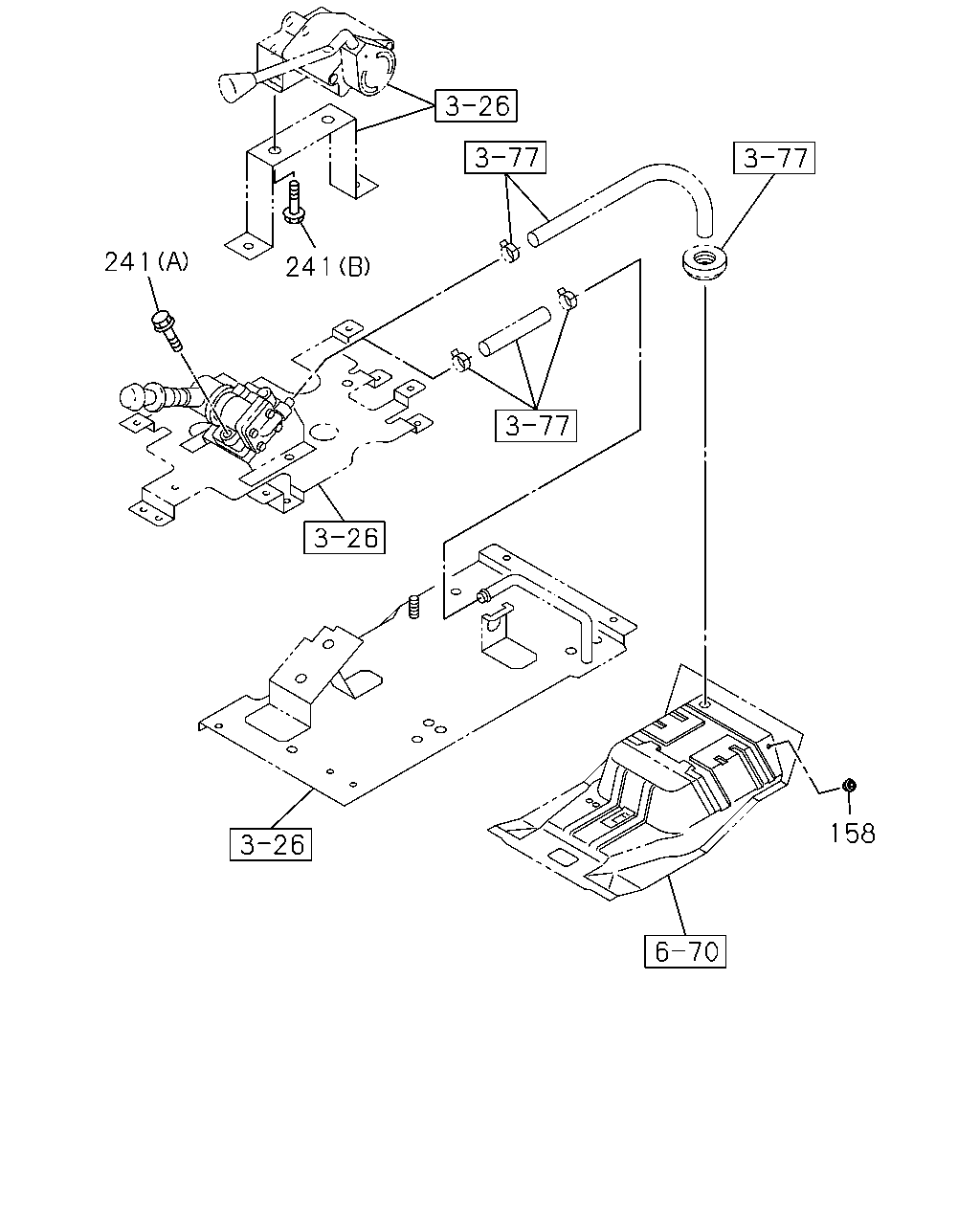

241 241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1209-		●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1204-1208	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1209-	●	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE THA	0-28051-020-0	02	1	1204-	●

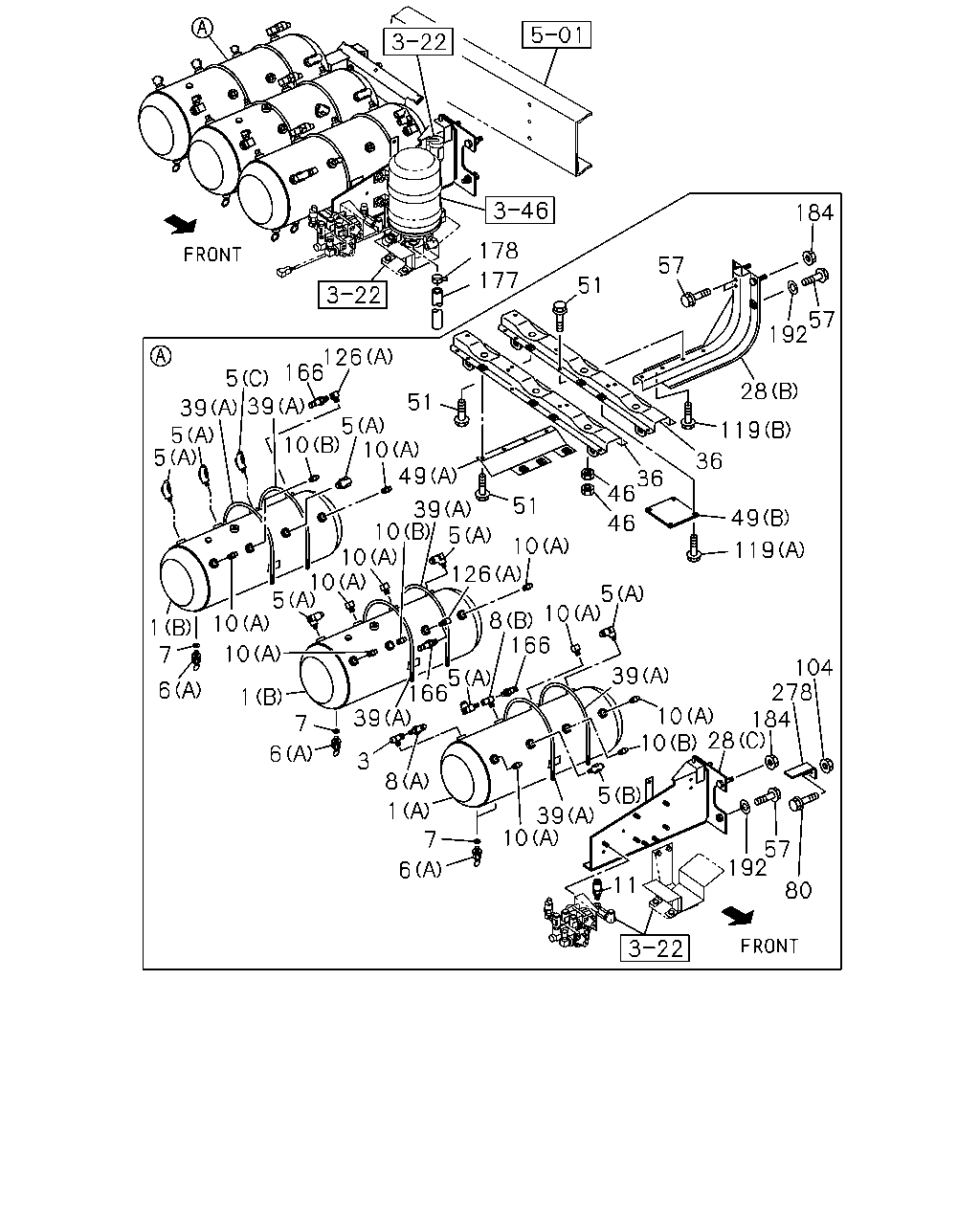

178 177 57 51 51 5 5 5 1 7 6 10 10 1 7 6 3 8 1 7 6 10 11 39 5 10 10 57 80 192 28 184 278 104 39 10 5 166 8 5 166 119 49 36 119 28 192 57 184 126 166 5 39 10 10 49 5 39 10 10 10 5 51 126 10 36 46 46 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1204-1208	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1209-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1204-1208	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1209-	●	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1204-1208	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1209-	●	●
3	VALVE; CHECK,AIR TANK THA	1-48320-031-1	01	1	1209-		●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1204-1208	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1209-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	07	1	1204-1208	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	07	1	1209-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW THA	1-09661-067-0	01	1	1204-1208	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW THA	1-09661-067-0	01	1	1209-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1209-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1204-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1204-1208	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1204-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1204-1208	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1209-	●	●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1204-1208	●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1209-	●	●
8	CONNECTOR; AIR TANK (B) IMA	8-98166-127-0	01	1	1204-1208	●
8	CONNECTOR; AIR TANK (B) IMA	8-98166-127-0	01	1	1209-	●	●
10	PLUG; AIR TANK (A) PT3/8 THA	9-09204-517-0	09	1	1204-1208	●
10	PLUG; AIR TANK (A) PT3/8 THA	9-09204-517-0	09	1	1209-	●	●
10	PLUG; AIR TANK (B) PT1/4 THA	9-99204-513-0	03	1	1204-1208	●
10	PLUG; AIR TANK (B) PT1/4 THA	9-99204-513-0	03	1	1209-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1204-1208	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1209-	●	●
28	BRACKET; AIR TANK (B) THA	8-97618-088-1	01	1	1204-1208	●
28	BRACKET; AIR TANK (B) THA	8-97618-088-1	01	1	1209-	●	●
28	BRACKET; AIR TANK (A) THA	8-98085-710-0	01	1	1204-	●
28	BRACKET; AIR TANK (C) THA	8-98093-562-1	01	1	1204-1208	●
28	BRACKET; AIR TANK (C) THA	8-98093-562-1	01	1	1209-	●	●
36	STAY; MAIN TANK THA	8-97618-091-1	04	1	1204-1206	●
36	STAY; MAIN TANK THA	8-97618-091-1	02	1	1207-1208	●
36	STAY; MAIN TANK THA	8-97618-091-1	02	1	1209-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1209-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1204-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1204-1208	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1204-	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	08	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1204-1208	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●
46	NUT; U-BOLT M8 THA	0-91110-508-0	16	1	1209-	●	●
49	BRACKET; AIR TANK (B)	8-97620-997-0	01	1	1204-1208	●
49	BRACKET; AIR TANK (B)	8-97620-997-0	01	1	1209-	●	●
49	BRACKET; AIR TANK (A) THA	8-98110-683-0	01	1	1204-1208	●
49	BRACKET; AIR TANK (A) THA	8-98110-683-0	01	1	1209-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE THA	0-28650-820-0	08	1	1204-1208	●
51	BOLT; STAY TO BRKT M8X20 FLANGE THA	0-28650-820-0	08	1	1209-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1204-1208	●
57	BOLT; BRKT,AIR TANK TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1209-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1204-1208	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1209-	●	●
80	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1209-		●
80	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1204-	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1204-1208	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1209-	●	●
104	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1204-1208	●
104	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1209-	●	●
119	BOLT; STAY (A) M8X20 FLANGE THA	0-28650-820-0	04	1	1204-1208	●
119	BOLT; STAY (A) M8X20 FLANGE THA	0-28650-820-0	04	1	1209-	●	●
119	BOLT; STAY (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1204-1208	●
119	BOLT; STAY (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1209-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	01	1	1204-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1204-1208	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY THA	1-09660-809-0	02	1	1209-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW THA	1-09660-696-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	06	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1204-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1204-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 THA	8-97609-249-0	03	1	1204-1208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 THA	8-97609-249-0	03	1	1209-	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000 THA	0-03566-300-0	01	1	1204-1208	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000 THA	0-03566-300-0	01	1	1209-	●	●
178	CLIP; HOSE ID=21 THA	8-94242-034-0	01	1	1204-1208	●
178	CLIP; HOSE ID=21 THA	8-94242-034-0	01	1	1209-	●	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1204-1208	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1209-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1204-1208	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1209-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1204-1208	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1209-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
