◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#73107) — 156 parça

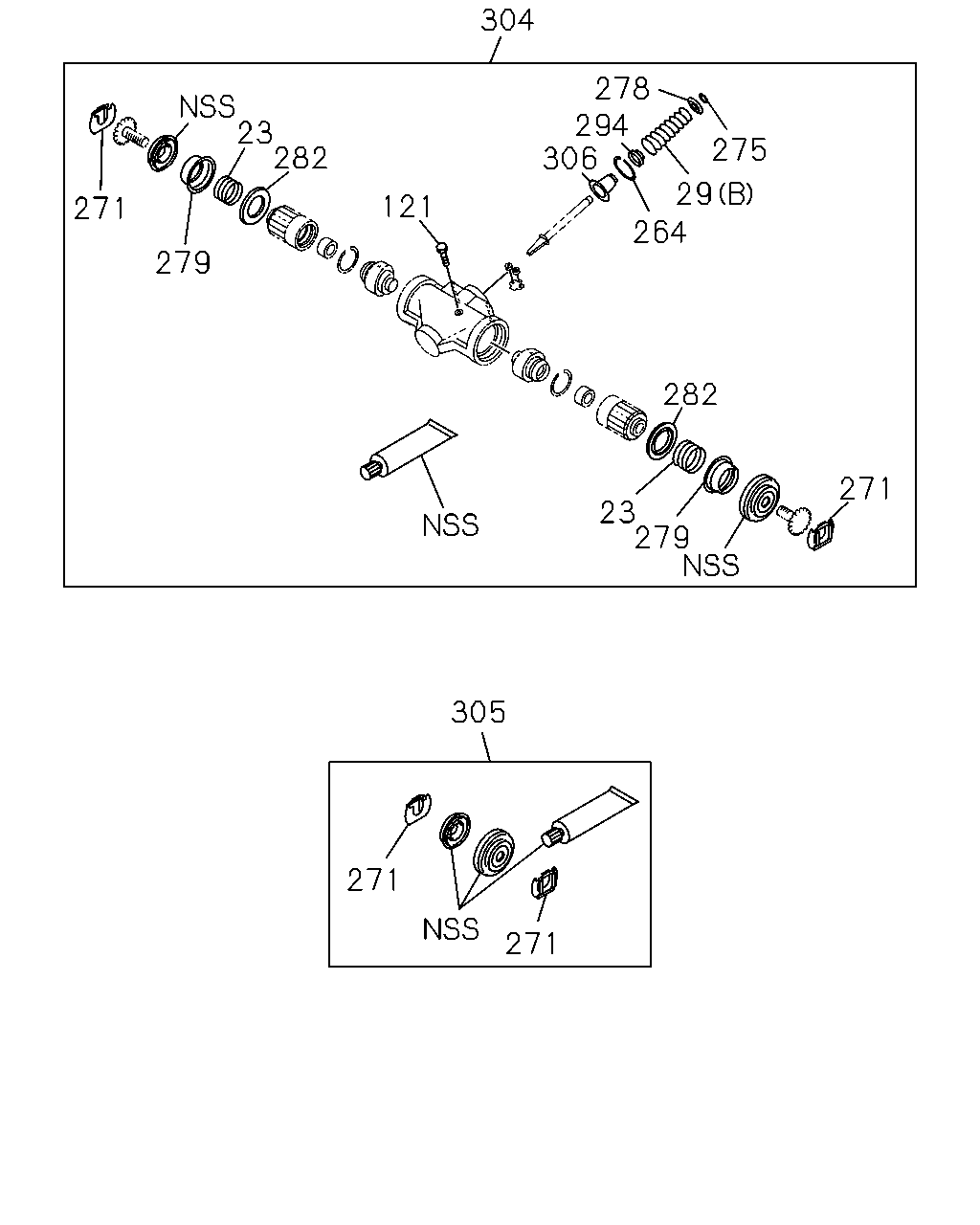

çizim 114845
271 279 23 282 305 271 271 121 264 29 275 294 306 278 304 282 23 279 271
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1304- ● ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1204-1208 ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1204-1208 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1304- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1204-1208 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1304- ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1304- ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1204-1208 ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1209-1301 ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1304- ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1204-1208 ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1209-1301 ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1304- ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1204-1208 ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1209-1301 ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1304- ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1204-1208 ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1209-1301 ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1304- ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1204-1208 ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1209-1301 ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1304- ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1204-1208 ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1209-1301 ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1304- ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1204-1208 ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1209-1301 ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1304- ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1204-1208 ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1209-1301 ● ●
304 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1304- ● ●
304 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1204-1208 ●
304 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1209-1301 ● ●
305 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1304- ● ●
305 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1204-1208 ●
305 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1209-1301 ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1304- ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1204-1208 ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1209-1301 ● ●

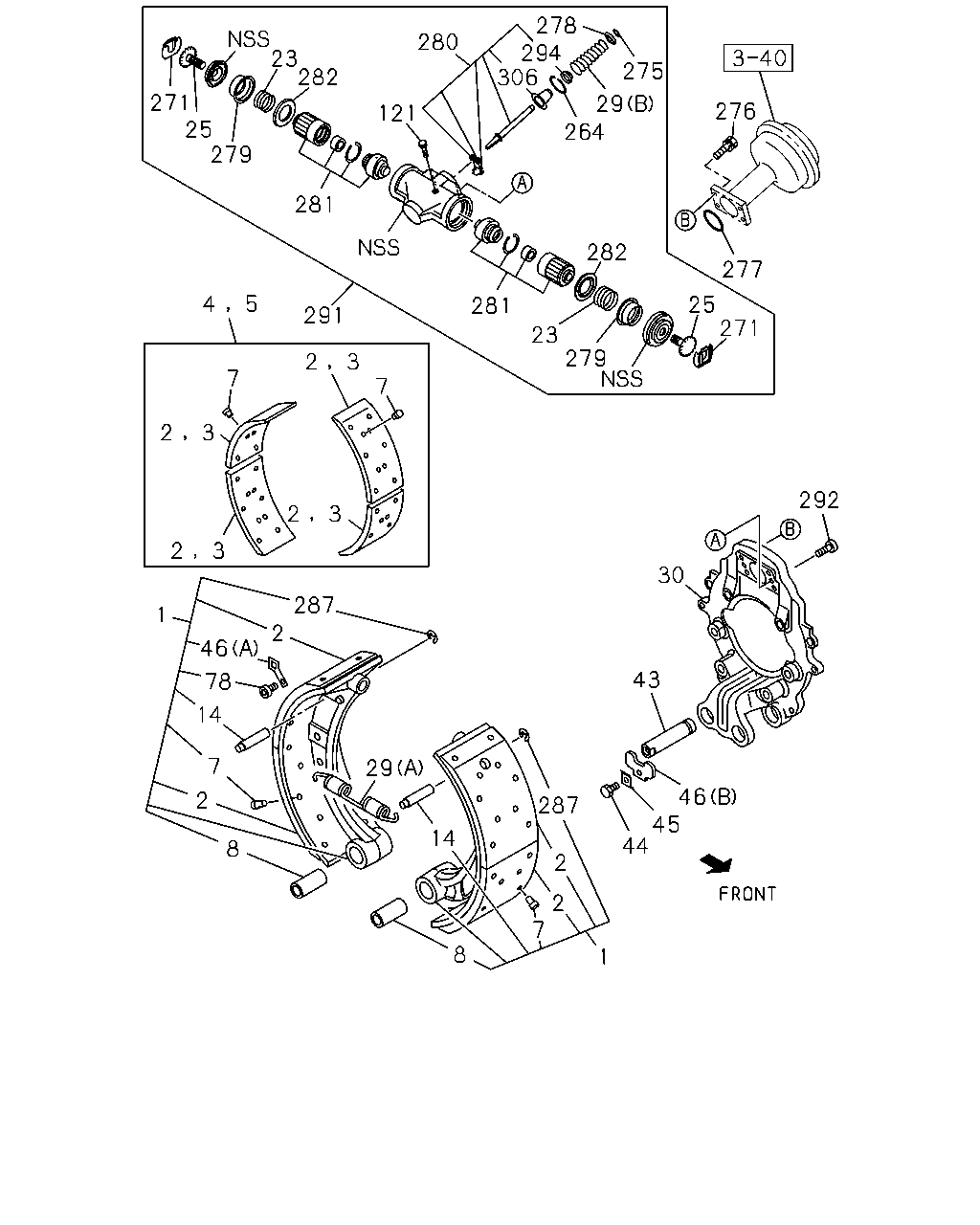

çizim 194214
278 294 306 280 121 282 23 271 25 279 281 275 29 264 276 282 281 23 279 277 25 271 4 5 291 7 3 2 7 3 2 2 3 2 3 287 1 46 2 78 14 7 2 8 29 14 287 2 7 2 44 46 45 43 30 292 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING THA 		1-47170-320-0 01 1 1204-1208 ●
1 SHOE; BRK,FRT
LEADING THA 		1-47170-320-0 01 1 1209-1301 ● ●
1 SHOE; BRK,FRT
THA 		1-47170-320-0 01 1 1304- ● ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-321-0 01 1 1204-1208 ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-321-0 01 1 1209-1301 ● ●
1 SHOE; BRK,FRT
THA 		1-47170-321-0 01 1 1304- ● ●
1 SHOE; BRK,FRT
LEADING THA 		1-47170-322-0 01 1 1204-1208 ●
1 SHOE; BRK,FRT
LEADING THA 		1-47170-322-0 01 1 1209-1301 ● ●
1 SHOE; BRK,FRT
THA 		1-47170-322-0 01 1 1304- ● ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-323-0 01 1 1204-1208 ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-323-0 01 1 1209-1301 ● ●
1 SHOE; BRK,FRT
THA 		1-47170-323-0 01 1 1304- ● ●
2 LINING; FRT BRK SHOE,STANDARD
THA 		1-47126-700-0 08 1 1304- ● ●
2 LINING; FRT BRK SHOE,STANDARD
THA 		1-47126-700-0 08 1 1204-1208 ●
2 LINING; FRT BRK SHOE,STANDARD
THA 		1-47126-700-0 08 1 1209-1301 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
THA 		1-47126-701-0 08 1 1304- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
THA 		1-47126-701-0 08 1 1204-1208 ●
3 LINING; FRT BRK SHOE,OVER SIZE
THA 		1-47126-701-0 08 1 1209-1301 ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-316-0 02 1 1304- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-316-0 02 1 1204-1208 ●
4 LINING SET; FRT BRK,STANDARD 1-88311-316-0 02 1 1209-1301 ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-317-0 02 1 1304- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-317-0 02 1 1204-1208 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-317-0 02 1 1209-1301 ● ●
7 RIVET; LINING,FRT BRK
L=15.5 THA 		1-09732-053-0 80 1 1304- ● ●
7 RIVET; LINING,FRT BRK
L=15.5 THA 		1-09732-053-0 80 1 1204-1208 ●
7 RIVET; LINING,FRT BRK
L=15.5 THA 		1-09732-053-0 80 1 1209-1301 ● ●
8 BUSHING; BRK SHOE
THA 		1-47112-020-0 04 1 1304- ● ●
8 BUSHING; BRK SHOE
THA 		1-47112-020-0 04 1 1204-1208 ●
8 BUSHING; BRK SHOE
THA 		1-47112-020-0 04 1 1209-1301 ● ●
14 PIN; SHOE RETURN SPR
THA 		1-47119-177-1 04 1 1304- ● ●
14 PIN; SHOE RETURN SPR
THA 		1-47119-177-1 04 1 1204-1208 ●
14 PIN; SHOE RETURN SPR
THA 		1-47119-177-1 04 1 1209-1301 ● ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1304- ● ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1204-1208 ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1209-1301 ● ●
25 SCREW; ADJ,FRT WHEEL CYL
THA 		1-47623-035-2 04 1 1304- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
THA 		1-47623-035-2 04 1 1204-1208 ●
25 SCREW; ADJ,FRT WHEEL CYL
THA 		1-47623-035-2 04 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1204-1208 ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 04 1 1304- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1204-1208 ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1209-1301 ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1304- ● ●
30 BRACKET; ANCHOR,FRT
THA 		8-98091-252-0 02 1 1304- ● ●
30 BRACKET; ANCHOR,FRT
THA 		8-98091-252-0 02 1 1204-1208 ●
30 BRACKET; ANCHOR,FRT
THA 		8-98091-252-0 02 1 1209-1301 ● ●
43 PIN; ANCHOR
L=115.5 THA 		1-47131-044-0 04 1 1304- ● ●
43 PIN; ANCHOR
L=115.5 THA 		1-47131-044-0 04 1 1204-1208 ●
43 PIN; ANCHOR
L=115.5 THA 		1-47131-044-0 04 1 1209-1301 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 THA 		1-47139-173-0 02 1 1304- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 THA 		1-47139-173-0 02 1 1204-1208 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 THA 		1-47139-173-0 02 1 1209-1301 ● ●
45 WASHER; LK
THA 		1-47133-011-0 02 1 1304- ● ●
45 WASHER; LK
THA 		1-47133-011-0 02 1 1204-1208 ●
45 WASHER; LK
THA 		1-47133-011-0 02 1 1209-1301 ● ●
46 PLATE; LOCK
(A) THA 		1-47119-152-0 04 1 1204-1208 ●
46 PLATE; LOCK
(A) THA 		1-47119-152-0 04 1 1209-1301 ● ●
46 PLATE; LOCK
(A) THA 		1-47119-152-0 04 1 1304- ● ●
46 PLATE; LOCK
(B) THA 		1-47133-010-0 02 1 1204-1208 ●
46 PLATE; LOCK
(B) THA 		1-47133-010-0 02 1 1209-1301 ● ●
46 PLATE; LOCK
(B) THA 		1-47133-010-0 02 1 1304- ● ●
78 BOLT; LK,PLATE
THA 		1-47119-153-0 04 1 1304- ● ●
78 BOLT; LK,PLATE
THA 		1-47119-153-0 04 1 1204-1208 ●
78 BOLT; LK,PLATE
THA 		1-47119-153-0 04 1 1209-1301 ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1304- ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1204-1208 ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1209-1301 ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1304- ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1204-1208 ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1209-1301 ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1304- ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1204-1208 ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1209-1301 ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1304- ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1204-1208 ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1209-1301 ● ●
276 BOLT; CHAMBER
M10X42.5 THA 		1-47139-163-0 08 1 1304- ● ●
276 BOLT; CHAMBER
M10X42.5 THA 		1-47139-163-0 08 1 1204-1208 ●
276 BOLT; CHAMBER
M10X42.5 THA 		1-47139-163-0 08 1 1209-1301 ● ●
277 RING; CHAMBER
THA 		1-48259-231-0 02 1 1304- ● ●
277 RING; CHAMBER
THA 		1-48259-231-0 02 1 1204-1208 ●
277 RING; CHAMBER
THA 		1-48259-231-0 02 1 1209-1301 ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1304- ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1204-1208 ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1209-1301 ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1304- ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1204-1208 ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1209-1301 ● ●
280 WEDGE; FRT WHEEL CYL
THA 		1-47640-012-0 02 1 1304- ● ●
280 WEDGE; FRT WHEEL CYL
THA 		1-47640-012-0 02 1 1204-1208 ●
280 WEDGE; FRT WHEEL CYL
THA 		1-47640-012-0 02 1 1209-1301 ● ●
281 SLEEVE
THA 		1-47629-247-1 04 1 1304- ● ●
281 SLEEVE
THA 		1-47629-247-1 04 1 1204-1208 ●
281 SLEEVE
THA 		1-47629-247-1 04 1 1209-1301 ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1304- ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1204-1208 ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1209-1301 ● ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1304- ● ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1204-1208 ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1209-1301 ● ●
291 EXPANDER
THA 		1-47601-087-0 02 1 1304- ● ●
291 EXPANDER
THA 		1-47601-087-0 02 1 1204-1208 ●
291 EXPANDER
THA 		1-47601-087-0 02 1 1209-1301 ● ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 1304- ● ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 1204-1208 ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 1209-1301 ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1304- ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1204-1208 ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1209-1301 ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1304- ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1204-1208 ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1209-1301 ● ●
