Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

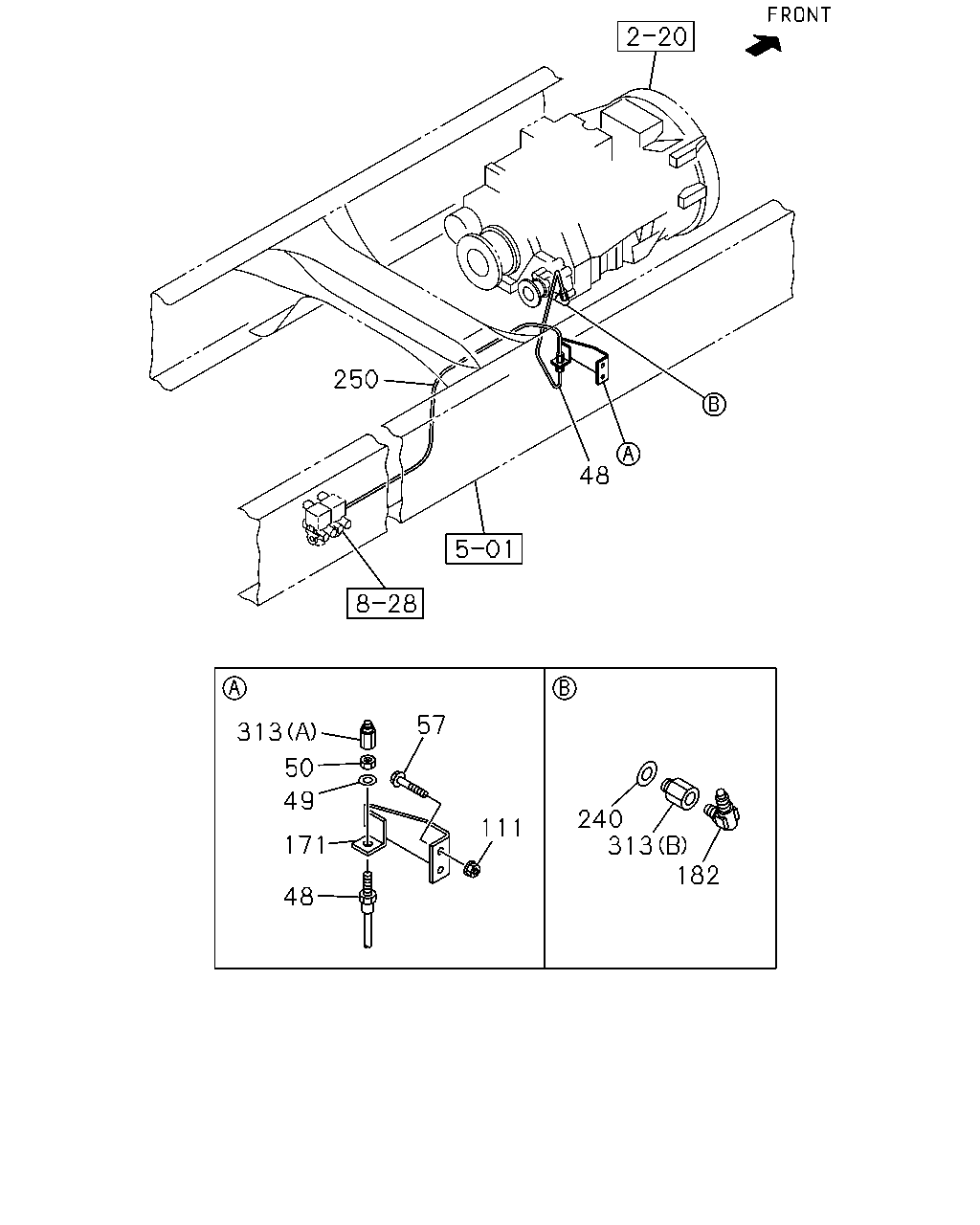

2-85 — POWER TAKE OFF CONTROL
(#73106) — 23 parça
Tümü
A - GGZ5MX
B - FGZ5MX
182
313
240
111
48
171
57
49
313
50
48
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400
1-09363-606-0
01
1
1204-1208
●
48
HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400
1-09363-606-0
01
1
1209-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2
0-91510-512-0
01
1
1204-1208
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2
0-91510-512-0
01
1
1209-
●
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12
9-09840-280-0
01
1
1204-1208
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12
9-09840-280-0
01
1
1209-
●
●
57
BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA
0-28650-835-0
02
1
1204-1208
●
57
BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA
0-28650-835-0
02
1
1209-
●
●
111
NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA
0-91180-108-0
02
1
1204-1208
●
111
NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA
0-91180-108-0
02
1
1209-
●
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA
8-98086-261-0
01
1
1204-1208
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA
8-98086-261-0
01
1
1209-
●
●
182
CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
1204-1208
●
182
CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
1209-
●
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
1-09630-084-0
01
1
1204-1208
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
1-09630-084-0
01
1
1209-1312
●
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
8-98251-344-0
01
1
1401-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1204-1208
●
250
TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1209-
●
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (B) PT1/4
1-09654-396-0
01
1
1204-1208
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (B) PT1/4
1-09654-396-0
01
1
1209-
●
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA
1-09660-873-0
01
1
1204-1208
●
313
ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA
1-09660-873-0
01
1
1209-
●
●
