2-05 — CLUTCH PIPING (#73095) — 126 parça

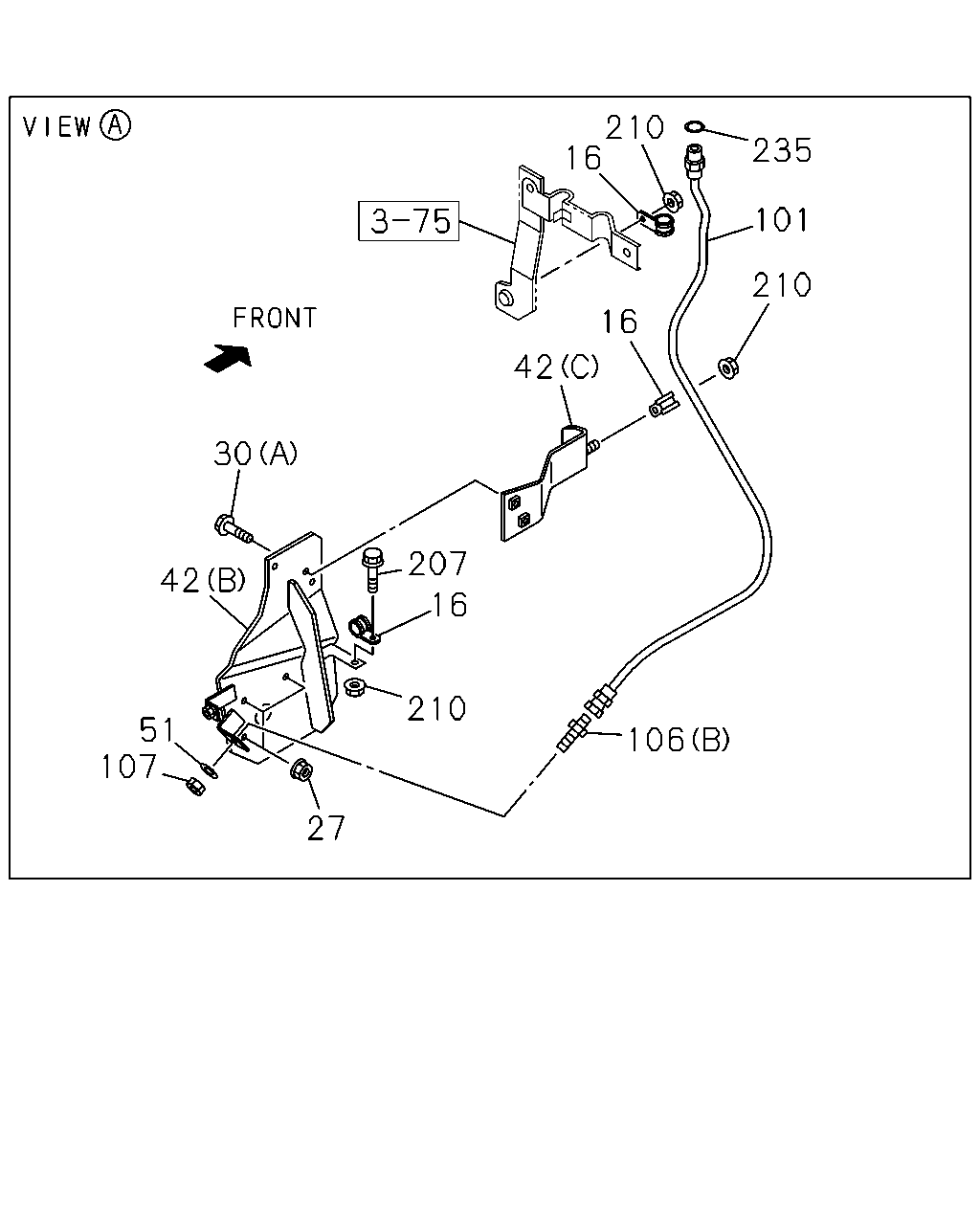

çizim 102084
235 210 101 210 16 16 42 106 210 16 207 30 42 51 107 27
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1204-1208 ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1209- ● ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1204-1208 ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1209- ● ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1204-1208 ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1209- ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
30 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 01 1 1204-1208 ●
30 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ● ●
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1204-1208 ●
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1209- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1209- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1209-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98179-878-0 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98179-878-0 01 1 1209- ● ●
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1204-1208 ●
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1209- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1204-1208 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1204-1208 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1204-1208 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1204-1208 ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1209- ● ●
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1204-1208 ●
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1209- ● ●
207 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
207 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
210 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
210 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1204-1208 ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1209- ● ●

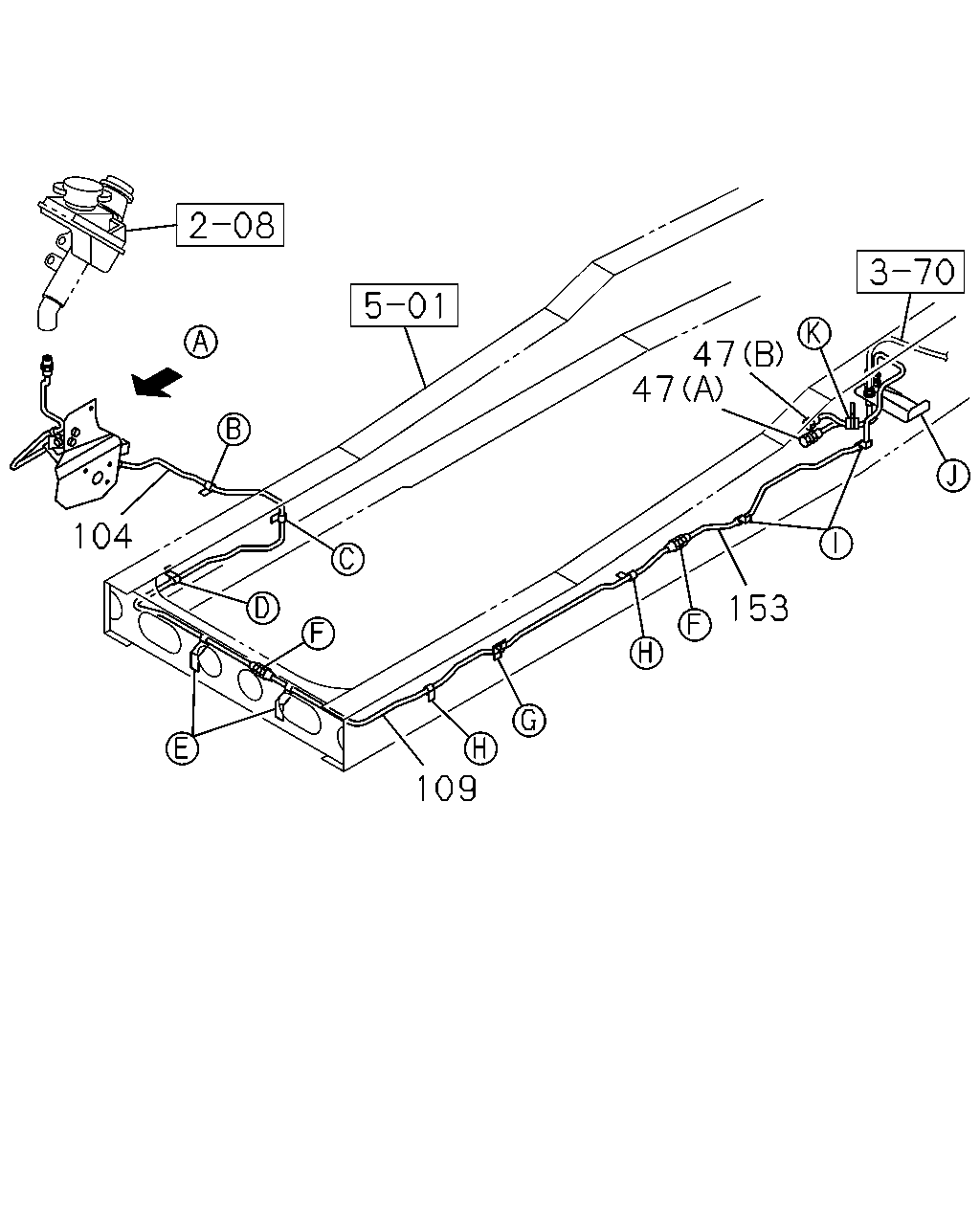

çizim 194203
104 109 153 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1204-1208 ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1209- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1204-1208 ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1209- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 THA 		1-47428-768-0 01 1 1204-1208 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 THA 		1-47428-768-0 01 1 1209- ● ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 THA 		1-47428-767-0 01 1 1204-1208 ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 THA 		1-47428-767-0 01 1 1209- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1204-1208 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1209- ● ●

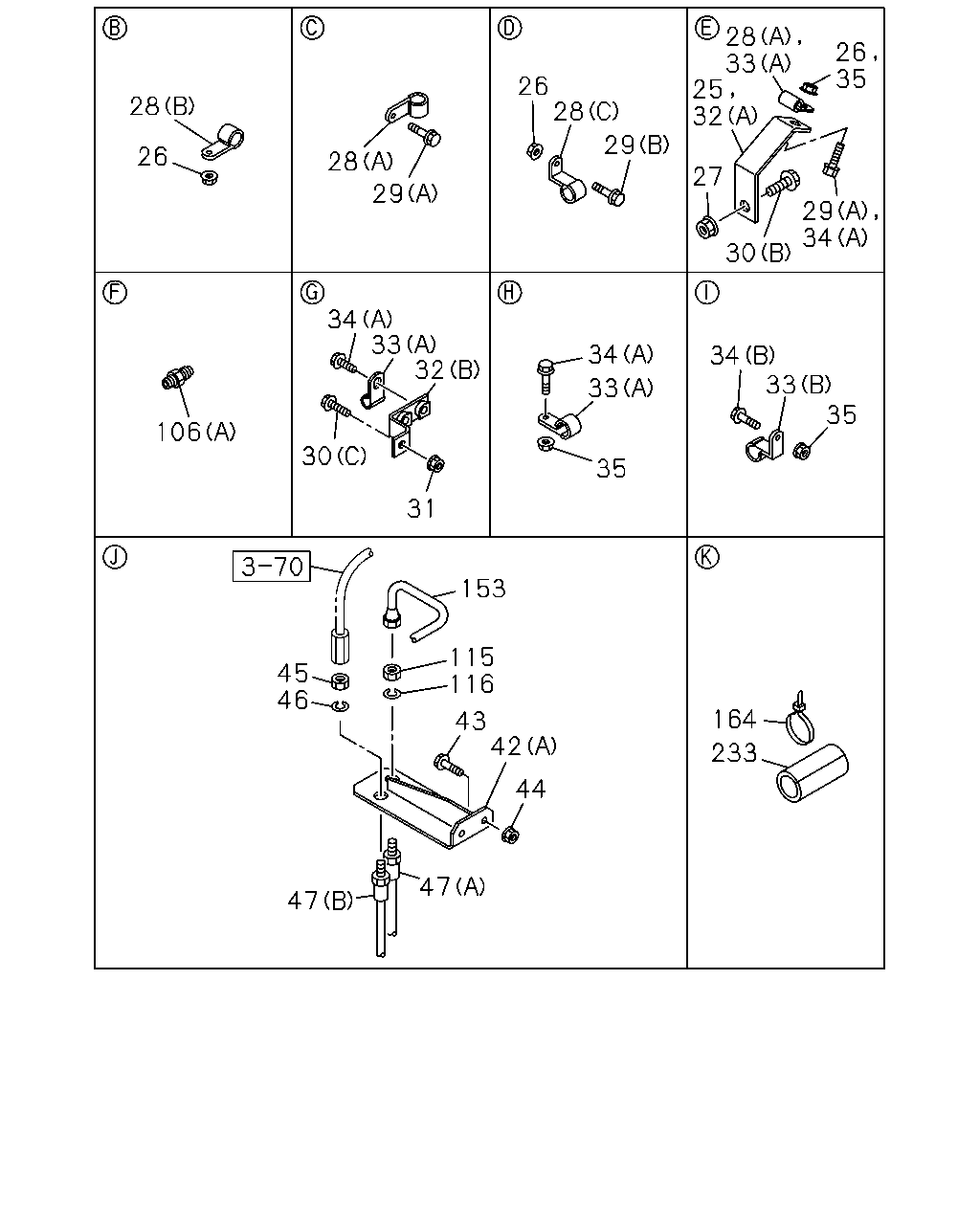

çizim 194204
28 26 106 153 115 116 43 42 44 47 47 46 45 28 29 34 33 32 31 30 26 28 29 34 33 35 28 33 25 32 27 30 34 29 35 26 34 33 35 164 233
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1204-1208 ●
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1209- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1204-1208 ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1209- ● ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1204-1208 ●
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1209- ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1204-1208 ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1209- ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1204-1208 ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1209- ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1204-1208 ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1209- ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
30 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 01 1 1204-1208 ●
30 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ● ●
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1204-1208 ●
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1209- ● ●
31 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
31 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
31 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1204-1208 ●
31 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1209- ● ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1204-1208 ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1209- ● ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1204-1208 ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1209- ● ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1204-1208 ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1209- ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1204-1208 ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1209- ● ●
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1204-1208 ●
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1209- ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1204-1208 ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ● ●
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1209- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1209-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98179-878-0 01 1 1204-1208 ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98179-878-0 01 1 1209- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE THA 		0-28650-835-0 02 1 1204-1208 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE THA 		0-28650-835-0 02 1 1209- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1204-1208 ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1209- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1204-1208 ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1209- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1204-1208 ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1209- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1204-1208 ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1204-1208 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1204-1208 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1209- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1204-1208 ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1209- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1204-1208 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1209- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1204-1208 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1209- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1204-1208 ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1209- ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1204-1208 ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1209- ● ●
233 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1204-1208 ●
233 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1209- ● ●
