◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#73094) — 30 parça

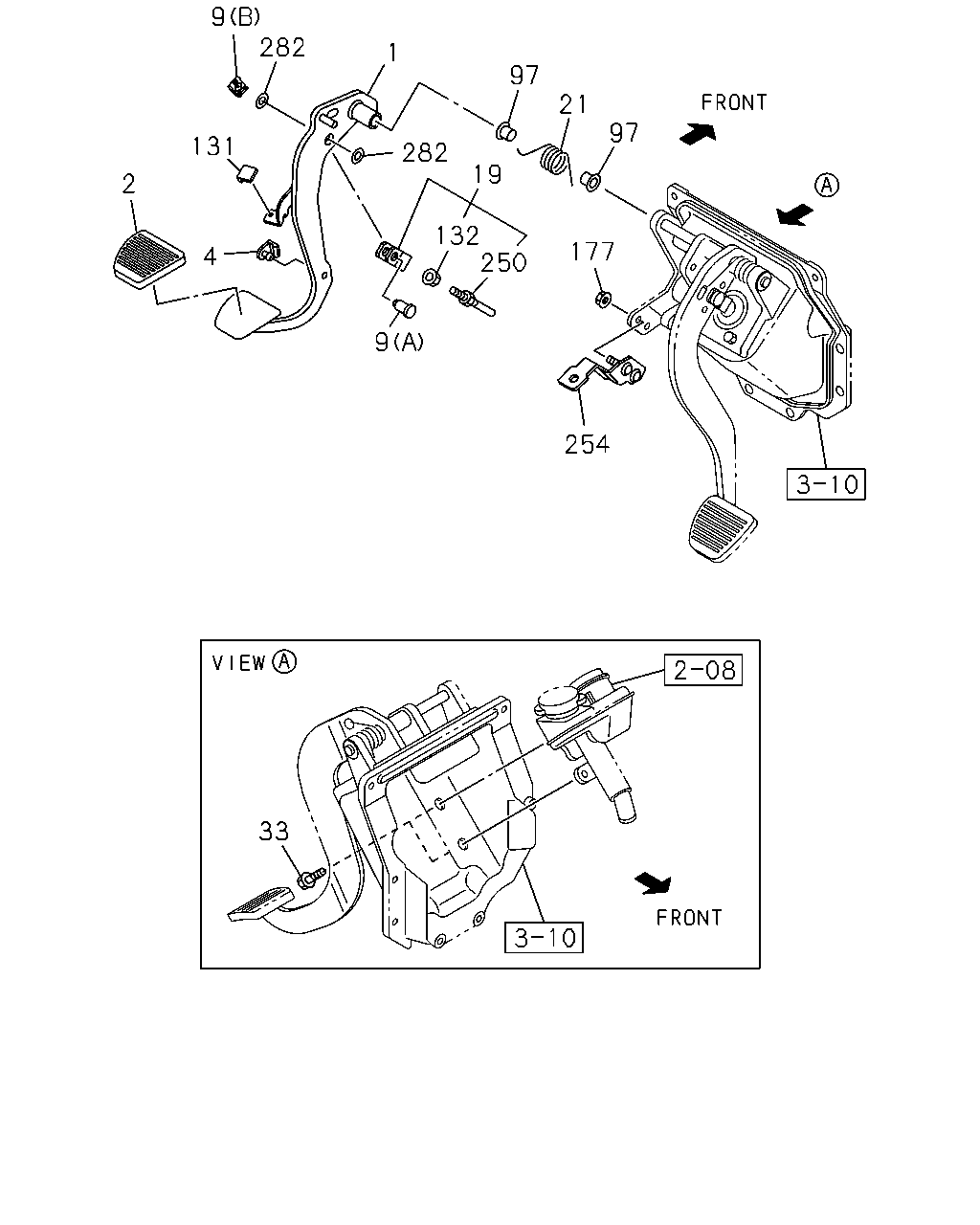

çizim 98586
254 177 97 97 21 19 282 1 132 250 9 4 131 282 9 2 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98099-809-0 01 1 1204-1208 ●
1 PEDAL; CLU 8-98099-809-0 01 1 1209- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1204-1208 ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1209- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1204-1208 ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1209- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1204-1208 ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1209- ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1204-1208 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1209- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1204-1208 ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1209- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1204-1208 ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1209- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1204-1208 ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1209- ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1204-1208 ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1209- ● ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1204-1208 ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1209- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
132 NUT; LK,PUSH ROD
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
177 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
177 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1204-1208 ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1209- ● ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1204-1208 ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1209- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1204-1208 ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1209- ● ●
