1-50 — EXHAUST PIPE AND SILENCER (#73090) — 144 parça

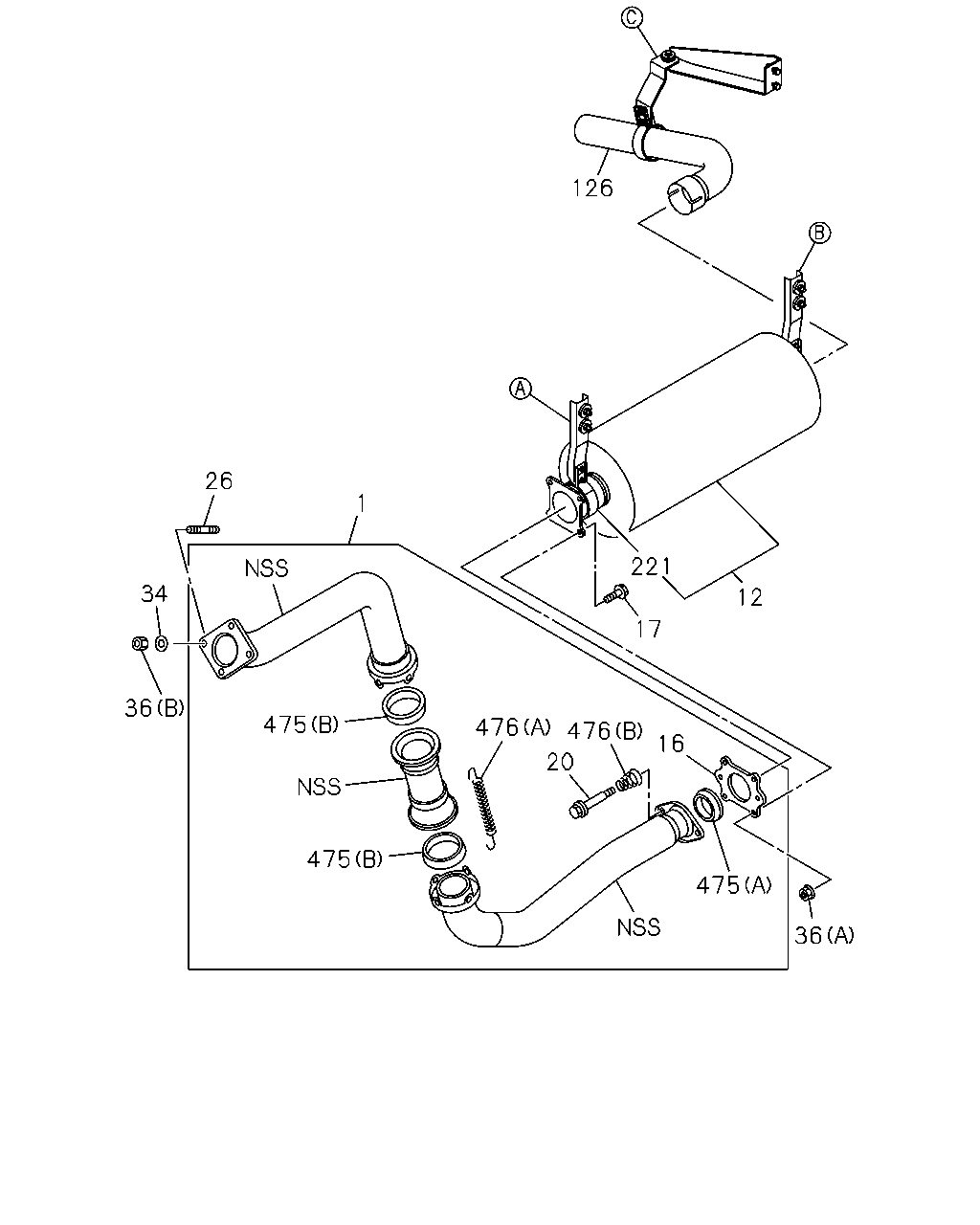

36 475 16 476 20 476 475 475 36 34 26 1 17 221 12 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97925-896-0	01	1	1209-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1204-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1204-1208		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1209-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1204-1208		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1209-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1204-1208		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1209-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1204-1208		●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1209-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1204-1208		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1209-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1204-1208		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1209-	●	●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	1204-1208		●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	1209-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1204-1208		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1209-	●	●
126	PIPE; EXH,RR THA	8-97925-780-0	01	1	1204-		●
221	CLAMP; EXH SILENCER D=101.4 THA	1-22133-170-1	01	1	1205-1208		●
221	CLAMP; EXH SILENCER D=101.4 THA	1-22133-170-1	01	1	1209-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	1204-1208		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1209-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1204-1208		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1209-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1204-1208		●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1209-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1204-1208		●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1209-	●	●

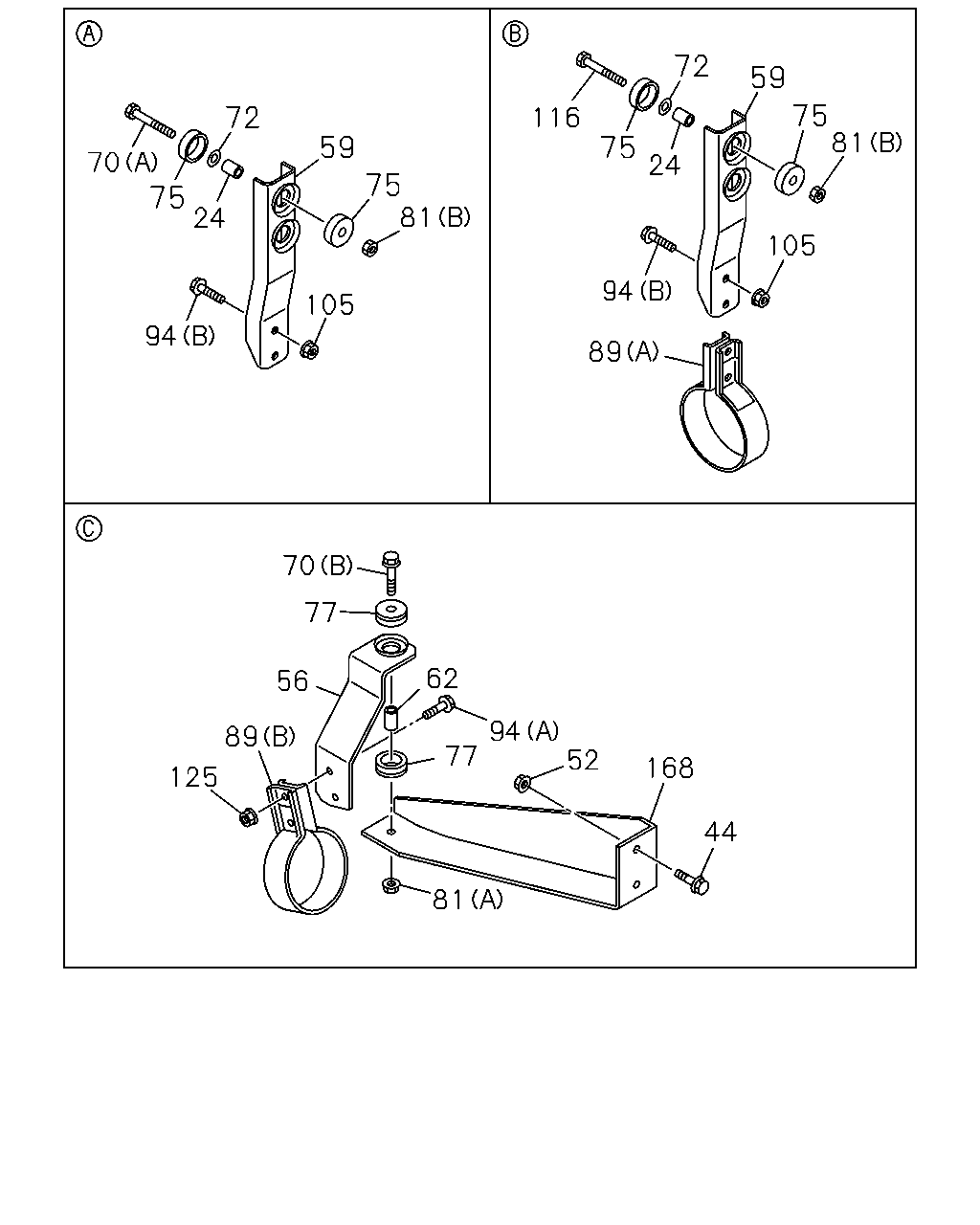

44 168 52 81 94 77 62 125 89 56 77 70 94 105 81 75 59 72 70 75 24 116 75 24 94 89 105 81 75 59 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COLLAR; DIST,CLAMP L=22 THA	9-22159-024-0	04	1	1204-1208		●
24	COLLAR; DIST,CLAMP L=22 THA	9-22159-024-0	04	1	1209-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1209-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1204-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1204-1208		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1209-	●	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1209-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1204-		●
59	BRACKET; EXH SILENCER,FRT THA	8-97924-889-0	02	1	1209-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1204-		●
62	TUBE; DIST,BRKT L=22 THA	9-22159-024-0	01	1	1204-1208		●
62	TUBE; DIST,BRKT L=22 THA	9-22159-024-0	01	1	1209-	●	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	01	1	1209-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	01	1	1209-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1204-		●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1204-1208		●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1209-	●	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1204-1208		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1209-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1209-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1204-1208		●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1209-	●	●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	02	1	1204-		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1204-1208		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1209-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1204-1208		●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1209-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4 THA	1-22133-170-1	01	1	1204-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1204-1208		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1209-	●	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1204-1208		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1209-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1204-1208		●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1209-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1204-1208		●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1209-	●	●
116	BOLT; BRKT M10X50	0-10856-050-0	02	1	1209-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1204-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1204-1208		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1209-	●	●
168	BRACKET; EXH PIPE,FRT THA	8-98200-861-1	01	1	1204-		●

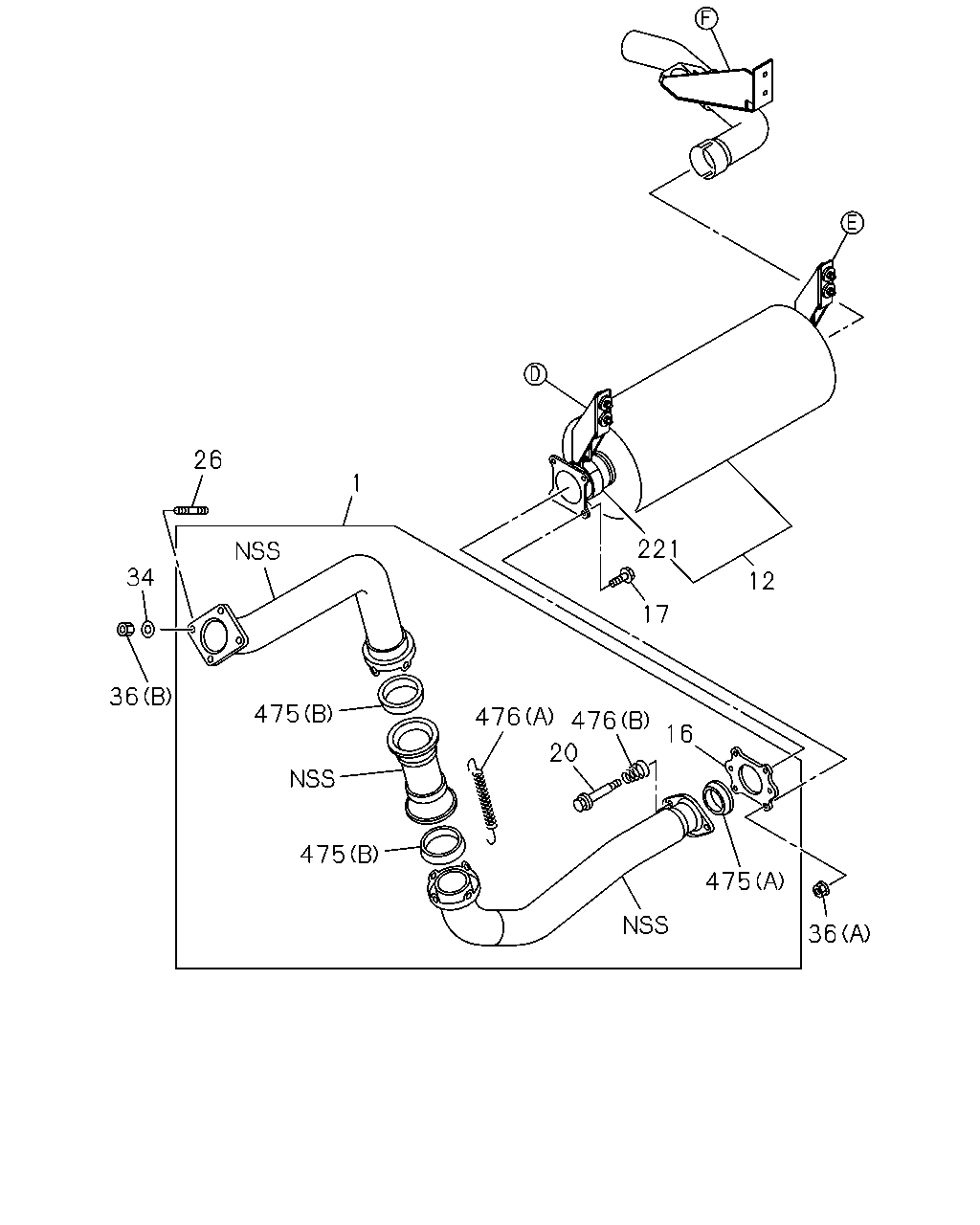

34 36 26 1 475 475 476 20 476 16 475 36 17 221 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97925-896-0	01	1	1209-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1204-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1204-1208		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1209-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1204-1208		●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1209-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1204-1208		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1209-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1204-1208		●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1209-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1204-1208		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1209-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1204-1208		●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1209-	●	●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	1204-1208		●
36	NUT; EXH PIPE (A) M12 THA	0-91110-512-0	04	1	1209-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1204-1208		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1209-	●	●
221	CLAMP; EXH SILENCER D=101.4 THA	1-22133-170-1	01	1	1205-1208		●
221	CLAMP; EXH SILENCER D=101.4 THA	1-22133-170-1	01	1	1209-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	1204-1208		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1209-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1204-1208		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1209-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1204-1208		●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1209-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1204-1208		●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1209-	●	●

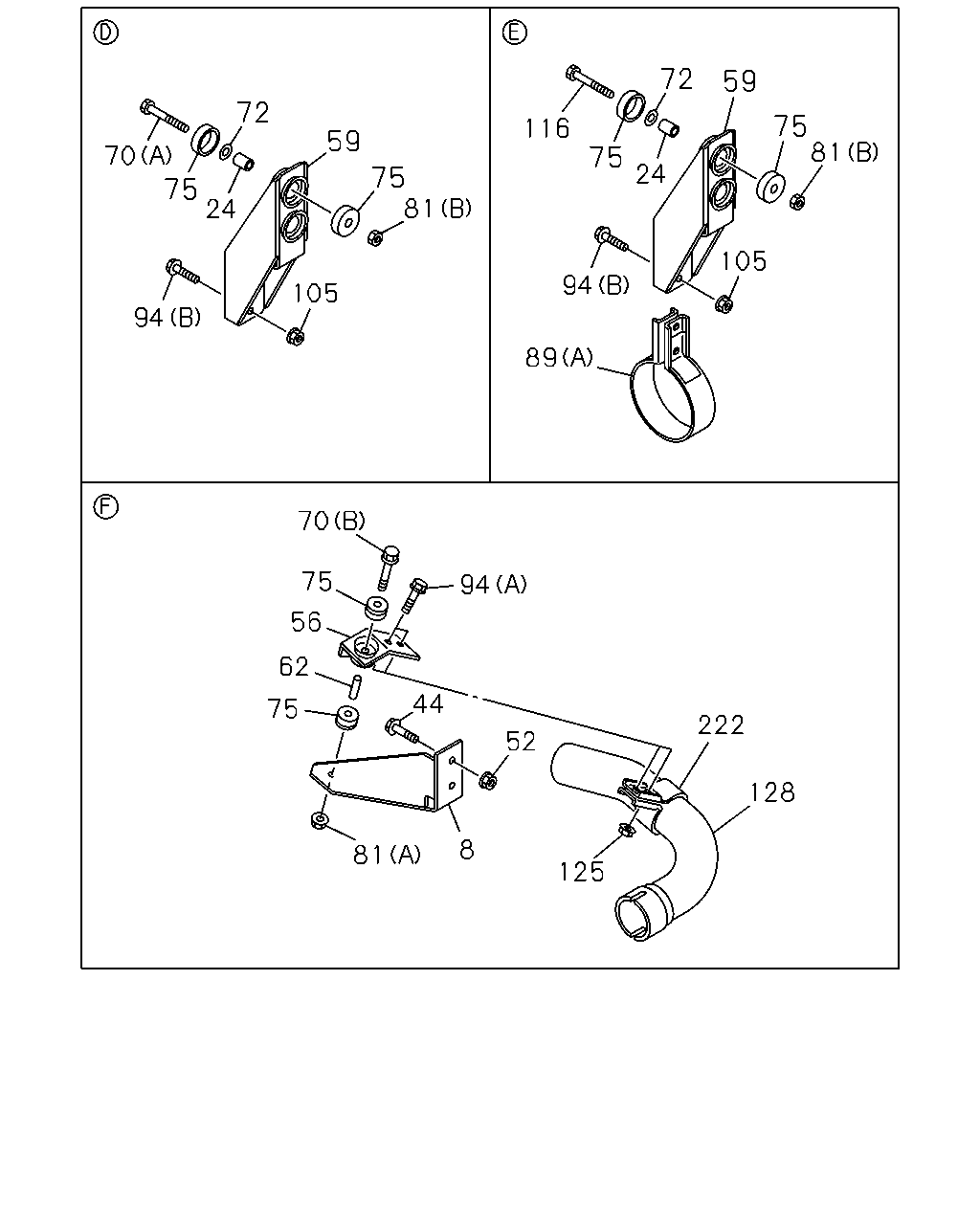

70 72 75 59 81 75 105 94 24 116 72 75 94 89 105 75 59 24 81 70 94 75 56 62 75 44 81 52 8 125 222 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE THA	8-97640-908-0	01	1	1209-	●
24	COLLAR; DIST,CLAMP L=22 THA	9-22159-024-0	04	1	1204-1208		●
24	COLLAR; DIST,CLAMP L=22 THA	9-22159-024-0	04	1	1209-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1209-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1204-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1204-1208		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1209-	●	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1209-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1204-		●
59	BRACKET; EXH SILENCER,FRT THA	8-97924-889-0	02	1	1209-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1204-		●
62	TUBE; DIST,BRKT L=22 THA	9-22159-024-0	01	1	1204-1208		●
62	TUBE; DIST,BRKT L=22 THA	9-22159-024-0	01	1	1209-	●	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	01	1	1209-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	01	1	1209-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1204-		●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1204-1208		●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1209-	●	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1204-1208		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1209-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1209-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1204-1208		●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1209-	●	●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1204-1208		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1209-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1204-1208		●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1209-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4 THA	1-22133-170-1	01	1	1204-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1204-1208		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1209-	●	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1204-1208		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1209-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1204-1208		●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1209-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1204-1208		●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1209-	●	●
116	BOLT; BRKT M10X50	0-10856-050-0	02	1	1209-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1204-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1204-1208		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1209-	●	●
128	PIPE; EXH,RR THA	8-97926-046-0	01	1	1209-	●
222	CLAMP; EXH PIPE D=101.4 THA	1-22133-170-1	01	1	1209-	●

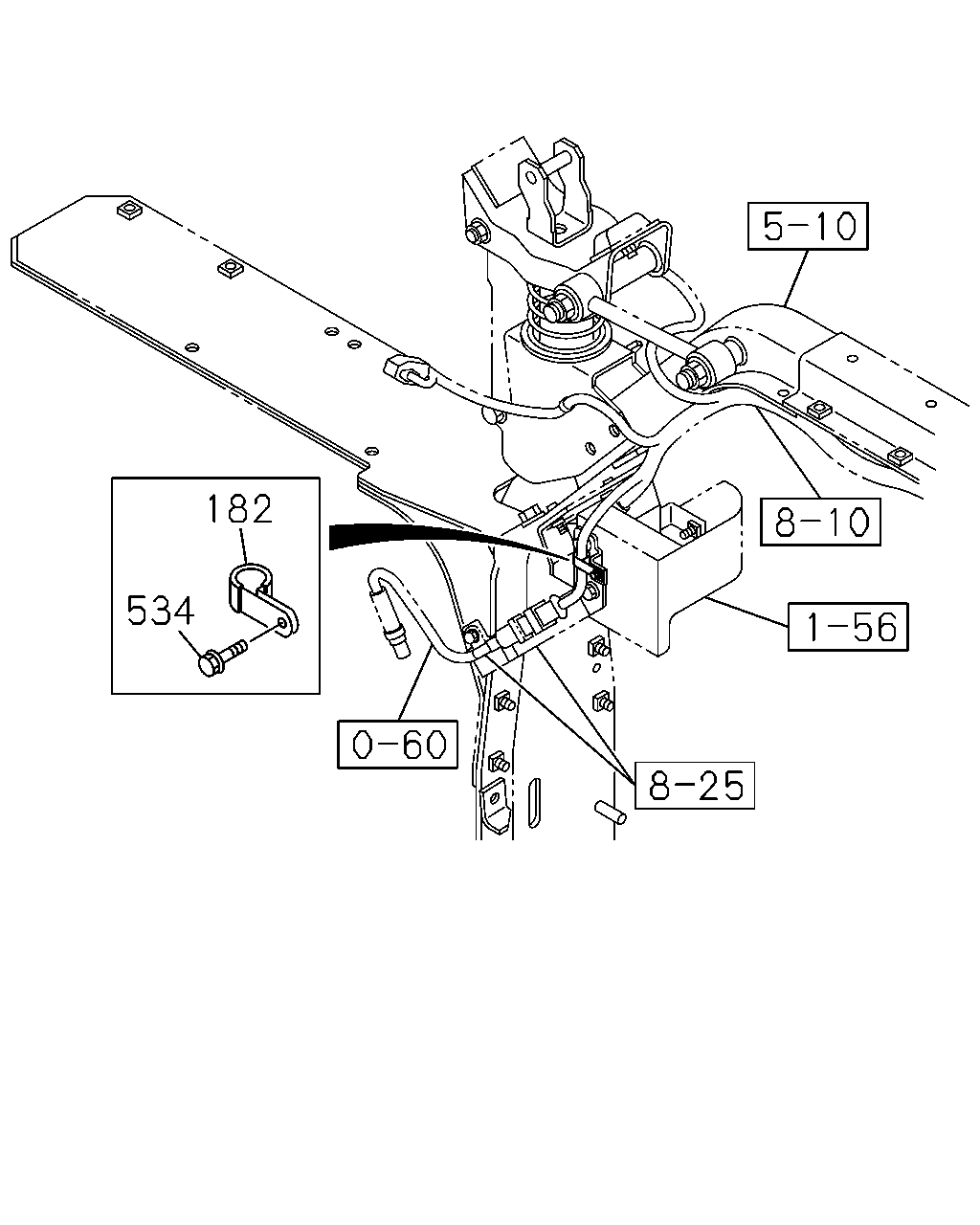

182 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	CLIP; HARNESS ID=19 L=28	0-95235-856-0	01	1	1209-	●
182	CLIP; HARNESS ID=11 L=24	0-95235-045-0	01	1	1204-		●
534	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208		●
534	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
