◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#73089) — 563 parça

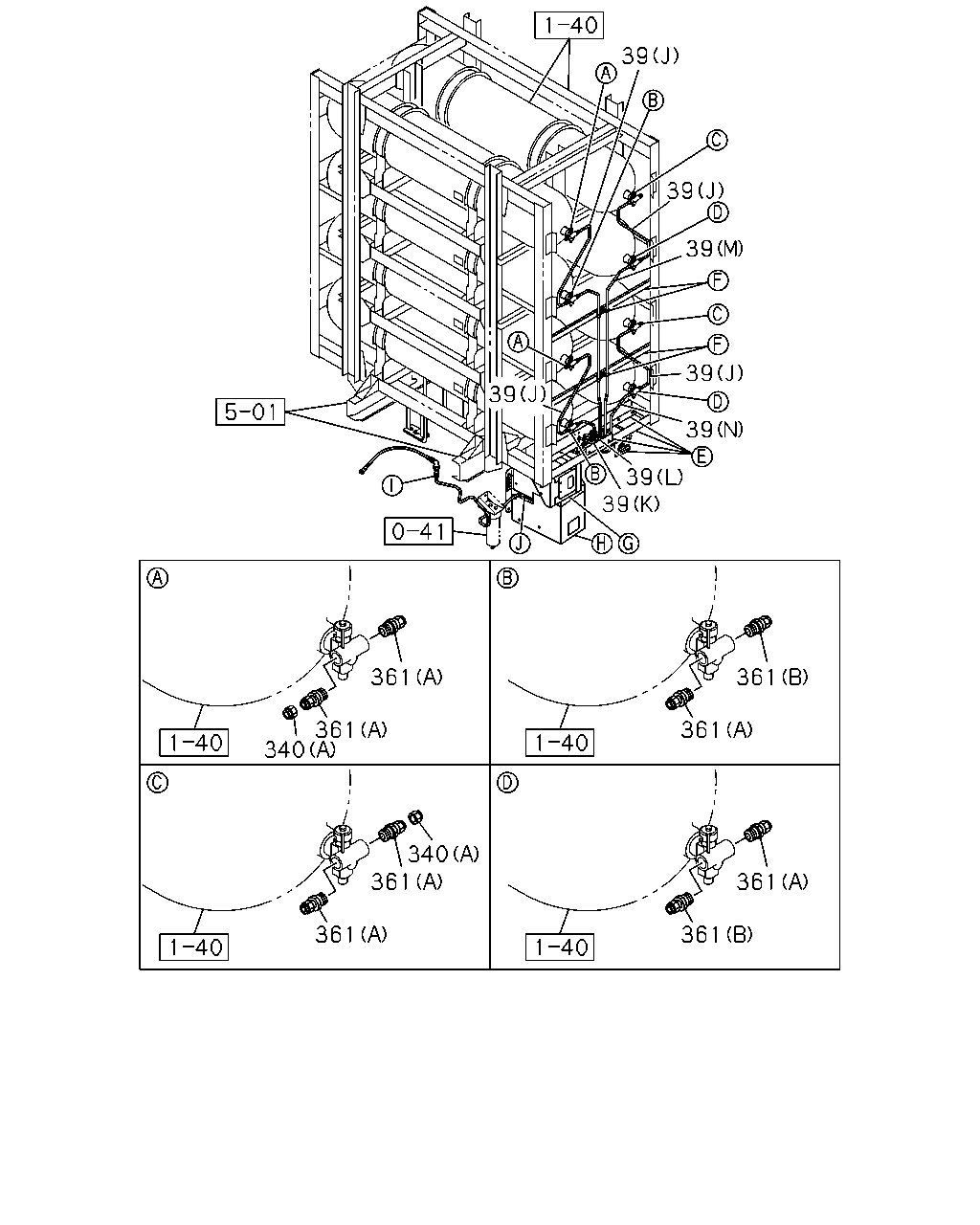

çizim 93017
361 361 361 361 340 361 361 340 361 361 39 39 39 39 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1204-1208 ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1209- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1209- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1209- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1204-1208 ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1209- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1204- ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1204-1208 ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1209- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1204-1208 ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1209- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1204-1208 ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1204- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1204- ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1204-1208 ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1209- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1204-1208 ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1209- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1204-1208 ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1209- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1204-1208 ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1209- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1204-1208 ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1209- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1204-1208 ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1209- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1204-1208 ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1209- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1209- ● ●

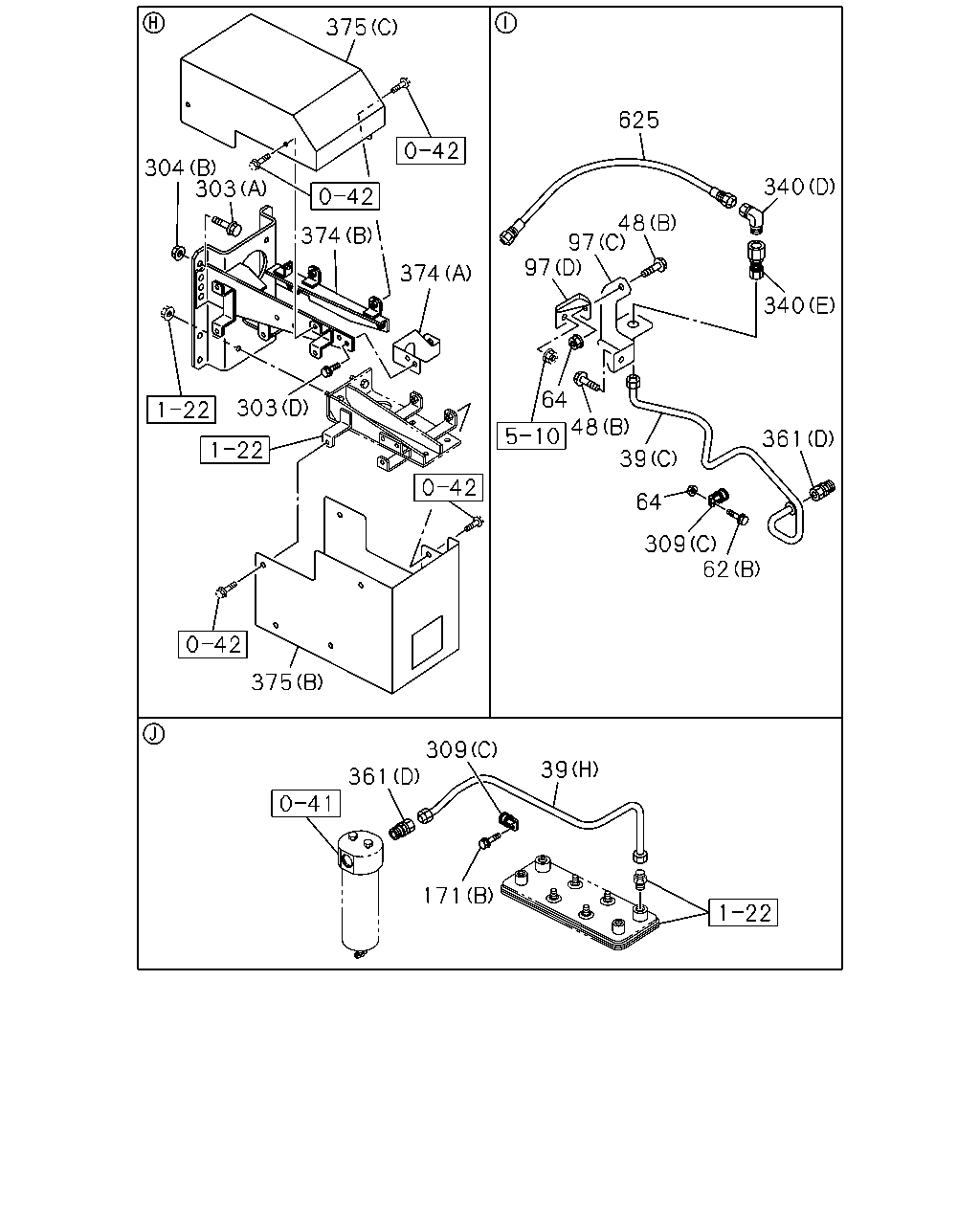

çizim 93608
375 304 374 303 303 374 625 340 340 48 97 97 64 39 361 64 309 62 375 361 39 171 309 48
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1204-1208 ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1209- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1209- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1209- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1204-1208 ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1209- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1204- ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1204-1208 ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1209- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1204-1208 ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1209- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1204-1208 ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1204- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1204- ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1204-1208 ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1209- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1204-1208 ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1209- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1204-1208 ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1209- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1204-1208 ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1209- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1204-1208 ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1209- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1204-1208 ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1209- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1204-1208 ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1209- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1206- ●
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1204-1208 ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1209- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1205 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1206-1208 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1204-1208 ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1209- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1204-1208 ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1209- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1209- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1204-1208 ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1204- ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1209- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1209- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1209- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1209- ● ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1204-1208 ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1209- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1204-1208 ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1209- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1204-1208 ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1209- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1204-1208 ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1209- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1204-1208 ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1209- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1204-1208 ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1209- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1204-1208 ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1209- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1204-1208 ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1209- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1204-1208 ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1209- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1204-1208 ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1204-1208 ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1209- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1204-1208 ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1209- ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1204-1208 ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1209-1405 ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1209- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1209- ● ●
374 BRACKET; REGULATOR
(A) THA 		8-97925-786-0 01 1 1204-1208 ●
374 BRACKET; REGULATOR
(A) THA 		8-97925-786-0 01 1 1209- ● ●
374 BRACKET; REGULATOR
(B) THA 		8-97925-970-1 01 1 1204-1208 ●
374 BRACKET; REGULATOR
(B) THA 		8-97925-970-1 01 1 1209- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1209- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1209- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1209- ● ●
625 HOSE; FUEL,CNG 8-97925-799-0 01 1 1204-1208 ●
625 HOSE; FUEL,CNG 8-97925-799-0 01 1 1209- ● ●

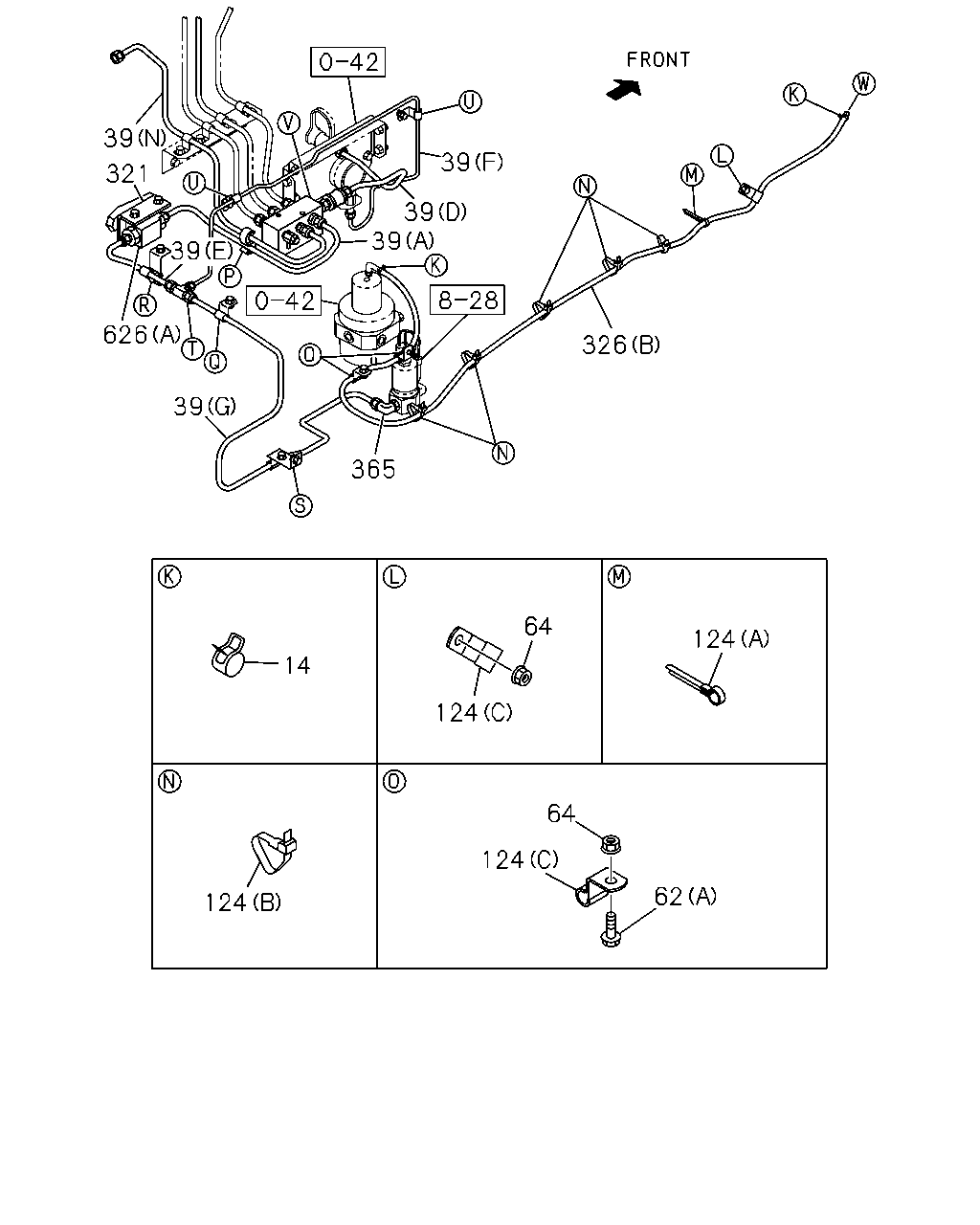

çizim 93947
124 14 124 64 64 124 124 62 326 365 39 626 39 321 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; HOSE 8-98209-375-0 02 1 1204-1208 ●
14 CLIP; HOSE 8-98209-375-0 02 1 1209- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1204-1208 ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1209- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1209- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1209- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1204-1208 ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1209- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1204- ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1204-1208 ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1209- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1204-1208 ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1209- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1204-1208 ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1204- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1204- ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1204-1208 ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1209- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1204-1208 ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1209- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1204-1208 ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1209- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1204-1208 ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1209- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1204-1208 ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1209- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1204-1208 ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1209- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1204-1208 ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1209- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1204-1208 ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1209- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1204-1208 ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1209- ● ●
124 CLIP; HOSE
(A) ID=11 L=61 		1-09700-484-0 01 1 1204-1208 ●
124 CLIP; HOSE
(A) ID=11 L=61 		1-09700-484-0 01 1 1209- ● ●
124 CLIP; HOSE
(B) L=250 THA 		5-09707-030-1 05 1 1204-1208 ●
124 CLIP; HOSE
(B) L=250 THA 		5-09707-030-1 05 1 1209- ● ●
124 CLIP; HOSE
(C) ID=11 H=20 L=20 		8-98033-780-0 03 1 1204-1208 ●
124 CLIP; HOSE
(C) ID=11 H=20 L=20 		8-98033-780-0 03 1 1209- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1204-1208 ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1209- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1204-1208 ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1209- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1204-1208 ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1209- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1204-1208 ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1209- ● ●

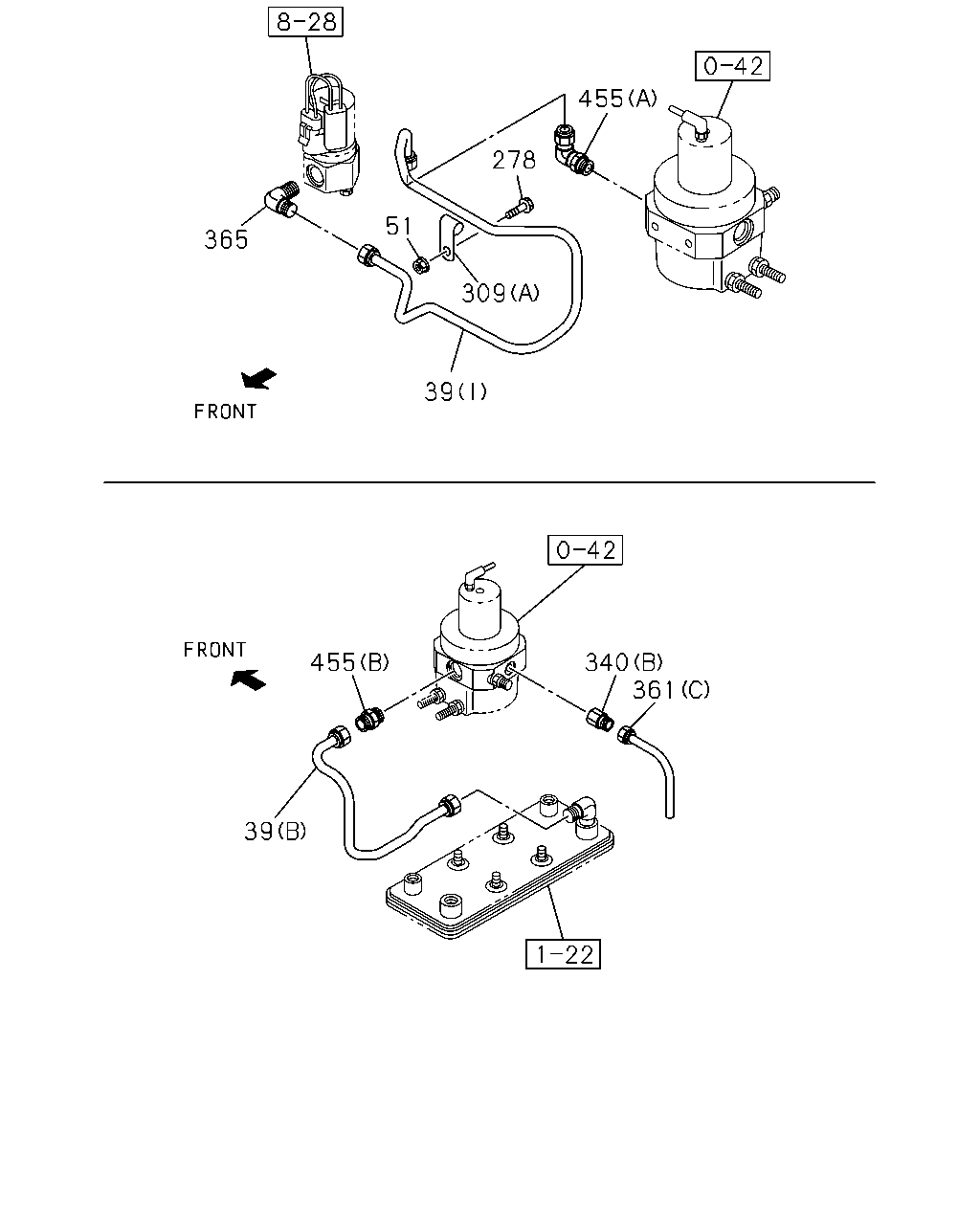

çizim 96274
39 365 278 51 309 455 455 39 340 361
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1204-1208 ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1209- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1209- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1209- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1204-1208 ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1209- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1204- ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1204-1208 ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1209- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1204-1208 ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1209- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1204-1208 ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1204- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1204- ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1204-1208 ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1209- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1204-1208 ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1209- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1204-1208 ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1209- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1204-1208 ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1209- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1204-1208 ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1209- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1204-1208 ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1209- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1204-1208 ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1209- ● ●
51 NUT; CLIP,PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
51 NUT; CLIP,PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
278 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
278 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1209- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1204-1208 ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1209- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1204-1208 ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1204-1208 ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1209- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1204-1208 ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1209- ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1204-1208 ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1209-1405 ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1209- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1209- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1204-1208 ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1209- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1204-1208 ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1209- ● ●
455 CONNECTOR; REGULATOR
(A) 		8-97925-789-0 01 1 1204-1208 ●
455 CONNECTOR; REGULATOR
(A) 		8-97925-789-0 01 1 1209- ● ●
455 CONNECTOR; REGULATOR
(B) 		8-97925-793-0 01 1 1204-1208 ●
455 CONNECTOR; REGULATOR
(B) 		8-97925-793-0 01 1 1209- ● ●

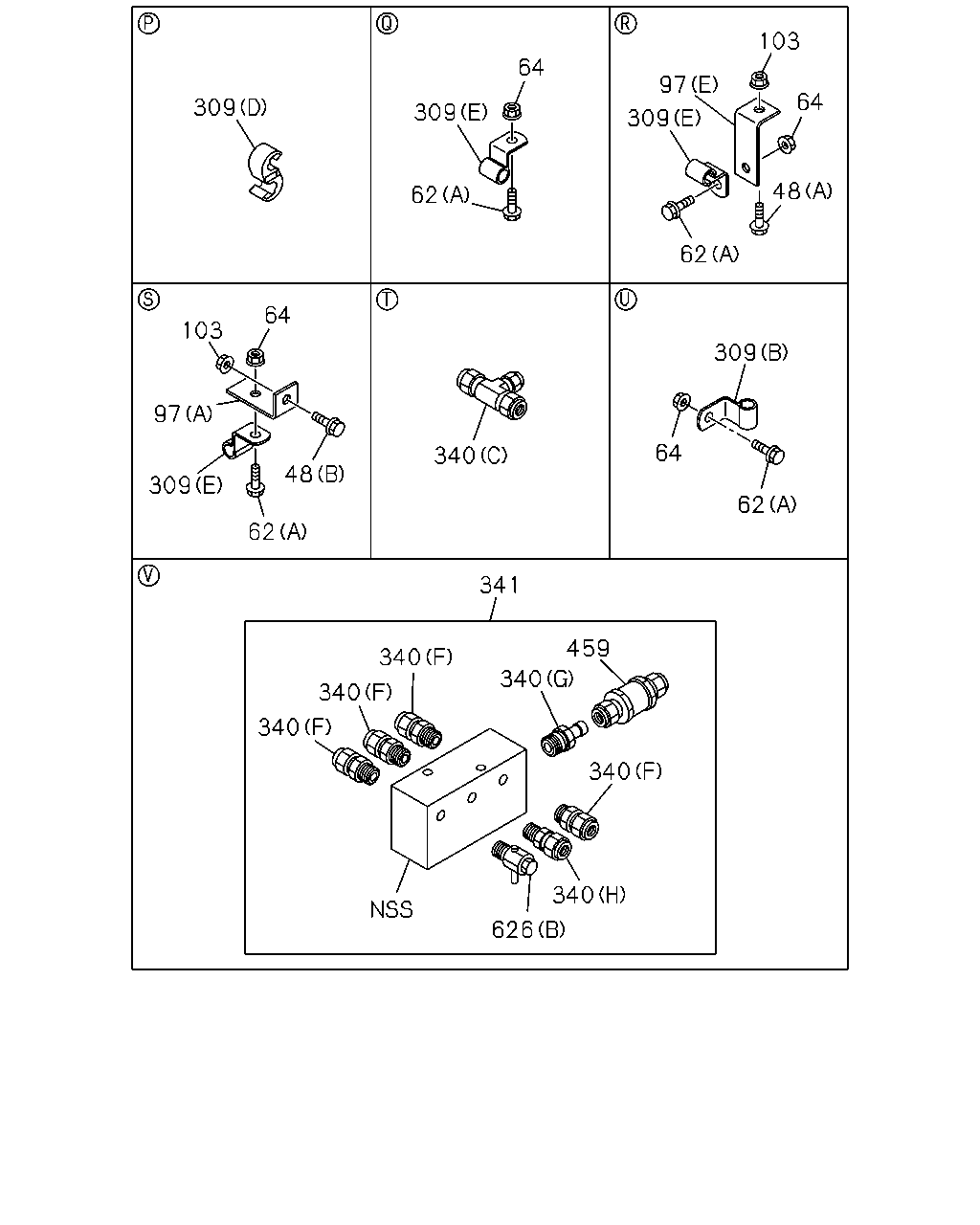

çizim 96300
626 340 340 340 459 341 340 340 340 62 48 340 309 97 103 64 309 309 64 62 309 97 103 64 48 62 309 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1206- ●
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1204-1208 ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1209- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1205 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1206-1208 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1204-1208 ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1209- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1204-1208 ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1209- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1209- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1204-1208 ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1204- ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1209- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1209- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1209- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1209- ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1204-1208 ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1209- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1204-1208 ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1209- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1204-1208 ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1204-1208 ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1209- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1204-1208 ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1209- ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1204-1208 ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1209-1405 ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1209- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1204-1208 ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1209- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1204-1208 ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1209- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1204-1208 ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1209- ● ●
459 VALVE; CHECK 8-97925-798-0 01 1 1204-1208 ●
459 VALVE; CHECK 8-97925-798-0 01 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1209- ● ●

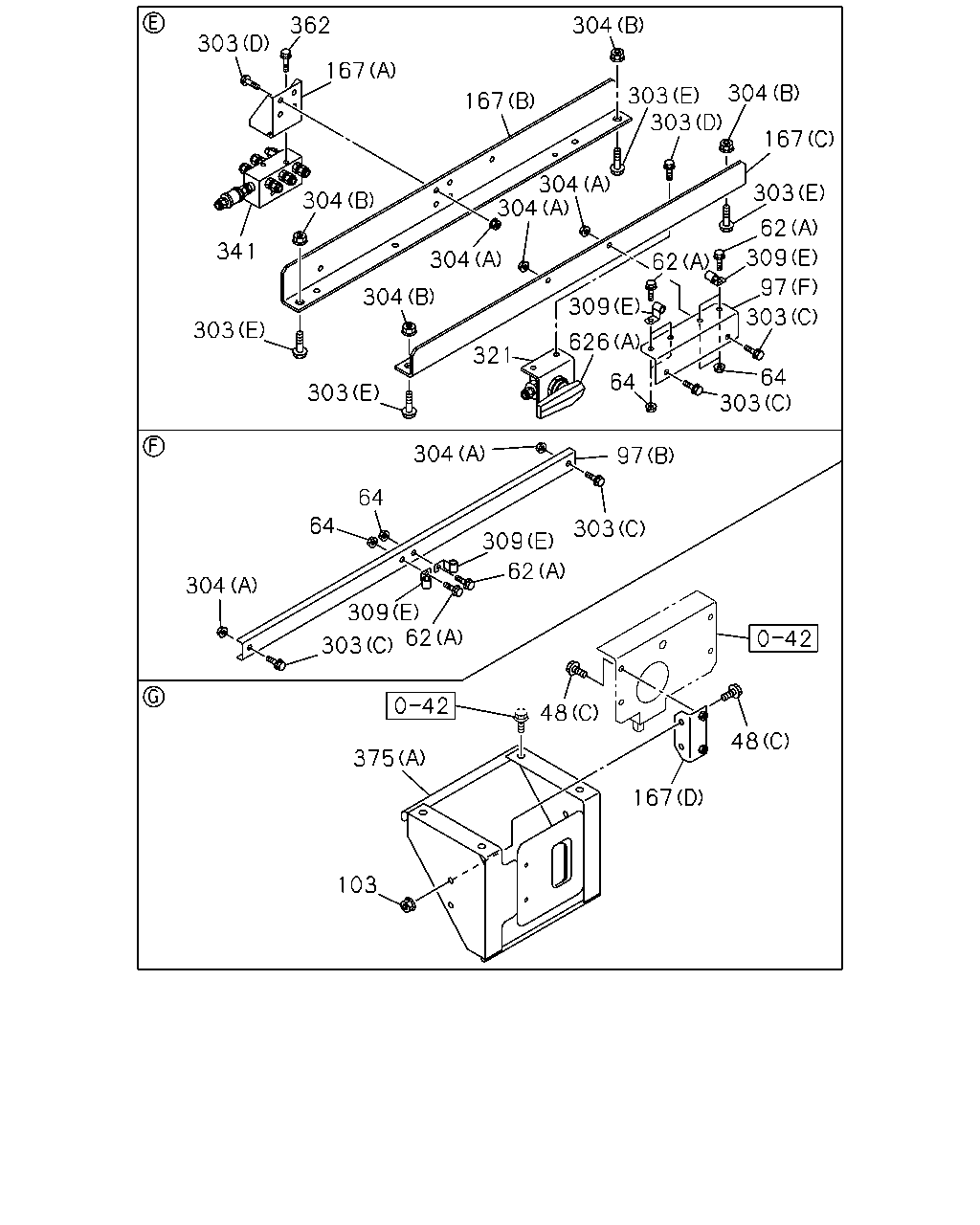

çizim 194189
103 375 48 167 48 303 62 309 304 64 62 309 64 304 303 97 303 64 303 97 309 62 303 167 304 303 303 304 167 304 304 304 304 321 626 309 303 303 341 304 167 303 362 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1206- ●
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1209- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1204-1208 ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1209- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1204-1205 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1206-1208 ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1204-1208 ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1209- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1204-1208 ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1209- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1209- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1204-1208 ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1204- ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1209- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1209- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1209- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1209- ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1204-1208 ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1209- ● ●
167 BRACKET
(A) THA 		8-97925-720-0 01 1 1204-1208 ●
167 BRACKET
(A) THA 		8-97925-720-0 01 1 1209- ● ●
167 BRACKET
(B) THA 		8-97925-727-1 01 1 1204-1208 ●
167 BRACKET
(B) THA 		8-97925-727-1 01 1 1209- ● ●
167 BRACKET
(C) THA 		8-97925-728-1 01 1 1204-1208 ●
167 BRACKET
(C) THA 		8-97925-728-1 01 1 1209- ● ●
167 BRACKET
(D) THA 		8-97925-843-0 02 1 1204-1208 ●
167 BRACKET
(D) THA 		8-97925-843-0 02 1 1209- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1204-1208 ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1209- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1204-1208 ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1209- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1204-1208 ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1209- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1204-1208 ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1209- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1204-1208 ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1209- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1204-1208 ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1209- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1204-1208 ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1209- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1204-1208 ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1209- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1204-1208 ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1204-1208 ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1209- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1204-1208 ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1209- ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1204-1208 ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1209-1405 ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1204-1208 ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1209- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1204-1208 ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1209- ● ●
362 BOLT; MANIFOLD
M8X16 FLANGE THA 		0-28050-816-0 02 1 1204-1208 ●
362 BOLT; MANIFOLD
M8X16 FLANGE THA 		0-28050-816-0 02 1 1209- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1209- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1209- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1204-1208 ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1209- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1204-1208 ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1209- ● ●
çizim 194198
326 318 309 309 171 282 171 309 309 97 303 282
BalonParca AdiParca NoAdetTipApplied Date A B
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1209- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1209- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1204-1208 ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1209- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1204- ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1209- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1209- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1209- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1204-1208 ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1209- ● ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1204-1208 ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1209- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
282 CLIP; HOSE,RUBBER
(A) L=260 		8-97127-894-0 02 1 1204-1208 ●
282 CLIP; HOSE,RUBBER
(A) L=260 		8-97127-894-0 02 1 1209- ● ●
282 CLIP; HOSE,RUBBER
(B) 		8-98209-375-0 02 1 1204-1208 ●
282 CLIP; HOSE,RUBBER
(B) 		8-98209-375-0 02 1 1209- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1204-1208 ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1209- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1204-1208 ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1209- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1204-1208 ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1209- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1204-1208 ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1209- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1204-1208 ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1209- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1204-1208 ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1209- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1204-1208 ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1204-1208 ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1209- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1204-1208 ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1209- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1204-1208 ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1209- ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1204-1208 ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98039-293-0 06 1 1209-1405 ● ●
309 CLIP; PIPE
(F) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
318 PIPE; VACUUM
THA 		8-97926-077-0 01 1 1204-1208 ●
318 PIPE; VACUUM
THA 		8-97926-077-0 01 1 1209- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1204-1208 ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1209- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1204-1208 ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1209- ● ●
çizim 194199
39 41 41 80
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1204-1208 ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1209- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1209- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1209- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1204-1208 ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1209- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1204- ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1204-1208 ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1209- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1204-1208 ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1209- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1204-1208 ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1209- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1204- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1204- ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1204-1208 ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1209- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1204-1208 ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1209- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1204-1208 ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1209- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1204-1208 ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1209- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1204-1208 ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1209- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1204-1208 ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1209- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1204-1208 ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1209- ● ●
41 CLIP; FUEL PIPE,FUEL TANK 8-97601-912-0 02 1 1204-1208 ●
41 CLIP; FUEL PIPE,FUEL TANK 8-97601-912-0 02 1 1209- ● ●
80 BOLT; CLIP,FUEL TANK
M6X35 FLANGE 		0-28050-635-0 01 1 1204-1208 ●
80 BOLT; CLIP,FUEL TANK
M6X35 FLANGE 		0-28050-635-0 01 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
