1-40 — FUEL TANK (#73088) — 276 parça

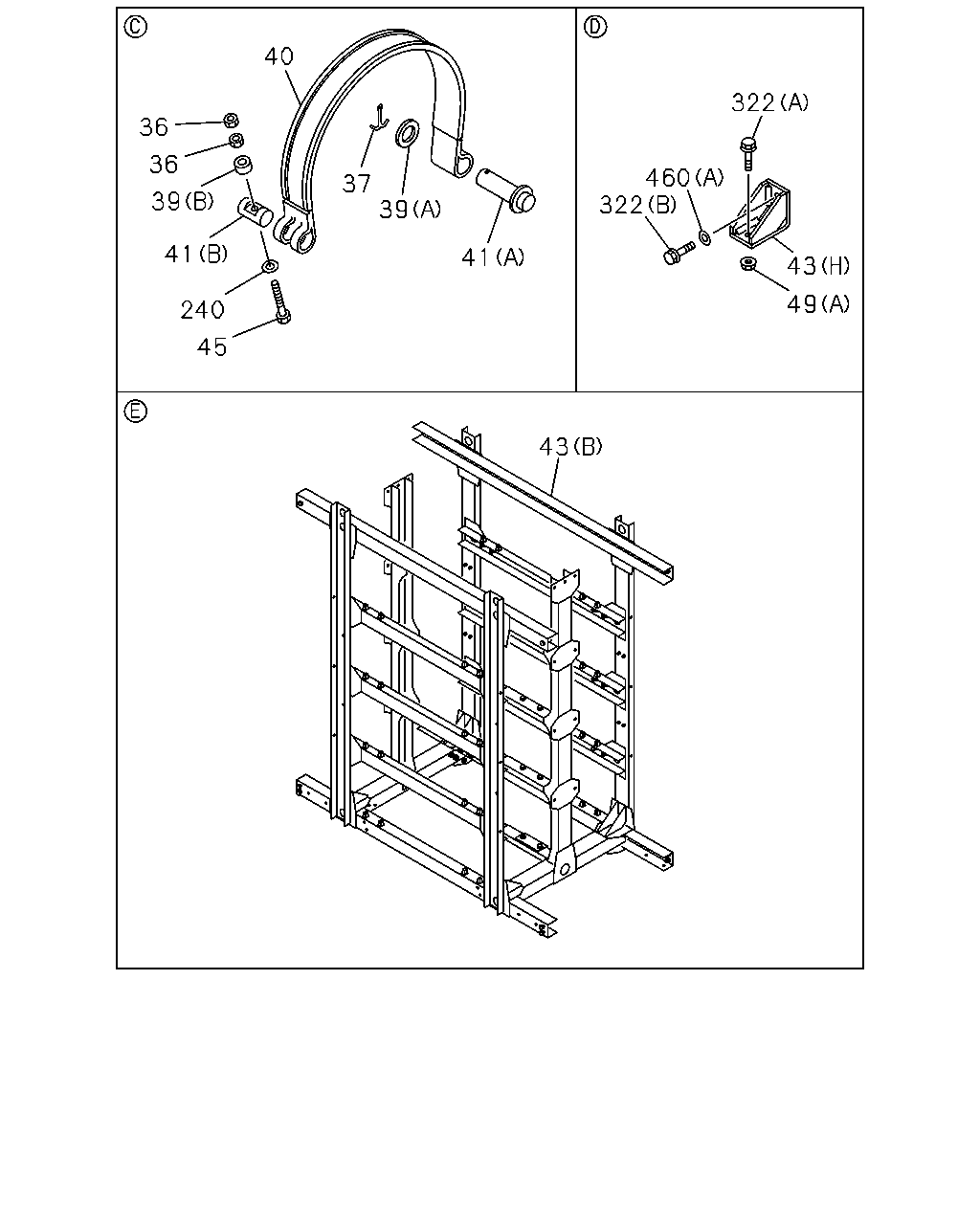

çizim 92901
40 36 39 37 36 39 41 45 240 41 460 322 322 43 49 43
BalonParca AdiParca NoAdetTipApplied Date A B
36 NUT; SPACER,FUEL TANK
M12 THA 		0-91110-512-0 32 1 1204-1208 ●
36 NUT; SPACER,FUEL TANK
M12 THA 		0-91110-512-0 32 1 1209- ● ●
37 PIN; SPLIT,SUPPORT BELT
OD=4.6 L=45 		0-81125-045-0 16 1 1204-1208 ●
37 PIN; SPLIT,SUPPORT BELT
OD=4.6 L=45 		0-81125-045-0 16 1 1209- ● ●
39 WASHER; PL,SUPPORT BELT
(A) THA 		8-97925-678-0 16 1 1204-1208 ●
39 WASHER; PL,SUPPORT BELT
(A) THA 		8-97925-678-0 16 1 1209- ● ●
39 WASHER; PL,SUPPORT BELT
(B) THA 		8-97925-807-0 16 1 1204-1208 ●
39 WASHER; PL,SUPPORT BELT
(B) THA 		8-97925-807-0 16 1 1209- ● ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97925-676-1 16 1 1204-1208 ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97925-676-1 16 1 1209- ● ●
41 PIN; SUPPORT BELT
(A) THA 		8-97925-677-0 16 1 1204-1208 ●
41 PIN; SUPPORT BELT
(A) THA 		8-97925-677-0 16 1 1209- ● ●
41 PIN; SUPPORT BELT
(B) THA 		8-97925-806-0 16 1 1204-1208 ●
41 PIN; SUPPORT BELT
(B) THA 		8-97925-806-0 16 1 1209- ● ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1209- ●
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1204-1208 ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1209- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1204-1208 ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1209- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1204-1208 ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1209- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1204-1208 ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1209- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1209- ● ●
45 BOLT; BRKT,FUEL TANK
THA 		8-97925-718-0 16 1 1204-1208 ●
45 BOLT; BRKT,FUEL TANK
THA 		8-97925-718-0 16 1 1209- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 16 1 1207- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1209- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1204- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 24 1 1204-1206 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1207- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1204-1208 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1209- ● ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1204-1208 ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1209- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1204-1208 ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1209- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1204-1208 ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1209- ● ●
240 WASHER; PL,FUEL TANK
ID=12.5 		0-91614-512-0 16 1 1204-1208 ●
240 WASHER; PL,FUEL TANK
ID=12.5 		0-91614-512-0 16 1 1209- ● ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1209- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1209- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1204- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1209- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1204-1208 ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1209- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1204-1208 ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1209- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1209- ● ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1204-1208 ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1209- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1204-1208 ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1209- ● ●

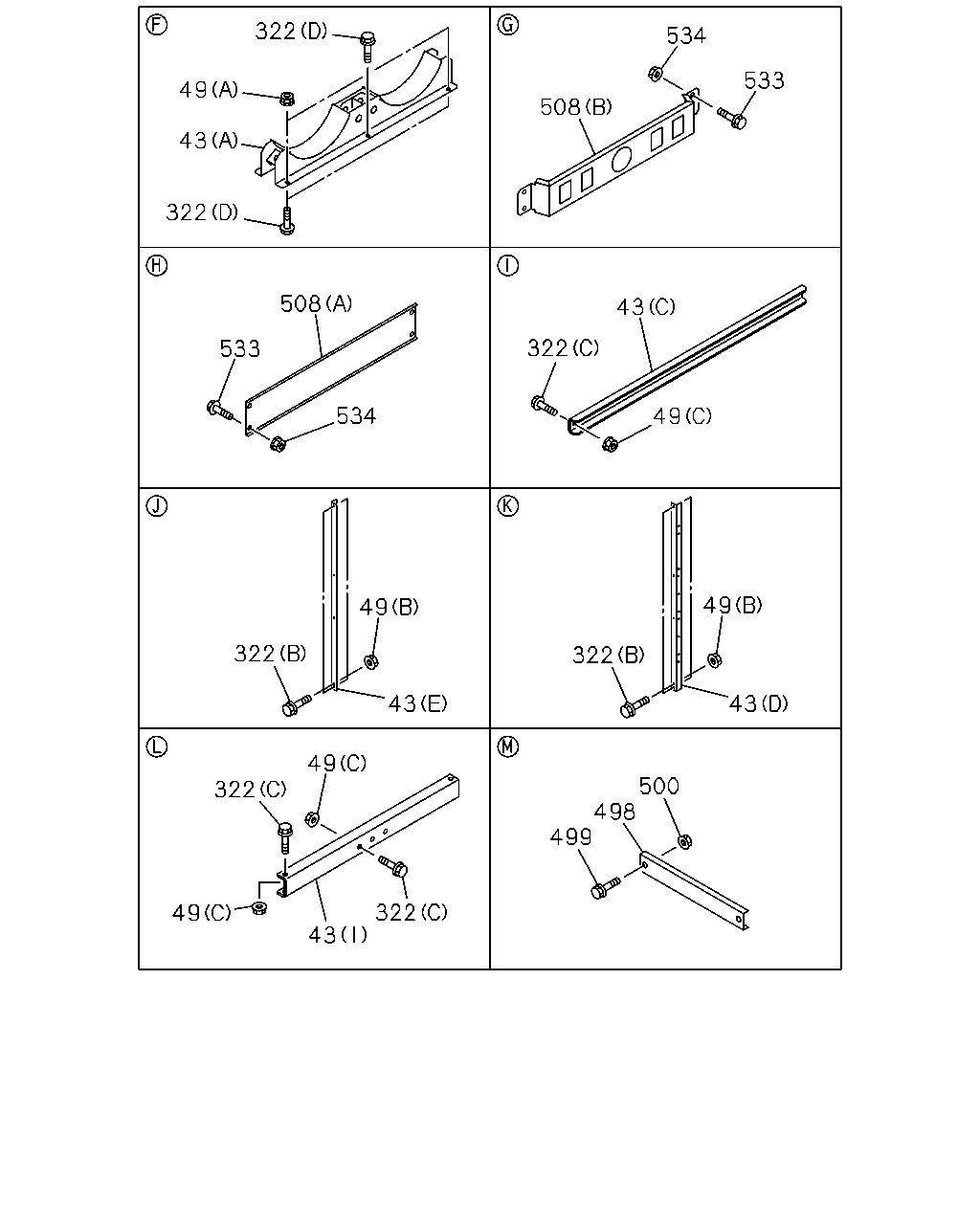

çizim 93036
322 49 43 322 508 533 534 322 43 49 534 508 533 49 322 43 322 49 43 500 498 499 322 43 49 322 49
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1209- ●
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1204-1208 ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1209- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1204-1208 ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1209- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1204-1208 ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1209- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1204-1208 ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1209- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1209- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 16 1 1207- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1209- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1204- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 24 1 1204-1206 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1207- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1204-1208 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1209- ● ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1204-1208 ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1209- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1204-1208 ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1209- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1204-1208 ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1209- ● ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1209- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1209- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1204- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1209- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1204-1208 ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1209- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1204-1208 ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1209- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1209- ● ●
498 STAY; BRKT
THA 		8-97926-073-0 08 1 1204-1208 ●
498 STAY; BRKT
THA 		8-97926-073-0 08 1 1209- ● ●
499 BOLT; STAY
M8X25 FLANGE THA 		0-28650-825-0 16 1 1204-1208 ●
499 BOLT; STAY
M8X25 FLANGE THA 		0-28650-825-0 16 1 1209- ● ●
500 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 08 1 1204-1208 ●
500 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 08 1 1209- ● ●
508 STOPPER
(A) THA 		8-97926-074-0 04 1 1204-1208 ●
508 STOPPER
(A) THA 		8-97926-074-0 04 1 1209- ● ●
508 STOPPER
(B) THA 		8-97925-975-0 04 1 1204-1208 ●
508 STOPPER
(B) THA 		8-97925-975-0 04 1 1209- ● ●
533 BOLT; STOPPER
M8X20 FLANGE THA 		0-28650-820-0 32 1 1204-1208 ●
533 BOLT; STOPPER
M8X20 FLANGE THA 		0-28650-820-0 32 1 1209- ● ●
534 NUT; STOPPER
M8 FLANGE THA 		0-91180-108-0 32 1 1204-1208 ●
534 NUT; STOPPER
M8 FLANGE THA 		0-91180-108-0 32 1 1209- ● ●

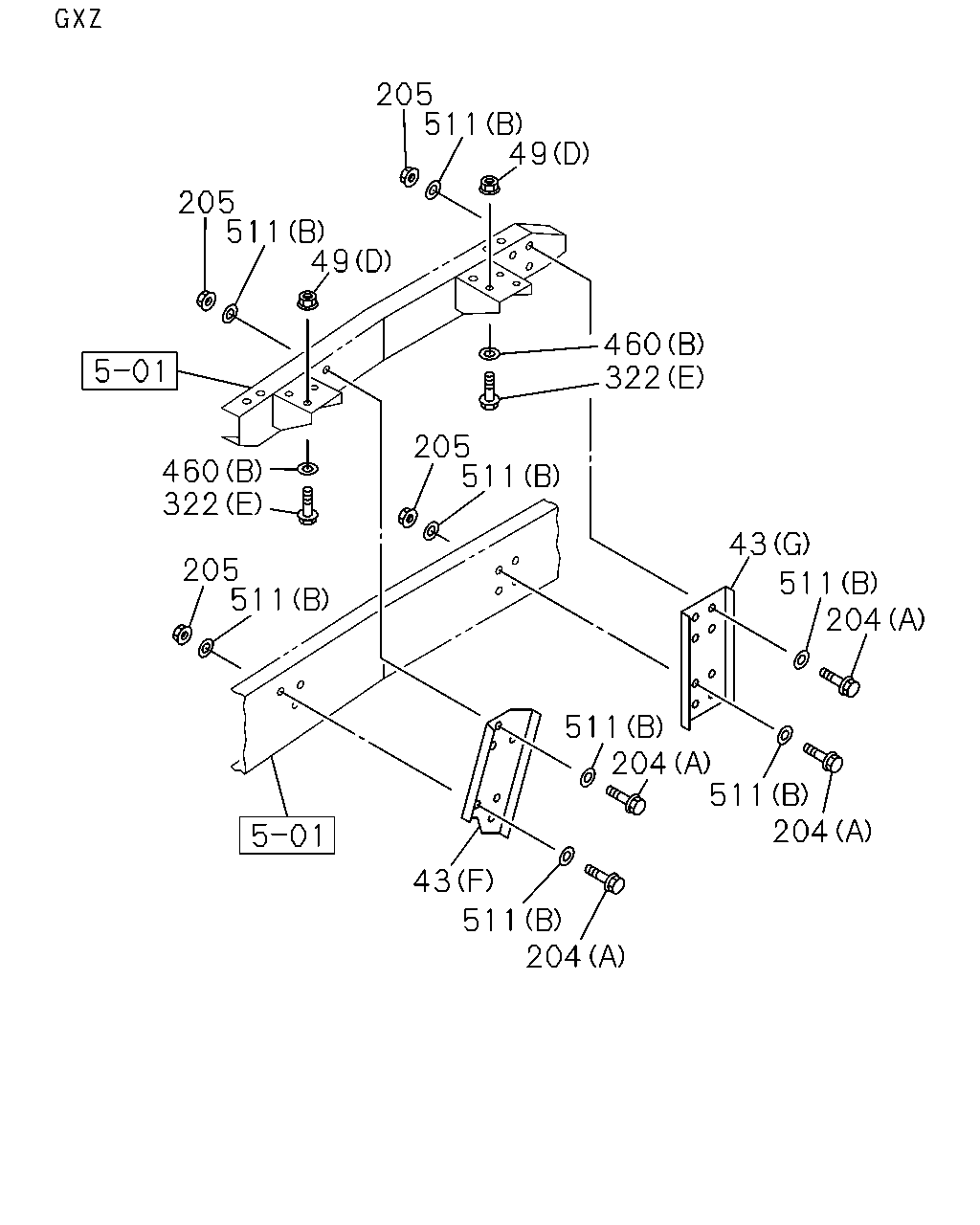

çizim 93037
205 460 511 205 322 49 511 460 205 511 43 511 511 511 204 43 511 204 205 511 49 204 204 322
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1209- ●
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1204-1208 ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1209- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1204-1208 ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1209- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1204-1208 ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1209- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1204-1208 ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1209- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1209- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 16 1 1207- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1209- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1204- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 24 1 1204-1206 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1207- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1204-1208 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1209- ● ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1204-1208 ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1209- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1204-1208 ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1209- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1204-1208 ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1209- ● ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1209- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1204- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1209- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1204- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1209- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1209- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1204- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1209- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1204-1208 ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1209- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1204-1208 ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1209- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1209- ● ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1204-1208 ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1209- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1204-1208 ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1209- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1209- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1209- ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1204-1208 ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1209- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1204- ●

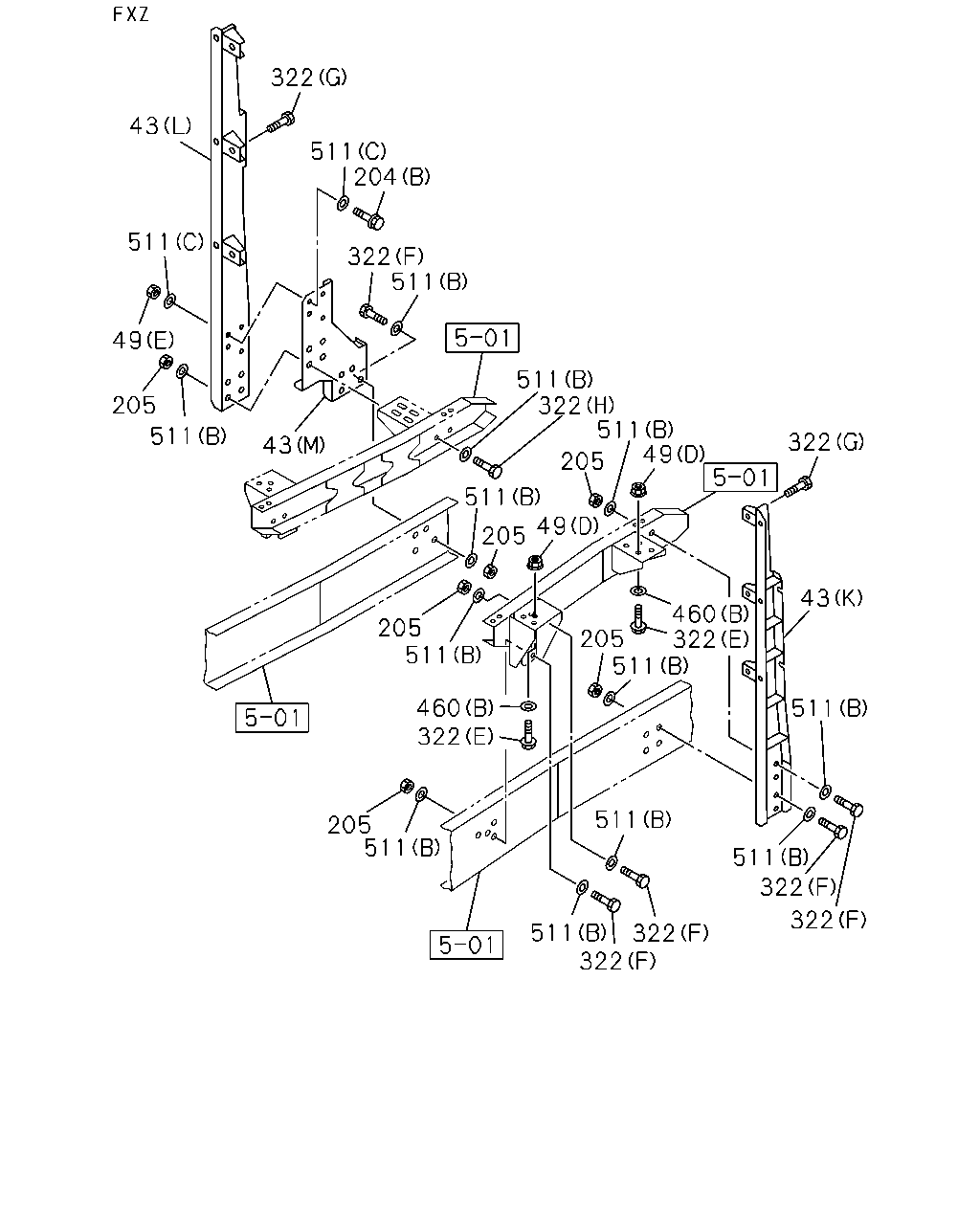

çizim 93071
322 511 322 322 322 511 511 511 43 322 460 322 511 205 322 460 511 205 205 511 205 511 49 205 49 511 322 511 511 322 43 511 205 49 511 43 322 511 204
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1209- ●
43 BRACKET; FUEL TANK
(M) THA 		8-97925-907-1 01 1 1209- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1204-1208 ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1209- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1204-1208 ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1209- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1204-1208 ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1209- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1209- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1204- ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1204-1208 ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1209- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1204-1208 ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1209- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 16 1 1207- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1209- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1204- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 24 1 1204-1206 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1207- ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1204-1208 ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1209- ● ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1204-1208 ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1209- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1204-1208 ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1209- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1204-1208 ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1209- ● ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1209- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1204- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1209- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1204- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1209- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1209- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1209- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1204- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1209- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1204-1208 ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1209- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1204-1208 ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1209- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1204-1208 ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1209- ● ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1204-1208 ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1209- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1204-1208 ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1209- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1209- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1209- ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1204-1208 ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1209- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1204- ●

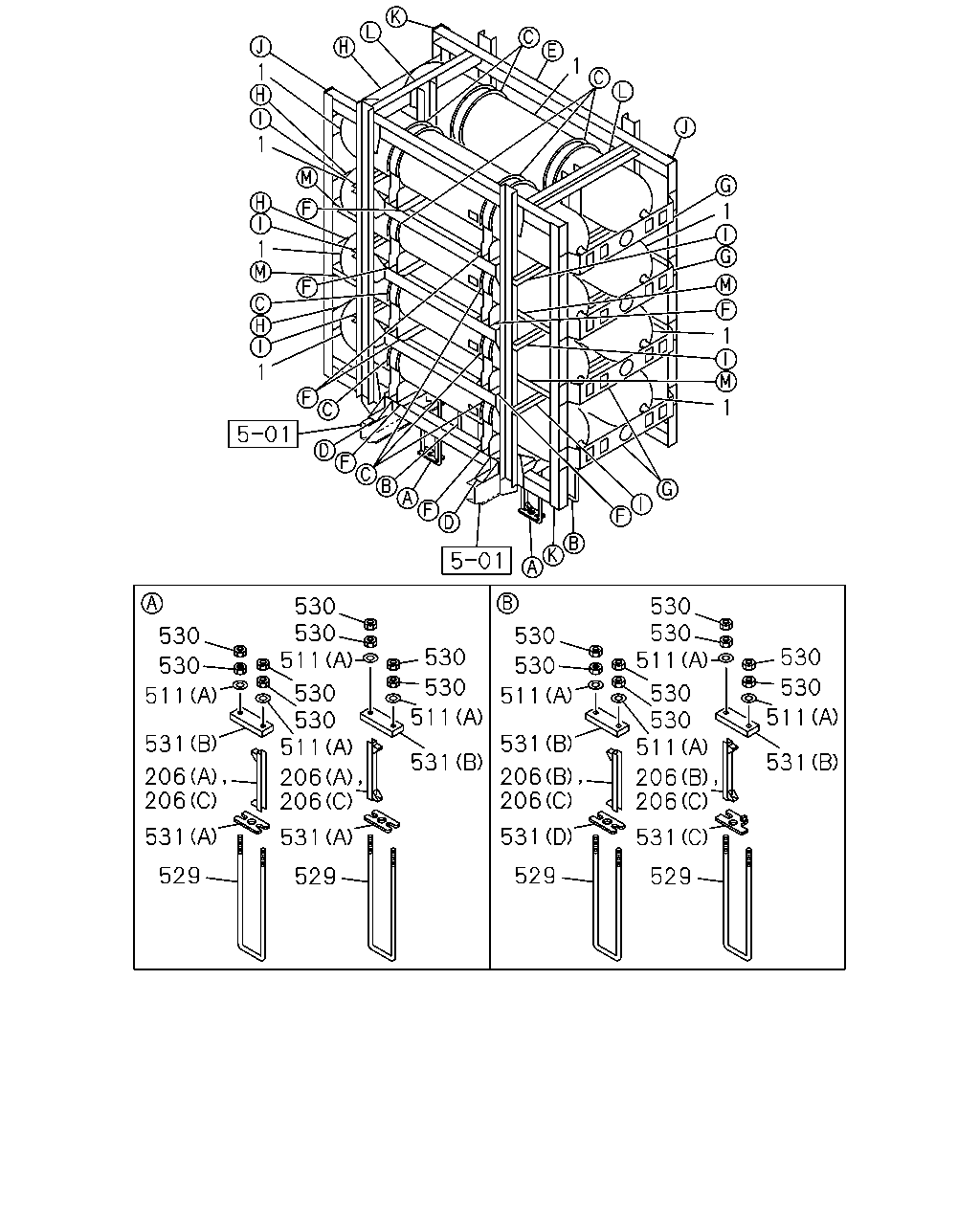

çizim 194197
1 1 1 1 1 1 1 1 530 530 511 531 206 206 531 529 530 530 511 530 530 511 206 206 531 529 530 530 511 531 530 530 511 531 206 206 531 529 530 530 511 530 530 511 206 206 531 529 530 530 511 531
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-97925-969-0 08 1 1204-1208 ●
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-97925-969-0 08 1 1209-1407 ● ●
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-98285-752-0 08 1 1408- ● ●
206 SLEEPER; FUEL TANK
(C) THA 		8-97925-881-2 04 1 1209- ●
206 SLEEPER; FUEL TANK
(A) THA 		8-97925-683-2 02 1 1204- ●
206 SLEEPER; FUEL TANK
(B) THA 		8-97925-713-1 02 1 1204- ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1209- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1209- ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1204-1208 ●
511 WASHER
(A) ID=21 THA 		0-91610-520-0 08 1 1209- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1204- ●
529 U-BOLT
THA 		8-97925-880-0 04 1 1209- ●
529 U-BOLT
THA 		8-97925-717-0 04 1 1204- ●
530 NUT; U-BOLT
M20 		0-91110-520-0 16 1 1204-1208 ●
530 NUT; U-BOLT
M20 		0-91110-520-0 16 1 1209- ● ●
531 PLATE; U-BOLT
(C) THA 		8-97926-364-0 01 1 1209- ●
531 PLATE; U-BOLT
(D) THA 		8-97926-038-0 01 1 1209- ●
531 PLATE; U-BOLT
(A) THA 		8-97925-684-0 02 1 1204- ●
531 PLATE; U-BOLT
(B) THA 		8-97925-685-0 04 1 1204-1208 ●
531 PLATE; U-BOLT
(B) THA 		8-97925-685-0 04 1 1209- ● ●
çizim 292173
285 279 457
BalonParca AdiParca NoAdetTipApplied Date A B
279 UNION; FUEL PIPE 1-22427-070-0 01 1 1204-1208 ●
279 UNION; FUEL PIPE 1-22427-070-0 01 1 1209- ● ●
285 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 1204-1208 ●
285 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 1209- ● ●
457 BRACKET; UNION,FUEL PIPE
THA 		8-97925-750-0 01 1 1204-1208 ●
457 BRACKET; UNION,FUEL PIPE
THA 		8-97925-750-0 01 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
