Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#73086) — 39 parça
◀

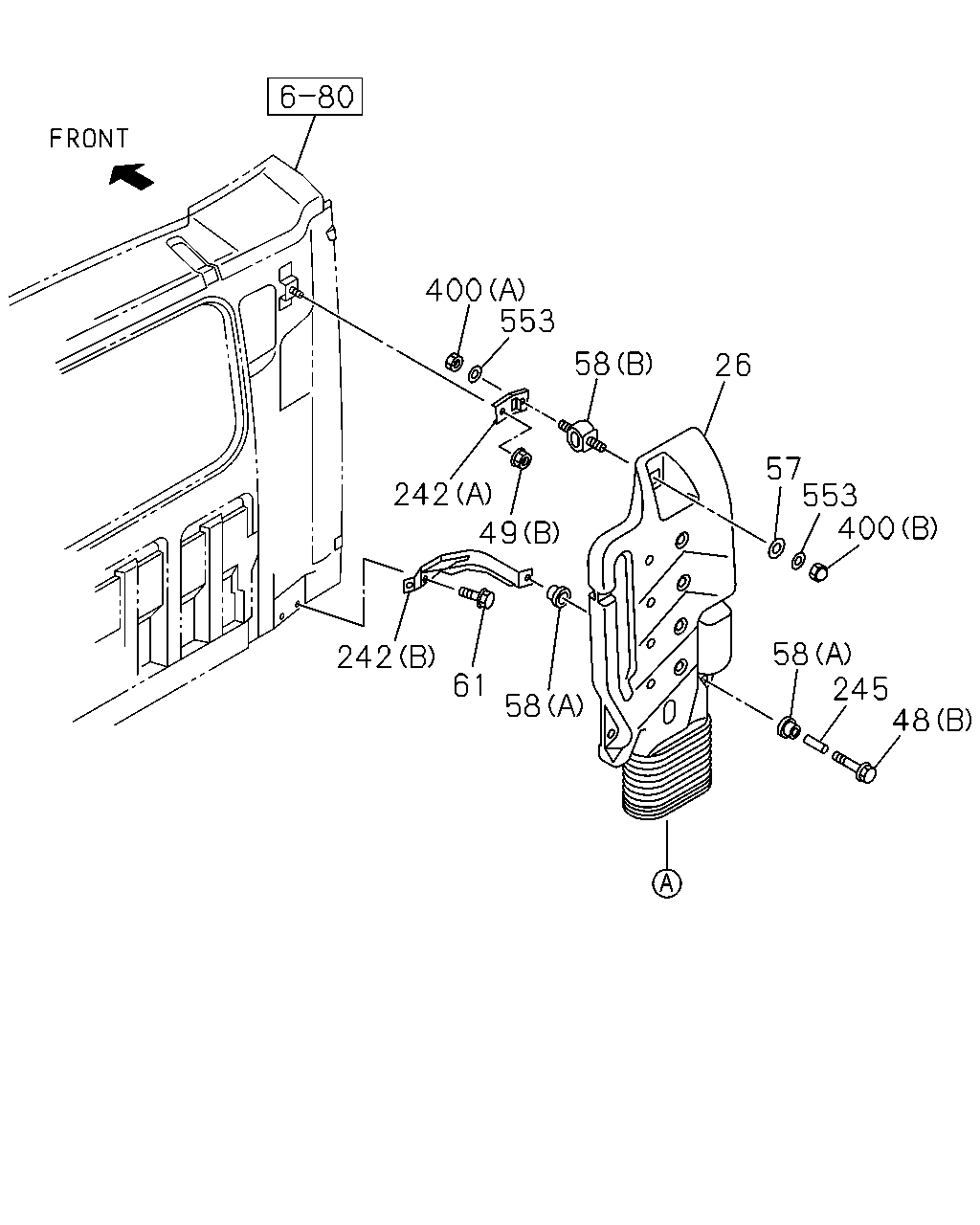

[131A] DUCT FIXING NO.2 (16 parça)
[131A] PIPING (5 parça)
[131A] DUCT FIXING NO.1 (18 parça)
▶
400
58
26
553
242
242
61
58
58
245
48
400
57
49
553
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98055-326-2
01
1
1204-1205
26
DUCT; AIR INT
8-98203-688-0
01
1
1206-
48
BOLT; AIR DUCT
(A) M10X30 FLANGE THA
0-28651-030-0
02
1
1204-
48
BOLT; AIR DUCT
(B) M10X60
1-09030-044-1
02
1
1204-
49
NUT; AIR DUCT
(A) M10 FLANGE THA
0-91180-210-0
02
1
1204-
49
NUT; AIR DUCT
(B) M8 W/LK WASHER THA
8-97581-234-0
01
1
1204-
57
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
1-09985-188-0
02
1
1204-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1204-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1204-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1204-
242
BRACKET; AIR DUCT
(A)
8-98019-301-3
01
1
1204-
242
BRACKET; AIR DUCT
(B)
8-98095-684-0
01
1
1204-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1204-
400
NUT; CAP,AIR DUCT
(A) M8 THA
0-91110-508-0
01
1
1204-
400
NUT; CAP,AIR DUCT
(B) M8 FLANGE
1-09984-126-0
01
1
1204-
553
WASHER; AIR DUCT
ID=8.2
1-09985-177-0
02
1
1204-
353
353
488
353
353
353
353
488
353
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
353
CLIP; RUBBER HOSE
ID=87-116
1-09707-138-0
08
1
1204-1507
353
CLIP; RUBBER HOSE
ID=87-116
8-98308-282-0
08
1
1508-
488
HOSE; RUBBER,PIPE
(B)
8-98170-416-0
01
1
1204-
488
HOSE; RUBBER,PIPE
(A)
8-98191-854-0
01
1
1204-1402
488
HOSE; RUBBER,PIPE
(A)
8-98258-230-0
01
1
1403-
5
5
50
252
48
296
49
296
209
211
210
153
296
210
291
291
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
8-98055-324-0
01
1
1204-
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-155-0
01
1
1204-1507
5
CLIP; AIR DUCT
(A) ID=104-142
8-98308-286-0
01
1
1508-
5
CLIP; AIR DUCT
(B) ID=155-184
1-09707-182-0
01
1
1204-1507
5
CLIP; AIR DUCT
(B) ID=155-184
8-98308-287-0
01
1
1508-
48
BOLT; AIR DUCT
(A) M10X30 FLANGE THA
0-28651-030-0
02
1
1204-
48
BOLT; AIR DUCT
(B) M10X60
1-09030-044-1
02
1
1204-
49
NUT; AIR DUCT
(A) M10 FLANGE THA
0-91180-210-0
02
1
1204-
49
NUT; AIR DUCT
(B) M8 W/LK WASHER THA
8-97581-234-0
01
1
1204-
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
1204-
153
BRACKET; ACL,FRT
THA
8-98097-767-0
01
1
1204-
209
BRACKET; ACL
1-53419-427-1
01
1
1204-
210
BOLT; ACL BRKT
(A) M8X70 FLANGE THA
0-28050-870-0
02
1
1204-
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
1204-
211
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1204-
252
DUCT; AIR INT
8-98055-325-0
01
1
1204-
291
BOLT; ACL
M12X30 FLANGE
0-28051-230-0
02
1
1204-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
1204-
