Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#73085) — 18 parça
◀

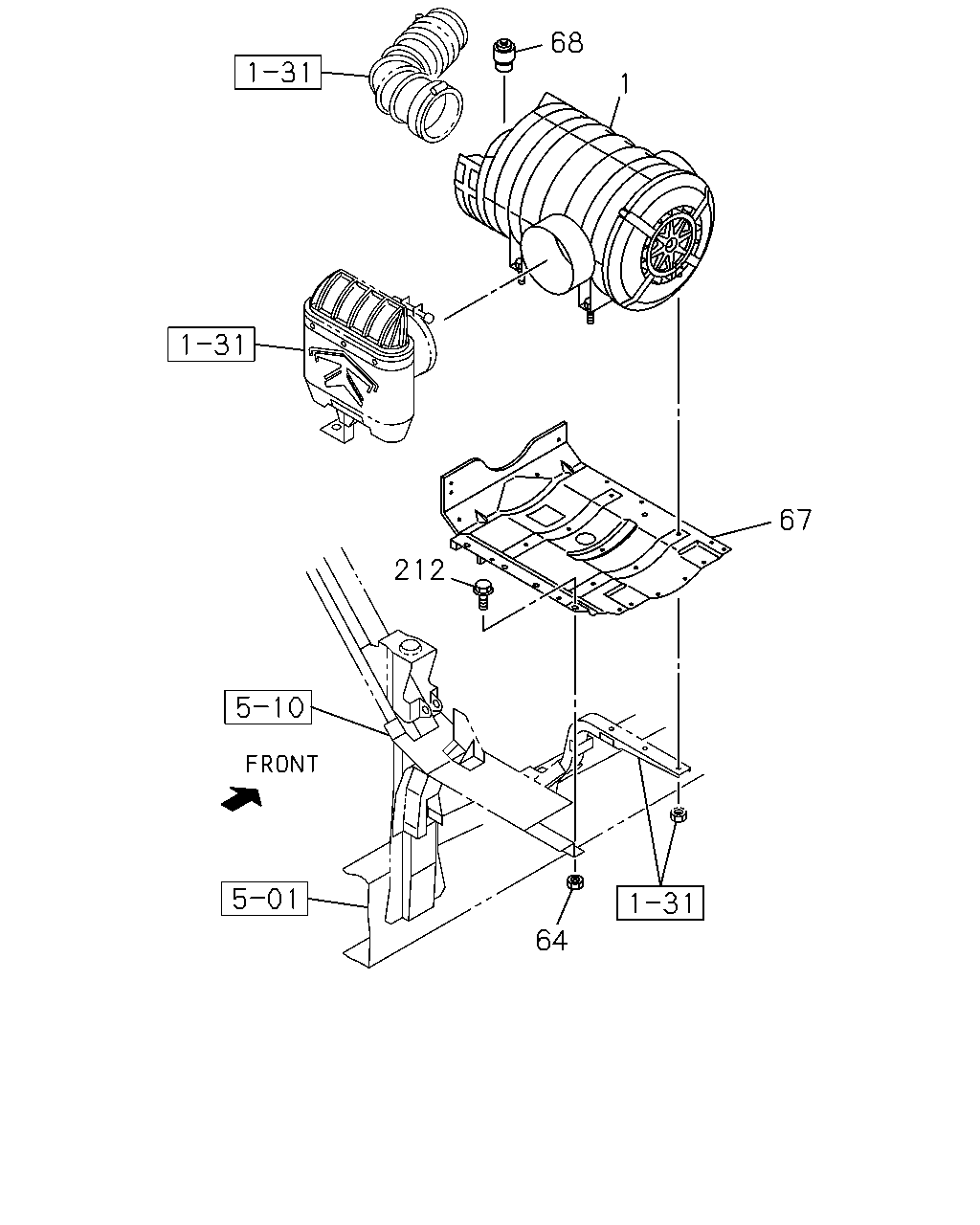

[130A] FIXING (5 parça)
[130A] COMPONENT (13 parça)
▶
67
1
68
212
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
8-98201-835-0
01
1
1204-
64
NUT; BAND BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1204-
67
COVER; ACL
8-98110-710-0
01
1
1204-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
1204-
212
BOLT; MUD COVER
M10X35 FLANGE THA
0-28651-035-0
02
1
1204-
1
1
27
26
8
253
94
44
256
44
110
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
8-98201-835-0
01
1
1204-
8
COVER ASM; ACL
THA
1-14212-129-0
01
1
1204-
26
FILTER; ACL,INNER
BEST VALUE PARTS
1-87610-112-1
01
1
1204-
26
FILTER; ACL,INNER
1-14215-217-0
01
1
1204-
27
FILTER; ACL,OUTER
BEST VALUE PARTS
1-87610-111-1
01
1
1204-
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
1204-
44
BOLT; ACL
(A)
8-98202-871-0
02
1
1204-
44
BOLT; ACL
(B)
8-98202-873-0
02
1
1204-
94
VALVE; VACUATOR
THA
1-14219-251-0
01
1
1204-
110
ADAPTER; ACL
8-98195-163-0
01
1
1204-
129
PLUG; HOLE
8-98202-872-0
02
1
1204-
253
NIPPLE
THA
1-14219-252-0
01
1
1204-
256
SENSOR; AIRFLOW
8-98195-129-0
01
1
1204-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
