8-60 — HEATER UNIT; FRONT (#73067) — 26 parça

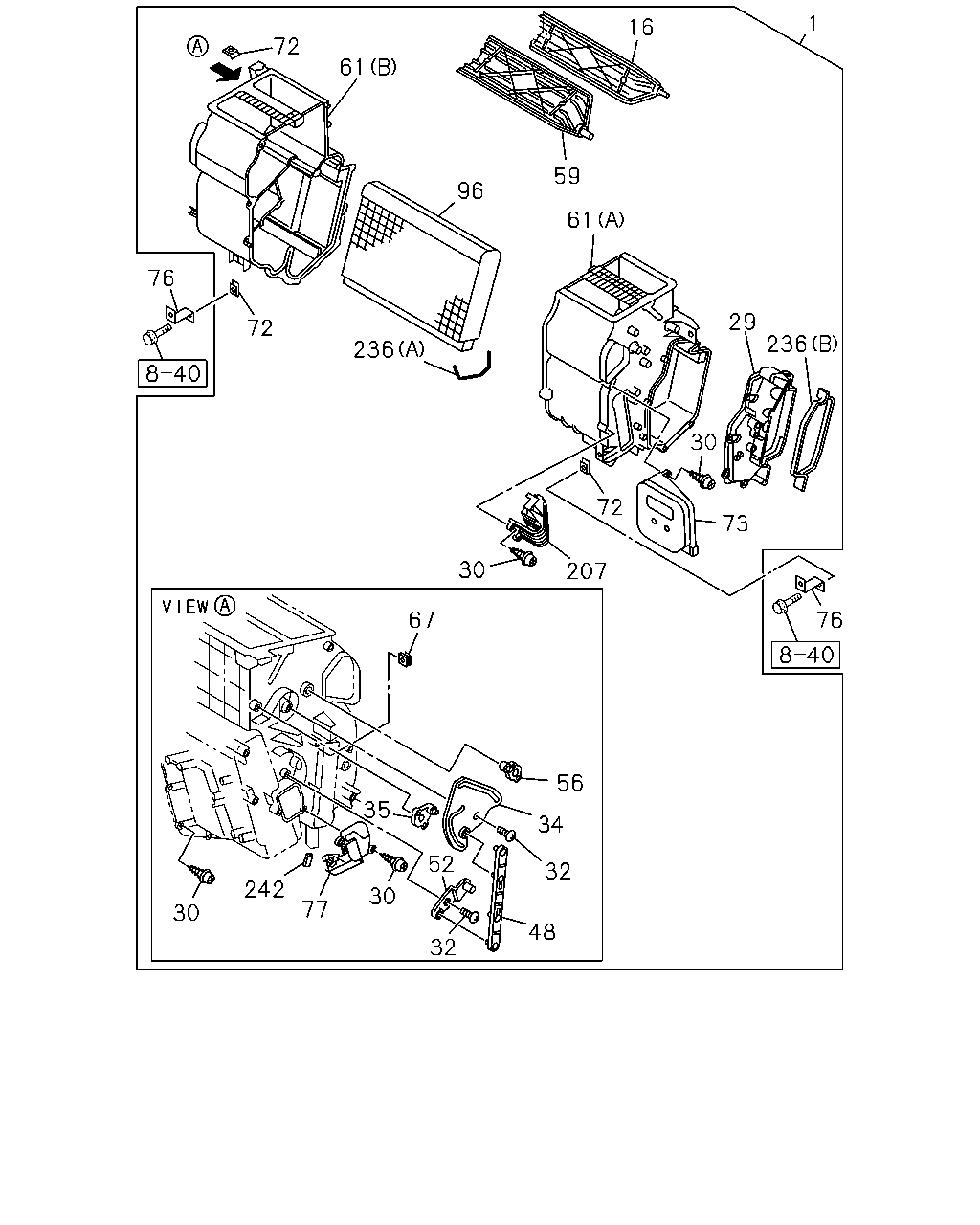

çizim 141186
1 16 72 61 59 96 61 76 29 72 236 236 30 72 73 30 207 67 76 56 35 34 52 32 242 30 77 30 48 32
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98062-757-1 01 1 1111-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98214-400-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 1111-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98074-119-0 01 1 1111-1301
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 25 1 1111-1301
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1302-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1111-
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 1111-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 1111-
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 1111-
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 1111-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 1111-
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 1111-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 1111-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 1111-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1111-
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 1111-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98077-419-0 01 1 1111-1301
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 1111-
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 1111-
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-815-0 01 1 1111-1301
207 CLAMP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-379-0 01 1 1111-1301
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 1111-
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 1111-
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1111-1411
