Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#73063) — 22 parça

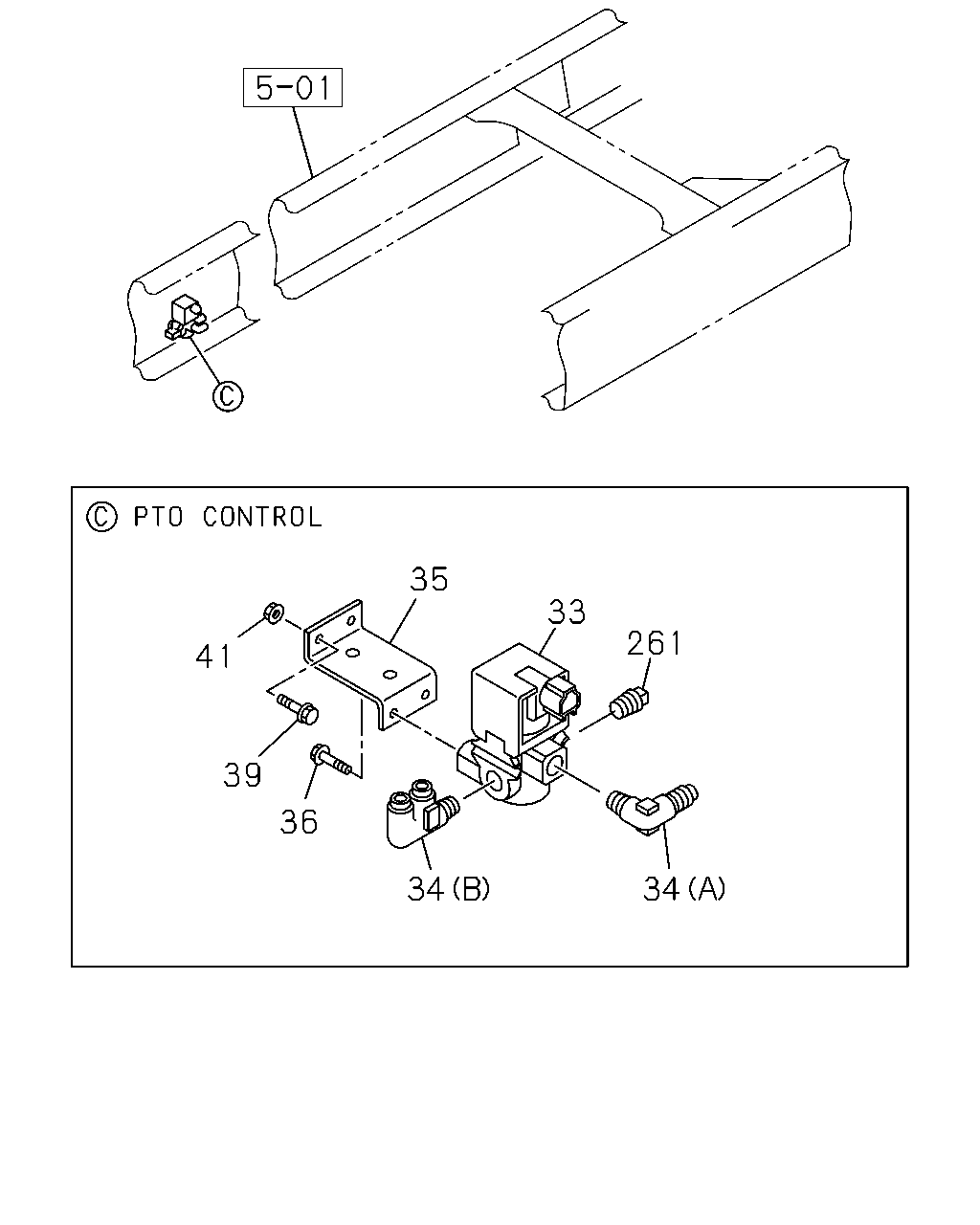

35 33 261 41 39 36 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1111-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1111-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98154-633-0	01	1	1111-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE IDN	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1111-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1111-
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1111-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1111-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

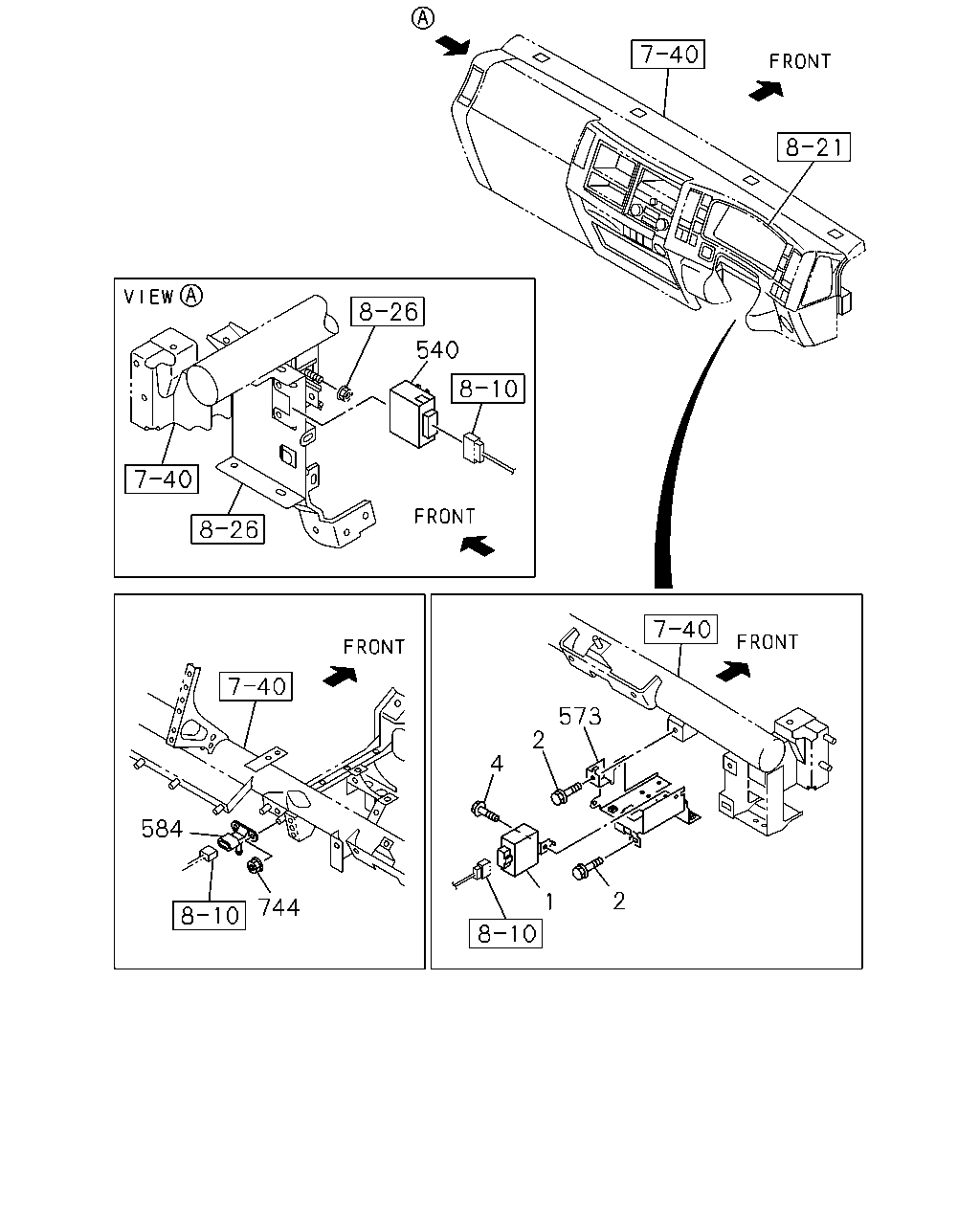

540 573 2 4 584 2 1 744

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER IDN	8-98025-533-1	01	1	1111-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1111-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1111-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1111-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1111-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1111-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1111-

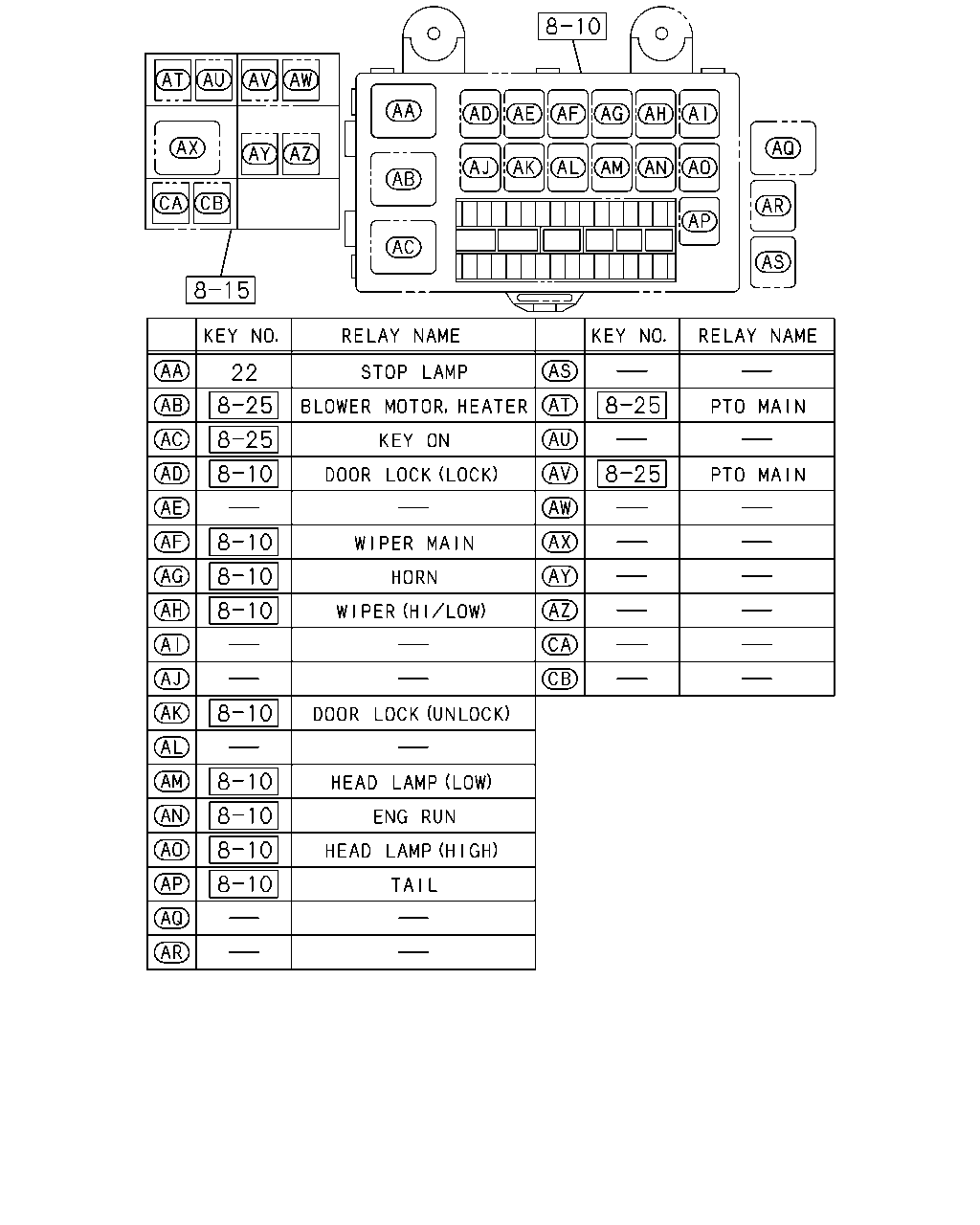

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1111-

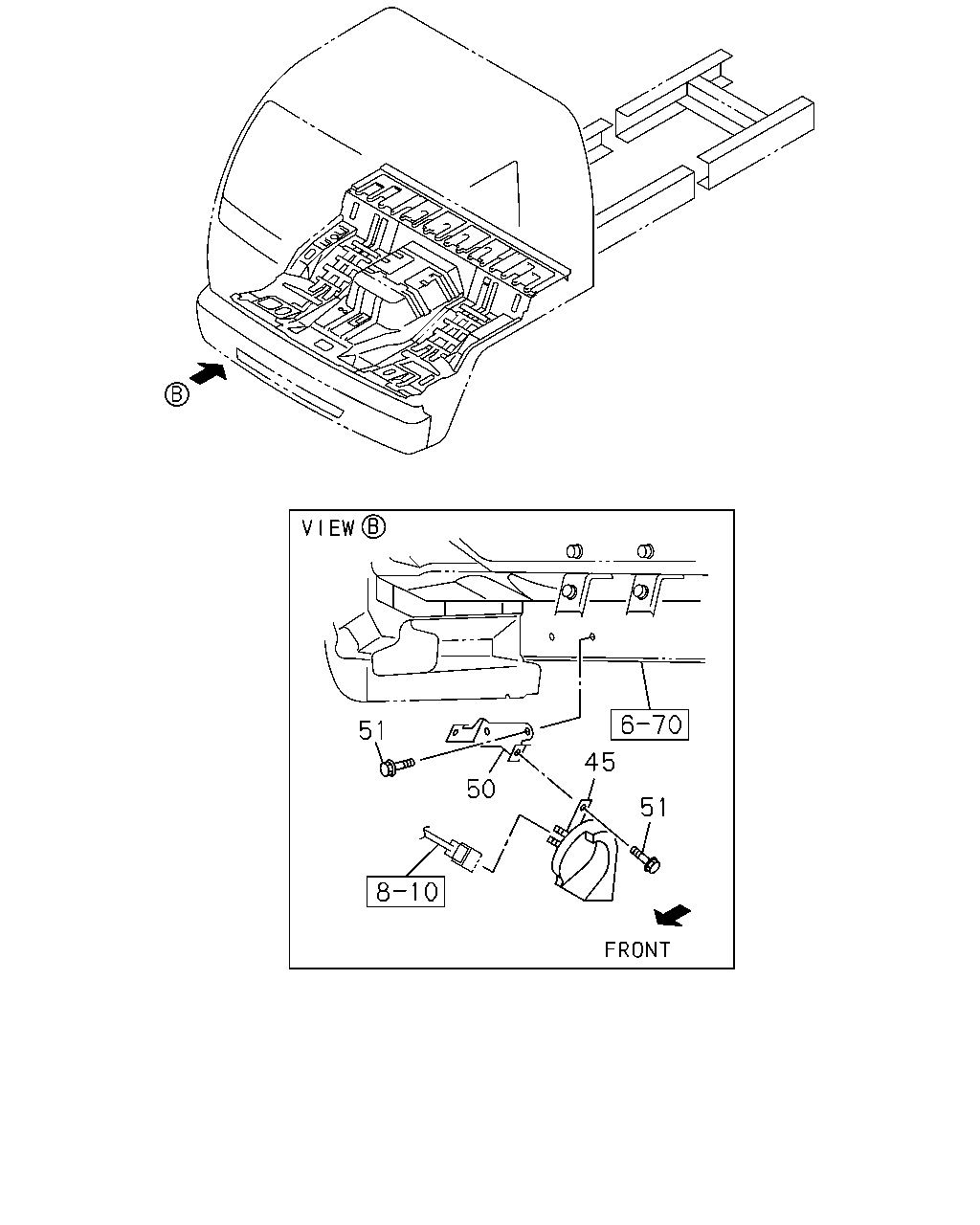

51 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	HORN; LOW NOTE IDN	8-98022-023-0	01	1	1111-
50	BRACKET; HORN	8-97613-300-2	01	1	1111-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER IDN	8-97086-825-0	03	1	1111-
