8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#73062) — 17 parça
◀

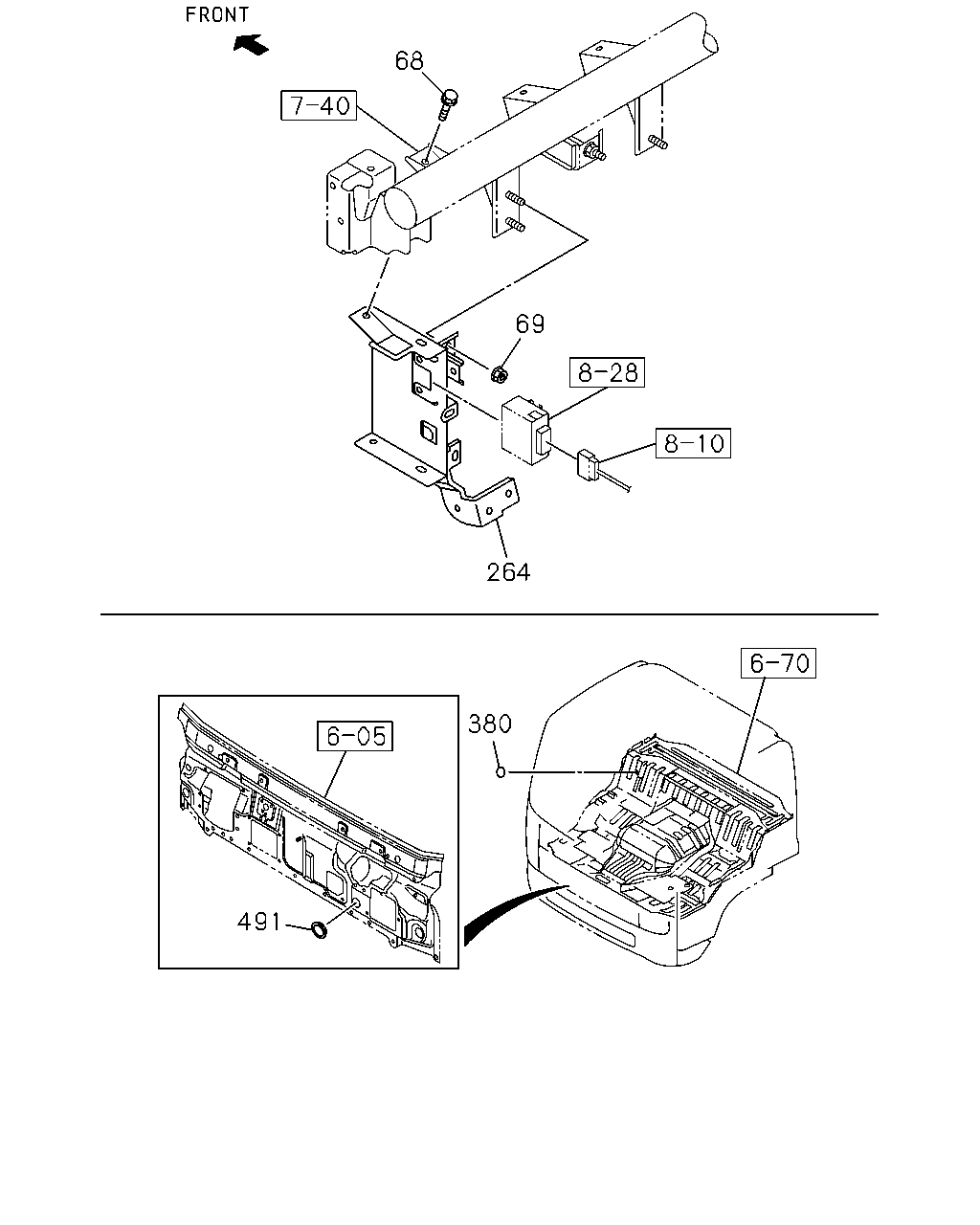

[826A] NO.2 (5 parça)

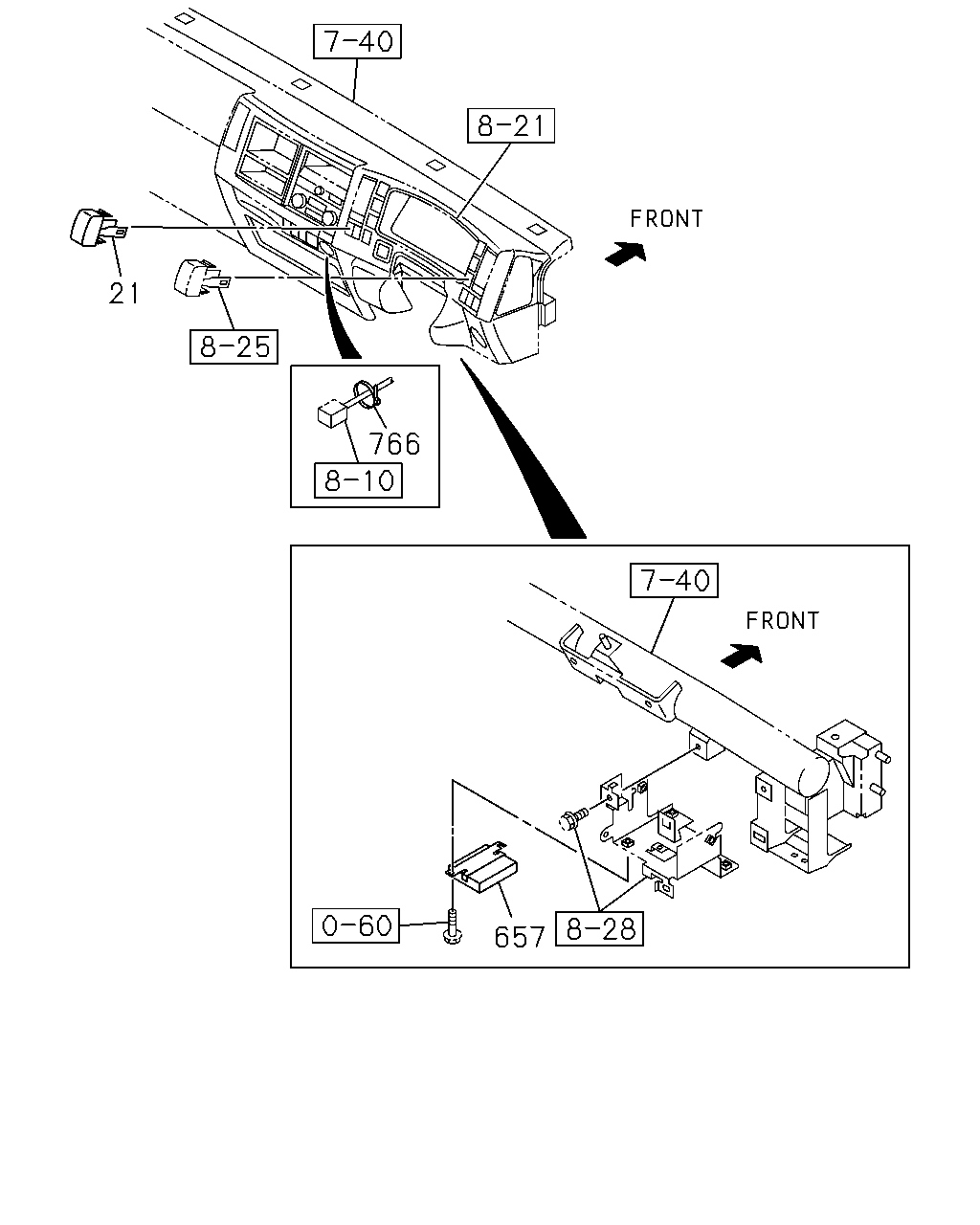

[826A] NO.1 (4 parça)

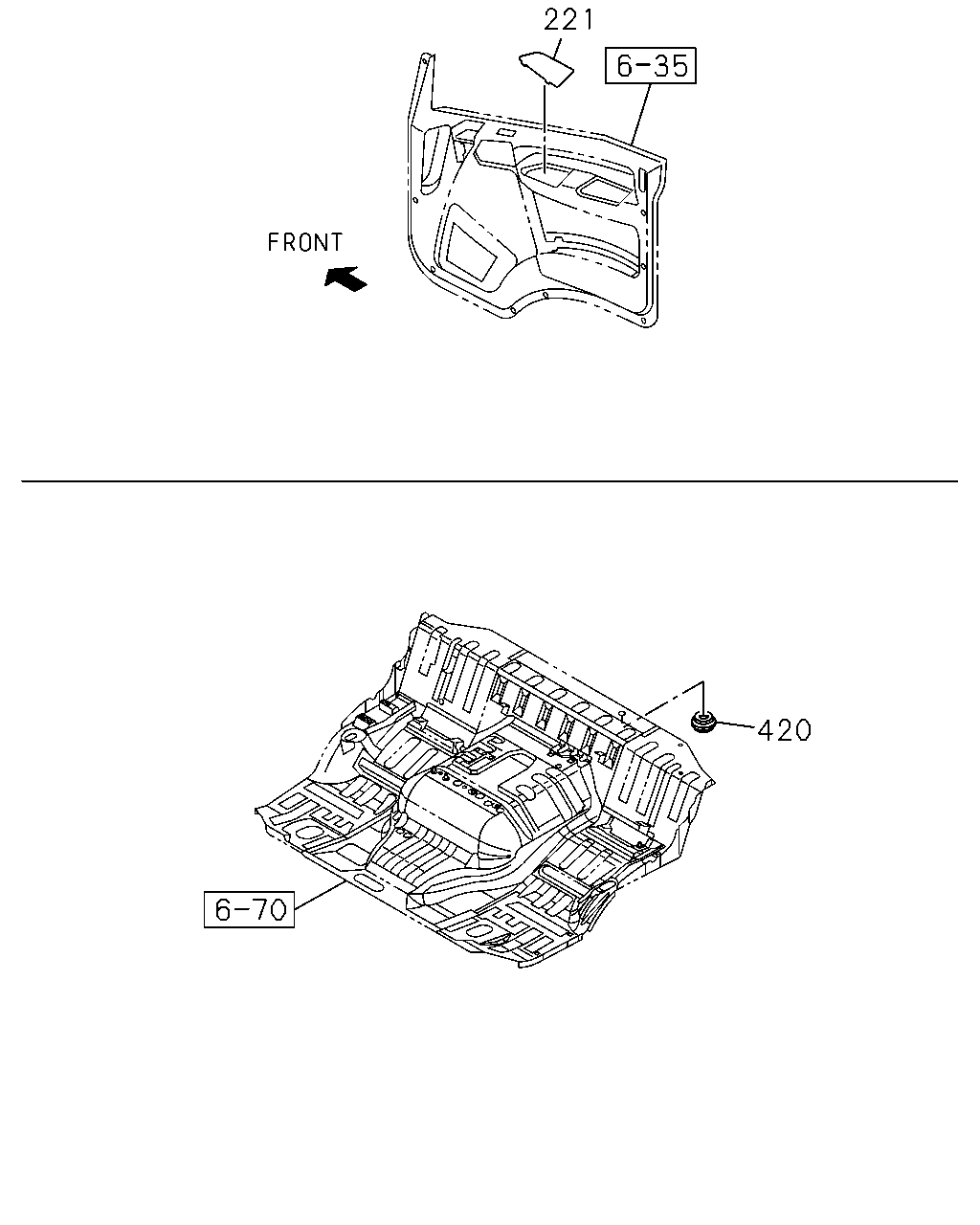

[826A] NO.3 (3 parça)

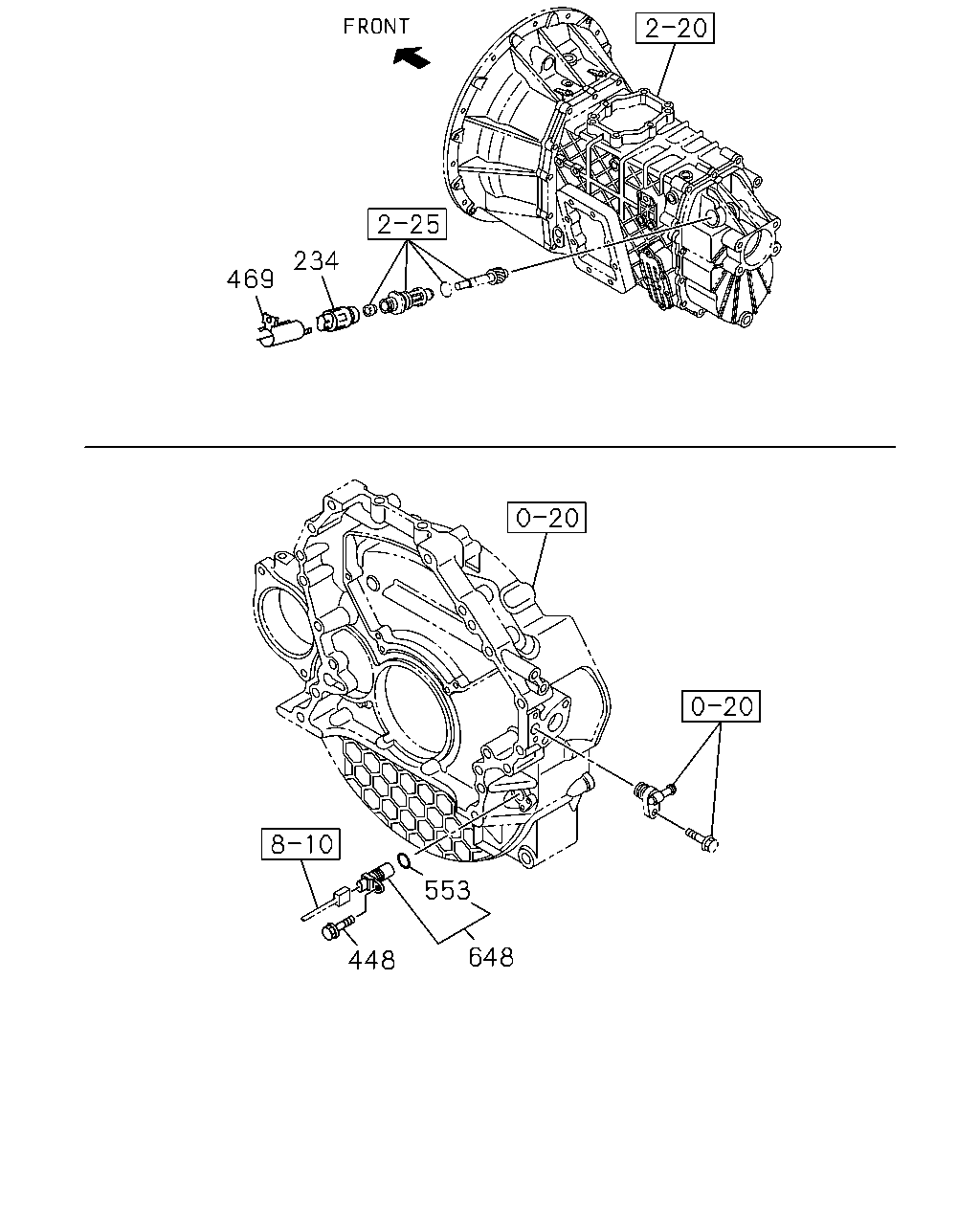

[826A] NO.4 (5 parça)
▶
68
69
264
380
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1111-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1111-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1111-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1111-
491
PLUG; HOLE,CONT UNIT
OD=60 IDN
8-98054-651-0
01
1
1111-
766
21
657
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
COVER; HOLE
8-98025-954-1
01
1
1111-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1111-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
766
BAND; CLIP
L=140 IDN
5-09707-031-1
01
1
1111-
221
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-915-2
01
1
1111-
221
COVER; HOLE,DOOR LOCK SW
IDN
8-98029-916-2
01
1
1111-
420
PLUG; SWITCH
OD=35 IDN
8-94122-971-0
01
1
1111-
234
469
553
448
648
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1111-
448
BOLT; SENSOR
M6X16 FLANGE IDN
0-28050-616-0
01
1
1111-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1111-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1111-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
