8-15 — FIXING PARTS; WIRING HARNESS (#73059) — 174 parça
çizim 136611
14 22 48 305 14 16 206 208 217 225 305 48 530 538 178 178 14 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 IDN 		5-09707-030-1 02 1 1111-
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1111-
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 06 1 1111-1312
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 05 1 1401-
14 CLIP; BAND,HARNESS
(C) L=150 		8-97355-273-0 01 1 1111-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1111-
16 CLIP; HARNESS
(I) ID=16 L=28 		0-95235-556-0 02 1 1111-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1111-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1111-
16 CLIP; HARNESS
(F) ID=24 L=24 		1-09701-001-1 01 1 1111-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1111-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1111-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1111-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1111-
22 CLIP; ENG HARNESS
L=140 IDN 		5-09707-031-1 02 1 1111-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1111-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1111-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1111-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 04 1 1111-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1111-
48 CLIP; FRAME HARNESS
(L) L=140 IDN 		5-09707-031-1 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 13 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) ID=5-12 L=18 		1-09709-287-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (D) ID=18-24 L=18 		1-09709-294-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 16 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 21 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (F) ID=5-12 L=26 		1-09709-289-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (J) ID=13-18 L=26 		1-09709-293-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=18-24 L=26 		1-09709-296-0 02 1 1111-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1111-
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1111-
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1111-
178 GROMMET; HARNESS
WHEEL BASE 6000MM(60W) (A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1111-
206 CLIP; FUEL TANK HARNESS
L=250 IDN 		5-09707-030-1 02 1 1111-
208 CLIP; HARNESS,MAG VLV
L=250 IDN 		5-09707-030-1 01 1 1111-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1111-
225 CLIP; AIR TANK HARNESS
L=250 IDN 		5-09707-030-1 02 1 1111-
305 CLIP; ENG HARNESS
(A) L=300 		1-09707-001-1 01 1 1111-
305 CLIP; ENG HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1111-
530 SEAL; HARNESS
180X40 		1-72498-019-1 11 1 1111-1402
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1111-

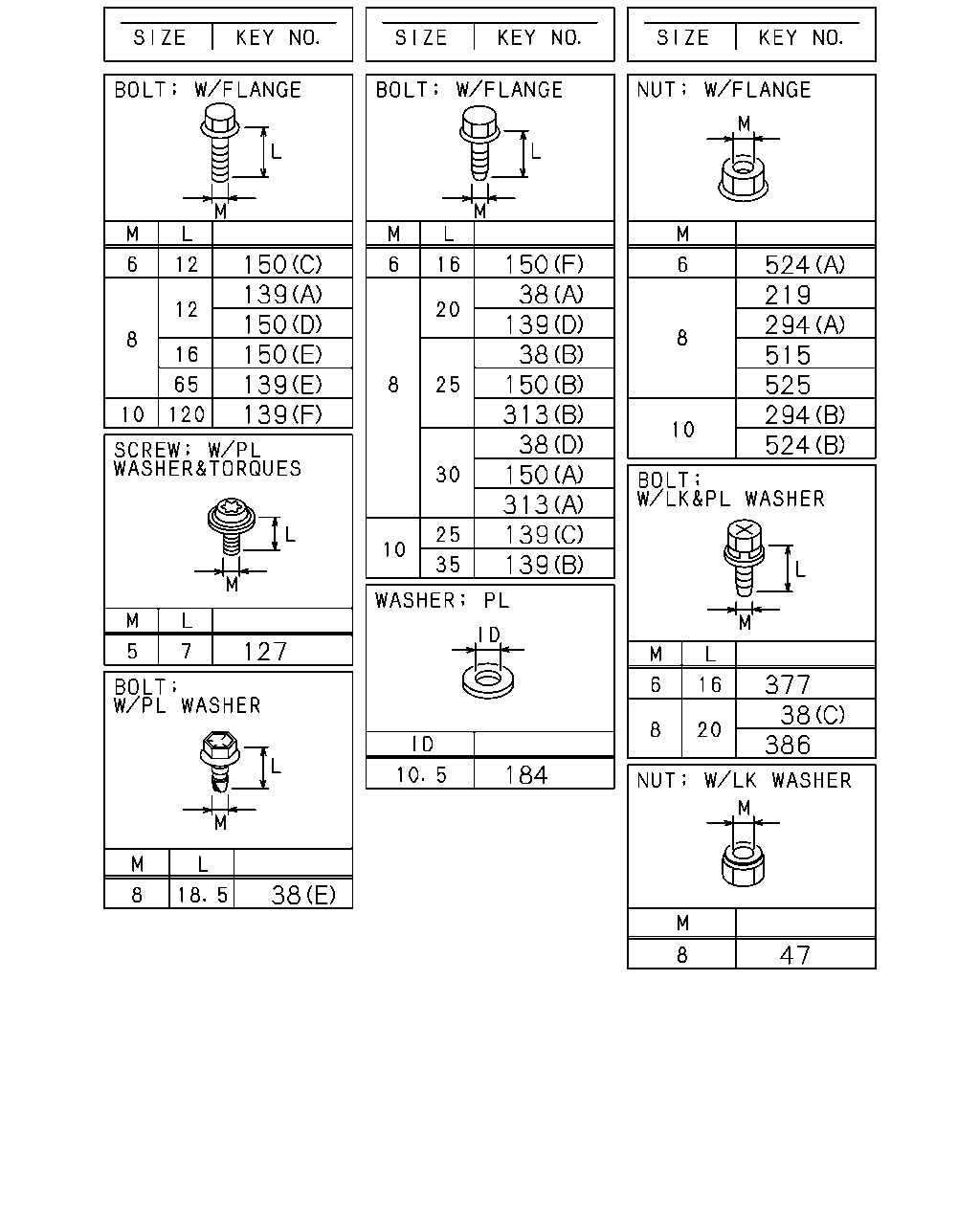

çizim 136712
150 150 139 150 139 139 127 38 184 139 313 150 139 38 313 150 38 139 38 150 219 524 294 525 515 294 377 524 38 386 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1111-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1111-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1111-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1111-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 03 1 1111-1202
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1203-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1111-
139 BOLT; BRKT
(F) M10X120 FLANGE 		0-28156-012-0 01 1 1506-1506
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1111-
139 BOLT; BRKT
(D) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1111-
139 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1111-
139 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 01 1 1111-
139 BOLT; BRKT
(E) M8X65 FLANGE 		1-09044-072-1 01 1 1111-
150 BOLT; CLIP
(F) M6X16 FLANGE 		0-28650-616-0 01 1 1401-
150 BOLT; CLIP
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1111-1312
150 BOLT; CLIP
(C) M6X12 FLANGE 		0-28050-612-0 04 1 1401-
150 BOLT; CLIP
(D) M8X12 FLANGE 		0-28050-812-0 01 1 1111-
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 1111-
150 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1111-
150 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1111-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1111-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1111-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1111-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1111-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1111-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1111-
313 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1111-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1111-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 02 1 1111-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1111-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1111-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1111-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1111-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1111-

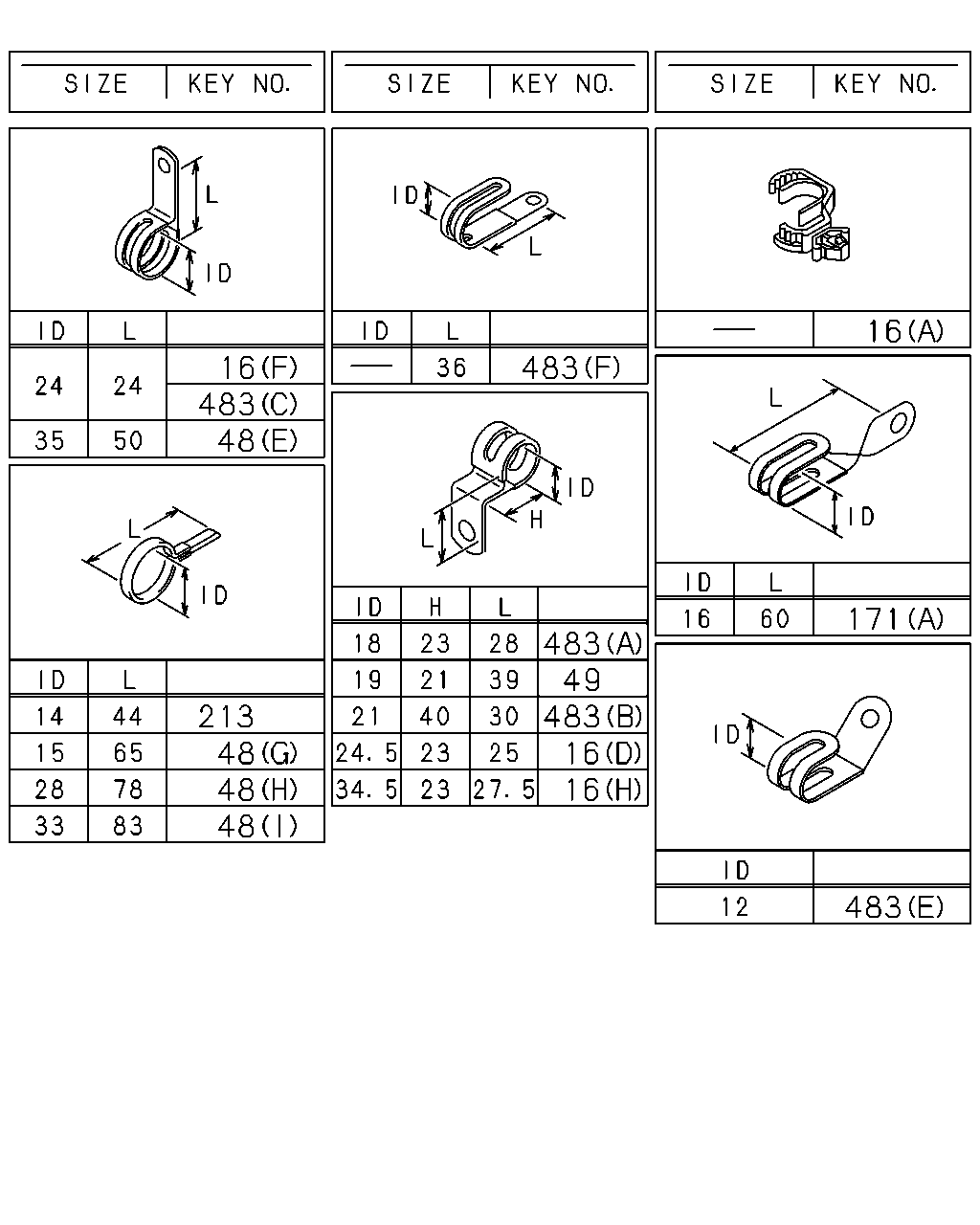

çizim 136883
16 16 483 48 483 171 483 49 483 16 16 213 48 48 48 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=16 L=28 		0-95235-556-0 02 1 1111-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1111-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1111-
16 CLIP; HARNESS
(F) ID=24 L=24 		1-09701-001-1 01 1 1111-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1111-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1111-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1111-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1111-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1111-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1111-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1111-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 04 1 1111-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1111-
48 CLIP; FRAME HARNESS
(L) L=140 IDN 		5-09707-031-1 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 13 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) ID=5-12 L=18 		1-09709-287-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (D) ID=18-24 L=18 		1-09709-294-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 16 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 21 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (F) ID=5-12 L=26 		1-09709-289-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (J) ID=13-18 L=26 		1-09709-293-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=18-24 L=26 		1-09709-296-0 02 1 1111-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1111-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1111-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1111-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1111-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1111-1112
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1111-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 1111-
483 CLIP; ENG HARNESS
(D) ID=16 L=50 		1-09701-158-0 01 1 1111-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1111-1312
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 02 1 1111-
çizim 136888
341 48 48 48 48 48 48 171 223 470 252 252 116 16 483 483 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) ID=16 L=28 		0-95235-556-0 02 1 1111-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1111-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1111-
16 CLIP; HARNESS
(F) ID=24 L=24 		1-09701-001-1 01 1 1111-
16 CLIP; HARNESS
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1111-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1111-
16 CLIP; HARNESS
(G) L=40.6 		8-97229-357-0 02 1 1111-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1111-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1111-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1111-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1111-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 04 1 1111-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1111-
48 CLIP; FRAME HARNESS
(L) L=140 IDN 		5-09707-031-1 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (G) ID=15 L=65 		1-09700-466-0 13 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) ID=5-12 L=18 		1-09709-287-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (D) ID=18-24 L=18 		1-09709-294-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (G) ID=15 L=65 		1-09700-466-0 16 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (G) ID=15 L=65 		1-09700-466-0 21 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (F) ID=5-12 L=26 		1-09709-289-0 04 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (J) ID=13-18 L=26 		1-09709-293-0 02 1 1111-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=18-24 L=26 		1-09709-296-0 02 1 1111-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1111-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1111-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1111-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1111-
223 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1111-
252 CLIP; CONNECTOR FIX
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) OD=9 H=9.5 		1-09709-179-0 01 1 1111-
252 CLIP; CONNECTOR FIX
WHEEL BASE 6000MM(60W) (B) OD=9 H=17.5 		1-09709-181-0 01 1 1111-
341 CLIP; BAND,STARTER RELAY
ID=16 L=20 		0-95235-535-0 01 1 1111-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1111-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1111-1112
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
(A) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1111-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 1111-
483 CLIP; ENG HARNESS
(D) ID=16 L=50 		1-09701-158-0 01 1 1111-
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1111-1312
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401-
483 CLIP; ENG HARNESS
(F) L=36 		8-94224-891-1 02 1 1111-

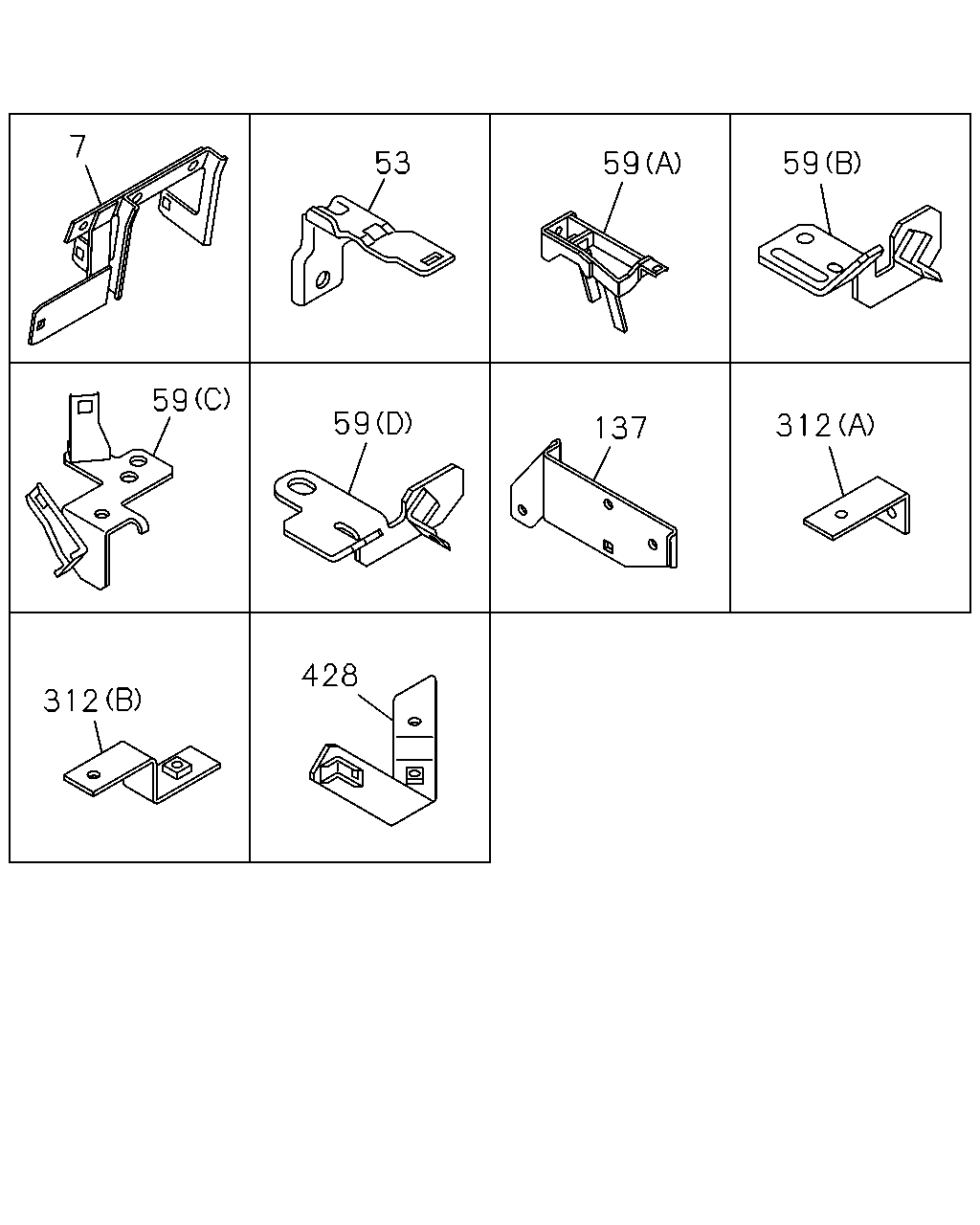

çizim 137161
7 53 59 59 59 59 137 312 312 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1111-
53 BRACKET; HARNESS
IDN 		8-98052-458-0 01 1 1111-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1111-1502
59 BRACKET; FRAME HARNESS
(D) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(A) 		8-98099-963-0 01 1 1111-
59 BRACKET; FRAME HARNESS
(C) 		8-98168-184-0 01 1 1111-
137 BRACKET; HARNESS CLAMP 8-98052-805-0 01 1 1506-1506
137 BRACKET; HARNESS CLAMP
IDN 		8-98193-417-0 01 1 1111-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1111-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1111-
428 BRACKET 8-97620-514-0 01 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
