Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

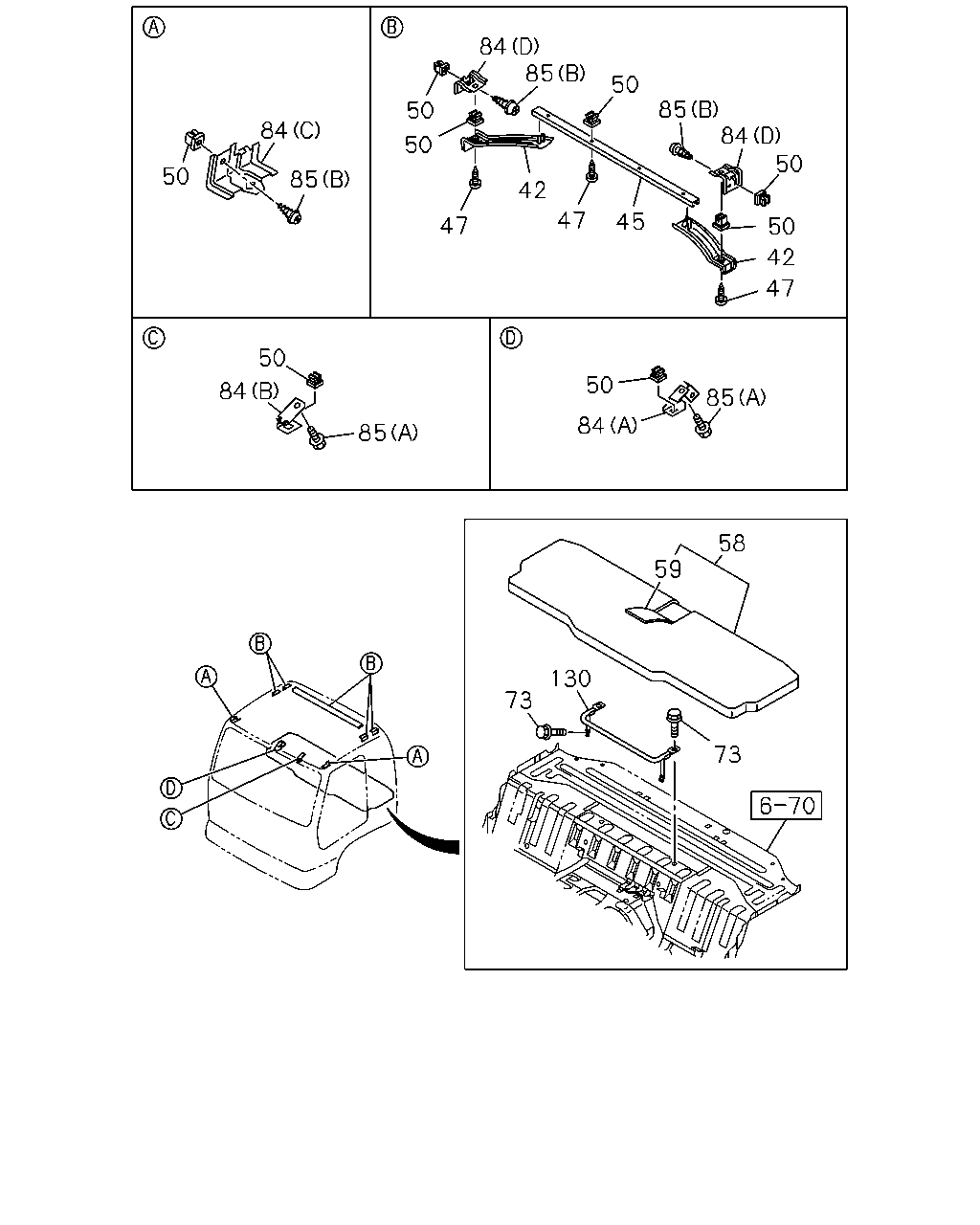

7-70 — SEPARATER AND BED
(#73054) — 18 parça
84
85
50
85
84
50
50
84
50
50
85
42
47
45
47
50
42
47
50
50
84
85
84
85
58
59
130
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1111-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1111-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1111-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1111-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
04
1
1111-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
02
1
1406-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 IDN
8-94279-078-0
06
1
1111-
58
BED; MAT
DARK GRAY IDN
8-97409-894-1
01
1
1111-
59
COVER ASM; TRIM,BED MAT
DARK GRAY
8-97414-135-0
01
1
1111-
73
BOLT; GUARD PIPE
M8X20 FLANGE
0-28450-820-0
04
1
1111-
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1111-1405
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
02
1
1111-
84
BRACKET; CURTAIN RAIL
(A)
8-98049-290-1
01
1
1111-
84
BRACKET; CURTAIN RAIL
(B)
8-98074-740-0
01
1
1111-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1111-1405
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
02
1
1406-
85
SCREW; BRKT
(A) M6X12 FLANGE
8-97108-669-0
02
1
1111-
130
PIPE; GUARD,BED
8-98014-968-0
01
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
