6-05 — FRONT PANEL (#73025) — 113 parça

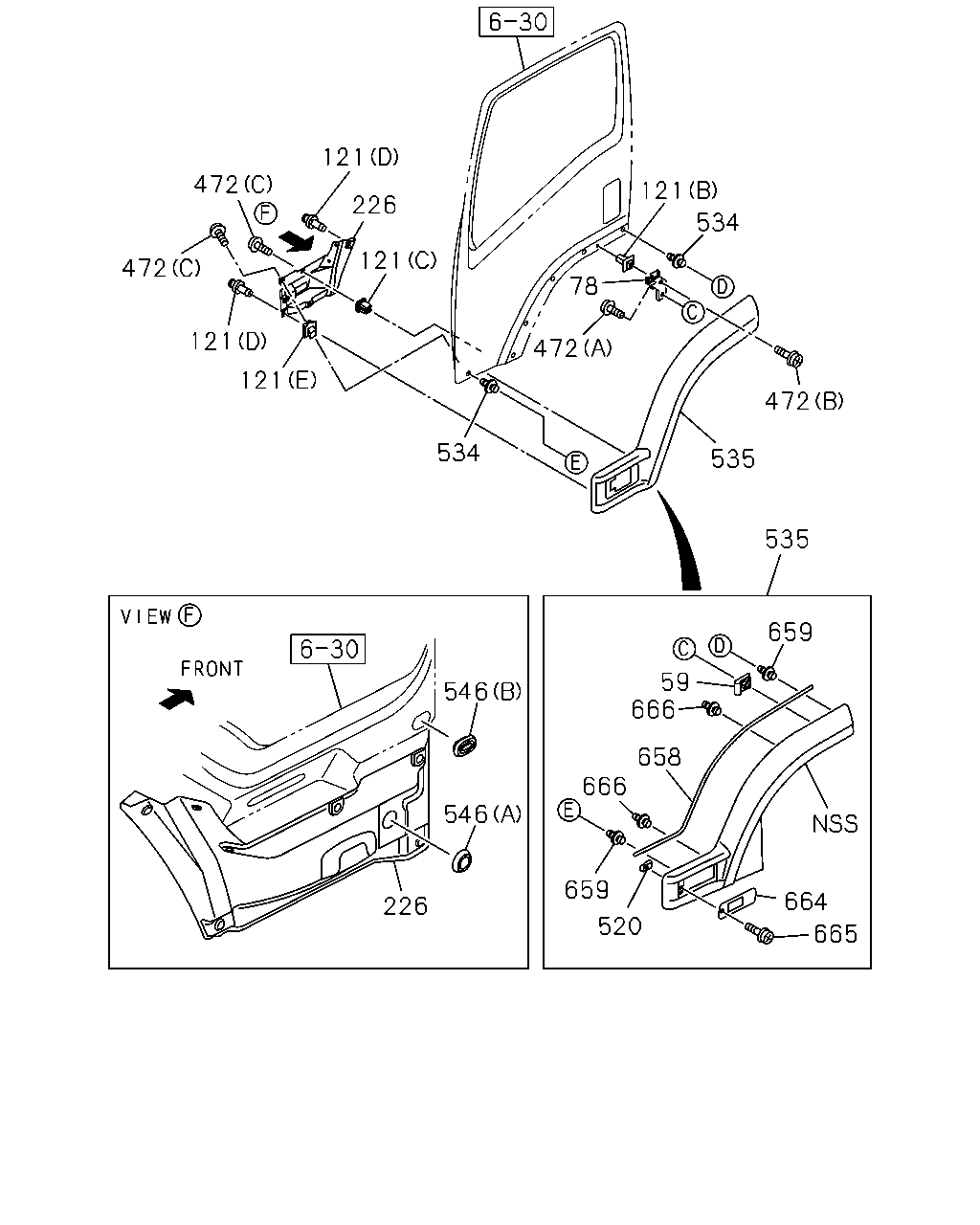

çizim 126347
121 472 121 226 534 121 472 78 472 121 121 472 534 535 535 659 59 666 546 658 666 546 659 664 226 520 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1111-
78 BRACKET; FENDER 8-98041-166-1 01 1 1111-
78 BRACKET; FENDER 8-98041-165-1 01 1 1111-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1111-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1111-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1111-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1111-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1111-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1111-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1111-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1111-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1111-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1111-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1111-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1111-
520 NUT; FENDER 8-94279-501-0 02 1 1111-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1111-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER 8-98106-503-0 01 1 1111-
535 FENDER; BLISTER 8-98106-502-0 01 1 1111-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1111-
546 PLUG; DUMMY HOLE
(B) IDN 		8-94430-184-1 02 1 1111-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1111-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1111-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1111-
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1111-
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1111-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1111-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1111-

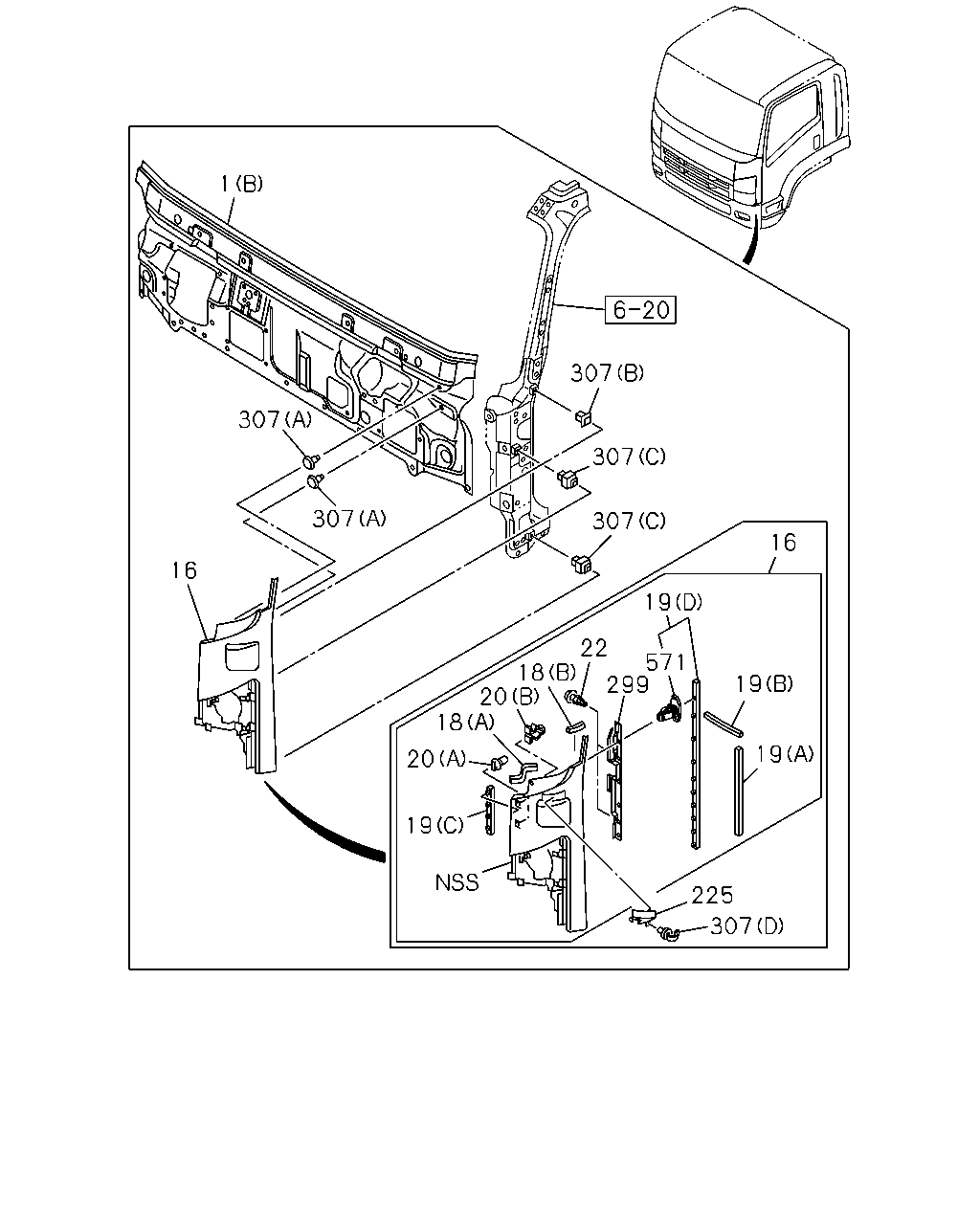

çizim 126412
1 307 307 307 307 307 16 16 19 22 18 20 18 571 299 19 19 20 19 225 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1111-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1111-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-511-5 01 1 1111-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-509-4 01 1 1111-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) IDN 		8-98038-608-0 02 1 1111-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) IDN 		8-98043-511-1 02 1 1111-
19 SEAL; FRT SIDE PANEL
(B) IDN 		8-98035-268-0 02 1 1111-
19 SEAL; FRT SIDE PANEL
(A) IDN 		8-98062-215-0 02 1 1111-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1111-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1111-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1111-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1111-
20 CLIP; FRT PANEL SIDE
(A) IDN 		8-97410-739-1 04 1 1111-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1111-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1111-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1111-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1111-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1111-
307 GROMMET; FRT PANEL
(B) IDN 		8-97410-738-0 02 1 1111-
307 GROMMET; FRT PANEL
(C) IDN 		8-98021-300-1 04 1 1111-
307 GROMMET; FRT PANEL
(A) OD=20 IDN 		8-98034-363-1 04 1 1111-
307 GROMMET; FRT PANEL
(D) IDN 		8-98028-743-0 01 1 1111-
571 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 20 1 1111-

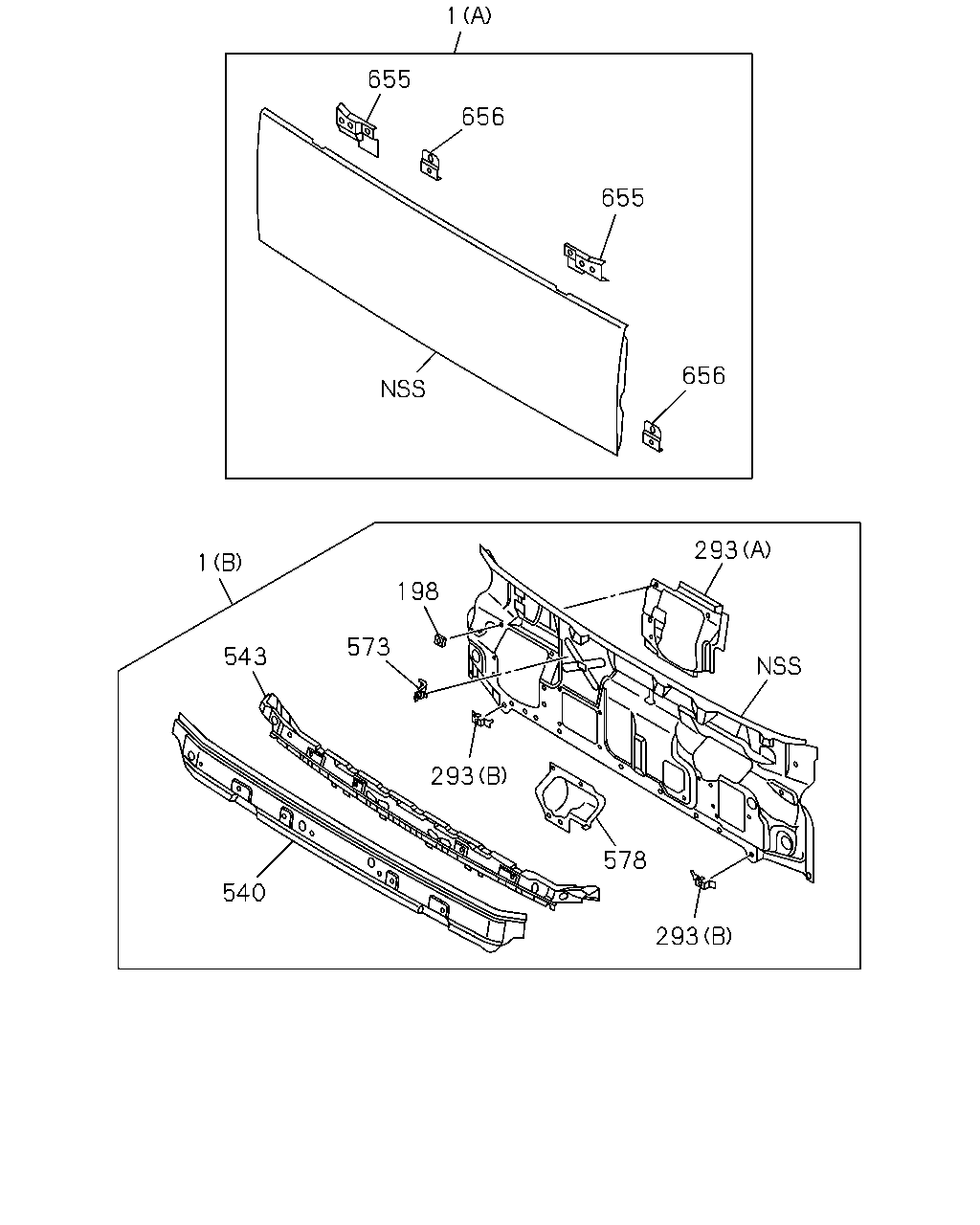

çizim 126442
1 655 656 655 656 293 1 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1111-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1111-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1111-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1111-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1111-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1111-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1111-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1111-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1111-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1111-
655 PATCH; HINGE 8-98031-263-0 01 1 1111-
655 PATCH; HINGE 8-98031-264-0 01 1 1111-
656 PATCH; STRIKER 8-98031-265-0 02 1 1111-

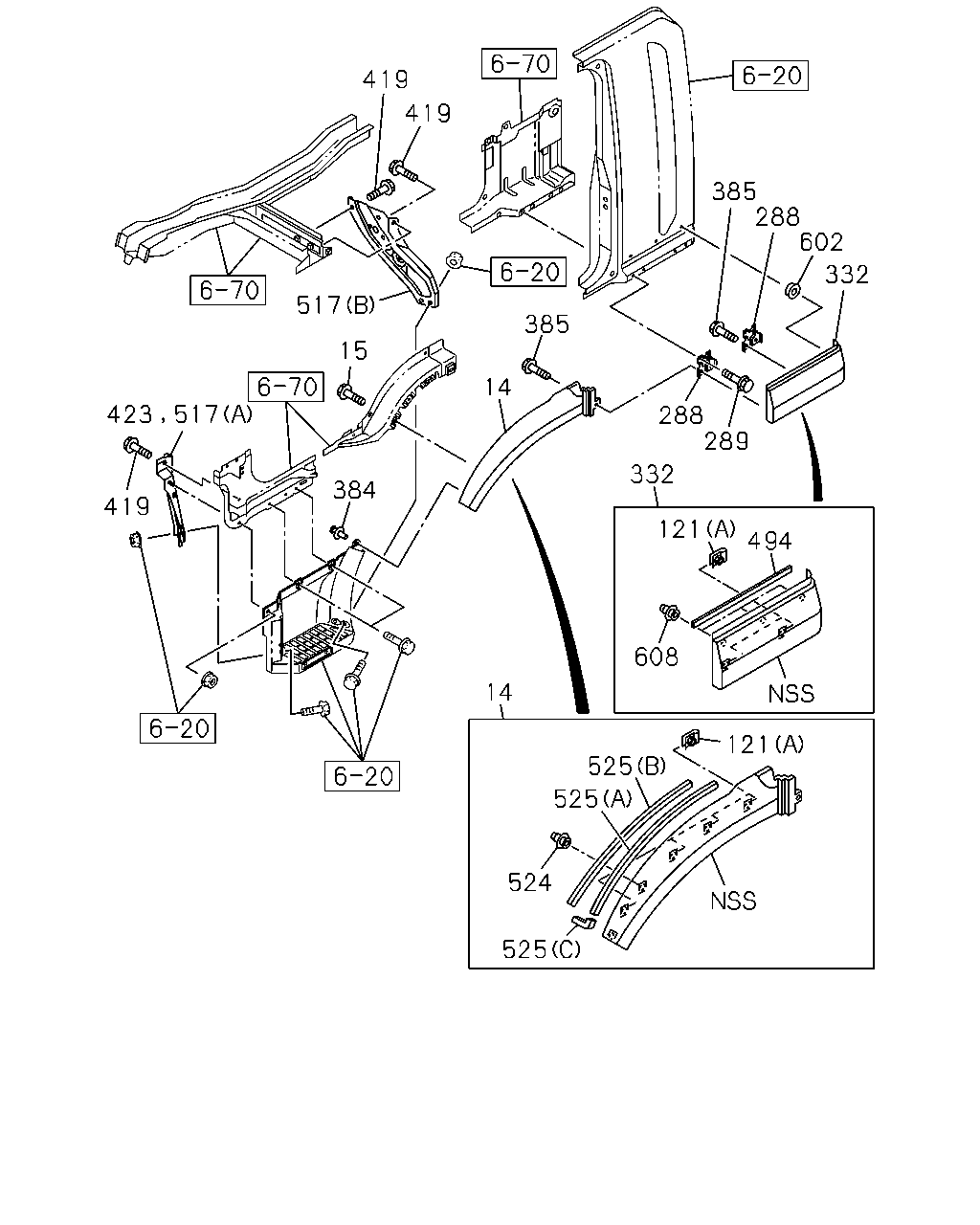

çizim 126681
121 332 288 494 608 14 525 524 525 121 289 288 385 332 602 419 419 14 385 15 517 517 423 419 384 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 8-98182-321-0 01 1 1111-
14 FENDER; FRT 8-98182-320-0 01 1 1111-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1111-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1111-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1111-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1111-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 12 1 1111-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1111-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1111-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1111-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1111-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1111-
332 FENDER; RR 8-98038-435-2 01 1 1111-
332 FENDER; RR 8-98038-434-2 01 1 1111-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1111-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1111-
419 BOLT; STEP
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1111-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-
494 FINISHER; FENDER 8-98072-723-0 01 1 1111-
494 FINISHER; FENDER 8-98041-172-1 01 1 1111-
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1111-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1111-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1111-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1111-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1111-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1111-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1111-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1111-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1111-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1111-

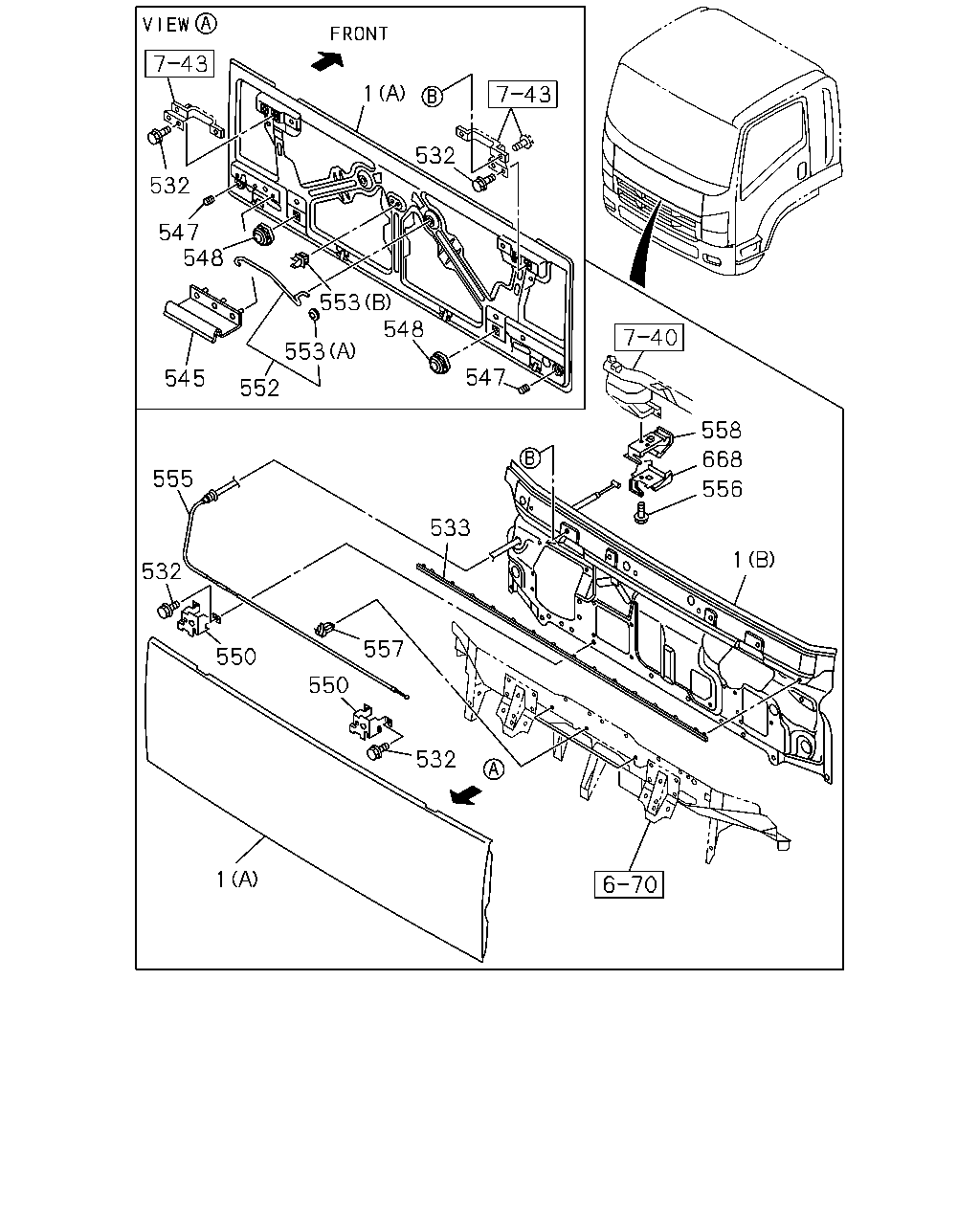

çizim 126747
1 532 532 547 548 553 548 553 547 545 552 558 668 555 556 533 1 532 557 550 550 532 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1111-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1111-
532 BOLT; FRT PANEL
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1111-
533 SEAL; FRT PANEL
IDN 		8-98096-289-0 01 1 1111-
545 SEAL; FRT LID
IDN 		8-98123-265-0 01 1 1111-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1111-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1111-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1111-
552 STAY; FRT LID 8-98089-838-0 01 1 1111-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1111-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1111-
555 CABLE; FRT LID 8-98036-574-1 01 1 1111-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1111-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1111-
558 LEVER; FRT LID 1-79338-007-1 01 1 1111-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1111-
