◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11430 - FTR(INDONESIA)4HK1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#73013) — 29 parça

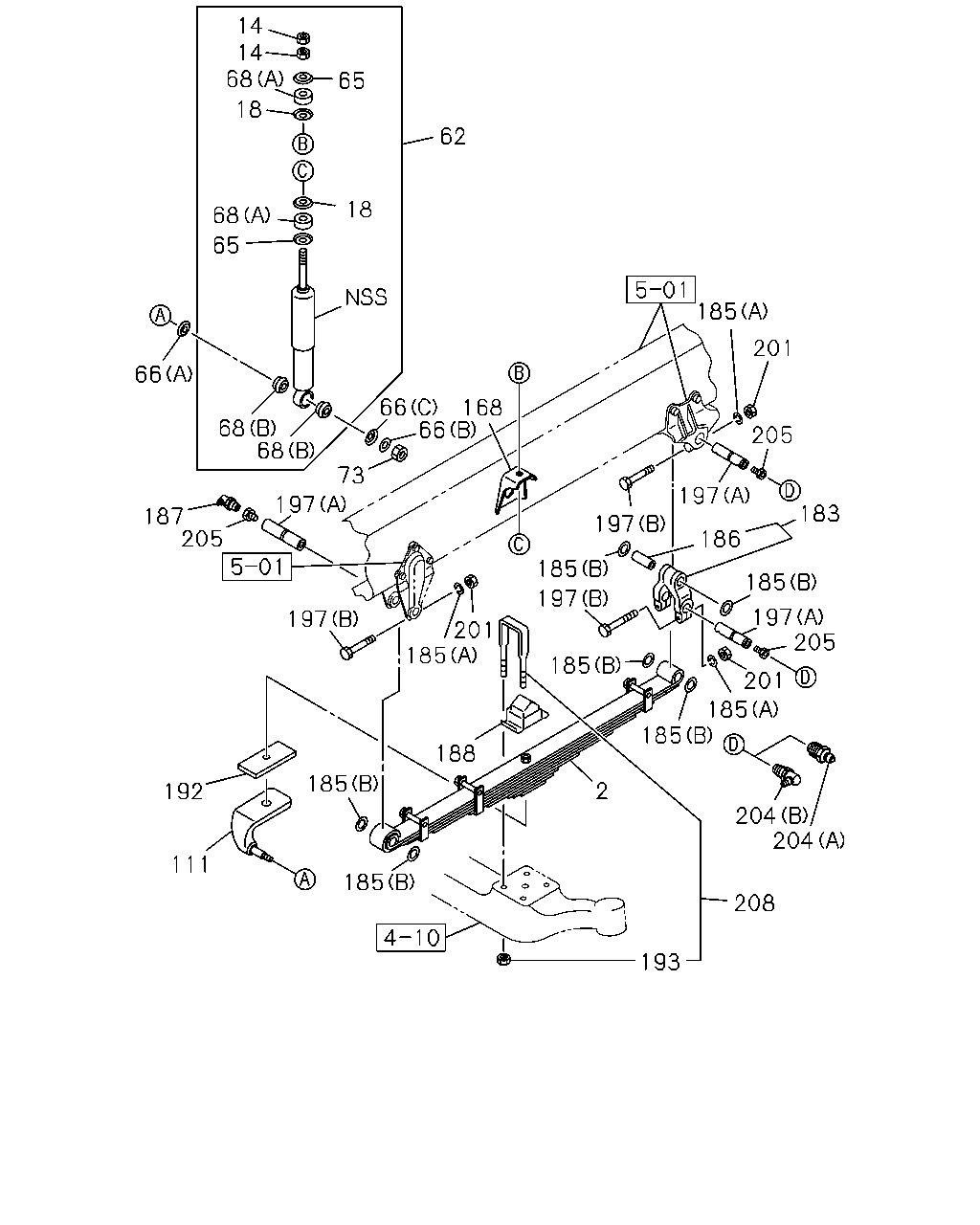

çizim 183044
14 14 68 65 18 62 18 68 65 185 201 66 66 168 66 205 68 68 73 183 197 197 187 205 197 186 185 185 197 197 205 197 201 185 185 201 185 185 188 185 2 192 204 204 111 185 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		1-51130-343-0 02 1 1111-
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 1111-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 1111-
62 ABSORBER ASM; SHOCK,FRT 8-98063-368-0 02 1 1111-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1111-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1111-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1111-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1111-
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 1111-
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 1111-
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 1111-
111 SUPPORTER; S/ABS,FRT SUSP
IDN 		8-98123-348-0 01 1 1111-
111 SUPPORTER; S/ABS,FRT SUSP
IDN 		8-98123-347-0 01 1 1111-
168 BRACKET; S/ABS,FRT SUSP
IDN 		1-51681-306-0 02 1 1111-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1111-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1111-
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1111-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1111-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1111-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1111-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1111-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1111-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1111-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1111-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1111-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1111-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1111-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1111-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
