4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#73009) — 53 parça

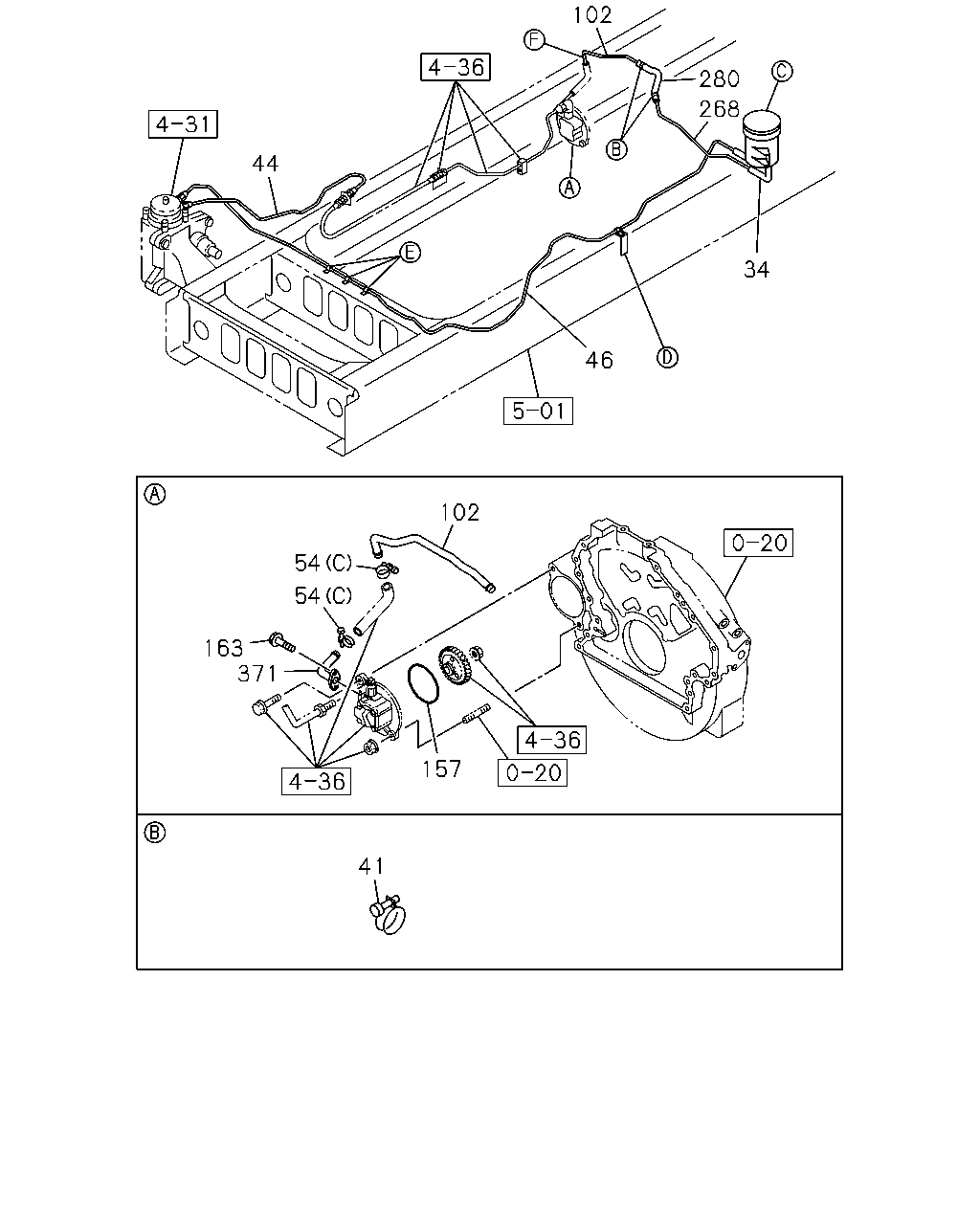

çizim 123786
102 280 268 44 34 46 102 54 54 163 371 157 41
BalonParca AdiParca NoAdetTipApplied Date
34 HOSE; P/S OIL TANK,OUTLET 8-98194-565-0 01 1 1111-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1111-
44 PIPE; OIL,P/S UNIT TO NIPPLE 8-98188-211-0 01 1 1111-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=3000 		8-98183-562-0 01 1 1111-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1111-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 04 1 1111-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1111-
102 PIPE; SUCTION,P/S 8-98080-186-2 01 1 1111-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		8-97386-295-0 01 1 1111-
163 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1111-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98194-491-0 01 1 1111-
280 HOSE; P/S OIL PUMP,INL 8-98179-991-0 01 1 1111-
371 PIPE; OIL,INLET 8-98072-089-1 01 1 1111-

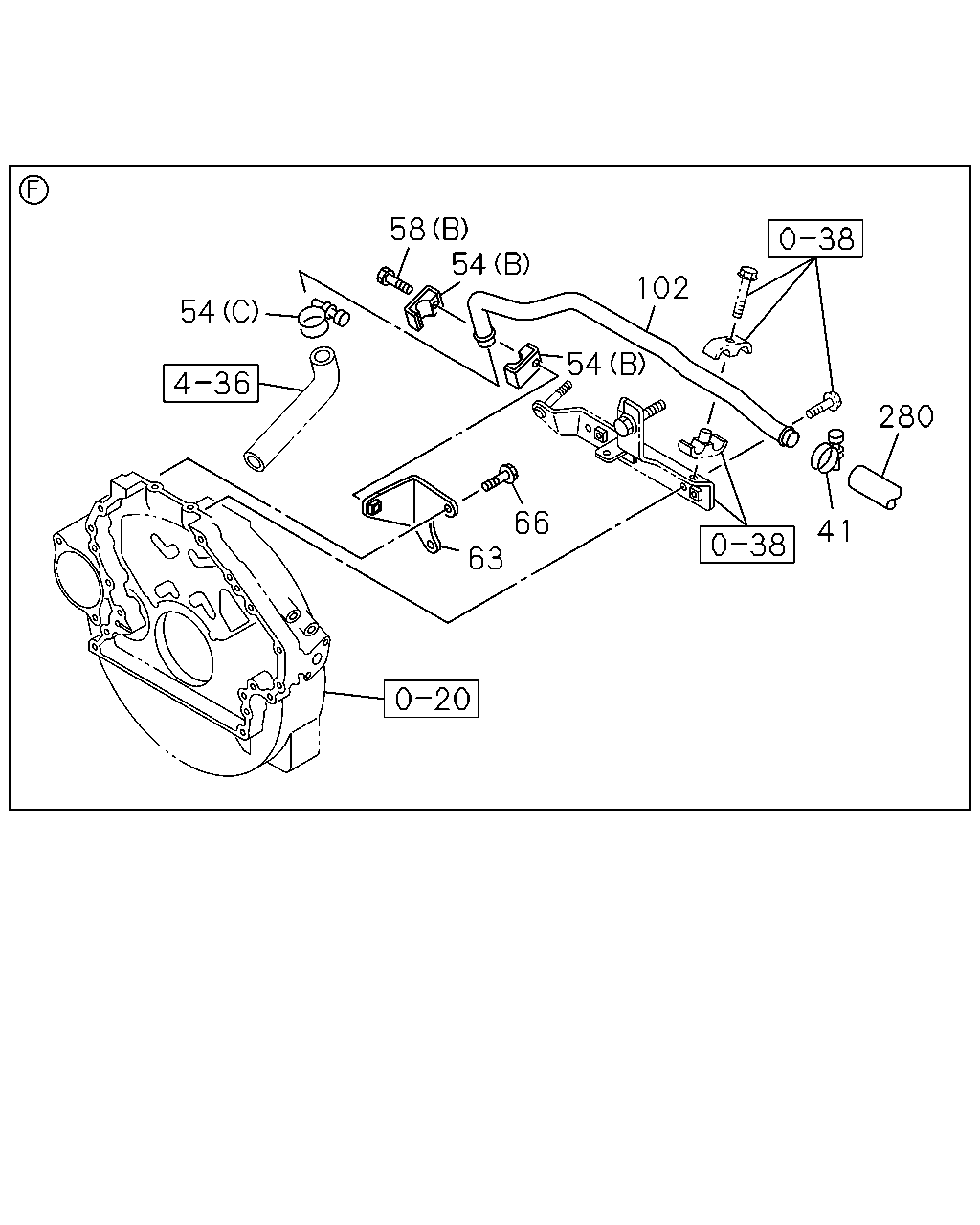

çizim 123969
58 54 102 54 54 280 66 63 41
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1111-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1111-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 04 1 1111-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1111-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1111-
58 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 1111-
58 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
63 BRACKET; CLIP,P/S 8-97375-107-0 01 1 1111-
66 BOLT; BRKT,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1111-
102 PIPE; SUCTION,P/S 8-98080-186-2 01 1 1111-
280 HOSE; P/S OIL PUMP,INL 8-98179-991-0 01 1 1111-

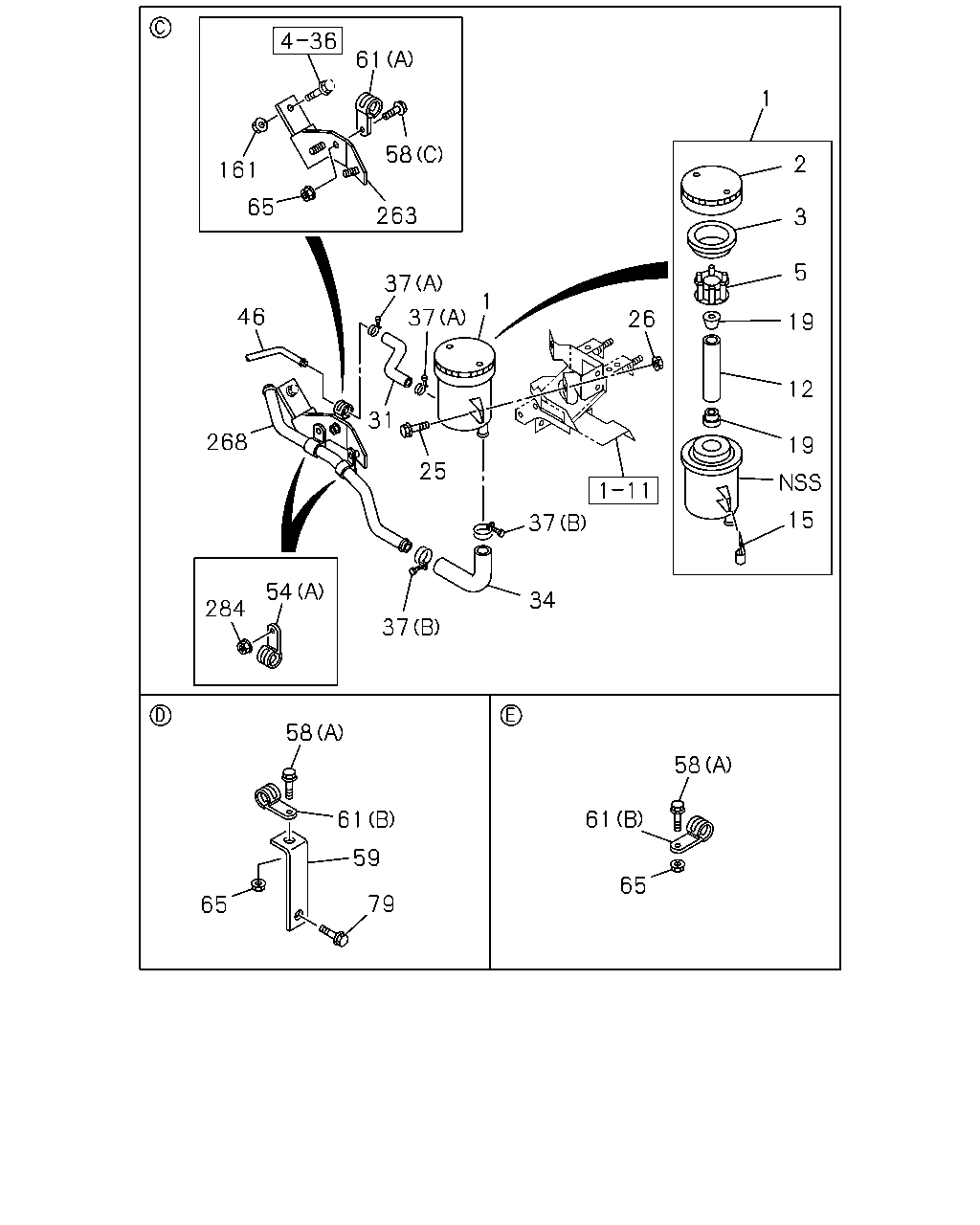

çizim 183038
61 1 58 2 161 65 263 3 5 37 1 46 37 26 19 12 31 268 19 25 15 37 54 34 284 37 58 58 61 61 59 65 79 65
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S
IDN 		8-98166-928-0 01 1 1111-
2 CAP; OIL TANK,P/S
IDN 		8-98166-876-0 01 1 1111-
3 GASKET; OIL TANK,P/S
IDN 		1-21249-003-1 01 1 1111-
5 STRAINER; OIL TANK,P/S
IDN 		1-21235-007-1 01 1 1111-
12 FILTER; MICROBON,OIL TANK,P/S
IDN 		1-21235-011-0 01 1 1111-
15 PLATE; FILTER,OIL TANK
IDN 		1-21249-016-0 02 1 1111-
19 SEAT; OIL TANK
IDN 		1-21249-004-0 02 1 1111-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 1111-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1111-
31 HOSE; P/S OIL TANK,INL 8-98196-261-0 01 1 1111-
34 HOSE; P/S OIL TANK,OUTLET 8-98194-565-0 01 1 1111-
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1111-
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1111-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=3000 		8-98183-562-0 01 1 1111-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1111-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 04 1 1111-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1111-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1111-
58 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 1111-
58 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1111-
59 BRACKET; CLIP,OIL PIPE
L=95 		1-82699-085-0 01 1 1111-
61 CLIP; OIL PIPE
(A) ID=13 L=50 		0-95235-286-0 01 1 1111-
61 CLIP; OIL PIPE
(B) ID=16 L=20 		0-95235-536-0 04 1 1111-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1111-
79 BOLT; BRKT
M8X25 FLANGE IDN 		0-28650-825-0 01 1 1111-
161 NUT; P/S PIPE
M8 FLANGE 		0-91180-108-0 01 1 1111-
263 BRACKET; P/S PIPE 8-98188-572-0 01 1 1111-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98194-491-0 01 1 1111-
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 02 1 1111-
