◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11430 - FTR(INDONESIA)4HK1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#73001) — 219 parça

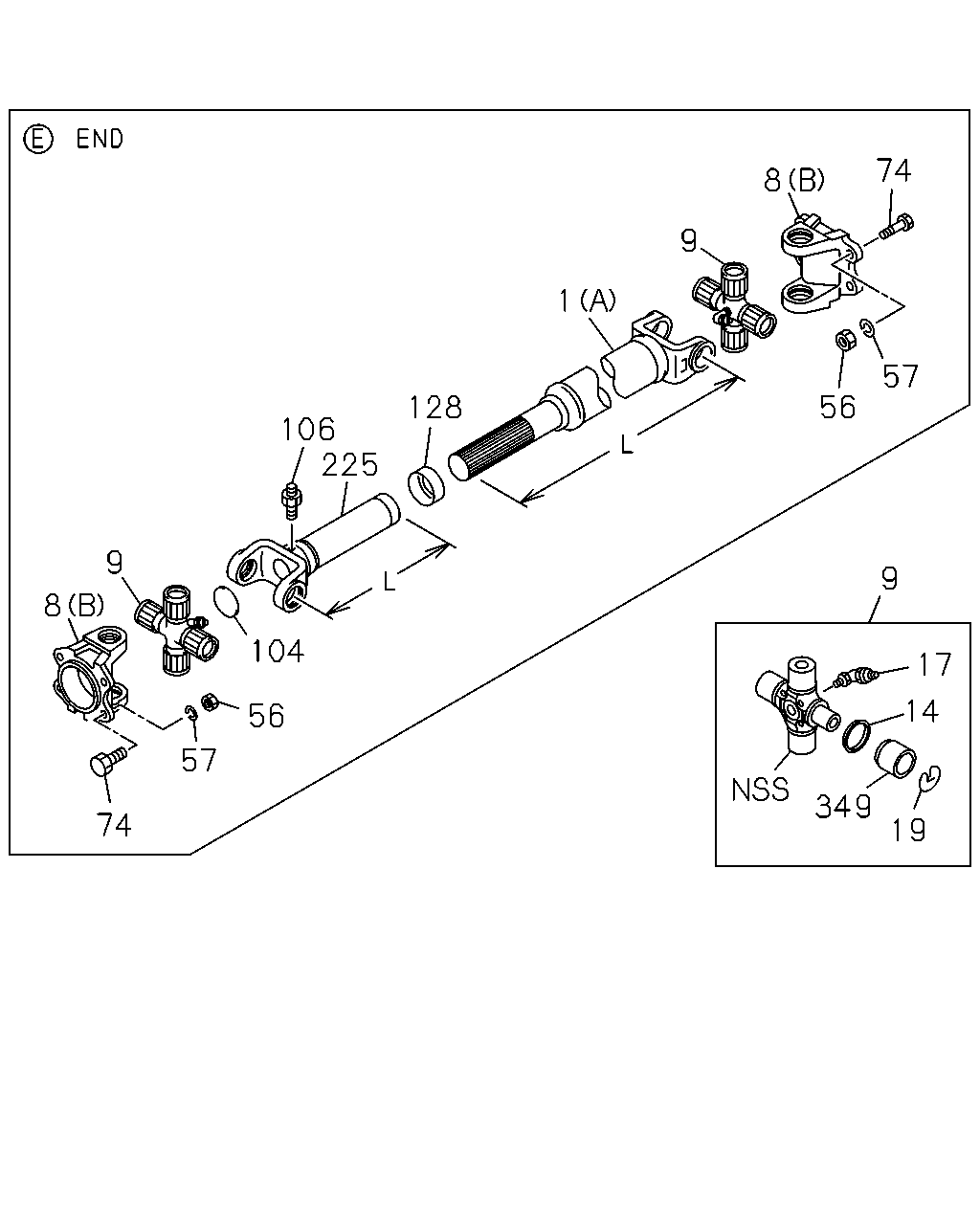

çizim 122898
74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 349 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=1091 		1-37151-640-1 01 1 1111-1111 ●
1 SHAFT; PROP
(A) L=1226 		8-98090-989-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1111-1111 ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1112- ● ●
1 SHAFT; PROP
(C) L=584 		8-98180-201-0 01 1 1111- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1454 		8-98116-103-0 01 1 1111- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1111-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1111- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1111- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1111-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1111-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1111-1111 ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1111- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND 		8-98048-925-1 01 1 1111- ● ●
14 COVER; DUST,SPIDER
1ST IDN 		1-37319-012-0 04 1 1111-1111 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1111- ● ● ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1111-1111 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1111- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1111- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1111- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1111-1202 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1111-1202 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1111- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT IDN 		0-90301-406-0 01 1 1111- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1111- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 08 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ●

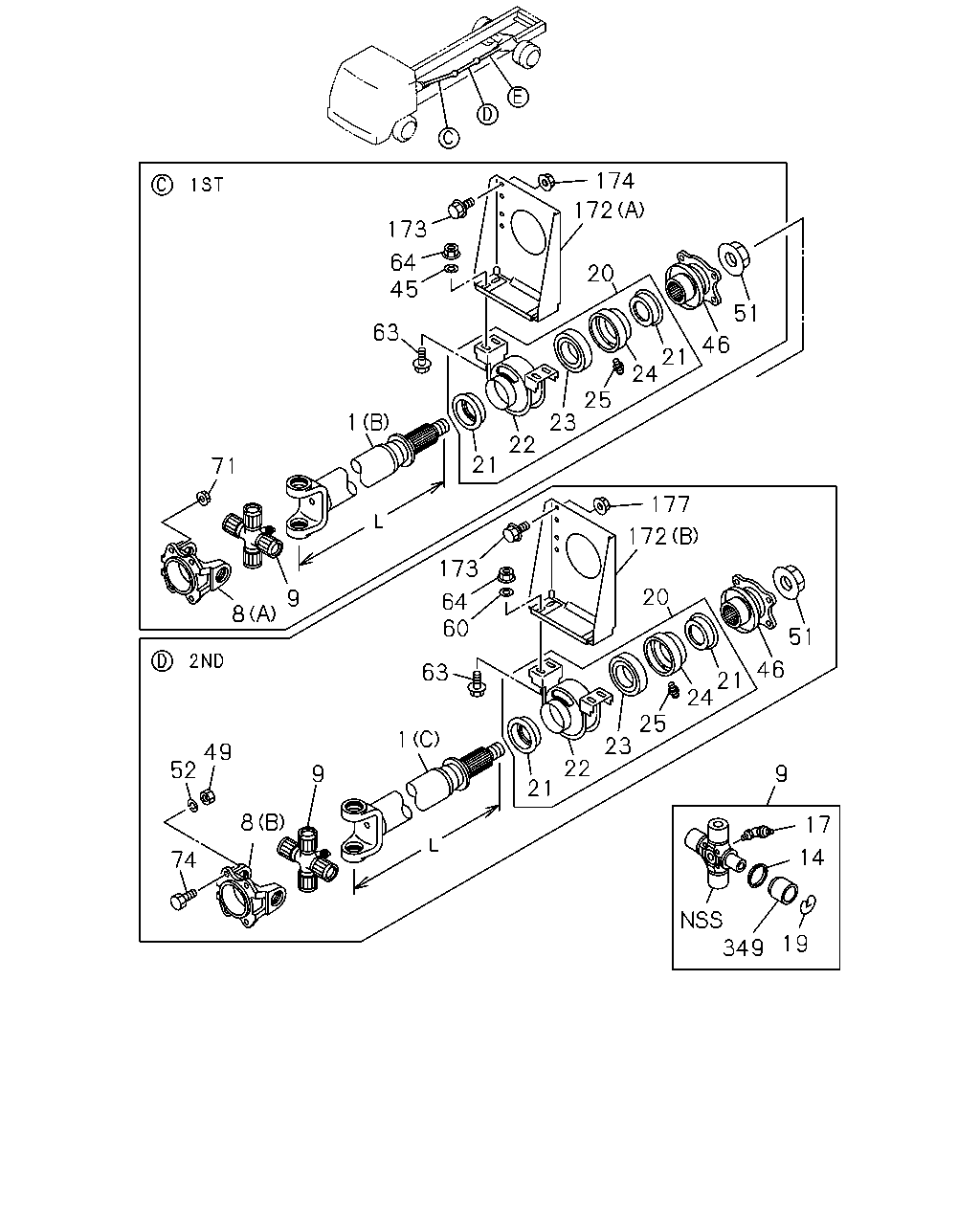

çizim 183030
174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 21 71 177 172 173 20 9 64 60 8 51 46 63 21 24 25 23 1 49 52 22 9 9 21 8 17 74 14 349 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=1091 		1-37151-640-1 01 1 1111-1111 ●
1 SHAFT; PROP
(A) L=1226 		8-98090-989-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1111-1111 ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1112- ● ●
1 SHAFT; PROP
(C) L=584 		8-98180-201-0 01 1 1111- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1454 		8-98116-103-0 01 1 1111- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1111-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1111- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1111- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1111-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1111-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1111-1111 ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1111- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND 		8-98048-925-1 01 1 1111- ● ●
14 COVER; DUST,SPIDER
1ST IDN 		1-37319-012-0 04 1 1111-1111 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1111- ● ● ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1111-1111 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1111- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1111-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		8-98020-881-0 01 1 1111-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1111- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1111- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1111- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1111- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1111- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1111- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1111-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		8-98020-882-0 01 1 1111-1111 ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1111- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1111- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1111- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1111-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		8-98020-815-0 01 1 1111-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1111- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1111- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1111- ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1111-1202 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1111- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1111- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1111- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1111- ● ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-074-1 01 1 1111- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 1111- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1111- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1111- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 08 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ●

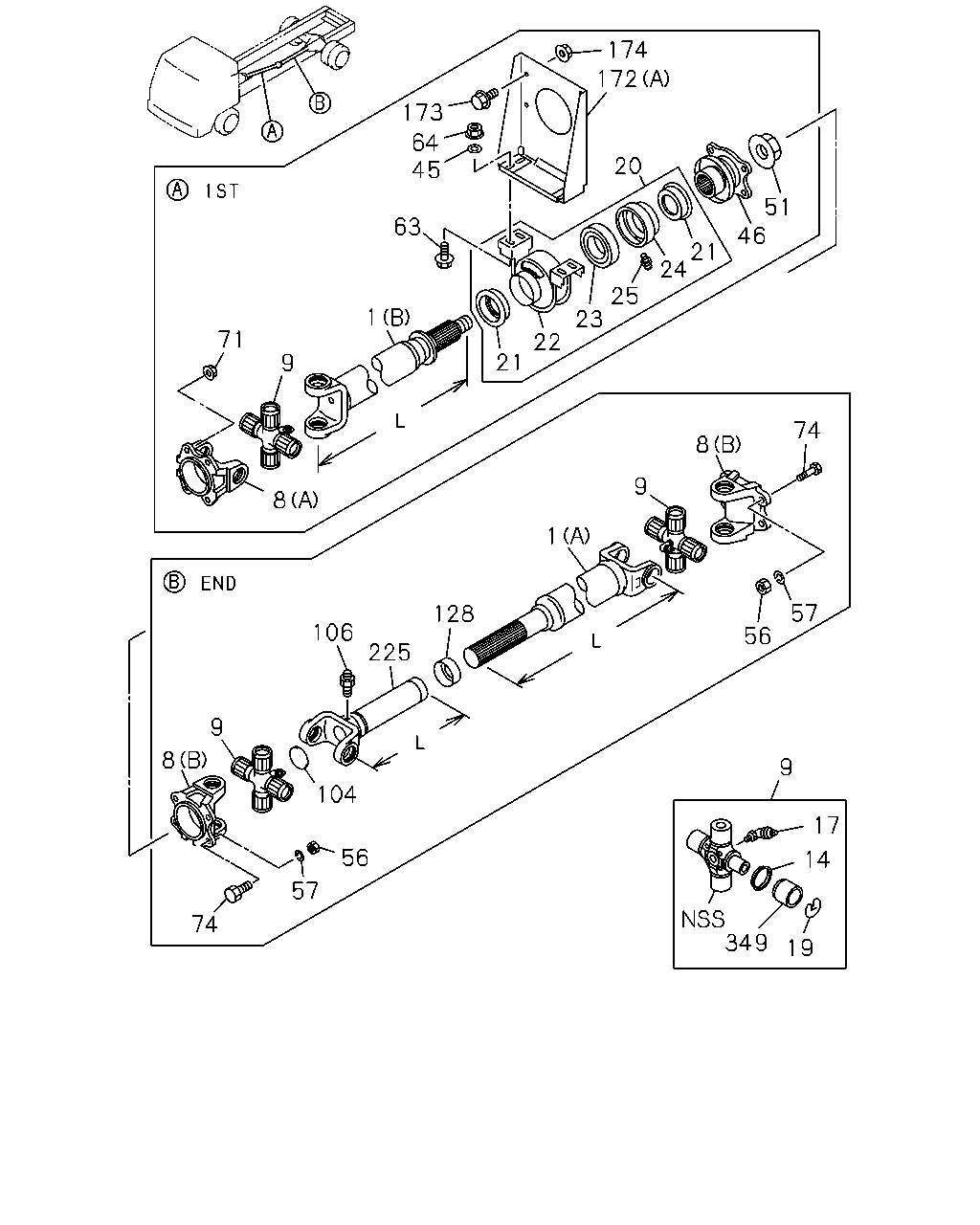

çizim 183036
174 172 173 64 45 20 51 46 63 21 24 25 23 1 71 22 21 9 74 8 9 8 1 57 128 106 56 225 9 8 9 104 17 56 14 57 349 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=1091 		1-37151-640-1 01 1 1111-1111 ●
1 SHAFT; PROP
(A) L=1226 		8-98090-989-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1366 		8-98069-684-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1111-1111 ●
1 SHAFT; PROP
(B) L=1084 		8-98083-013-0 01 1 1112- ● ●
1 SHAFT; PROP
(C) L=584 		8-98180-201-0 01 1 1111- ●
1 SHAFT; PROP
(C) L=1234 		8-98069-590-0 01 1 1111- ●
1 SHAFT; PROP
(A) L=1351 		8-98090-992-0 01 1 1111- ●
1 SHAFT; PROP
(B) L=1454 		8-98116-103-0 01 1 1111- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1111-1111 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 1111- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 1111- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1111-1111 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1111-1111 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-102-1 AR 1 1111-1111 ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1111- ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND 		8-98048-925-1 01 1 1111- ● ●
14 COVER; DUST,SPIDER
1ST IDN 		1-37319-012-0 04 1 1111-1111 ● ● ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1111- ● ● ●
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1111-1111 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1112- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1111- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1111- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1111- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 1111-1111 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		8-98020-881-0 01 1 1111-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 8-98020-881-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1111- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1111- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1111- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1111- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1111- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1111- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 1111-1111 ● ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		8-98020-882-0 01 1 1111-1111 ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST 8-98020-882-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT IDN 		1-09380-006-0 01 1 1111- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1111- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1111- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 1111-1111 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		8-98020-815-0 01 1 1111-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 8-98020-815-0 01 1 1112- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1111- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1111- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1111- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1111- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1111-1202 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1111-1202 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1111- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE IDN 		0-28651-035-0 04 1 1111- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1111- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1111- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT IDN 		0-90301-406-0 01 1 1111- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1111- ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1111- ● ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-074-1 01 1 1111- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 1111- ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1111- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1111- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1111- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 08 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ● ●
349 BEARING; FRT UJT,PROP SHAFT 1-09811-420-0 04 1 1111- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
