Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#73000) — 17 parça
◀

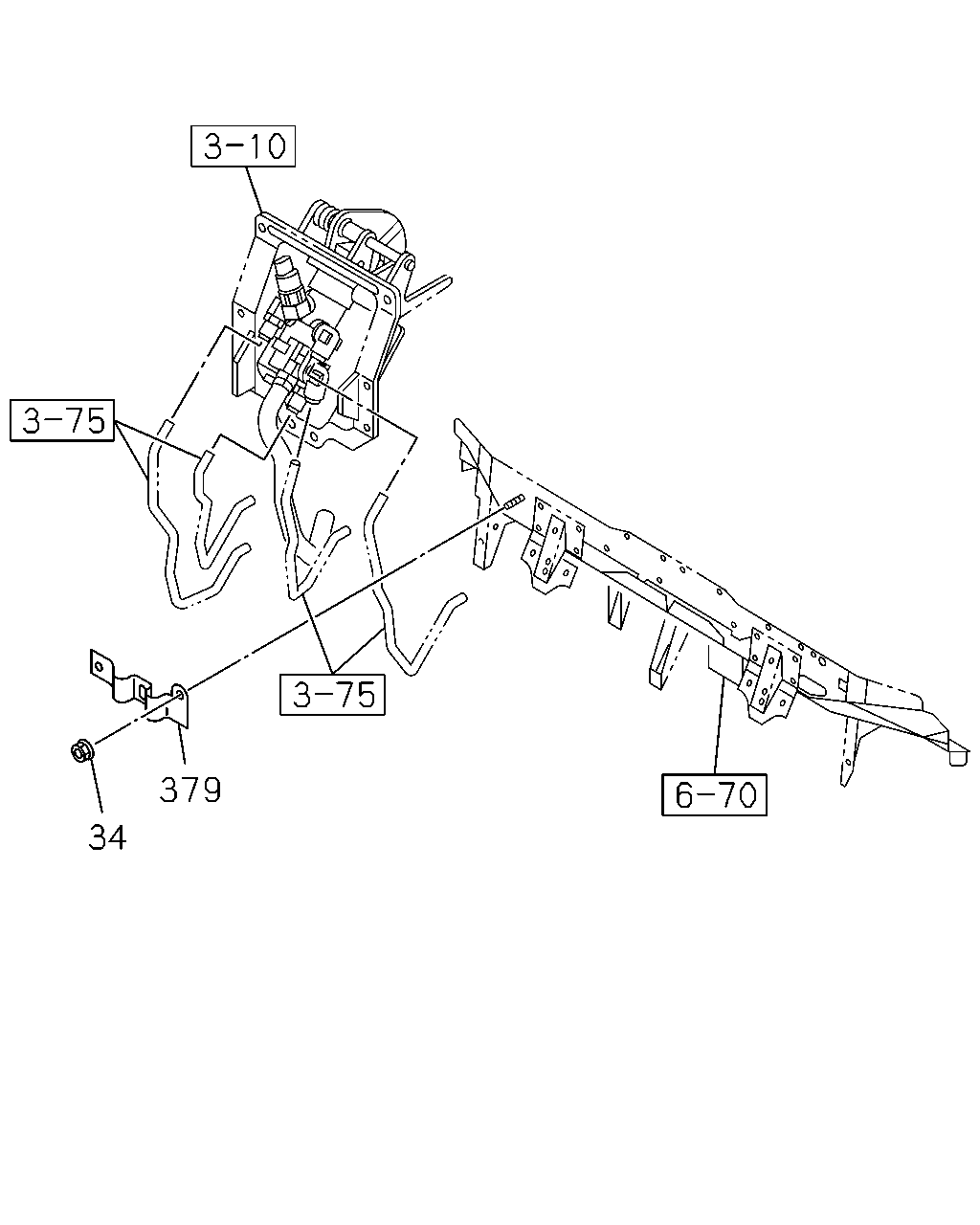

[378A] NO.1 (2 parça)
[378A] NO.2 (15 parça)
▶
379
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1111-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1111-
170
174
173
170
173
170
170
173
172
172
172
172
172
170
170
174
174
170
173
174
170
134
375
170
13
170
172
174
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
1111-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1111-
170
CLIP; NYLON TUBE
L=350
1-09707-183-0
25
1
1111-
172
BRACKET; TUBE CLIP
(B) L=225
1-47477-646-3
01
1
1111-
172
BRACKET; TUBE CLIP
(C) L=60 H=30
1-47477-716-1
05
1
1111-
172
BRACKET; TUBE CLIP
(A) L=130
1-47479-575-0
01
1
1111-
172
BRACKET; TUBE CLIP
(D)
8-98031-420-2
01
1
1111-
172
BRACKET; TUBE CLIP
(E)
8-98047-730-0
02
1
1111-
172
BRACKET; TUBE CLIP
(F)
8-98166-032-0
01
1
1111-
172
BRACKET; TUBE CLIP
(G)
8-98177-873-0
04
1
1111-
173
BOLT; CLIP BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1111-
173
BOLT; CLIP BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
1111-
173
BOLT; CLIP BRKT
M8X30 FLANGE
0-28650-830-0
05
1
1111-
174
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
13
1
1111-
375
CLIP; AIR PIPE
L=350
1-09707-183-0
02
1
1111-
