◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#73) — 102 parça

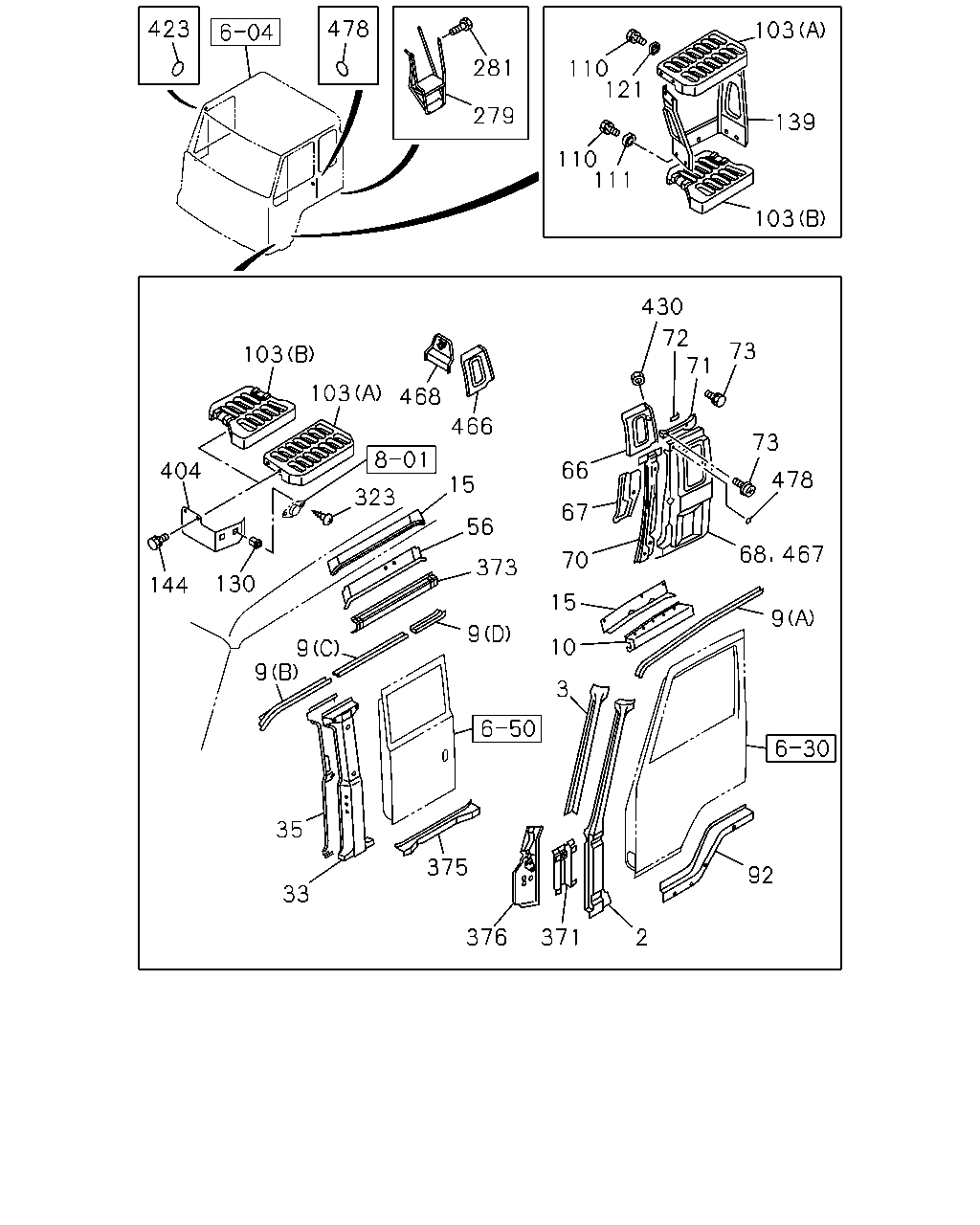

çizim 27845
423 478 281 279 110 121 110 111 103 139 103 103 103 468 466 404 144 130 323 15 56 373 9 9 9 35 33 375 376 371 2 92 9 68 467 478 73 73 71 72 430 66 67 70 15 10 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61270-645-0 01 1 9202- ● ●
2 PILLAR; FRT
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> 		1-61270-659-2 01 1 9202- ● ●
2 PILLAR; FRT
EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> 		1-61281-016-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61270-537-6 01 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61270-536-6 01 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61280-592-0 02 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61280-589-0 01 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(D) 		1-61280-591-0 01 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61280-588-0 01 1 9202- ●
9 MOLDING; DRIP,CAB SIDE
(D) 		1-61280-590-0 01 1 9202- ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-830-4 01 1 9202- ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-562-4 01 1 9202- ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-739-0 01 1 9202- ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-831-2 01 1 9202- ●
15 PANEL; CANT RAIL SIDE 1-61280-831-2 01 1 9202- ●
15 PANEL; CANT RAIL SIDE 1-61280-735-2 01 1 9202- ●
33 PANEL; CENTER PILLAR,OUTER 1-61280-820-0 01 1 9202- ●
33 PANEL; CENTER PILLAR,OUTER 1-61280-819-0 01 1 9202- ●
35 PANEL; CENTER PILLAR,INNER 1-61280-816-0 01 1 9202- ●
35 PANEL; CENTER PILLAR,INNER 1-61280-815-0 01 1 9202- ●
56 CANTRAIL; SIDE 1-61280-525-1 01 1 9202- ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-601-3 01 1 9202- ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-600-3 01 1 9202- ●
66 PANEL; BACK SIDE INNER
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9202-9303 ●
66 PANEL; BACK SIDE INNER
EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, THAILAND EQUIPMENT(PM9),DELUXE CAB(W14) 		1-61280-905-1 01 1 9202-9303 ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9304- ●
66 PANEL; BACK SIDE INNER
THAILAND EQUIPMENT(PM9) EXC. DELUXE CAB(W14) 		1-61280-731-1 01 1 9202-9303 ●
66 PANEL; BACK SIDE INNER
THAILAND EQUIPMENT(PM9) EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, DELUXE CAB(W14) 		1-61280-732-1 01 1 9202-9303 ●
66 PANEL; BACK SIDE INNER
EXC. THAILAND EQUIPMENT(PM9),DELUXE CAB(W14) 		1-61280-904-1 01 1 9202-9303 ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-904-1 01 1 9304- ●
66 PANEL; BACK SIDE INNER
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP<SEY> 		1-61280-855-2 01 1 9202- ●
66 PANEL; BACK SIDE INNER
REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP<SEY> 		1-61280-854-2 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP<SEY> 		1-61280-862-3 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR
EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> 		1-61280-677-2 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> EXC. REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP <SEY> 		1-61280-677-2 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR
REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP<SEY> 		1-61280-861-3 01 1 9202- ●
67 PANEL; INNER,RR PILLAR LWR
EXC. REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP <SEY> 		1-61280-617-3 01 1 9202- ●
68 PANEL; BACK SIDE OUTER 1-61280-439-5 01 1 9202-9302 ●
68 PANEL; BACK SIDE OUTER
W/DOOR SW HOLE 		1-61280-474-5 01 1 9303- ●
68 PANEL; BACK SIDE OUTER 1-61280-509-5 01 1 9202- ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9202- ●
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9202- ●
71 COVER; SIDE PANEL UPR 1-65471-051-0 01 1 9202- ●
71 COVER; SIDE PANEL UPR 1-65471-050-0 01 1 9202- ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9202- ●
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9202- ●
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9202- ● ●
103 PLATE; STEP
AUXILIARY STEPS<E29> (B) 		1-71998-312-2 02 1 9202- ● ●
103 PLATE; STEP
AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9405- ● ●
103 PLATE; STEP
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> (A) 		1-53414-033-0 02 1 9405- ● ●
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29> (A) 		1-53414-033-0 02 1 9202-9404 ● ●
103 PLATE; STEP
EXC. AUXILIARY STEPS<E29>,LIGHTING SYSTEM ECE<SLC> (A) 		1-53414-033-0 02 1 9405- ● ●
110 BOLT; 1ST STEP PLATE
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 18 1 9202- ● ●
111 COVER; 1ST STEP
AUXILIARY STEPS<E29> 		1-71998-153-0 10 1 9202- ● ●
121 COVER; STEP PLATE 1-71998-153-0 08 1 9202- ● ●
130 GROMMET; SCREW,PROTECTOR
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M5 		1-09983-116-0 08 1 9405- ● ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-552-2 01 1 9202- ● ●
139 CLOSING; 1ST STEP
AUXILIARY STEPS<E29> 		1-65680-551-2 01 1 9202- ● ●
144 BOLT; BRKT
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9405- ● ●
279 BOARD; STEP 1ST
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-621-0 01 1 9202-9208 ●
279 BOARD; STEP 1ST
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-620-1 01 1 9202-9208 ●
279 BOARD; STEP 1ST
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65680-808-0 01 1 9202-9208 ●
279 BOARD; STEP 1ST
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-808-0 01 1 9209- ●
279 BOARD; STEP 1ST
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65680-807-1 01 1 9202-9208 ●
279 BOARD; STEP 1ST
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-807-1 01 1 9209- ●
279 BOARD; STEP 1ST
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-608-0 01 1 9202- ●
279 BOARD; STEP 1ST
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65680-607-0 01 1 9202- ●
281 BOLT; STEP BOARD TO FLOOR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ●
323 SCREW; SET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M6X16 TAPPING 		1-09981-524-0 08 1 9405- ● ●
371 PATCH; SEAT BELT 1-61280-797-0 01 1 9202- ●
371 PATCH; SEAT BELT 1-61280-796-0 01 1 9202- ●
373 PANEL; CANTRAIL,CLOSING RR 1-61280-568-2 01 1 9202- ●
375 PANEL; SIDE SILL RR,CAB
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-61280-638-2 01 1 9202- ●
375 PANEL; SIDE SILL RR,CAB
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-61280-637-2 01 1 9202- ●
375 PANEL; SIDE SILL RR,CAB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMER 		1-61280-636-1 01 1 9202- ●
375 PANEL; SIDE SILL RR,CAB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMER 		1-61280-635-1 01 1 9202- ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-633-3 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61470-586-4 01 1 9202-9311 ● ●
376 PANEL ASM; FRT SIDE INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61470-586-4 01 1 9312- ● ●
404 BRACKET
AUXILIARY STEPS<E29> LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-423-0 01 1 9405- ● ●
404 BRACKET
AUXILIARY STEPS<E29> LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-421-0 01 1 9405- ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> 		1-65481-422-0 01 1 9405- ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. AUXILIARY STEPS<E29>,BUMPER W/HEADLAMPS<SLB> 		1-65481-420-0 01 1 9405- ● ●
423 SEAL; CANTRAIL SIDE
OD=36 WHITE 		1-76778-007-0 01 1 9501- ● ●
430 NUT; PANEL
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP<SEY> M6 		9-09114-086-0 02 1 9405- ●
466 PANEL; INNER,BACK CORNER
EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> 		1-61280-576-1 01 1 9202- ●
466 PANEL; INNER,BACK CORNER
MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> EXC. REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP <SEY> 		1-61280-576-1 01 1 9202- ●
466 PANEL; INNER,BACK CORNER
EXC. REAR SEAT BELT OUTSIDE 3PT ELR INSIDE 2PT LAP <SEY> 		1-61280-575-2 01 1 9202- ●
467 PANEL; OUTER,BACK CORNER
W/DOOR SW HOLE 		1-61280-438-4 01 1 9202- ●
467 PANEL; OUTER,BACK CORNER 1-61280-508-4 01 1 9202- ●
468 REINFORCEMENT; SEAT BELT ANCHOR
THAILAND EQUIPMENT(PM9) 		1-61270-554-1 01 1 9202-9303 ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 02 1 9202-9302 ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9303- ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 07 1 9202- ●
