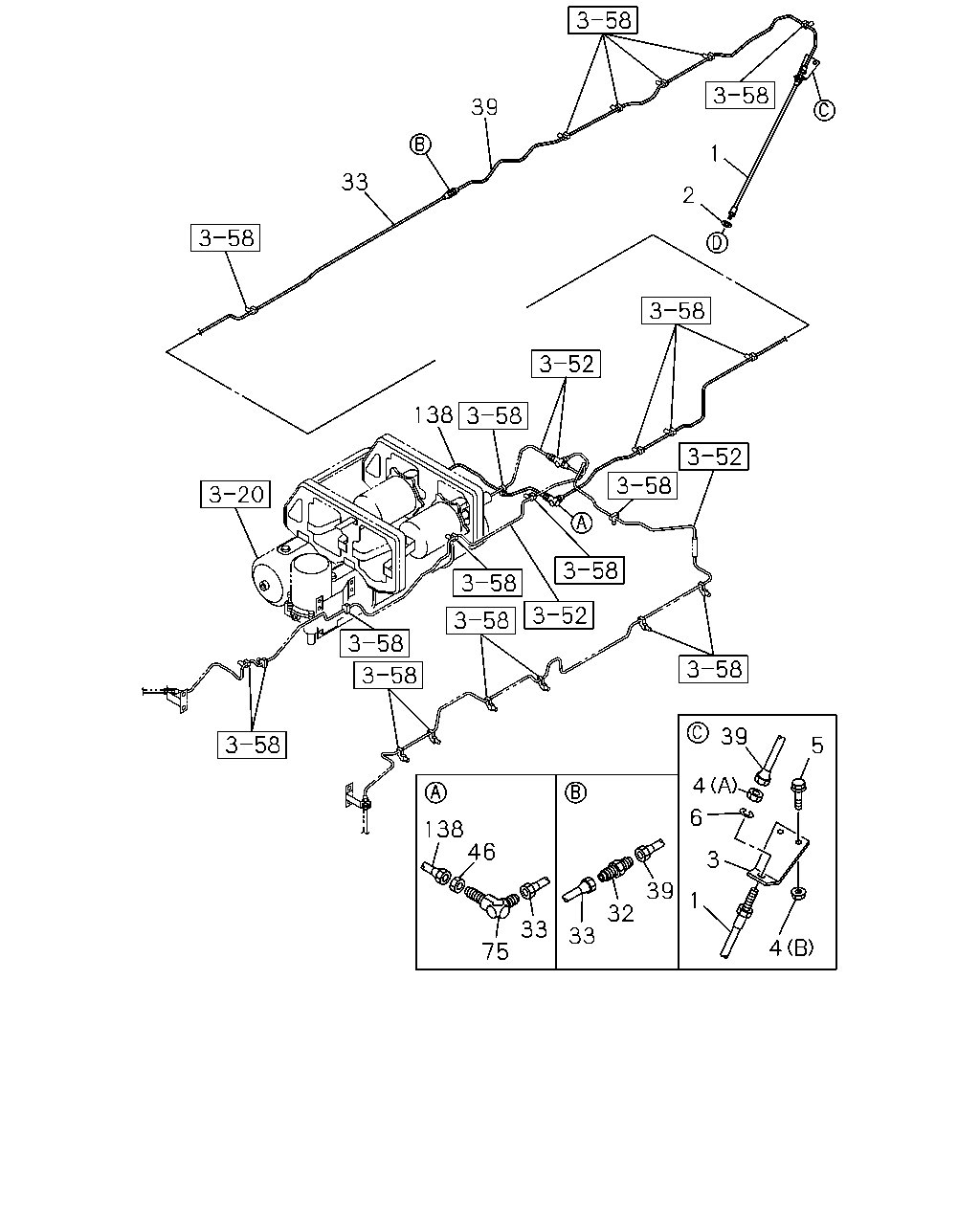

3-55 — BRAKE PIPING; OIL,REAR (#72995) — 19 parça

39 1 33 2 138 39 5 4 6 138 46 3 39 1 32 33 33 4 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	1111-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	1111-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	1111-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91180-108-0	02	1	1111-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	1111-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE IDN	0-28650-825-0	02	1	1111-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-812-0	01	1	1111-
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	1111-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) INDONESIA KD DELETION<35D> L=1285 SERVICED BY L=1370	1-47428-734-0	01	1	1210-1210
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6000MM(60W) KD PACKAGE STD BREAKDOWN<RWA> INDONESIA KD DELETION<35D> L=3083 SERVICED BY L=3200	1-47428-745-0	01	1	1210-1210
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM(42W) L=1285 SERVICED BY L=1370	1-47428-734-0	01	1	1111-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM(50W) L=2083 SERVICED BY L=2200	1-47428-740-0	01	1	1111-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6000MM(60W) L=3083 SERVICED BY L=3200	1-47428-745-0	01	1	1111-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2086 SERVICED BY L=2200	1-47428-740-0	01	1	1111-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1111-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1111-
138	PIPE; HYDRAULIC UNIT L=504 SERVICED BY L=550	1-47428-724-0	01	1	1111-

13 13

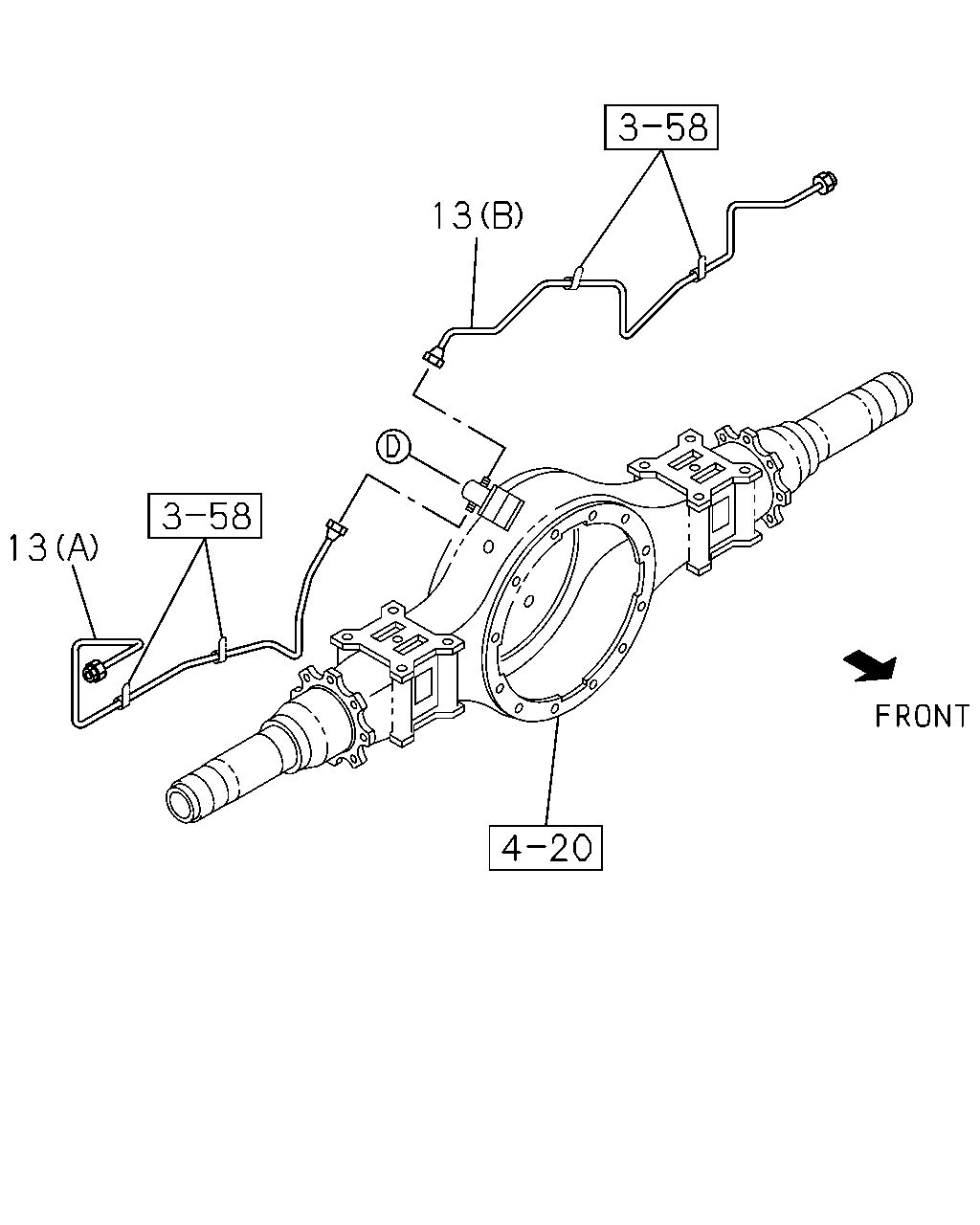

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	13	PIPE; BRK,RR AXLE (A) IDN	8-98134-989-0	01	1	1111-
	13	PIPE; BRK,RR AXLE (B) IDN	8-98134-990-0	01	1	1111-
