Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#72987) — 37 parça
◀
[311A] NO.2 (22 parça)

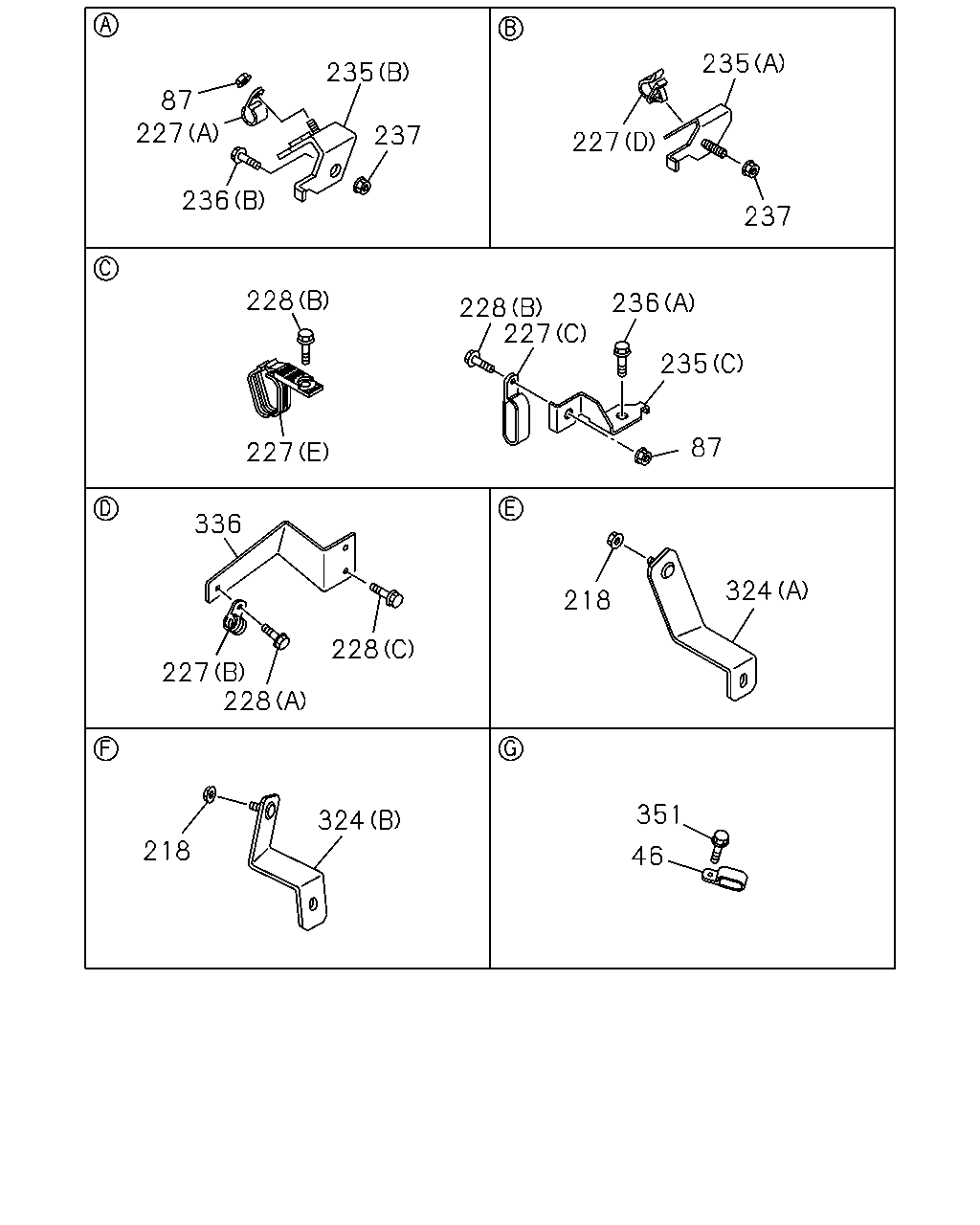

[311A] NO.1 (15 parça)
▶
235
235
87
227
237
227
236
237
228
236
228
227
235
87
227
336
324
218
228
227
228
351
324
218
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1111-1401
46
CLIP; FRT CABLE TO FLOOR
ID=13 L=20
0-95235-235-0
01
1
1402-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1111-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
04
1
1111-
227
CLIP; RAD
(A) ID=16 L=20
0-95235-535-0
01
1
1111-
227
CLIP; RAD
(B) ID=26 L=26
1-09701-236-0
01
1
1111-
227
CLIP; RAD
(D) ID=9.5
5-09709-020-0
01
1
1111-
227
CLIP; RAD
(C) ID=13 & 13 L=32
8-97389-264-0
01
1
1111-
227
CLIP; RAD
(E) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1111-
228
BOLT; CLIP RAD MTG
(A) M8X16 FLANGE
0-28050-816-0
01
1
1111-
228
BOLT; CLIP RAD MTG
(B) M8X25 FLANGE IDN
0-28650-825-0
02
1
1111-
228
BOLT; CLIP RAD MTG
(C) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1111-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98077-903-2
01
1
1111-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98126-426-0
01
1
1111-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98126-934-0
01
1
1111-
236
BOLT; BRKT TO FRAME
(A) M8X25 FLANGE IDN
0-28650-825-0
01
1
1111-
236
BOLT; BRKT TO FRAME
(B) M10X30 FLANGE
0-28651-030-0
01
1
1111-
237
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
02
1
1111-
324
BRACKET
(A) IDN
8-98188-599-0
01
1
1111-
324
BRACKET
(B) IDN
8-98188-600-0
01
1
1111-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1111-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1111-
97
343
4
73
61
28
28
23
73
73
218
28
51
99
101
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-549-0
01
1
1111-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1111-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1111-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1111-
61
CABLE; PARKING BRK
L=4279
8-98188-598-0
01
1
1111-1401
61
CABLE; PARKING BRK
L=4279
8-98257-640-0
01
1
1402-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1111-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1111-
97
GROMMET; PARKING BRK CABLE
OD=35 IDN
8-94122-971-0
01
1
1111-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1111-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1111-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1111-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1111-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
04
1
1111-
343
SEAL
OD=25 BLACK
1-76798-019-0
04
1
1111-
