Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#72977) — 83 parça
◀

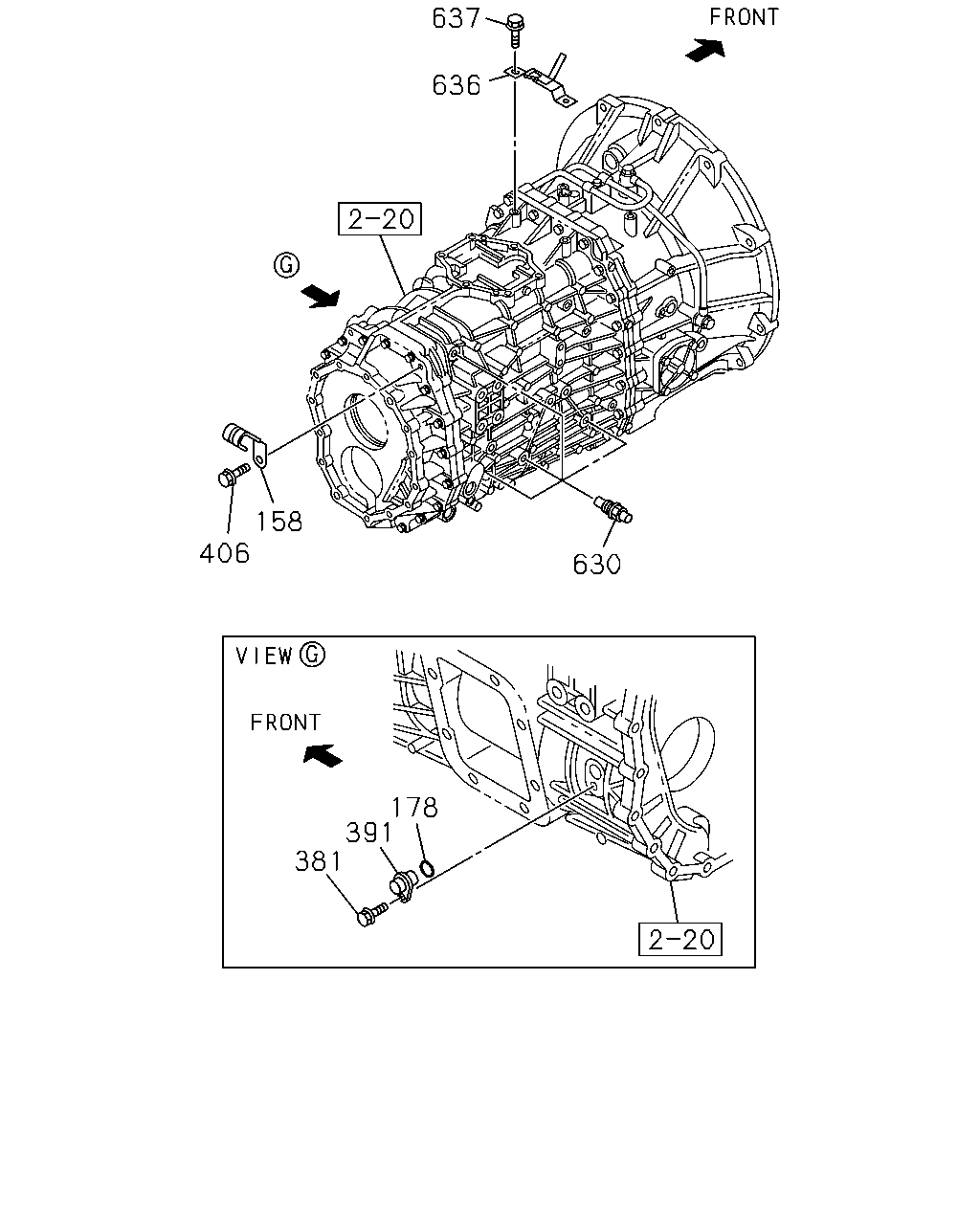

[230A] BRACKET AND OTHER PARTS (8 parça)
[230A] ARM AND ROD (25 parça)

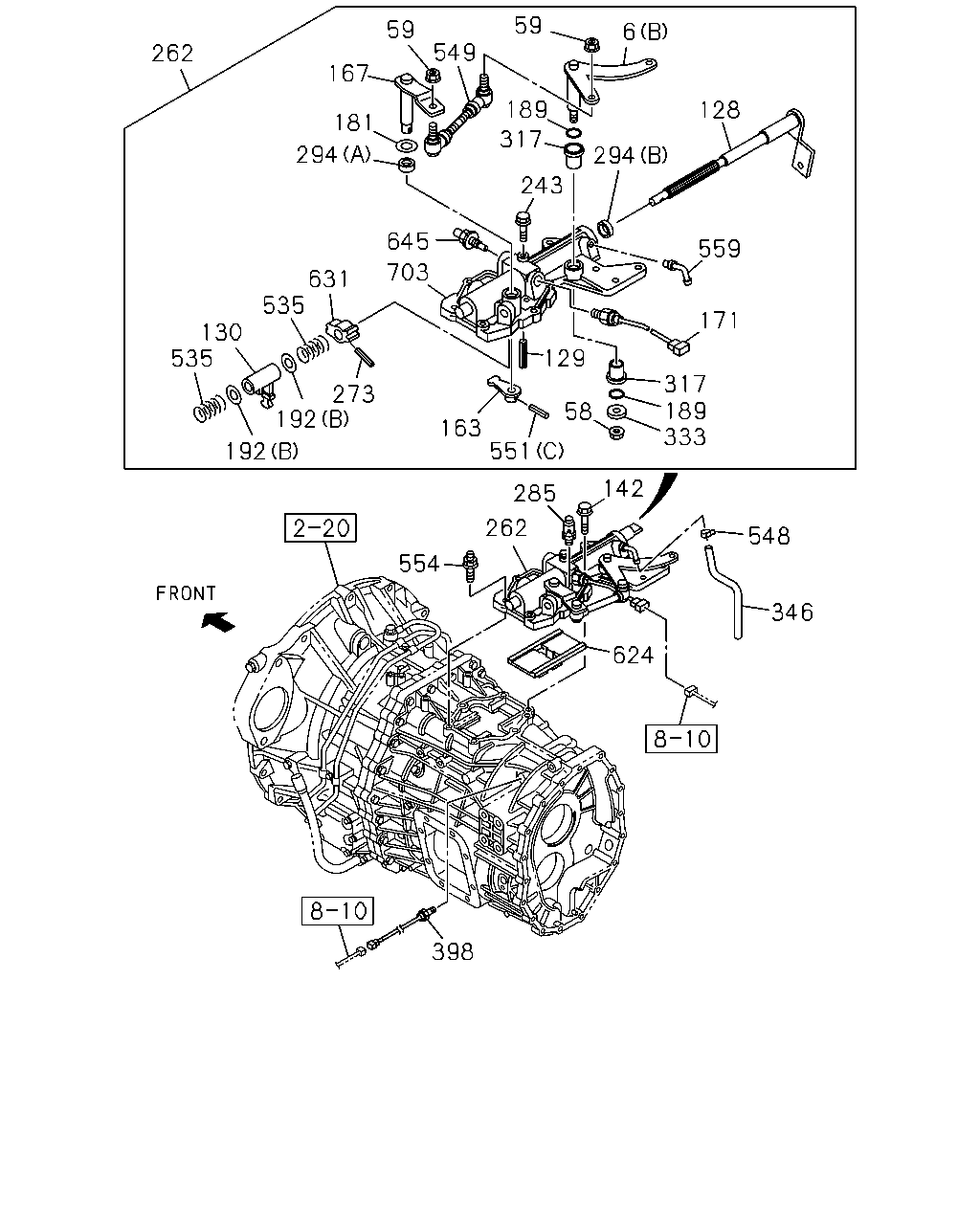

[230A] SHIFT CONTROL BOX (50 parça)
▶
637
636
158
406
630
178
391
381
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE IDN
8-97367-984-1
02
1
1111-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
1111-
381
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
1111-
391
PLUG; SW HOLE
8-97300-273-1
01
1
1111-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1111-
630
DETENT ASM
8-98019-536-0
04
1
1111-
636
BRACKET; CLIP
8-97610-092-1
01
1
1111-1502
637
BOLT; BRACKET
M8X16 FLANGE
0-28050-816-0
02
1
1111-1502
551
78
32
51
684
551
551
65
89
551
82
551
102
551
683
682
99
453
6
192
234
66
192
6
685
320
192
6
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1111-
6
LEVER; RELAY
(B)
8-98014-157-1
01
1
1111-
32
ARM; SHIFT,1ST & 2ND
8-98062-167-0
01
1
1111-1307
32
ARM; SHIFT,1ST & 2ND
8-98236-424-1
01
1
1308-
51
BLOCK; SHIFT,1ST & 2ND
8-98074-457-1
01
1
1111-
65
BLOCK ASM; SHIFT,5TH & 6TH
8-97388-980-1
01
1
1111-
66
ARM; SHIFT,5TH & 6TH
8-97388-981-0
01
1
1111-
78
ARM; SHIFT,REV
8-97388-975-1
01
1
1111-
82
BLOCK; SHIFT,REV
8-97388-969-0
01
1
1111-
89
ROD; SHIFT,REV
8-98062-172-0
01
1
1111-
99
ARM; SHIFT,4TH & 3RD
8-98062-170-0
01
1
1111-1506
99
ARM; SHIFT,4TH & 3RD
8-98309-861-0
01
1
1507-
102
BLOCK; SHIFT,3RD & 4TH
8-97388-978-2
01
1
1111-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1111-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1111-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
1111-
320
SHAFT; LEVER
8-97377-928-0
01
1
1111-
453
BLOCK; RELAY LEVER
8-97377-927-1
01
1
1111-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1111-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1111-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1111-
682
ROD; SHIFT,REV,SUB
8-97388-974-0
01
1
1111-
683
ROD; SHIFT,5TH & 6TH
8-98062-173-1
01
1
1111-
684
BLOCK; SHIFT,REV,SUB
8-97388-970-0
01
1
1111-
685
BOLT; BLOCK
M8X30 FLANGE
8-98034-764-0
02
1
1111-
59
59
6
549
262
167
189
128
181
317
294
294
243
645
559
703
631
535
171
130
535
129
317
189
333
273
192
58
163
551
192
142
285
262
548
554
346
624
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1111-
6
LEVER; RELAY
(B)
8-98014-157-1
01
1
1111-
58
NUT
M10 FLANGE
0-91180-110-0
01
1
1111-
59
NUT
M8 FLANGE
0-91180-108-0
02
1
1111-
128
LEVER; SHIFT,EXTERNAL
8-98096-925-0
01
1
1111-1208
128
LEVER; SHIFT,EXTERNAL
8-98212-106-0
01
1
1209-1507
128
LEVER; SHIFT,EXTERNAL
8-98305-345-0
01
1
1508-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
1111-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
1111-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1111-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
1111-
167
LEVER; SELECT,EXTERNAL
8-98021-489-0
01
1
1111-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
1111-1312
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1401-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
1111-
189
GASKET; SELECT LEVER,CONT BOX
1-09623-594-0
02
1
1111-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1111-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1111-
243
BOLT; COVER
M6X12 FLANGE
1-33739-842-0
01
1
1111-
262
BOX ASM; SHIFT CONT
8-98004-474-3
01
1
1111-1204
262
BOX ASM; SHIFT CONT
8-98207-564-0
01
1
1205-1208
262
BOX ASM; SHIFT CONT
8-98211-654-0
01
1
1209-1306
262
BOX ASM; SHIFT CONT
8-98249-037-0
01
1
1307-1312
262
BOX ASM; SHIFT CONT
8-98240-991-0
01
1
1401-1404
262
BOX ASM; SHIFT CONT
8-98276-157-1
01
1
1405-1507
262
BOX ASM; SHIFT CONT
8-98305-332-0
01
1
1508-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
1111-
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1205-1404
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97305-662-0
01
1
1111-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97363-225-0
01
1
1111-
317
BUSHING; LEVER
1-09330-119-0
02
1
1111-
333
WASHER; PL,LEVER
ID=10.5
0-91610-710-0
01
1
1111-
346
HOSE; AIR
8-97309-855-0
01
1
1405-
346
HOSE; AIR
8-97309-855-0
01
1
1111-1204
398
SWITCH; REV LAMP
8-98023-050-0
01
1
1111-1312
398
SWITCH; REV LAMP
8-98242-173-1
01
1
1401-
535
SPRING; LEVER
8-97385-713-0
02
1
1111-
548
CLIP; HOSE
8-97031-674-0
01
1
1405-
548
CLIP; HOSE
8-97031-674-0
01
1
1111-1204
549
ROD; LINK
8-98023-095-0
01
1
1111-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1111-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1111-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1111-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
1111-
559
PIPE; BREATHER
8-97358-318-0
01
1
1405-
559
PIPE; BREATHER
8-97358-318-0
01
1
1111-1204
624
PLATE; INTER LOCK
8-97241-317-3
01
1
1111-
631
STOPPER; SPRING
8-98014-158-0
01
1
1111-
645
DETENT ASM
8-98019-536-0
01
1
1111-
703
CASE; CONT BOX
8-98096-924-0
01
1
1111-
