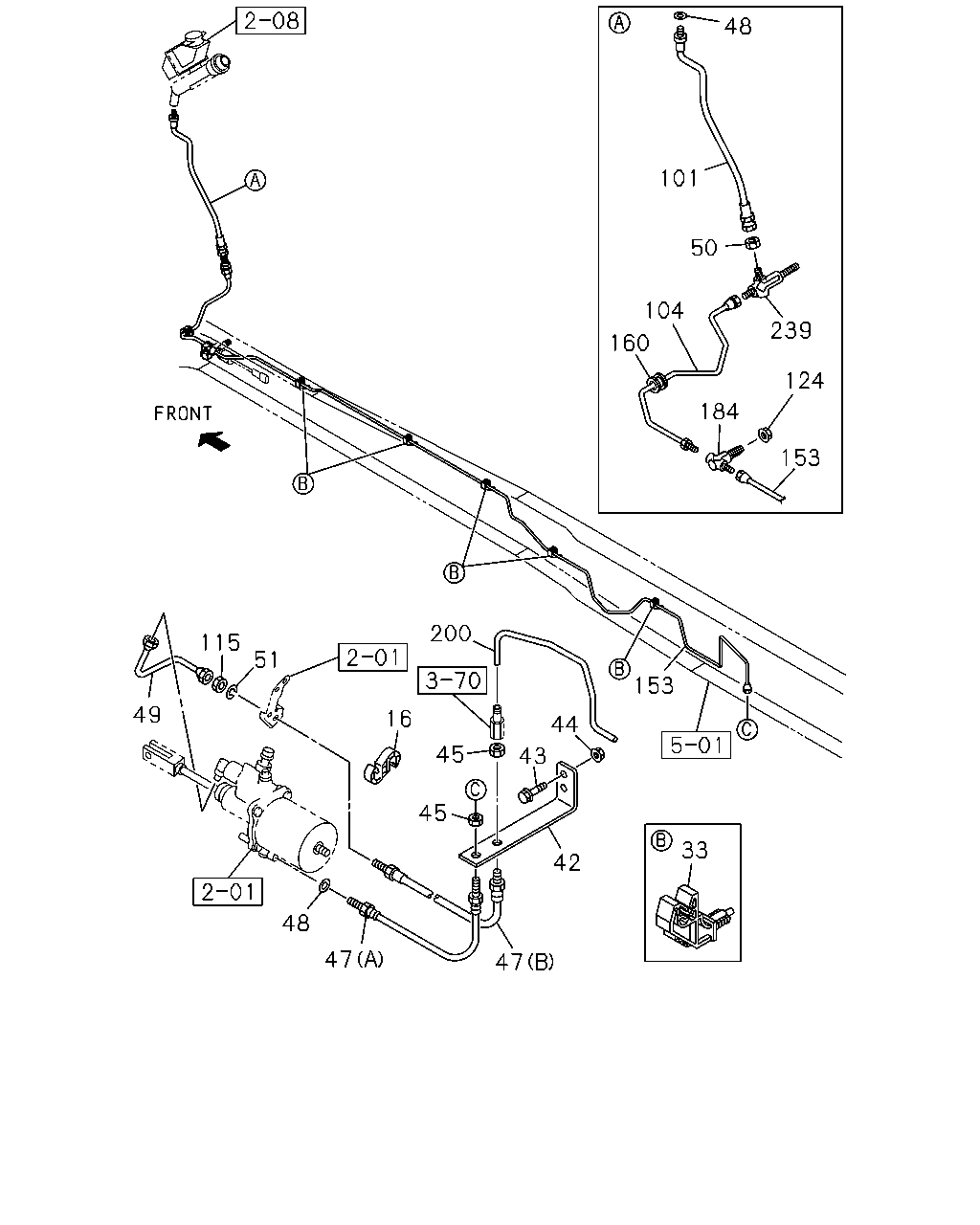

2-05 — CLUTCH PIPING
(#72970) — 21 parça
48
101
50
104
239
160
124
184
153
200
115
51
153
49
16
44
45
43
45
33
42
48
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1111-
33
CLIP; OIL PIPE
ID=6.35
1-09701-247-1
03
1
1111-
42
BRACKET; FLEX HOSE,CLU CONT
8-98180-225-0
01
1
1111-
43
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE
0-28650-830-0
02
1
1111-
44
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
0-91180-108-0
02
1
1111-
45
NUT; FLEX HOSE,CLU CONT
M12
9-09840-280-0
02
1
1111-
47
HOSE; FLEX,CLU CONT
(B) L=500
1-09363-720-0
01
1
1111-
47
HOSE; FLEX,CLU CONT
(A) L=440
8-98180-367-0
01
1
1111-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1111-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204
1-49117-400-0
01
1
1111-
50
NUT; UNION
M12
0-91111-512-0
01
1
1111-
51
WASHER; LK
ID=12.2
0-91510-812-0
01
1
1111-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 IDN
8-98072-346-0
01
1
1111-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=554 IDN
8-98114-452-0
01
1
1111-
115
NUT; FLEX HOSE,CLU CONT
M12
9-09840-280-0
01
1
1111-
124
NUT; PIPE UNION
M12
0-91111-512-0
01
1
1111-
153
PIPE ASM; CLU,UNION TO FLEX
L=2684 SERVICED BY L=2900
1-47428-744-0
01
1
1111-
160
GROMMET; OIL PIPE
ID=28 OD=35 T=17
9-09956-256-2
01
1
1111-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1111-
200
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1111-
239
UNION; CLU HOSE
M12 2WAY
1-09654-059-2
01
1
1111-
