◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#7297) — 63 parça

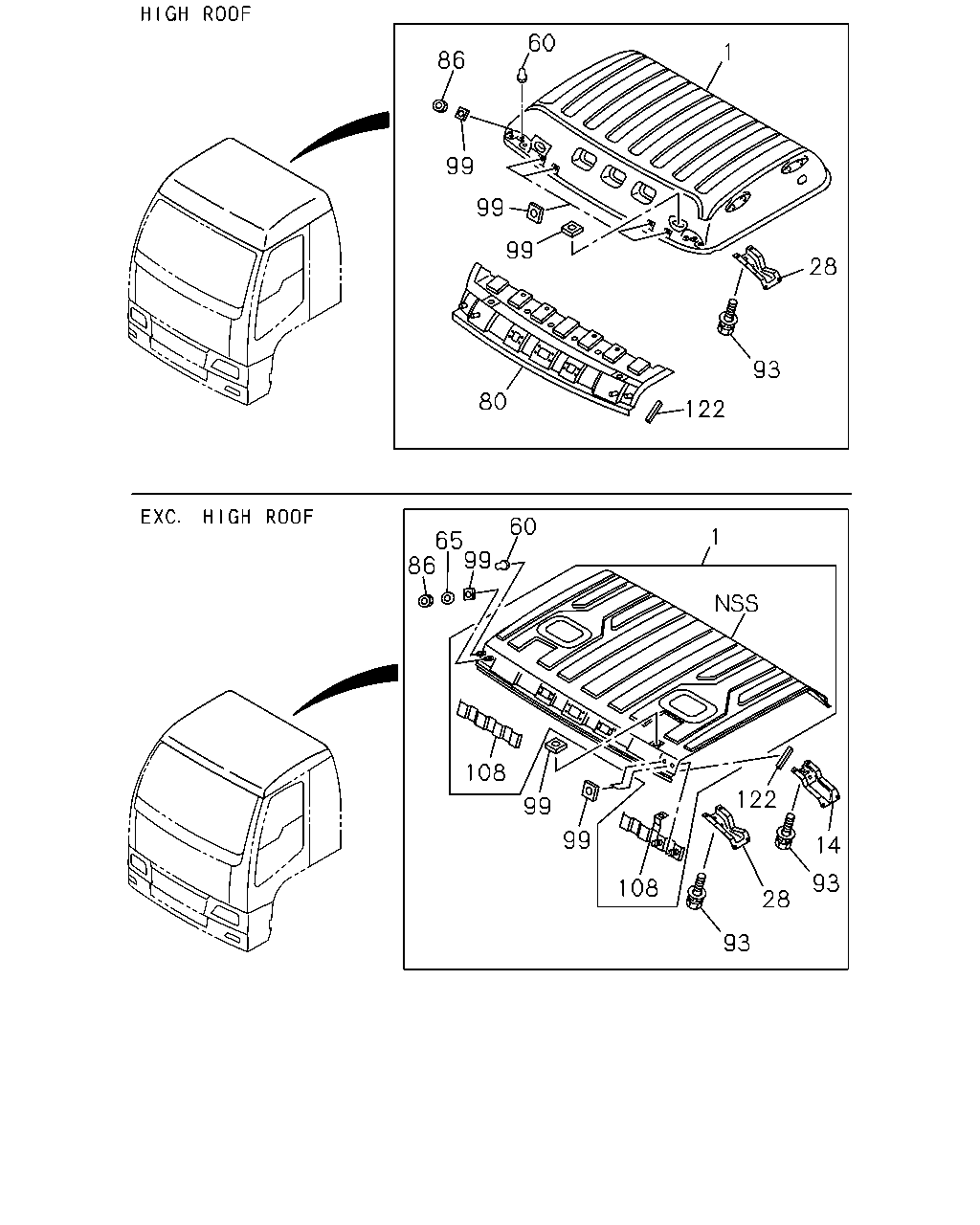

çizim 45966
60 1 86 99 99 99 28 93 80 122 60 1 65 99 86 108 122 99 99 14 93 108 28 93
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> EXC. MIR STAY O/S W/REMOTE<TBA> 		1-61170-821-1 01 1 9906-0004
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> 		1-61170-821-1 01 1 0005-
1 PANEL; ROOF
HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> LAMPS TWO ROOF MARKER<TEC> PRIMER 		1-61170-838-1 01 1 9906-0004
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> PRIMER 		1-61170-838-1 01 1 0005-
1 PANEL; ROOF
HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> EXC. LAMPS TWO ROOF MARKER<TEC> PRIMER 		1-61170-729-4 01 1 9906-
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-836-1 01 1 9906-
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,MIR STAY O/S W/REMOTE<TBA>, LAMPS TWO ROOF MARKER<TEC> 		1-61170-848-0 01 1 9906-
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F>,MIR STAY O/S W/REMOTE<TBA> 		1-61170-861-0 01 1 9906-
1 PANEL; ROOF
MIR STAY O/S W/REMOTE<TBA> EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-847-0 01 1 9906-
1 PANEL; ROOF
MIR STAY O/S W/REMOTE<TBA> LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-860-0 01 1 9906-0004
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> MIR STAY O/S W/REMOTE<TBA> EXC. HIGH ROOF<S2F> 		1-61170-860-0 01 1 0005-
14 SUPPORT; ROOF
EXC. HIGH ROOF<S2F> 		1-73318-493-3 02 1 9906-
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9906-
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9906-
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 05 1 9906-9912
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 0001-
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 02 1 9906-9912
60 COVER; ROOF
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-79998-922-3 02 1 0001-
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 02 1 9906-9912
65 WASHER; PL
EXC. MIR O/S RR VIEW LONG ARM<DH2>,HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0001-
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0001-
65 WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9906-9912
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 9906-
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 02 1 9906-9912
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 0001-0011
86 NUT; ROOF
EXC. MIR O/S RR VIEW LONG ARM<DH2>,HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 0012-0103
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 0012-0103
86 NUT; ROOF
EXC. MIR O/S RR VIEW LONG ARM<DH2>,HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-508-0 01 1 0104-
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-508-0 01 1 0104-
86 NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 9906-9912
86 NUT; ROOF
EXC. MIR O/S RR VIEW LONG ARM<DH2>,HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 0001-0011
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9906-
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9906-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9906-
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9906-9912
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9906-9912
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9906-9912
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0001-
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0001-
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0001-
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9906-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9906-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 55X55 ID=42 T=1.0 		1-61270-921-0 01 1 9906-0001
99 SEAL; BODY,METAL
HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> 55X55 ID=42 T=1.0 		1-61270-921-0 01 1 0002-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0002
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0002
99 SEAL; BODY,METAL
EXC. HIGH ROOF<S2F> 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0002
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 0003-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 0003-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0002
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0002
99 SEAL; BODY,METAL
EXC. HIGH ROOF<S2F> 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0002
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0003-
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0003-
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> 75X50 ID=36 		1-61281-458-0 02 1 9906-
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9906-9912
99 SEAL; BODY,METAL
MIR O/S RR VIEW LONG ARM<DH2> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 0001-
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 0001-
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-6 01 1 9906-
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-857-2 01 1 9906-
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-772-3 01 1 9906-
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-862-1 01 1 9906-
122 SEAL; FRT UPR 1-61270-919-0 02 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
