1-41 — FUEL PIPING; CHASSIS (#72963) — 92 parça

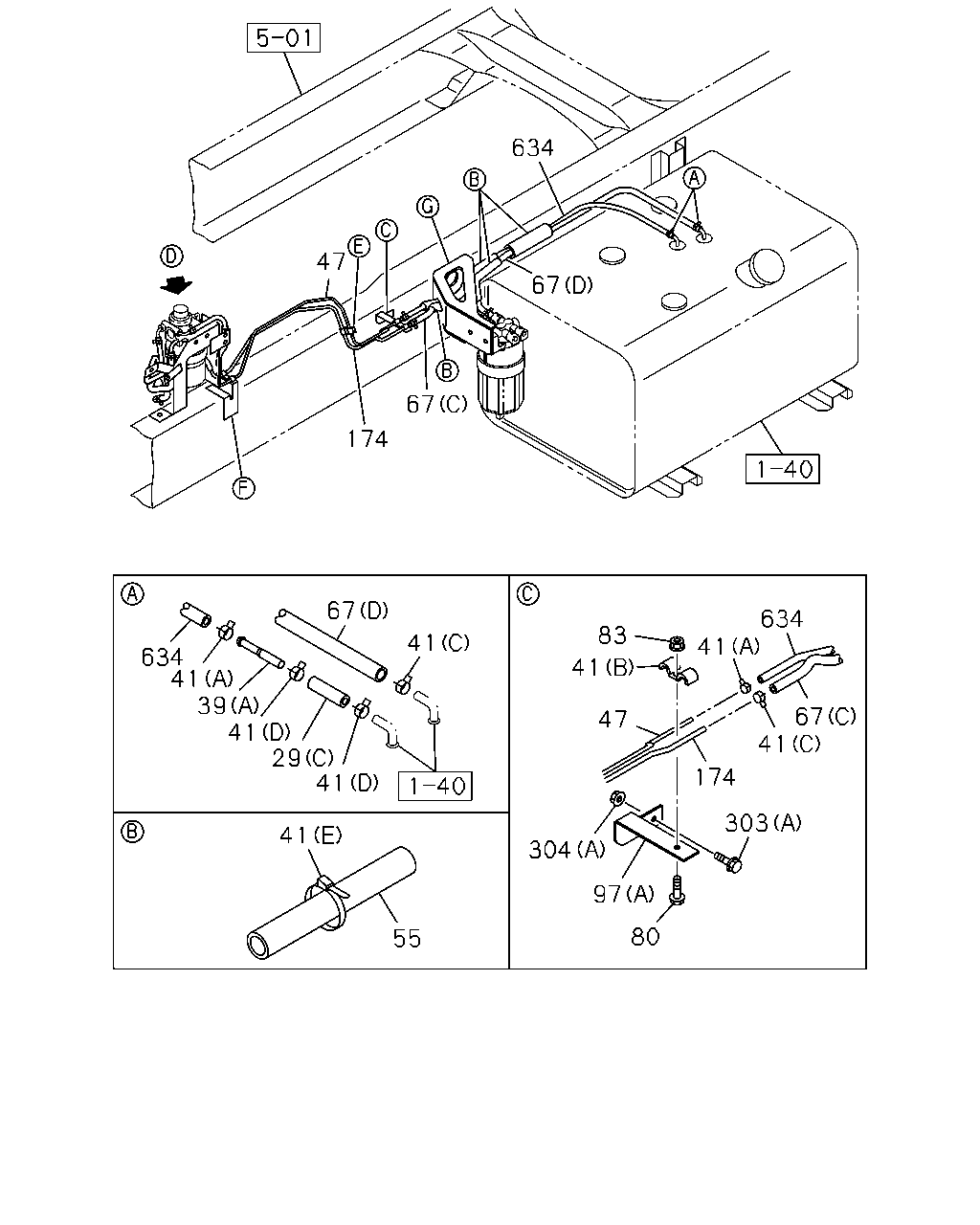

çizim 93016
634 47 67 67 174 634 41 39 41 29 41 41 67 83 41 47 41 634 67 41 174 303 304 97 80 41 55
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1111-
29 HOSE; FUEL
(A) 		8-98188-724-0 01 1 1111-
29 HOSE; FUEL
(B) 		8-98196-274-0 01 1 1111-
39 PIPE; FUEL
INDONESIA KD DELETION<35D> (B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1210-1210
39 PIPE; FUEL
(A) IDN 		8-98009-438-1 01 1 1111-
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=15 H=24 L=20 		1-09700-606-0 01 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1111-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1111-
47 PIPE; FUEL,RETURN
L=1058 		8-98188-895-0 01 1 1111-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1111-
67 HOSE; FUEL,DELIVERY
(B) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(A) L=310 		0-01508-310-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1111-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1111-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1111-
97 BRACKET; CLIP
(C) 		1-47475-427-1 01 1 1111-
97 BRACKET; CLIP
(A) 		8-98126-612-0 01 1 1111-
97 BRACKET; CLIP
(B) IDN 		8-98183-587-0 01 1 1111-
174 PIPE; FUEL,FEED,FRT 8-98188-894-0 01 1 1111-
303 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1111-
303 BOLT; BRKT
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1111-
303 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1111-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1111-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1111-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1111-
634 HOSE; RUBBER RETURN
LOCALLY SUPPLIED PARTS<TKH> 		8-98211-102-0 01 1 1201-
634 HOSE; RUBBER RETURN
IDN 		8-98184-202-0 01 1 1111-1112
634 HOSE; RUBBER RETURN
EXC. LOCALLY SUPPLIED PARTS<TKH> IDN 		8-98184-202-0 01 1 1201-

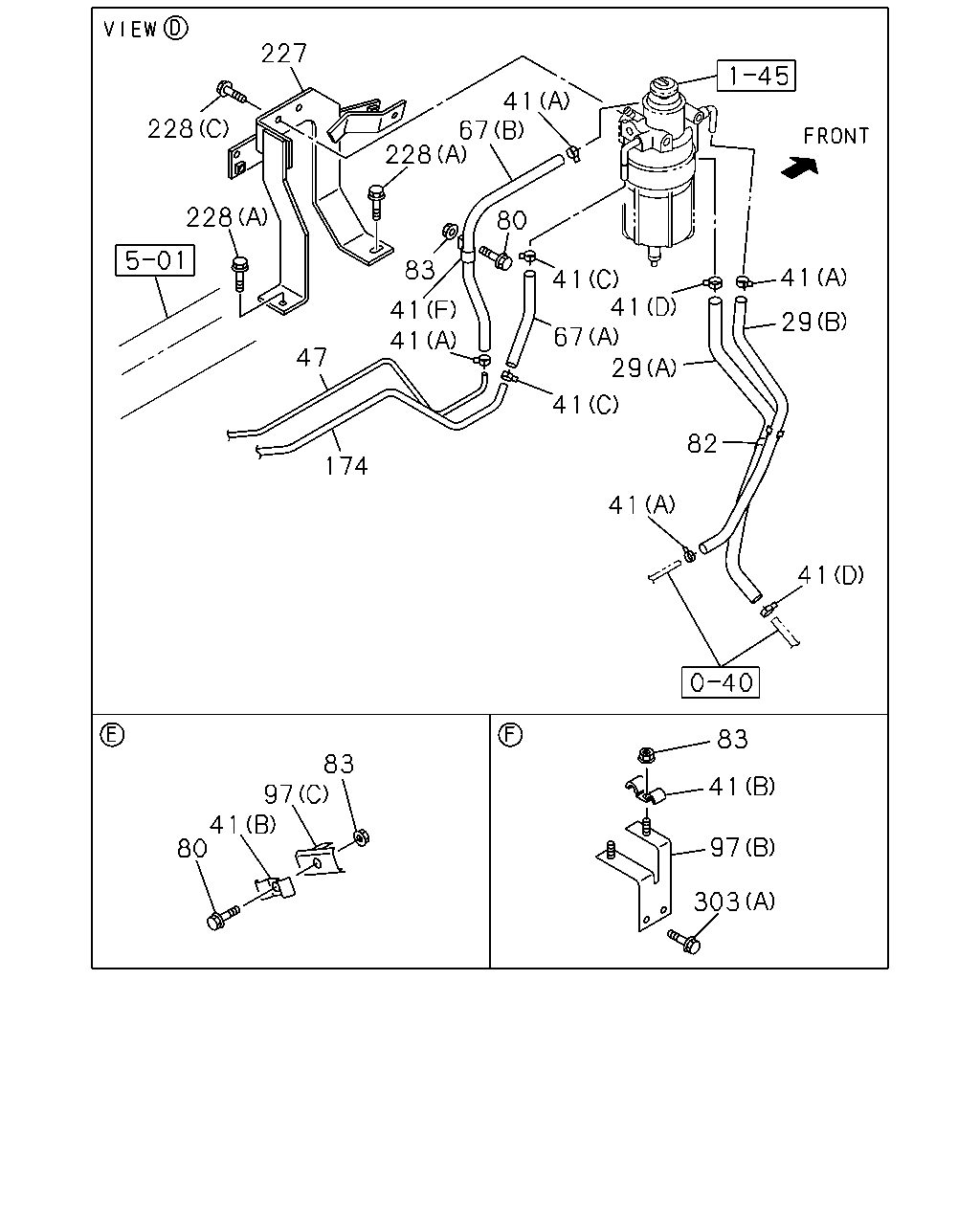

çizim 93369
228 227 228 47 174 41 41 83 228 67 41 41 80 67 41 41 29 41 29 82 41 41 83 41 97 303 80 41 97 83
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1111-
29 HOSE; FUEL
(A) 		8-98188-724-0 01 1 1111-
29 HOSE; FUEL
(B) 		8-98196-274-0 01 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=15 H=24 L=20 		1-09700-606-0 01 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1111-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1111-
47 PIPE; FUEL,RETURN
L=1058 		8-98188-895-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(B) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(A) L=310 		0-01508-310-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1111-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1111-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1111-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1111-
97 BRACKET; CLIP
(C) 		1-47475-427-1 01 1 1111-
97 BRACKET; CLIP
(A) 		8-98126-612-0 01 1 1111-
97 BRACKET; CLIP
(B) IDN 		8-98183-587-0 01 1 1111-
174 PIPE; FUEL,FEED,FRT 8-98188-894-0 01 1 1111-
227 BRACKET; FUEL SEDIMENTER
IDN 		8-98179-497-0 01 1 1111-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1111-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1111-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1111-
303 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1111-
303 BOLT; BRKT
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1111-
303 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1111-

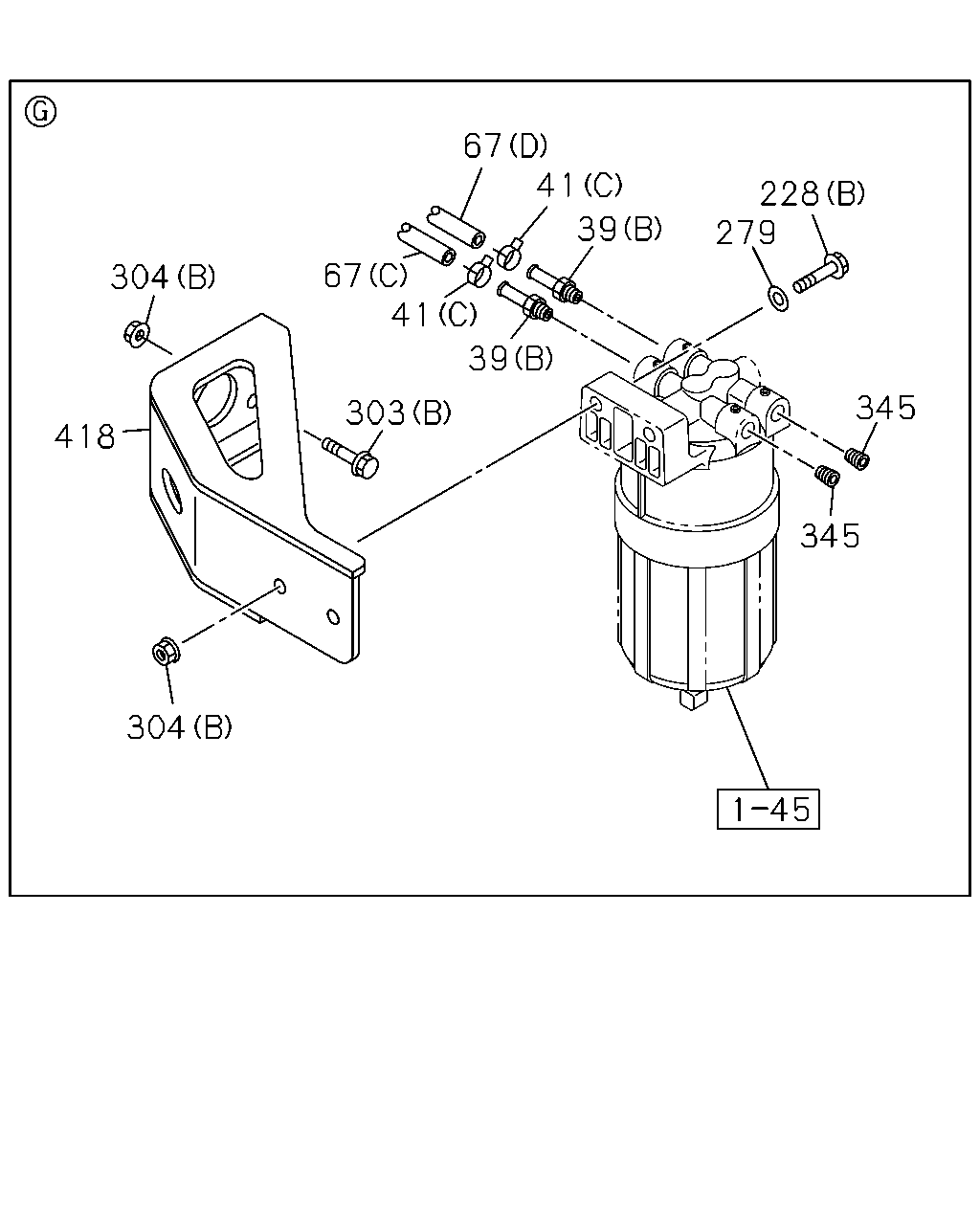

çizim 93512
67 67 41 41 39 39 304 418 304 303 345 345 279 228
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
INDONESIA KD DELETION<35D> (B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1210-1210
39 PIPE; FUEL
(A) IDN 		8-98009-438-1 01 1 1111-
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=15 H=24 L=20 		1-09700-606-0 01 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1111-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1111-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1111-
67 HOSE; FUEL,DELIVERY
(B) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(A) L=310 		0-01508-310-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1111-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1111-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1111-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1111-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1111-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1111-
303 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 1111-
303 BOLT; BRKT
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1111-
303 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1111-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1111-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1111-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1111-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1111-
418 BRACKET; PRE FUEL FILTER 8-98128-254-0 01 1 1111-
