6-47 — MUD GUARD AND INSULATOR (#7296) — 127 parça

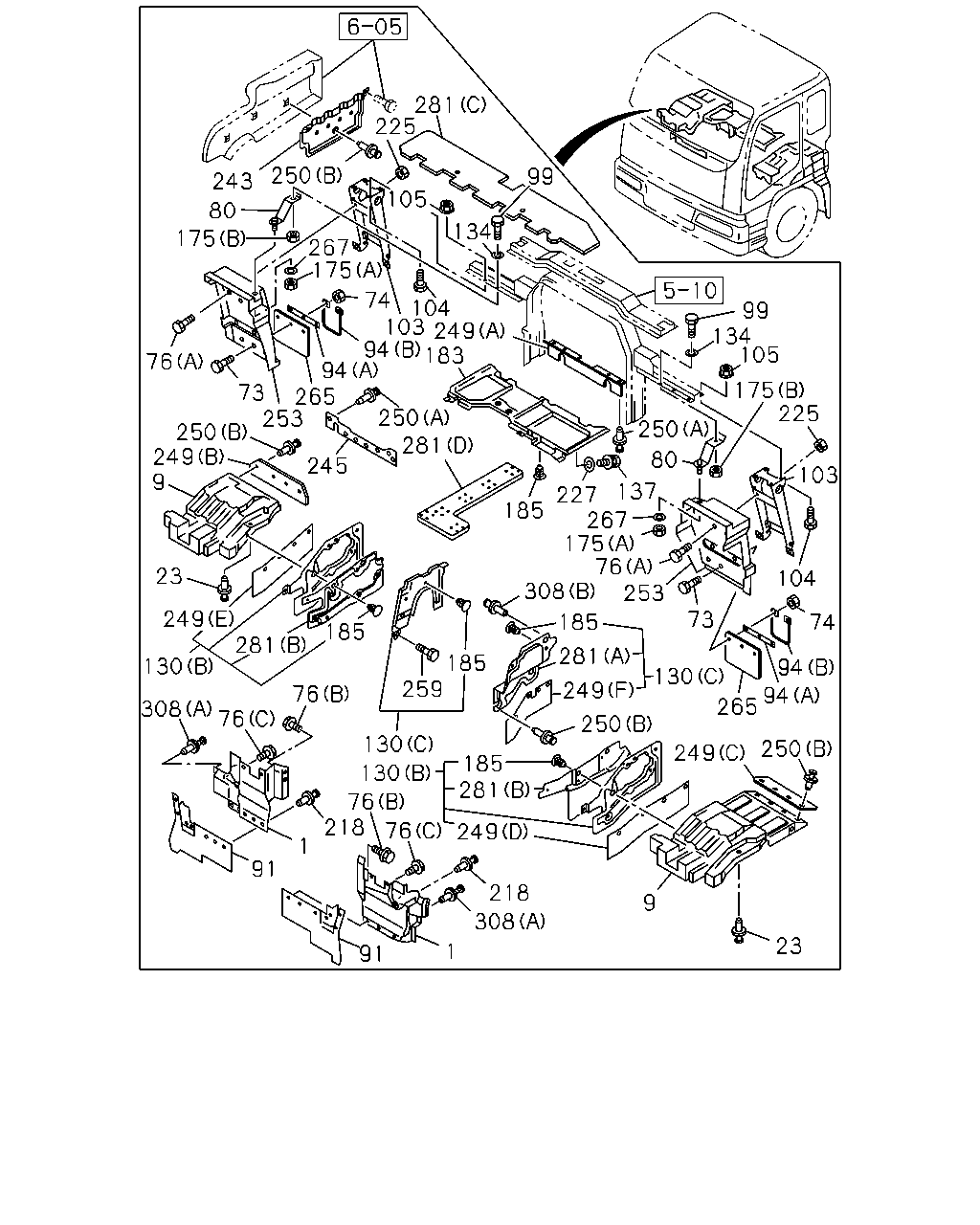

281 225 250 99 243 80 175 134 267 175 74 104 103 249 94 183 94 73 265 253 99 134 105 76 175 225 250 281 250 250 249 9 103 80 245 137 227 267 175 76 308 253 185 23 104 249 281 73 185 74 185 281 185 259 130 94 130 249 76 94 265 308 76 250 130 250 249 185 281 130 76 218 76 249 1 91 218 9 308 23 1 91 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-895-4	01	1	9906-
1	GUARD; MUD,FRT	1-79937-894-5	01	1	9906-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-3	01	1	9906-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-3	01	1	9906-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	9906-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9906-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9906-
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9906-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9906-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	02	1	9906-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9906-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9906-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9906-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	9906-
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	9906-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9906-9908
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-200-1	01	1	9906-9908
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-200-1	01	1	9909-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9906-9908
91	COVER; MUD,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>	1-79931-199-1	01	1	9906-9908
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-79931-199-1	01	1	9909-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9906-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-241-1	01	1	9909-
91	COVER; MUD,FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9906-9908
91	COVER; MUD,FRT FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-79931-240-1	01	1	9909-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	9906-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	9906-
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9906-
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	01	1	9906-
94	RETAINER; FLAP RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-79931-194-0	01	1	9906-
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	9906-
103	BRACKET ASM; RR MUD FLAP	1-79931-307-1	01	1	9906-
103	BRACKET ASM; RR MUD FLAP	1-79931-308-1	01	1	9906-
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	08	1	9906-
105	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	9906-
130	PANEL; SHUTTER NOISE (C)	1-79937-919-2	01	1	9906-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9906-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-977-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9906-
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	9906-
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9906-
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	9906-
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	9906-
183	INSULATOR; HEAT,BED PAN	1-71907-526-2	01	1	9906-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9906-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	9906-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	9906-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9906-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	9906-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	9906-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9906-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	9906-
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	9906-
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	9906-
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	9906-
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-1	01	1	9906-
245	RUBBER; SHUTTER,RAD	1-79937-982-0	01	1	9906-
249	RUBBER; SHUTTER (A)	1-79937-924-1	01	1	9906-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-0	01	1	9906-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-967-0	01	1	9906-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-0	01	1	9906-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-965-0	01	1	9906-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-0	01	1	9906-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-2	01	1	9906-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-0	01	1	9906-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	9906-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	9906-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	9906-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	9906-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	9906-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	9906-
253	GUARD; MUD	1-79931-067-7	01	1	9906-
253	GUARD; MUD	1-79931-065-7	01	1	9906-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9906-
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	9906-
265	RUBBER; FLAP,REAR	1-79930-978-0	01	1	9906-
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	9906-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	9906-
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	9906-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	9906-
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-2	01	1	9906-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-3	01	1	9906-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	9906-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	9906-

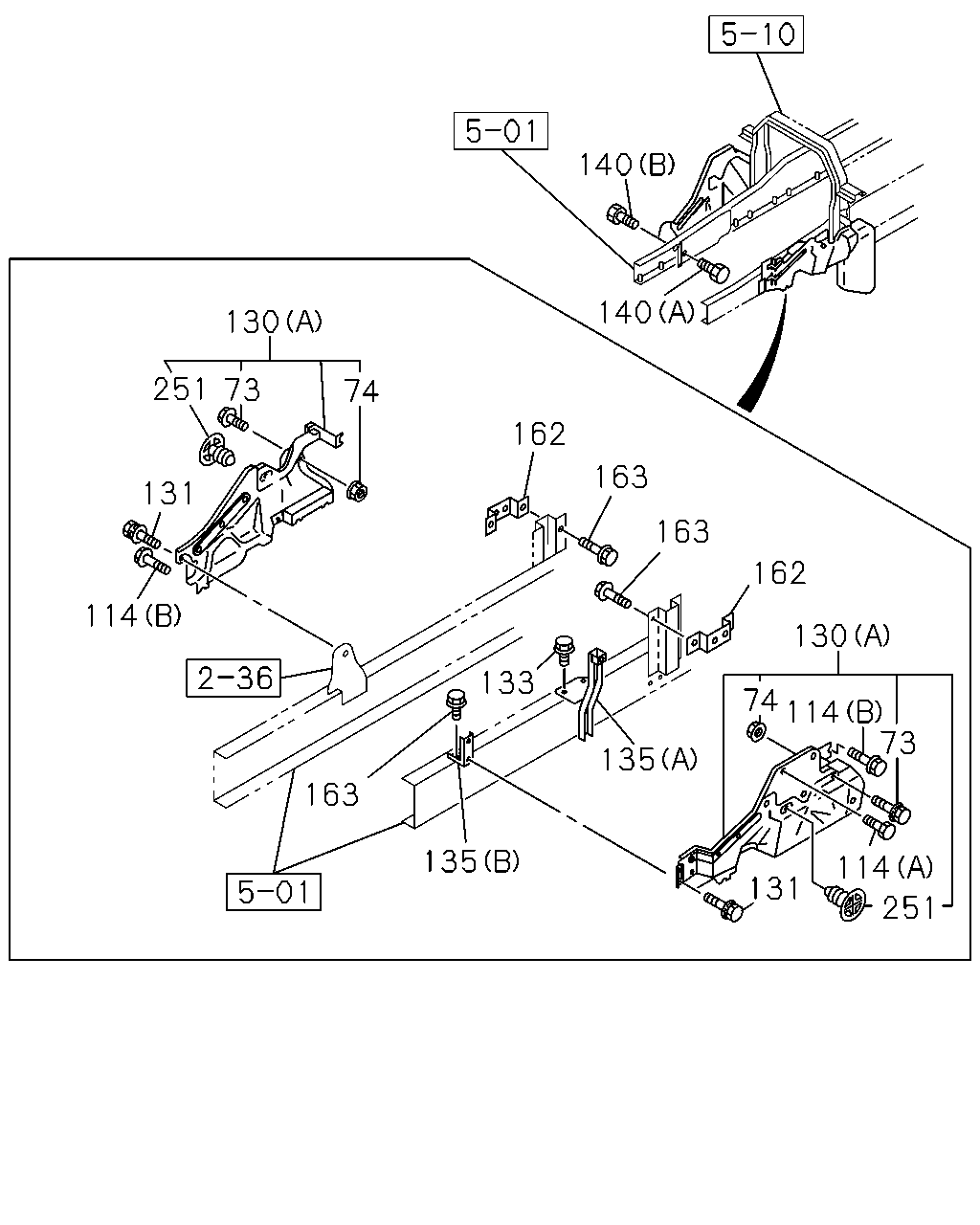

140 140 130 251 73 74 162 163 131 163 162 114 130 133 74 114 73 135 163 135 114 131 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9906-
73	BOLT; MUD COVER BRKT M8X25 W/LK&PL WASHER	1-09030-074-0	03	1	9906-
73	BOLT; MUD COVER BRKT ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	08	1	9906-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	03	1	9906-
73	BOLT; MUD COVER BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28280-816-0	05	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	03	1	9906-
74	NUT M8 FLANGE	0-91150-108-0	02	1	9906-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9906-
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	02	1	9906-
114	BOLT (B) M8X22 W/LK&PL WASHER	1-09030-042-0	06	1	9906-
130	PANEL; SHUTTER NOISE (C)	1-79937-919-2	01	1	9906-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	9906-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-6	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-0	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-2	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-969-1	01	1	9906-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-977-1	01	1	9906-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	9906-
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	9906-
133	BOLT; FRAME M8X35 FLANGE	0-28680-835-0	04	1	9906-
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	9906-
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-509-0	01	1	9906-0012
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) (A)	1-53441-598-0	01	1	0101-
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	9906-
140	BOLT; SIDE PANEL (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-
140	BOLT; SIDE PANEL (B) M8X30 FLANGE	0-28680-830-0	02	1	9906-
162	BRACKET	1-53441-520-0	02	1	9906-
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9906-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	9906-
