Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

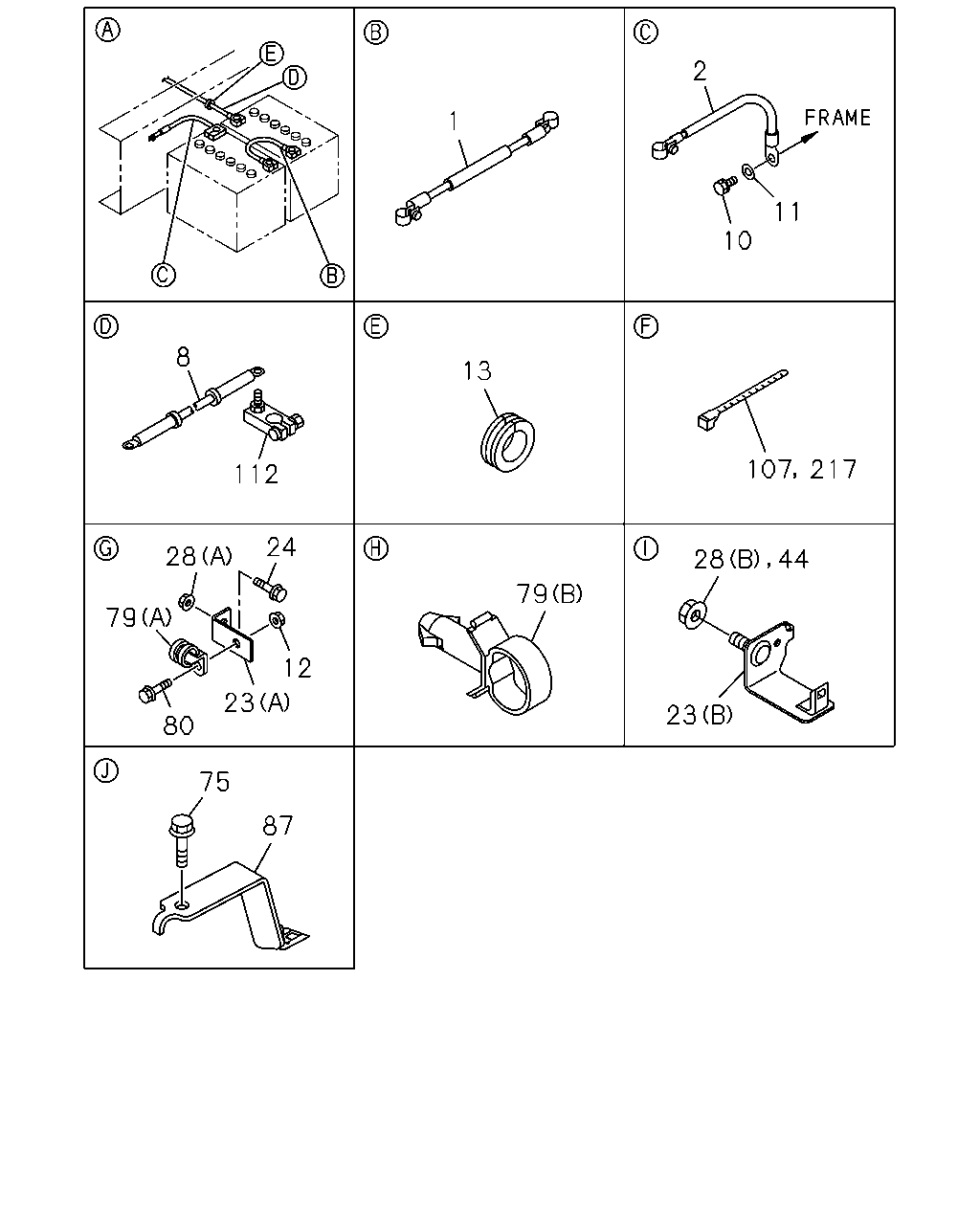

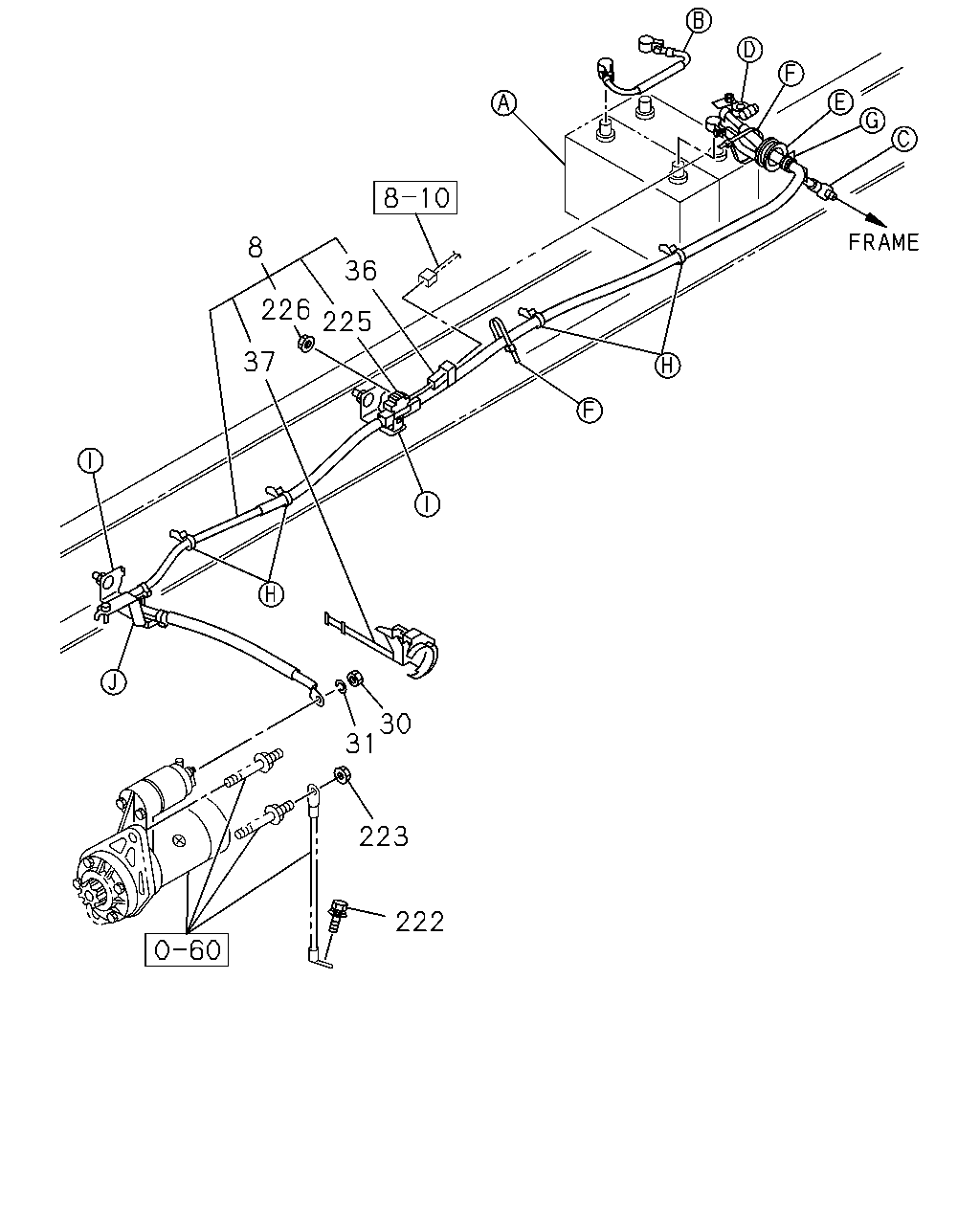

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#72951) — 40 parça
◀
[061A] NO.2 (27 parça)
[061A] NO.1 (13 parça)
▶
2
1
11
10
8
13
107
217
112
24
28
79
79
12
23
23
80
75
87
28
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 IDN
8-98025-412-3
01
1
1111-
2
CABLE; BATTERY
L=280 IDN
8-98035-647-1
01
1
1111-
8
CABLE; BATTERY,STARTER
IDN
8-98187-933-0
01
1
1111-1502
8
CABLE; BATTERY,STARTER
IDN
8-98295-228-0
01
1
1503-
10
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1111-
11
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
1-09503-265-0
01
1
1111-
12
NUT; BATTERY CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
1111-
13
GROMMET; BATTERY CABLE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) ID=32 OD=40 T=18
1-09891-003-0
01
1
1111-
13
GROMMET; BATTERY CABLE
WHEEL BASE 6000MM(60W) ID=32 OD=40 T=23
1-09332-112-0
01
1
1111-
23
BRACKET; CABLE CLIP TO FRAME
(A) L=55
1-47475-304-0
01
1
1111-
23
BRACKET; CABLE CLIP TO FRAME
(B)
8-98091-358-0
02
1
1111-
24
BOLT; BRKT TO FRAME
M8X30 FLANGE
0-28650-830-0
01
1
1111-
28
NUT; BRKT TO FRAME
(A) M8 FLANGE
0-91180-108-0
01
1
1111-
28
NUT; BRKT TO FRAME
(B) M10 FLANGE
0-91180-210-0
01
1
1111-
44
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1111-
75
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
01
1
1111-
79
CLIP; BATTERY CABLE
(A) ID=19 L=24 H=21
1-09700-109-1
01
1
1111-
79
CLIP; BATTERY CABLE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=5-12 L=18
1-09709-287-0
01
1
1111-
79
CLIP; BATTERY CABLE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=13-18 L=18
1-09709-291-0
03
1
1111-
79
CLIP; BATTERY CABLE
WHEEL BASE 6000MM(60W) (B) ID=5-12 L=26
1-09709-289-0
01
1
1111-
79
CLIP; BATTERY CABLE
WHEEL BASE 6000MM(60W) (B) ID=13-18 L=26
1-09709-293-0
03
1
1111-
80
BOLT; BATTERY CABLE CLIP
M8X25 FLANGE IDN
0-28650-825-0
01
1
1111-
87
BRACKET; HARNESS
8-98126-428-0
01
1
1111-
107
CLIP; BAND
L=140 IDN
5-09707-031-1
01
1
1111-
112
TERMINAL; BATTERY
<+> IDN
8-97365-771-0
01
1
1111-1408
112
TERMINAL; BATTERY
<+>
8-98290-356-0
01
1
1409-
217
CLIP; BAND,CABLE
L=250 IDN
5-09707-030-1
01
1
1111-
8
36
226
225
37
30
31
223
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CABLE; BATTERY,STARTER
IDN
8-98187-933-0
01
1
1111-1502
8
CABLE; BATTERY,STARTER
IDN
8-98295-228-0
01
1
1503-
30
NUT; CABLE,STARTER TO BATTERY
M8 IDN
0-91110-508-0
01
1
1111-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-508-0
01
1
1111-
36
FUSIBLE LINK; BATTERY
8-97615-498-1
01
1
1111-1502
36
FUSIBLE LINK; BATTERY
IDN
8-98295-762-0
01
1
1503-
37
CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
1111-
222
BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1111-
223
NUT; EARTH CABLE
M10 FLANGE
0-91180-210-0
01
1
1111-
225
BLOCK; TERMINAL
8-98029-689-0
01
1
1111-1502
225
BLOCK; TERMINAL
IDN
8-98294-524-0
01
1
1503-
226
NUT; FUSIBLE LINK
M6 W/LK WASHER
8-94424-179-0
01
1
1111-1502
226
NUT; FUSIBLE LINK
M6 FLANGE STAINLESS IDN
8-98297-112-0
01
1
1503-
