Isuzu WW
▶
TRUCKS
▶
FTR
▶
11430 - FTR(INDONESIA)4HK1
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#72927) — 16 parça
◀

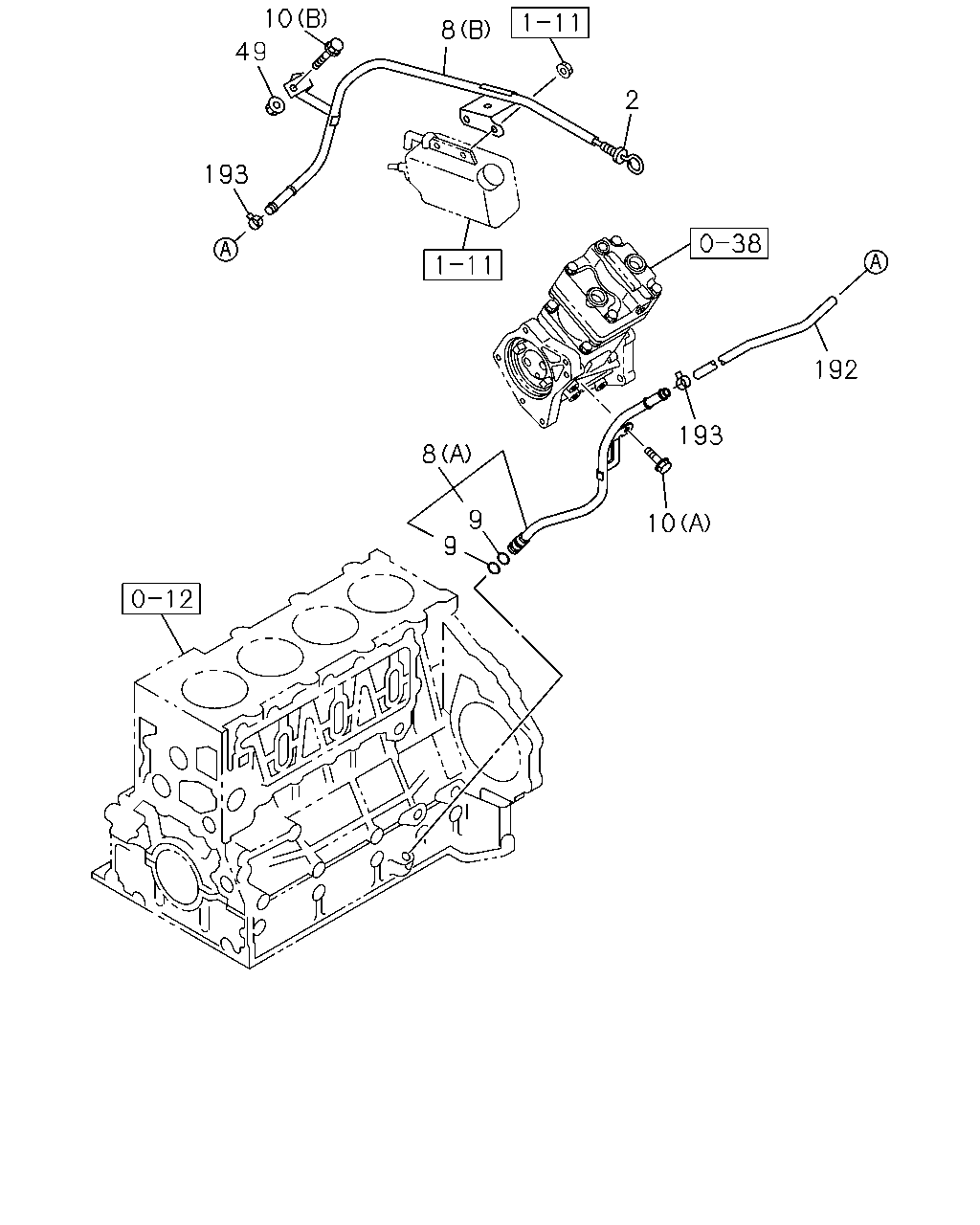

[013A] OIL LEVEL GAUGE AND GUIDE TUBE (10 parça)

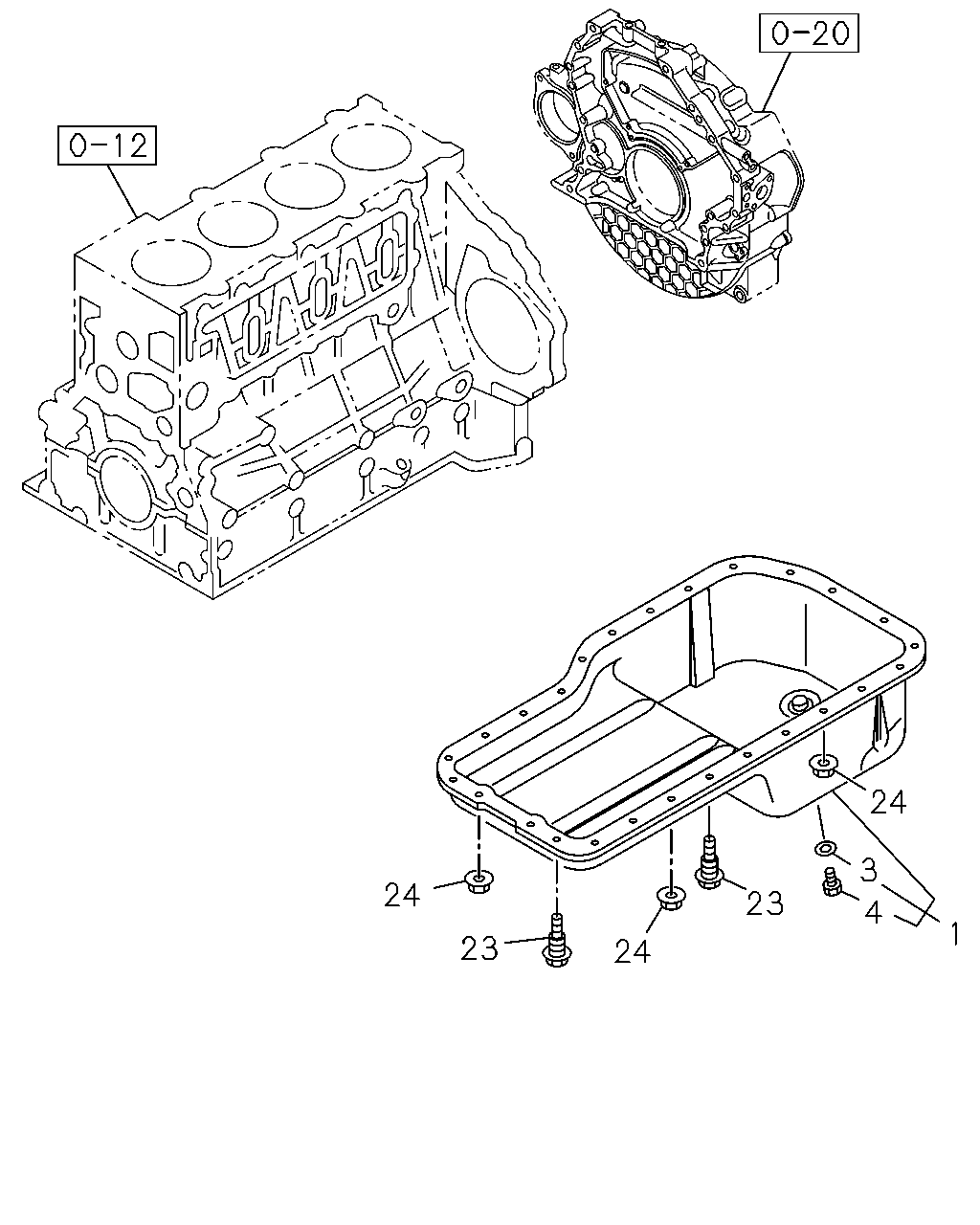

[013A] OIL PAN (6 parça)
▶
10
8
49
2
193
192
193
8
9
10
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98179-979-0
01
1
1111-1406
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1111-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98179-498-0
01
1
1111-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1111-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1111-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN
0-28650-820-0
01
1
1111-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
1111-
192
HOSE; GUIDE TUBE
8-97620-319-0
01
1
1111-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1111-
24
3
24
23
4
1
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98191-050-0
01
1
1111-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1111-
4
PLUG; DRAIN,OIL
M14X14 IDN
8-94152-613-0
01
1
1111-
23
BOLT; OIL PAN
M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1111-
23
BOLT; OIL PAN
M8X14
8-97047-005-0
18
1
1111-
24
NUT; OIL PAN
M8 W/LK WASHER IDN
8-97581-234-0
07
1
1111-
