Sayfa 6-35 - Isuzu EPC

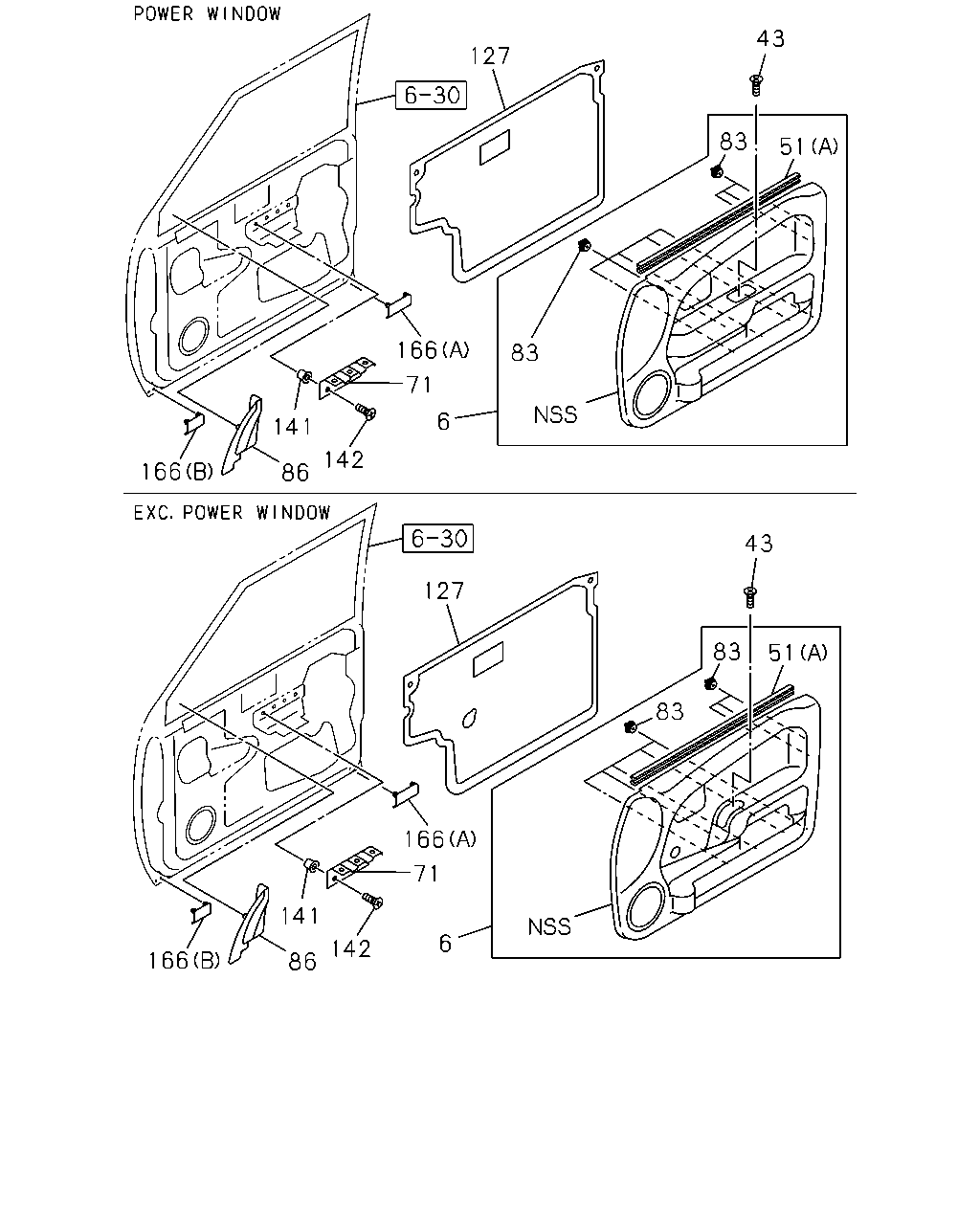

6-35 — FRONT DOOR TRIM (#72910) — 170 parça

43 127 83 51 166 83 71 6 141 142 166 86 43 127 83 51 83 166 71 141 6 142 166 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> SEAT COLOR RED<6SJ> LEATHER SEAT<6TB> RED THA	8-97418-455-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> SEAT COLOR RED<6SJ> LEATHER SEAT<6TB> RED THA	8-97418-456-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> SEAT COLOR RED<6SJ> RED THA	8-97418-453-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> SEAT COLOR RED<6SJ> RED THA	8-97418-454-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> LEATHER SEAT<6TB> RED THA	8-97418-455-0	01	1	1002-1008			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> LEATHER SEAT<6TB> RED THA	8-97418-456-0	01	1	1002-1008			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> RED THA	8-97418-453-0	01	1	1002-1008			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> POWER WINDOW<A31> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> RED THA	8-97418-454-0	01	1	1002-1008			●
6	TRIM; DOOR,UPR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> POWER WINDOW<A31> LEATHER SEAT<6TB> BEIGE THA	8-97418-230-0	01	1	0909-			●
6	TRIM; DOOR,UPR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> POWER WINDOW<A31> LEATHER SEAT<6TB> BEIGE THA	8-97418-231-0	01	1	0909-			●
6	TRIM; DOOR,UPR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> BEIGE THA	8-97418-228-0	01	1	0909-			●
6	TRIM; DOOR,UPR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> BEIGE THA	8-97418-229-0	01	1	0909-			●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97294-511-3	01	1	0204-0302	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-566-0	01	1	0303-0307	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-566-0	01	1	0308-0408	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30> DARK GRAY THA	8-97396-566-0	01	1	0308-0408		●
6	TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97396-566-0	01	1	0409-0606	●	●
6	TRIM; DOOR,UPR VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-698-0	01	1	0607-0908	●	●
6	TRIM; DOOR,UPR INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-698-0	01	1	0909-	●	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97294-510-3	01	1	0204-0302	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-565-0	01	1	0303-0307	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-565-0	01	1	0308-0408	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30> DARK GRAY THA	8-97396-565-0	01	1	0308-0408		●
6	TRIM; DOOR,UPR VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97396-565-0	01	1	0409-0606	●	●
6	TRIM; DOOR,UPR VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-696-0	01	1	0607-0908	●	●
6	TRIM; DOOR,UPR INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-696-0	01	1	0909-	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97401-141-0	01	1	0508-0606	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 3<8LP> POWER WINDOW<A31> LIGHT GRAY THA	8-97403-717-0	01	1	0607-0808			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH SEAT MOQUETTE<8EP> EXC. POWER WINDOW<A31> GRAY THA	8-97401-140-0	01	1	0508-0606	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 3<8LP> POWER WINDOW<A31> LIGHT GRAY THA	8-97403-716-0	01	1	0607-0808			●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> POWER WINDOW<A30> DARK GRAY THA	8-97396-572-0	01	1	0308-0408		●
6	TRIM; DOOR,UPR POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97400-816-0	01	1	0409-0606	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97403-711-0	01	1	0607-0708	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> DARK GRAY THA	8-97403-711-0	01	1	0607-0708	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97403-711-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA	8-97403-711-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-711-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFBC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-711-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-711-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-711-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. SEAT COLOR RED<6SJ>,HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-711-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> POWER WINDOW<A30> DARK GRAY THA	8-97396-571-0	01	1	0308-0408		●
6	TRIM; DOOR,UPR POWER WINDOW<A31> CLOTH SEAT MOQUETTE<8EP> GRAY THA	8-97400-815-0	01	1	0409-0606	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97403-710-0	01	1	0607-0708	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> DARK GRAY THA	8-97403-710-0	01	1	0607-0708	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97403-710-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA	8-97403-710-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-710-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFBC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-710-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-710-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-710-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. SEAT COLOR RED<6SJ>,HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97403-710-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97294-503-3	01	1	0204-0302			●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-574-0	01	1	0303-0408			●
6	TRIM; DOOR,UPR SEAT CLOTH<7FL> POWER WINDOW<A31> GRAY THA	8-97398-504-0	01	1	0409-0606		●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-705-0	01	1	0607-0908	●	●	●
6	TRIM; DOOR,UPR SPACE CAB<TF*C> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-705-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-705-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-705-0	01	1	1002-	●	●	●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97294-502-3	01	1	0204-0302			●
6	TRIM; DOOR,UPR DARK GRAY THA	8-97396-573-0	01	1	0303-0408			●
6	TRIM; DOOR,UPR SEAT CLOTH<7FL> POWER WINDOW<A31> GRAY THA	8-97398-503-0	01	1	0409-0606		●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-704-0	01	1	0607-0908	●	●	●
6	TRIM; DOOR,UPR SPACE CAB<TF*C> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-704-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-704-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> GRAY THA	8-97403-704-0	01	1	1002-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-715-0	01	1	0709-0808			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-853-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-853-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA	8-97414-853-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-853-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-853-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-853-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-853-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-853-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-853-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-853-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-714-0	01	1	0709-0808			●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-840-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-840-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA	8-97414-840-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-840-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-840-0	01	1	0909-1001	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA	8-97414-840-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA	8-97414-840-0	01	1	1002-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> HIGH RIDE SUSPENSION<7YC> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-840-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-840-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97414-840-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-862-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-862-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-862-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-862-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-862-0	01	1	0909-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> POWER WINDOW<A31> LEATHER SEAT<6TB> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97409-862-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97409-862-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 SPACE CAB<TFSC> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-861-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-861-0	01	1	0709-0808	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-861-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-861-0	01	1	0809-0908	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> POWER WINDOW<A31> LEATHER SEAT<6TB> DARK GRAY THA	8-97409-861-0	01	1	0909-1009	●	●	●
6	TRIM; DOOR,UPR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> POWER WINDOW<A31> LEATHER SEAT<6TB> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97409-861-0	01	1	1010-	●	●	●
6	TRIM; DOOR,UPR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> EXC. SEAT COLOR RED<6SJ> DARK GRAY THA	8-97409-861-0	01	1	1010-	●	●	●
43	SCREW; DOOR POCKET M5X14 THA	8-94152-495-0	04	1	0204-0504	●	●	●
43	SCREW; DOOR POCKET EXC. POWER WINDOW<A31> M5X14 THA	8-94152-495-0	04	1	0505-	●	●	●
51	WEATHERSTRIP; FRONT DOOR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> (B) BEIGE THA	8-97404-643-0	02	1	0909-			●

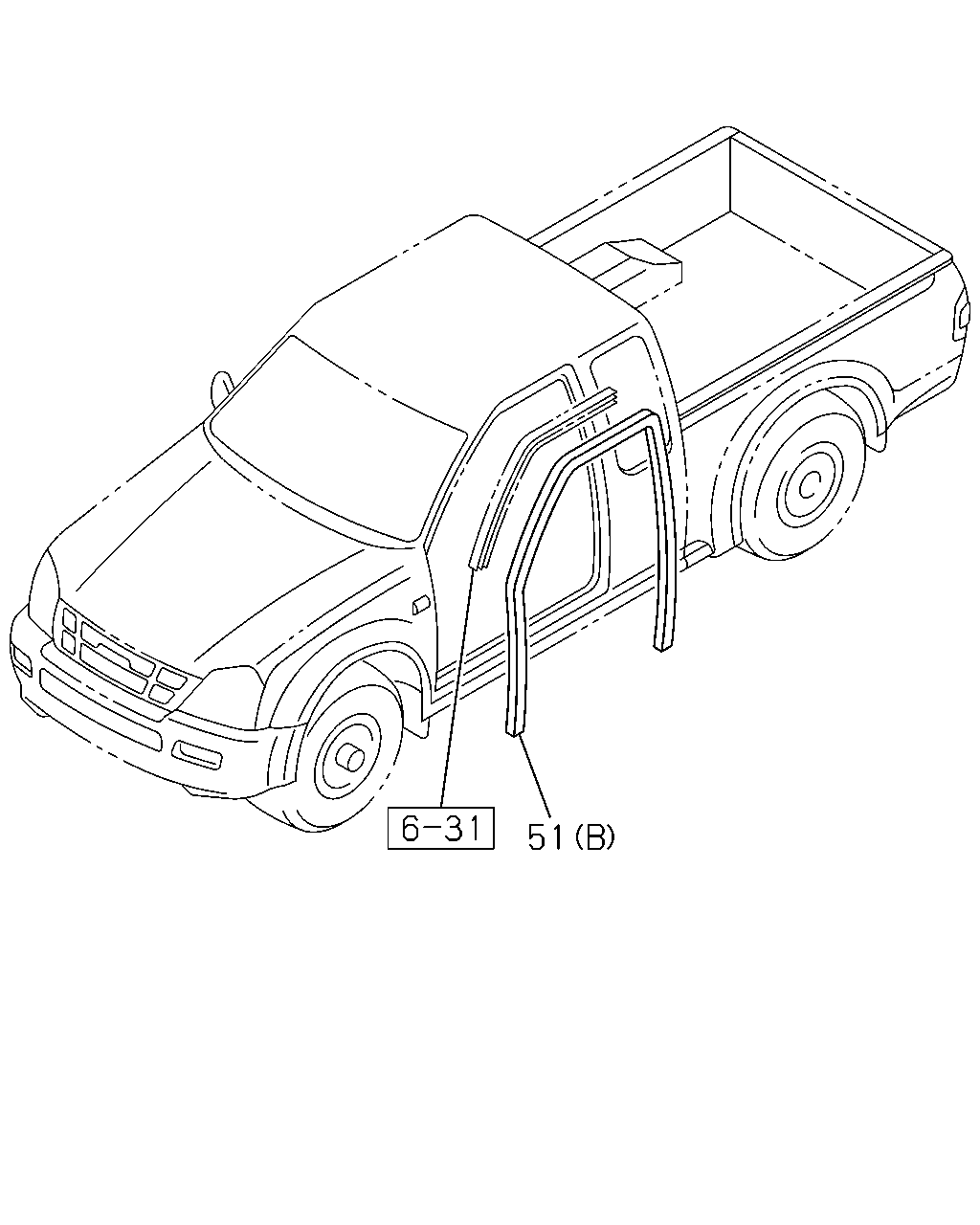

51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97294-031-1	02	1	0204-0412	●
51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97402-846-0	02	1	0501-0606	●
51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97403-592-0	02	1	0607-	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97236-130-3	01	1	0204-0302	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0303-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97236-129-3	01	1	0204-0302	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0303-	●	●	●
51	WEATHERSTRIP; FRONT DOOR SPACE CAB<TF*C> (B) DARK GRAY THA	8-97294-029-1	02	1	0204-0207	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0208-0304	●		●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0208-0304		●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0305-0412	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97402-843-0	02	1	0501-0606	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97403-590-0	02	1	0607-0908	●	●	●
51	WEATHERSTRIP; FRONT DOOR SPACE CAB<TF*C> (B) DARK GRAY THA	8-97403-590-0	02	1	0909-1001	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	0909-1001	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1002-1008	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> (B) DARK GRAY THA	8-97403-590-0	02	1	1002-1008	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1009-1009	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1010-	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> (B) DARK GRAY THA	8-97403-590-0	02	1	1010-	●	●	●
71	BRACKET; ARM REST THA	8-97238-106-2	02	1	0204-	●	●	●
83	CLIP; DOOR TRIM H=16.7 THA	8-97022-017-0	16	1	0204-	●	●	●
86	COVER ASM; DOOR POCKET BLACK THA	8-97298-456-2	01	1	0204-	●	●	●
86	COVER ASM; DOOR POCKET BLACK THA	8-97298-455-2	01	1	0204-	●	●	●
127	SEAL; DOOR INNER THA	8-97236-534-1	01	1	0204-0211	●	●
127	SEAL; DOOR INNER THA	8-97360-883-0	01	1	0212-0310	●	●
127	SEAL; DOOR INNER THA	8-97373-015-1	01	1	0311-0408	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A31> THA	8-97373-015-1	01	1	0409-	●	●	●
127	SEAL; DOOR INNER THA	8-97236-533-1	01	1	0204-0211	●	●
127	SEAL; DOOR INNER THA	8-97360-882-0	01	1	0212-0310	●	●
127	SEAL; DOOR INNER THA	8-97373-014-1	01	1	0311-0408	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A31> THA	8-97373-014-1	01	1	0409-	●	●	●
127	SEAL; DOOR INNER THA	8-97236-535-1	01	1	0204-0211			●
127	SEAL; DOOR INNER THA	8-97360-885-0	01	1	0212-0310			●
127	SEAL; DOOR INNER THA	8-97373-017-1	01	1	0311-0408			●
127	SEAL; DOOR INNER POWER WINDOW<A31> THA	8-97373-017-1	01	1	0409-		●	●
127	SEAL; DOOR INNER THA	8-97236-536-1	01	1	0204-0211			●
127	SEAL; DOOR INNER THA	8-97360-884-0	01	1	0212-0310			●
127	SEAL; DOOR INNER THA	8-97373-016-1	01	1	0311-0408			●
127	SEAL; DOOR INNER POWER WINDOW<A31> THA	8-97373-016-1	01	1	0409-		●	●
141	GROMMET; SCREW,LWR COVER THA	8-94152-494-0	04	1	0204-	●	●	●
142	SCREW; LWR COVER,DOOR TRIM M5X14 THA	8-94152-495-0	04	1	0204-	●	●	●
166	PLUG; HOLE 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (A) THA	8-98009-499-0	02	1	0508-	●	●	●
166	PLUG; HOLE 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) THA	8-98009-500-0	02	1	0508-	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	WEATHERSTRIP; FRONT DOOR DOUBLE CAB<TF*W> INTERIOR COLOR BEIGE<184> (B) BEIGE THA	8-97404-643-0	02	1	0909-			●
51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97294-031-1	02	1	0204-0412	●
51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97402-846-0	02	1	0501-0606	●
51	WEATHERSTRIP; FRONT DOOR SINGLE CAB<TF*S> (B) DARK GRAY THA	8-97403-592-0	02	1	0607-	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97236-130-3	01	1	0204-0302	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0303-	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97236-129-3	01	1	0204-0302	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0303-	●	●	●
51	WEATHERSTRIP; FRONT DOOR SPACE CAB<TF*C> (B) DARK GRAY THA	8-97294-029-1	02	1	0204-0207	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0208-0304	●		●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0208-0304		●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97294-029-1	02	1	0305-0412	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97402-843-0	02	1	0501-0606	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (B) DARK GRAY THA	8-97403-590-0	02	1	0607-0908	●	●	●
51	WEATHERSTRIP; FRONT DOOR SPACE CAB<TF*C> (B) DARK GRAY THA	8-97403-590-0	02	1	0909-1001	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 DOUBLE CAB<TFBW> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	0909-1001	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1002-1008	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> (B) DARK GRAY THA	8-97403-590-0	02	1	1002-1008	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1009-1009	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1010-	●	●	●
51	WEATHERSTRIP; FRONT DOOR 4X4 DOUBLE CAB<TFSW> INTERIOR COLOR BLACK<101> (B) DARK GRAY THA	8-97403-590-0	02	1	1010-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
