6-30 — FRONT DOOR AND HINGE (#72907) — 59 parça
çizim 116502
106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
106 GROMMET; PROTECTOR
(A) OD=35 THA 		8-97320-908-0 04 1 0204-0207 ● ● ●
106 GROMMET; PROTECTOR
(A) OD=35 THA 		8-97320-908-0 04 1 0208-0408 ● ● ● ● ●
106 GROMMET; PROTECTOR
(B) THA 		8-94279-724-0 02 1 0208- ● ●

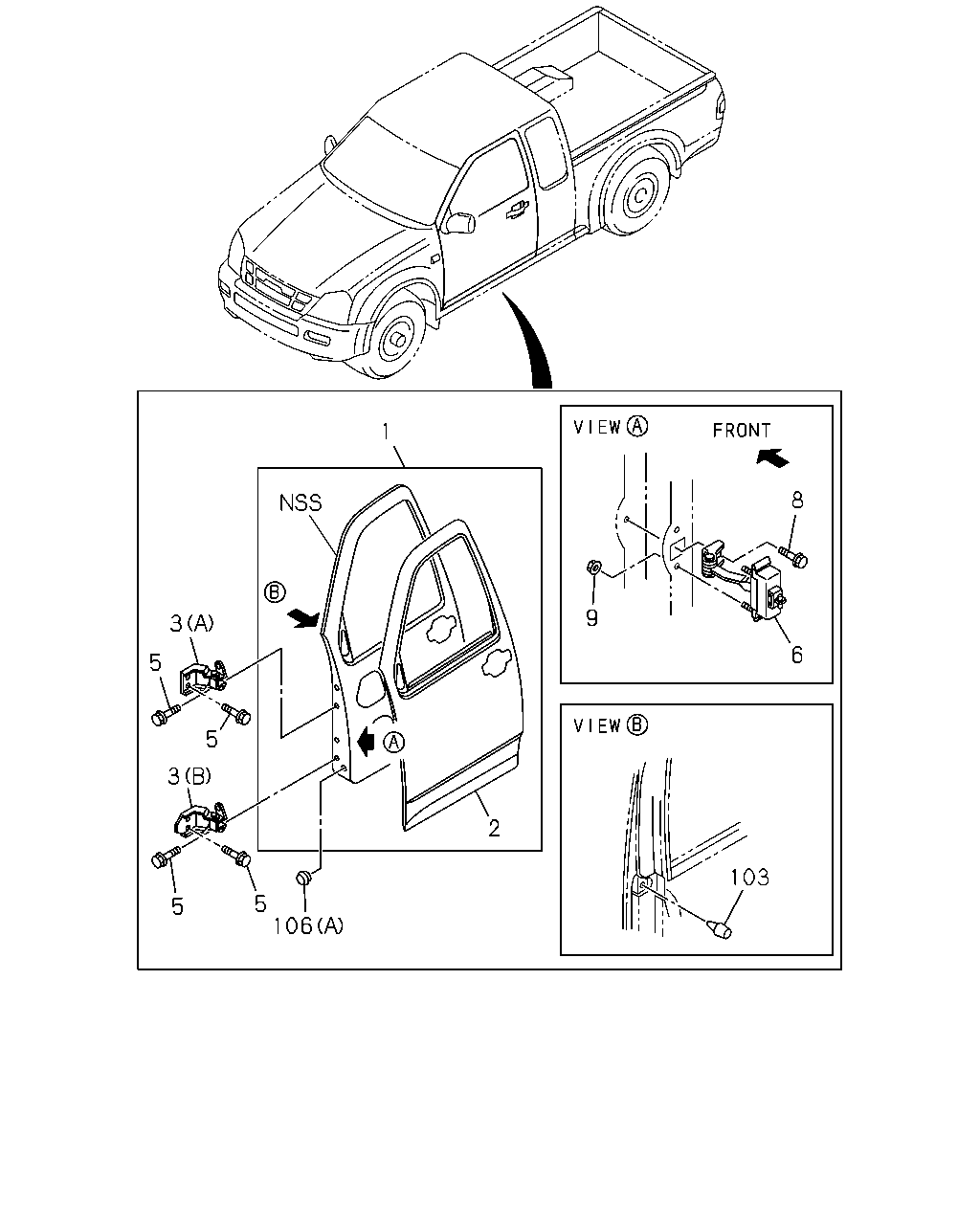

çizim 116540
1 8 9 3 6 5 5 3 2 103 5 106 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97235-319-3 01 1 0204-0212 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97359-124-0 01 1 0301-0301 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97365-974-0 01 1 0302- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97235-318-3 01 1 0204-0212 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97359-123-0 01 1 0301-0301 ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97365-973-0 01 1 0302- ● ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97235-450-3 01 1 0208-0212 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97359-128-0 01 1 0301-0301 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-524-0 01 1 0302- ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97235-449-3 01 1 0208-0212 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97359-127-0 01 1 0301-0301 ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-523-0 01 1 0302- ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97235-452-2 01 1 0204-0301 ● ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-985-0 01 1 0302- ● ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97235-451-2 01 1 0204-0301 ● ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-984-0 01 1 0302- ● ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97235-325-2 01 1 0208-0301 ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-987-0 01 1 0302- ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97235-323-2 01 1 0208-0301 ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-986-0 01 1 0302- ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-961-1 01 1 0204-0207 ● ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-961-1 01 1 0208-0611 ● ● ● ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-546-0 01 1 0612- ● ● ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-984-1 01 1 0204-0207 ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-984-1 01 1 0208-0611 ● ● ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-549-0 01 1 0612- ● ● ● ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-960-1 01 1 0204-0207 ● ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-960-1 01 1 0208-0611 ● ● ● ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-547-0 01 1 0612- ● ● ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-982-1 01 1 0204-0207 ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-982-1 01 1 0208-0611 ● ● ● ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-548-0 01 1 0612- ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0204-0207 ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0204-0207 ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0208-0507 ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0208-0507 ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 16 1 0508-0606 ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 16 1 0607-1008 ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1009- ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1009- ● ● ● ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-97236-169-1 02 1 0204-0207 ● ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-97236-169-1 02 1 0208-0307 ● ● ● ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-97369-016-0 02 1 0308- ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 IMA 		8-97310-216-1 02 1 0204-0207 ● ● ●
8 BOLT; CHECK ARM
M8X23 IMA 		8-97310-216-1 02 1 0208-0701 ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98062-206-0 02 1 0702-1110 ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1111- ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE IMA 		5-09440-004-0 04 1 0204-0207 ● ● ●
9 NUT; CHECK ARM
M6 FLANGE IMA 		5-09440-004-0 04 1 0208-0209 ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-97943-101-0 04 1 0210-0610 ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 0611- ● ● ● ● ●
103 PROTECTOR; FRT DOOR
THA 		8-97301-795-1 02 1 0204-0207 ● ● ●
103 PROTECTOR; FRT DOOR
THA 		8-97301-795-1 02 1 0208- ● ● ● ● ●
106 GROMMET; PROTECTOR
(A) OD=35 THA 		8-97320-908-0 04 1 0204-0207 ● ● ●
106 GROMMET; PROTECTOR
(A) OD=35 THA 		8-97320-908-0 04 1 0208-0408 ● ● ● ● ●
106 GROMMET; PROTECTOR
(B) THA 		8-94279-724-0 02 1 0208- ● ●
