6-20 — SIDE PANEL AND STEP (#72906) — 320 parça

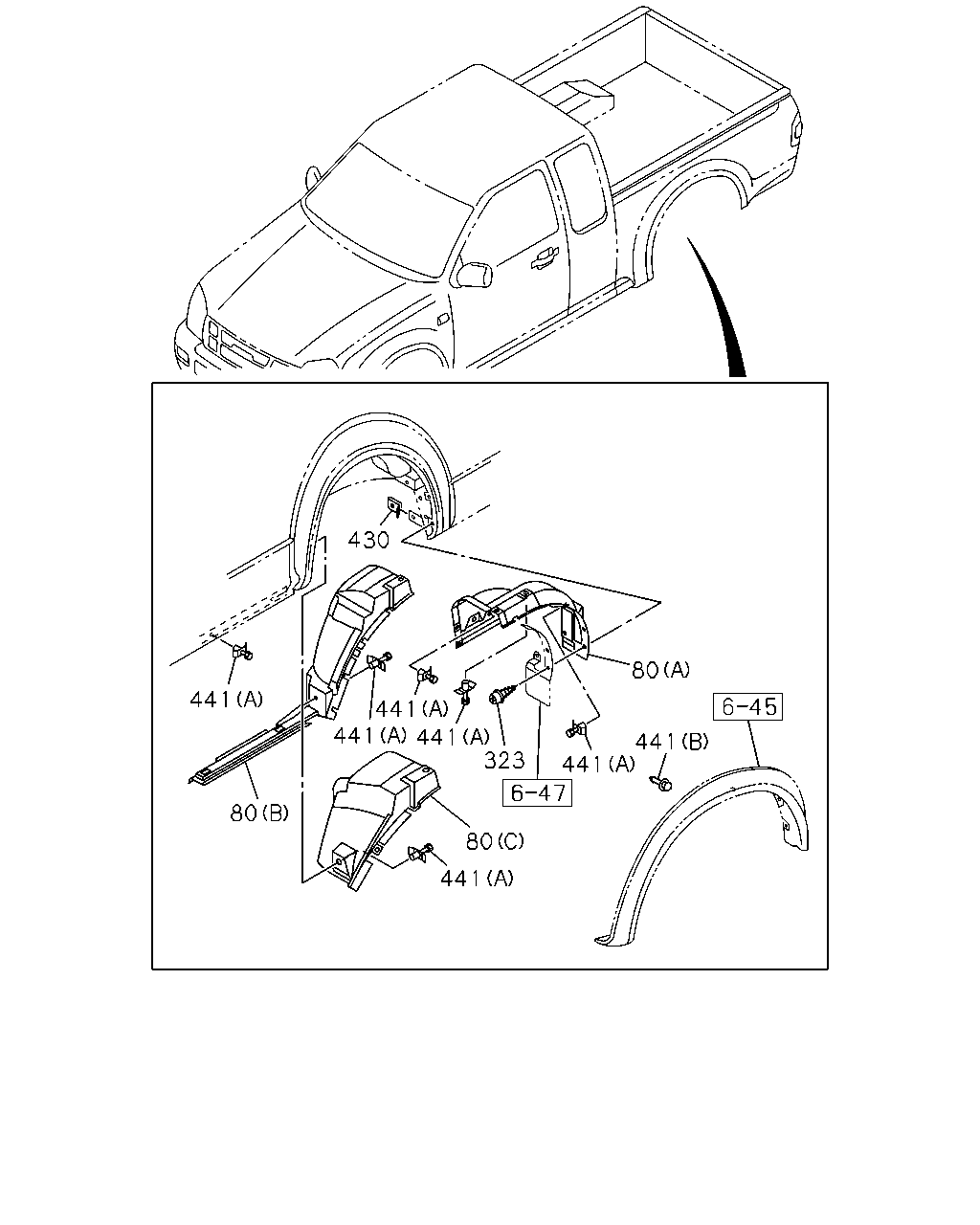

çizim 116508
430 80 441 441 323 441 441 80 80 441 441 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-864-1 01 1 0204-0207 ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-864-1 01 1 0204-0207 ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-864-1 01 1 0208-0408 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-864-1 01 1 0208-0408 ●
80 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97234-864-1 01 1 0409- ● ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97234-872-2 01 1 0204-0408 ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97234-872-2 01 1 0409-0612 ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-98057-540-0 01 1 0701- ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-863-1 01 1 0204-0207 ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-863-1 01 1 0204-0207 ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-863-1 01 1 0208-0408 ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-863-1 01 1 0208-0408 ●
80 PANEL; WHEEL HOUSE,INNER
(A) THA 		8-97234-863-1 01 1 0409- ● ● ● ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97234-870-3 01 1 0204-0408 ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97234-870-3 01 1 0409-0612 ● ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-98057-539-0 01 1 0701- ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97234-867-2 01 1 0204-0408 ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97234-867-2 01 1 0409-0612 ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-98057-538-0 01 1 0701- ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97234-866-3 01 1 0204-0408 ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-97234-866-3 01 1 0409-0612 ●
80 PANEL; WHEEL HOUSE,INNER
(B) THA 		8-98057-537-0 01 1 0701- ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97234-875-1 01 1 0208-0408 ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) THA 		8-97234-875-1 01 1 0409- ● ●
80 PANEL; WHEEL HOUSE,INNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97234-874-1 01 1 0208-0408 ● ●
80 PANEL; WHEEL HOUSE,INNER
(C) THA 		8-97234-874-1 01 1 0409- ● ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 06 1 0406-0408 ● ●
323 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 06 1 0409-0612 ● ●
323 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 06 1 0701-1005 ● ●
323 SCREW; SET
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1006- ● ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0204-0207 ● ●
323 SCREW; SET
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0204-0207 ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0208-0405 ● ● ● ●
323 SCREW; SET
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0208-0405 ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> EXC. OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0406-0408 ● ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0406-0408 ● ●
323 SCREW; SET
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0406-0408 ●
323 SCREW; SET
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0406-0408 ● ●
323 SCREW; SET
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0409-0612 ● ●
323 SCREW; SET
MUD FLAP<VH4> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0409-0612 ● ●
323 SCREW; SET
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 08 1 0409-0612 ● ● ●
323 SCREW; SET
OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 08 1 0701-1005 ● ●
323 SCREW; SET
MUD FLAP<VH4> EXC. OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 08 1 0701-1005 ● ●
323 SCREW; SET
M6X20 TAPPING THA 		8-98052-950-0 08 1 0701-1005 ● ● ●
323 SCREW; SET
OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 08 1 1006- ● ●
323 SCREW; SET
MUD FLAP<VH4> EXC. OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 08 1 1006- ● ●
323 SCREW; SET
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 08 1 1006- ● ● ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> THA 		8-97125-519-0 06 1 0406-0408 ● ●
430 NUT; PANEL
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-97125-519-0 06 1 0409- ● ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97125-519-0 08 1 0204-0207 ● ●
430 NUT; PANEL
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97125-519-0 08 1 0204-0207 ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97125-519-0 08 1 0208-0405 ● ● ● ●
430 NUT; PANEL
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97125-519-0 08 1 0208-0405 ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> EXC. OVER FENDER<6GH> THA 		8-97125-519-0 08 1 0406-0408 ● ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97125-519-0 08 1 0406-0408 ● ●
430 NUT; PANEL
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97125-519-0 08 1 0406-0408 ●
430 NUT; PANEL
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97125-519-0 08 1 0406-0408 ● ●
430 NUT; PANEL
OVER FENDER<B74> THA 		8-97125-519-0 08 1 0409- ● ●
430 NUT; PANEL
MUD FLAP<VH4> EXC. OVER FENDER<B74> THA 		8-97125-519-0 08 1 0409- ● ●
430 NUT; PANEL
THA 		8-97125-519-0 08 1 0409- ● ● ●
441 CLIP
OVER FENDER<B74> (B) THA 		8-97359-942-0 06 1 0508-0606 ●
441 CLIP
(B) THA 		8-97359-942-0 06 1 0508-0606 ●
441 CLIP
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A) THA 		8-94221-150-0 14 1 0508- ● ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-94221-150-0 08 1 0406-0408 ● ●
441 CLIP
FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (A) THA 		8-94221-150-0 08 1 0409- ● ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-94221-150-0 06 1 0204-0207 ● ●
441 CLIP
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-94221-150-0 06 1 0204-0207 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-94221-150-0 06 1 0208-0405 ● ● ● ●
441 CLIP
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-94221-150-0 06 1 0208-0405 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> EXC. OVER FENDER<6GH> (A) THA 		8-94221-150-0 06 1 0406-0408 ● ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (A) THA 		8-94221-150-0 06 1 0406-0408 ● ●
441 CLIP
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-94221-150-0 06 1 0406-0408 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-94221-150-0 06 1 0406-0408 ● ●
441 CLIP
OVER FENDER<B74> (A) THA 		8-94221-150-0 06 1 0409- ● ●
441 CLIP
MUD FLAP<VH4> EXC. OVER FENDER<B74> (A) THA 		8-94221-150-0 06 1 0409- ● ●
441 CLIP
(A) THA 		8-94221-150-0 06 1 0409- ● ● ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-94221-150-0 12 1 0204-0408 ● ●
441 CLIP
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-94221-150-0 14 1 0204-0408 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-94221-150-0 10 1 0208-0408 ● ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97117-942-0 05 1 0208-0307 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-97117-942-0 05 1 0308-0401 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97117-942-0 05 1 0308-0401 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-97359-942-0 05 1 0402-0408 ●
441 CLIP
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97359-942-0 05 1 0402-0408 ●
441 CLIP
OVER FENDER<B74> (B) THA 		8-97359-942-0 05 1 0409-0606 ●
441 CLIP
(B) THA 		8-97359-942-0 05 1 0409-0606 ●

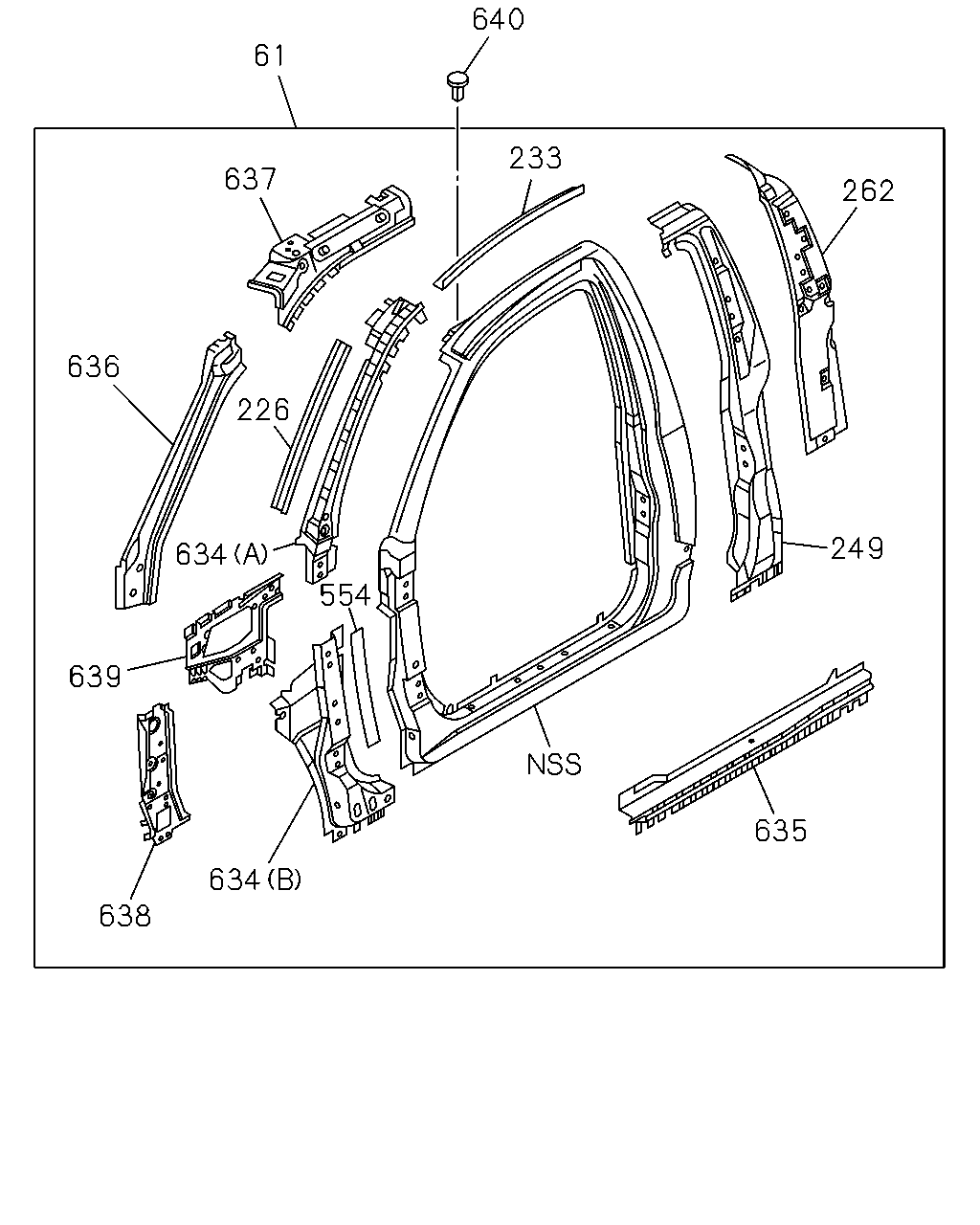

çizim 116510
640 61 233 637 262 636 226 249 634 554 639 635 634 638
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0204- ● ●
61 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0204-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-632-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-633-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0204- ●
61 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0204-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98152-631-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0208- ● ●
61 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0208-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-634-0 01 1 0911- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-635-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-98152-635-0 01 1 0911- ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0208- ● ● ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0208- ● ● ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0208- ● ●
233 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0208- ● ●
249 REINFORCEMENT; RR PILLAR
THA 		8-97235-849-3 01 1 0204- ●
249 REINFORCEMENT; RR PILLAR
THA 		8-97235-848-3 01 1 0204- ●
262 PANEL; PILLAR
THA 		8-97235-309-6 01 1 0204- ●
262 PANEL; PILLAR
THA 		8-97235-308-6 01 1 0204- ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0409-0708 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0709-0910 ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0208- ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0204- ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0204- ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0208- ● ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0208-0910 ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-98152-623-0 01 1 0911- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0208- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0208- ● ● ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0204-0207 ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0208-0408 ● ● ● ● ●

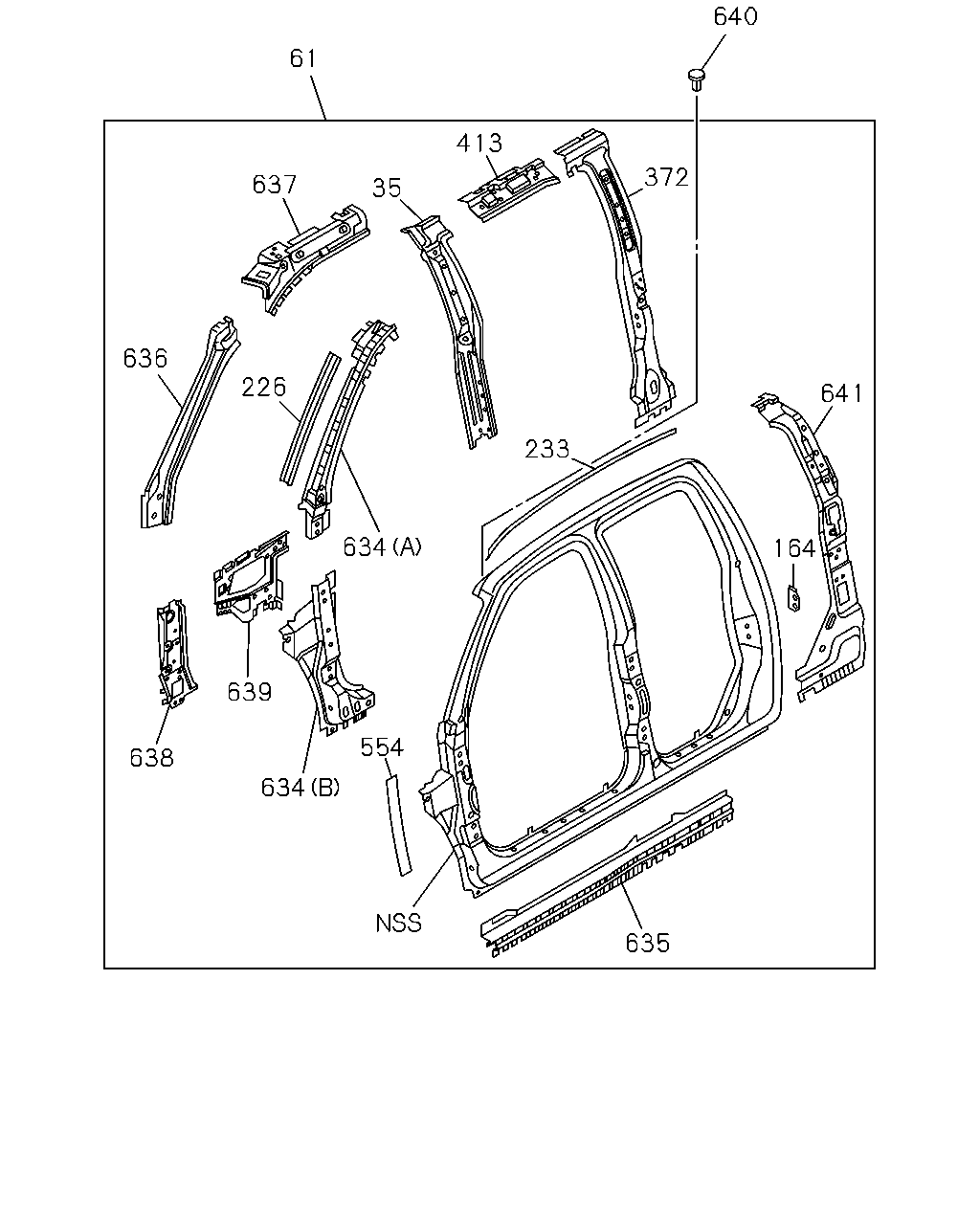

çizim 116517
640 61 413 372 637 35 636 226 641 233 634 164 639 554 638 634 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 PANEL; CENTER PILLAR,INNER
THA 		8-93291-049-3 01 1 0208- ● ●
35 PANEL; CENTER PILLAR,INNER
THA 		8-93291-050-3 01 1 0208- ● ●
61 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0204- ● ●
61 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0204-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-632-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-633-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0204- ●
61 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0204-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98152-631-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0208- ● ●
61 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0208-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-634-0 01 1 0911- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-635-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-98152-635-0 01 1 0911- ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 01 1 0208-0408 ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 01 1 0208-0408 ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 02 1 0409-0708 ● ●
164 PLATE; SIDE PNL OUTER
THA 		8-93297-532-1 01 1 0709- ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0208- ● ● ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0208- ● ● ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0208- ● ●
233 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0208- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-022-3 01 1 0204- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-021-3 01 1 0204- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-501-5 01 1 0208- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-502-5 01 1 0208- ● ●
413 PANEL; RR SIDE
THA 		8-93297-655-2 01 1 0208- ● ●
413 PANEL; RR SIDE
THA 		8-93297-656-2 01 1 0208- ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0409-0708 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0709-0910 ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0208- ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0204- ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0204- ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0208- ● ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0208-0910 ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-98152-623-0 01 1 0911- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0208- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0208- ● ● ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0204-0207 ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0208-0408 ● ● ● ● ●
641 PANEL; BACK BODY PILLER
THA 		8-93333-503-4 01 1 0208-0209 ● ●
641 PANEL; BACK BODY PILLER
THA 		8-93333-504-4 01 1 0208-0209 ● ●
641 PANEL; BACK BODY PILLER
THA 		8-97357-961-1 01 1 0210- ● ●
641 PANEL; BACK BODY PILLER
THA 		8-97357-962-1 01 1 0210- ● ●

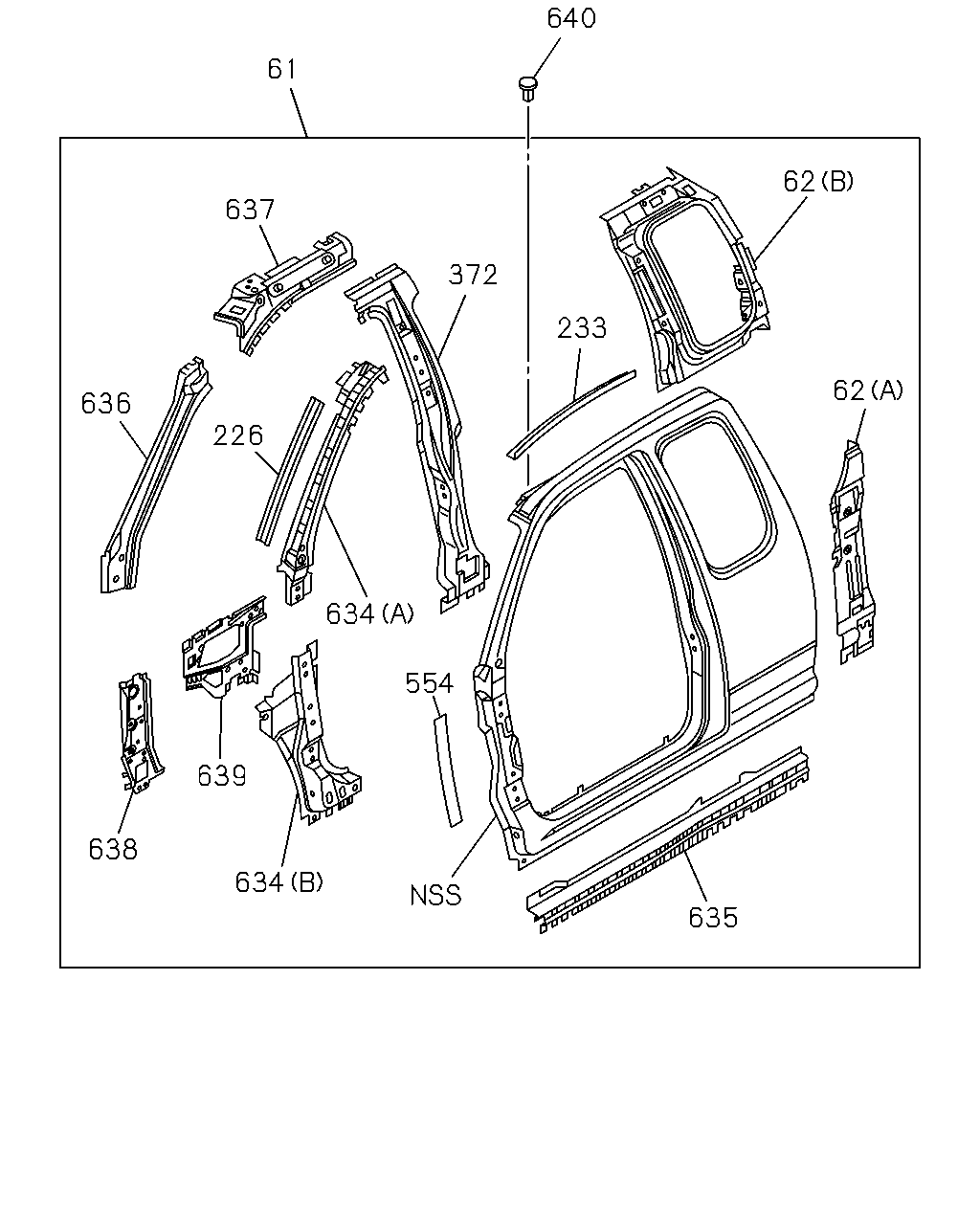

çizim 116518
640 61 62 637 372 233 62 636 226 634 554 639 638 634 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E
61 PANEL; SIDE OUTER
THA 		8-97234-938-2 01 1 0204- ● ●
61 PANEL; SIDE OUTER
THA 		8-97234-937-2 01 1 0204-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97234-937-2 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-632-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-871-0 01 1 0709-0910 ● ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-633-0 01 1 0911- ● ●
61 PANEL; SIDE OUTER
THA 		8-97235-287-2 01 1 0204- ●
61 PANEL; SIDE OUTER
THA 		8-97235-286-2 01 1 0204-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98152-631-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-93295-497-4 01 1 0208- ● ●
61 PANEL; SIDE OUTER
THA 		8-93295-498-4 01 1 0208-0708 ● ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93295-498-4 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
EXC. ROOF RADIO ANTENNA<U71> THA 		8-98152-634-0 01 1 0911- ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
THA 		8-98052-875-0 01 1 0709-0910 ●
61 PANEL; SIDE OUTER
ROOF RADIO ANTENNA<U71> THA 		8-98152-635-0 01 1 0911- ●
61 PANEL; SIDE OUTER
THA 		8-98152-635-0 01 1 0911- ●
62 PANEL; BODY SIDE INNER
(A) THA 		8-97233-439-5 01 1 0204- ● ●
62 PANEL; BODY SIDE INNER
(B) THA 		8-97235-446-3 01 1 0204-0210 ● ●
62 PANEL; BODY SIDE INNER
(B) THA 		8-97357-935-0 01 1 0211- ● ●
62 PANEL; BODY SIDE INNER
(A) THA 		8-97233-438-5 01 1 0204- ● ●
62 PANEL; BODY SIDE INNER
(B) THA 		8-97235-445-3 01 1 0204-0210 ● ●
62 PANEL; BODY SIDE INNER
(B) THA 		8-97357-934-0 01 1 0211- ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-067-2 01 1 0208- ● ● ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0204-0207 ● ● ●
226 RAIL; DRIP,FRT PILLAR
THA 		8-97235-066-2 01 1 0208- ● ● ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-069-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-97235-068-1 01 1 0204- ● ● ●
233 RAIL; RR ROOF
THA 		8-93291-057-3 01 1 0208- ● ●
233 RAIL; RR ROOF
THA 		8-93367-929-3 01 1 0208- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-022-3 01 1 0204- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-97235-021-3 01 1 0204- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-501-5 01 1 0208- ● ●
372 REINFORCEMENT; CENTER PILLAR
THA 		8-93333-502-5 01 1 0208- ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0204-0207 ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0208-0408 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0409-0708 ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 02 1 0709-0910 ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0911- ● ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
554 SEAL; INNER BODY
THA 		8-94199-115-0 01 1 0709-0910 ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-979-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-794-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(B) THA 		8-97234-978-1 01 1 0208- ● ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0204-0207 ● ● ●
634 REINFORCEMENT; BODY SIDE INNER
(A) THA 		8-97236-793-1 01 1 0208- ● ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-054-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0204-0207 ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-045-1 01 1 0208- ● ● ● ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-311-0 01 1 0204- ●
635 REINFORCEMENT; ROCKER
THA 		8-97235-310-0 01 1 0204- ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-072-4 01 1 0208- ● ● ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0204-0207 ● ● ●
636 PANEL; FRONT PILLAR INNER
THA 		8-97235-070-4 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-079-3 01 1 0208- ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0204-0207 ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-97235-078-3 01 1 0208-0910 ● ● ● ● ●
637 PANEL; ROOF SIDE INNER
THA 		8-98152-623-0 01 1 0911- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-085-1 01 1 0208- ● ● ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0204-0207 ● ● ●
638 PANEL; DASH SIDE INNER
THA 		8-97235-084-1 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-058-2 01 1 0208- ● ● ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0204-0207 ● ● ●
639 REINFORCEMENT; COWL SIDE
THA 		8-97235-057-2 01 1 0208- ● ● ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0204-0207 ● ● ●
640 POP NUT
M5 POP NUT THA 		8-97249-574-0 02 1 0208-0408 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
