Isuzu WW
▶
PICKUP
▶
TFR
▶
50931 - TFR/TFS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

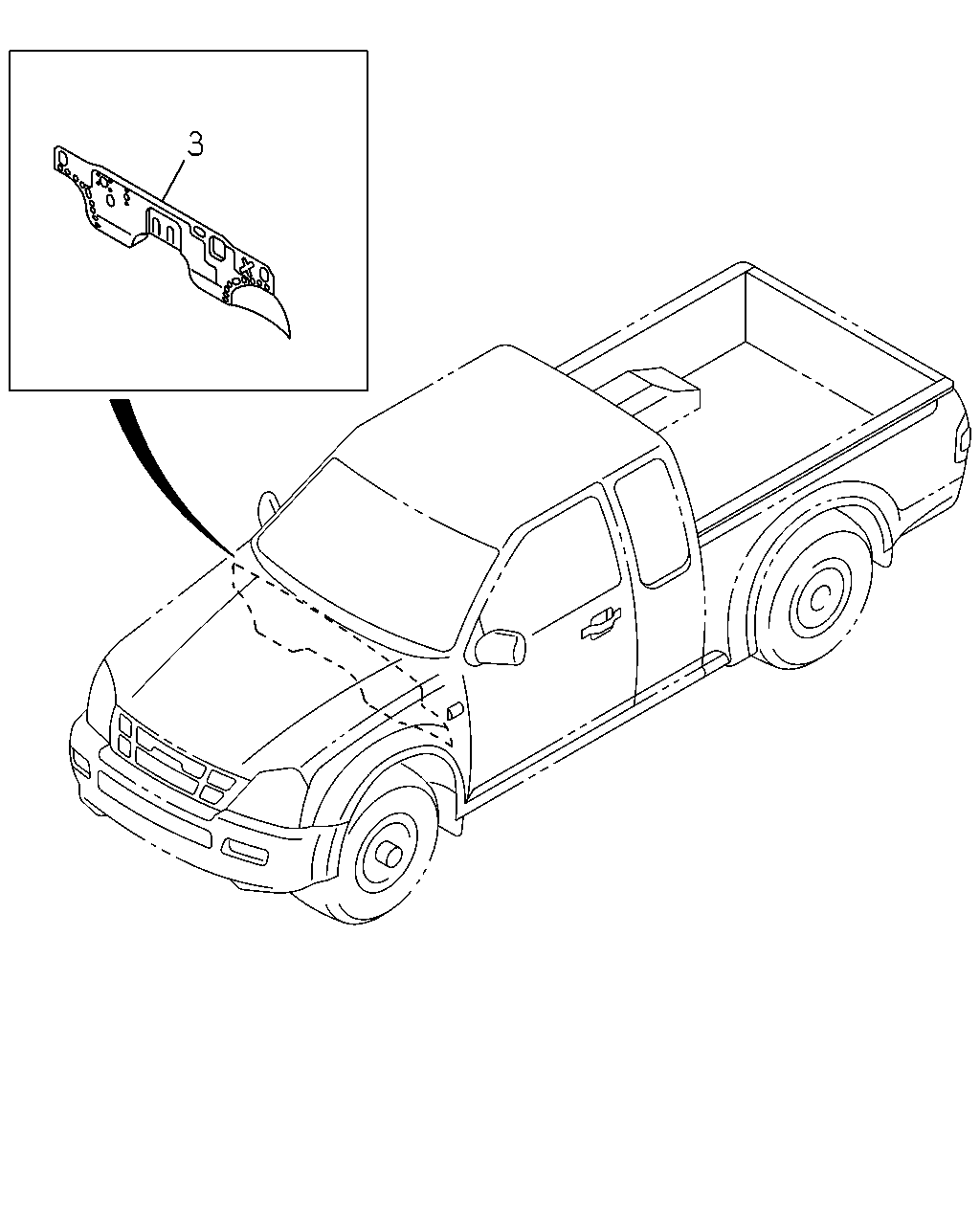

6-14 - DASH PANEL AND FENDER SKIRT
▶
6-14 — DASH PANEL AND FENDER SKIRT
(#72905) — 35 parça
Tümü
A - TFB5SF
B - TFB5CF
C - TFS5CF
D - TFB5WF
E - TFS5WF
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
3
PANEL; SUB,DASH LWR
THA
8-98096-337-0
01
1
0709-
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-97329-284-1
01
1
0204-0207
●
3
PANEL; SUB,DASH LWR
THA
8-97329-284-1
01
1
0204-0207
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-97329-284-1
01
1
0208-0301
●
●
3
PANEL; SUB,DASH LWR
THA
8-97329-284-1
01
1
0208-0301
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-97365-436-1
01
1
0302-0402
●
●
3
PANEL; SUB,DASH LWR
THA
8-97365-436-1
01
1
0302-0402
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-97381-187-0
01
1
0403-0503
●
●
3
PANEL; SUB,DASH LWR
THA
8-97381-187-0
01
1
0403-0503
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-98009-007-0
01
1
0504-0509
●
●
3
PANEL; SUB,DASH LWR
THA
8-98009-007-0
01
1
0504-0509
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-98029-283-0
01
1
0510-0701
●
●
3
PANEL; SUB,DASH LWR
THA
8-98029-283-0
01
1
0510-0701
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-98073-279-0
01
1
0702-0708
●
●
3
PANEL; SUB,DASH LWR
THA
8-98073-279-0
01
1
0702-0708
●
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-98096-339-0
01
1
0709-0709
●
●
3
PANEL; SUB,DASH LWR
THA
8-98096-339-0
01
1
0709-0709
●
3
PANEL; SUB,DASH LWR
PARKING BRAKE FLOOR<7XW> THA
8-98096-339-0
01
1
0709-0709
●
3
PANEL; SUB,DASH LWR
DRIVER SIDE FOOT REST<7NU> THA
8-98096-339-0
01
1
0710-
●
●
3
PANEL; SUB,DASH LWR
THA
8-98096-339-0
01
1
0710-
●
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-97329-286-1
01
1
0204-0207
●
3
PANEL; SUB,DASH LWR
THA
8-97329-286-1
01
1
0204-0207
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-97329-286-1
01
1
0208-0301
●
●
3
PANEL; SUB,DASH LWR
THA
8-97329-286-1
01
1
0208-0301
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-97365-437-1
01
1
0302-0402
●
●
3
PANEL; SUB,DASH LWR
THA
8-97365-437-1
01
1
0302-0402
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-97381-188-0
01
1
0403-0503
●
●
3
PANEL; SUB,DASH LWR
THA
8-97381-188-0
01
1
0403-0503
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-98009-006-0
01
1
0504-0509
●
●
3
PANEL; SUB,DASH LWR
THA
8-98009-006-0
01
1
0504-0509
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-98029-282-0
01
1
0510-0701
●
●
3
PANEL; SUB,DASH LWR
THA
8-98029-282-0
01
1
0510-0701
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-98073-278-0
01
1
0702-0708
●
●
3
PANEL; SUB,DASH LWR
THA
8-98073-278-0
01
1
0702-0708
●
3
PANEL; SUB,DASH LWR
EXC. DRIVER SIDE FOOT REST<7NU> THA
8-98096-338-0
01
1
0709-
●
●
