6-10 — ENGINE HOOD AND LOCK (#72904) — 171 parça
çizim 116503
5 155 8 154 153 2 152 8 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PANEL; ENG HOOD
(A) THA 		8-97235-372-5 01 1 0204-0207 ● ● ●
2 PANEL; ENG HOOD
(A) THA 		8-97235-372-5 01 1 0208-0301 ● ● ● ● ●
2 PANEL; ENG HOOD
(A) THA 		8-97363-781-0 01 1 0302-0606 ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97387-346-1 01 1 0607-0608 ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-98046-692-0 01 1 0609- ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0710-0802 ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0803- ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0609-0708 ●
5 SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-978-0 01 1 0609-0709 ●
5 SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-978-0 01 1 0710-0802 ● ●
5 SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD
4JJ1-TCX ENG<LS0> PRIMER THA 		8-98057-978-0 01 1 0803- ● ● ● ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (A) THA 		8-98007-126-3 01 1 0609-0708 ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (A) THA 		8-98007-126-3 01 1 0710-0802 ● ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (A) THA 		8-98007-126-3 01 1 0803- ● ● ● ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (B) THA 		8-98056-056-0 01 1 0611-0708 ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (B) THA 		8-98056-056-0 01 1 0710-0802 ● ●
8 SEAL; AIR SCOOP
4JJ1-TCX ENG<LS0> (B) THA 		8-98056-056-0 01 1 0803- ● ● ● ●
147 CLIP; COVER
4JJ1-TCX ENG<LS0> OD=22 L=10.7 THA 		8-94215-211-0 06 1 0710-0802 ● ●
147 CLIP; COVER
4JJ1-TCX ENG<LS0> OD=22 L=10.7 THA 		8-94215-211-0 06 1 0803- ● ● ● ●
147 CLIP; COVER
4JJ1-TCX ENG<LS0> OD=22 L=10.7 THA 		8-94215-211-0 06 1 0609-0708 ●
152 NUT; HOOD
4JJ1-TCX ENG<LS0> M6 FLANGE THA 		0-91180-106-0 04 1 0710-0802 ● ●
152 NUT; HOOD
4JJ1-TCX ENG<LS0> M6 FLANGE THA 		0-91180-106-0 04 1 0803- ● ● ● ●
152 NUT; HOOD
4JJ1-TCX ENG<LS0> M6 FLANGE THA 		0-91180-106-0 04 1 0609-0708 ●
153 STOPPER; SEAL
4JJ1-TCX ENG<LS0> THA 		8-98056-058-0 03 1 0611-0708 ●
153 STOPPER; SEAL
4JJ1-TCX ENG<LS0> THA 		8-98056-058-0 03 1 0710-0802 ● ●
153 STOPPER; SEAL
4JJ1-TCX ENG<LS0> THA 		8-98056-058-0 03 1 0803- ● ● ● ●
154 STUD
4JJ1-TCX ENG<LS0> THA 		8-98056-035-0 04 1 0611-0708 ●
154 STUD
4JJ1-TCX ENG<LS0> THA 		8-98056-035-0 04 1 0710-0802 ● ●
154 STUD
4JJ1-TCX ENG<LS0> THA 		8-98056-035-0 04 1 0803- ● ● ● ●
155 FASTENER; AIR SCOOP
4JJ1-TCX ENG<LS0> THA 		8-98056-037-0 01 1 0611-0708 ●
155 FASTENER; AIR SCOOP
4JJ1-TCX ENG<LS0> THA 		8-98056-037-0 01 1 0710-0802 ● ●
155 FASTENER; AIR SCOOP
4JJ1-TCX ENG<LS0> THA 		8-98056-037-0 01 1 0803- ● ● ● ●

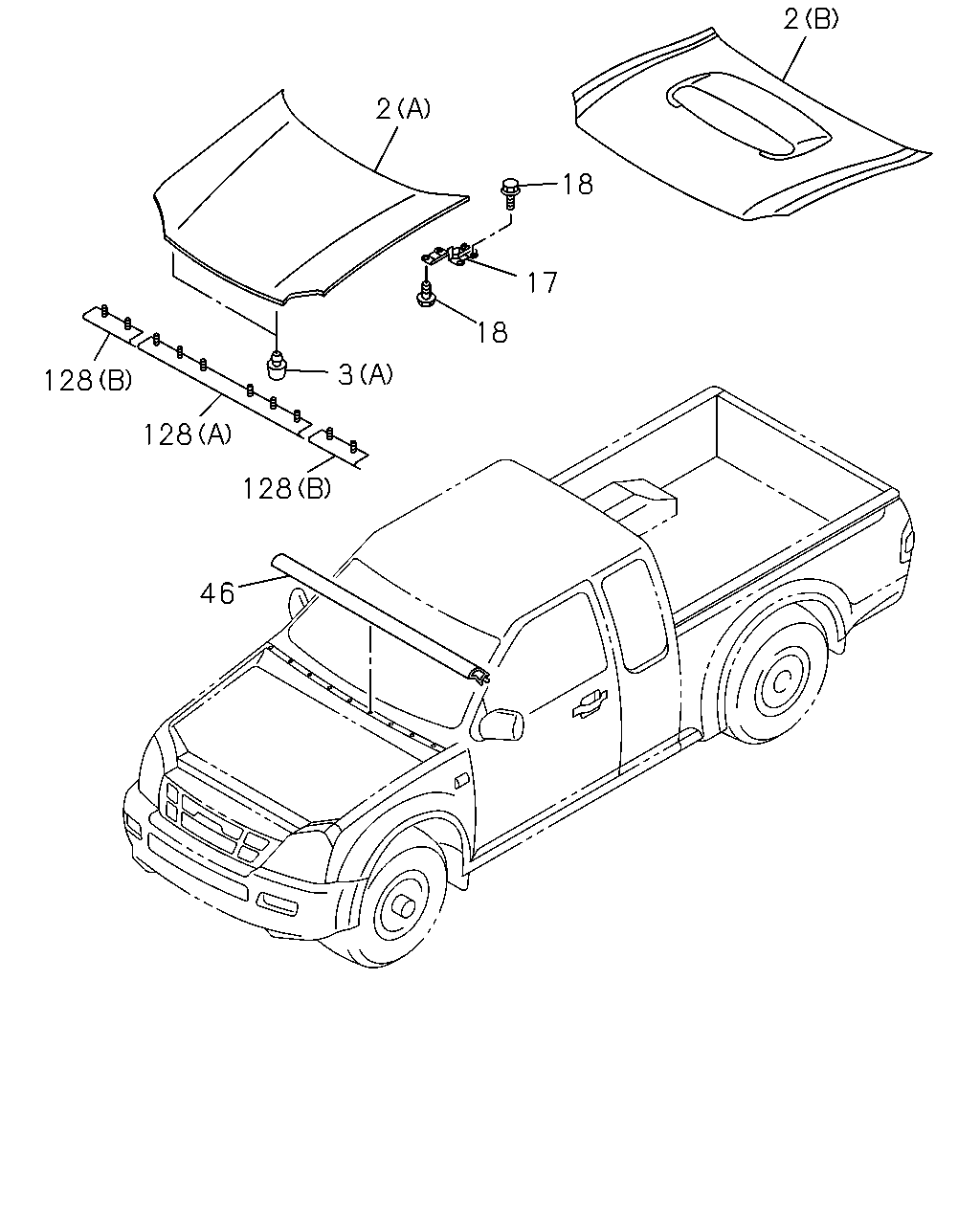

çizim 116506
2 2 18 17 18 3 128 128 128 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PANEL; ENG HOOD
(A) THA 		8-97235-372-5 01 1 0204-0207 ● ● ●
2 PANEL; ENG HOOD
(A) THA 		8-97235-372-5 01 1 0208-0301 ● ● ● ● ●
2 PANEL; ENG HOOD
(A) THA 		8-97363-781-0 01 1 0302-0606 ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-97387-346-1 01 1 0607-0608 ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA 		8-98046-692-0 01 1 0609- ● ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0710-0802 ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0803- ● ● ● ●
2 PANEL; ENG HOOD
4JJ1-TCX ENG<LS0> (B) THA 		8-98046-693-0 01 1 0609-0708 ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0204-0207 ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0208- ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0204-0207 ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0208- ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-97235-398-1 01 1 0204-0207 ● ● ●
17 HINGE; ENG HOOD
THA 		8-97235-398-1 01 1 0208-0701 ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98050-665-0 01 1 0702- ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-97235-397-1 01 1 0204-0207 ● ● ●
17 HINGE; ENG HOOD
THA 		8-97235-397-1 01 1 0208-0701 ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-98050-664-0 01 1 0702- ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 08 1 0204-0207 ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 08 1 0208-0606 ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 04 1 0607-0701 ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-94139-492-0 04 1 0607-0701 ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 0702- ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-98056-122-0 04 1 0702- ● ● ● ● ●
46 SEAL; ENG HOOD
THA 		8-97235-437-0 01 1 0204-0207 ● ● ●
46 SEAL; ENG HOOD
THA 		8-97235-437-0 01 1 0208-0408 ● ● ● ● ●
46 SEAL; ENG HOOD
4JA1-T ENG<LP0> THA 		8-97235-437-0 01 1 0409-0412 ● ● ●
46 SEAL; ENG HOOD
4JK1 ENG<LKZ> THA 		8-97235-437-0 01 1 0501-0606 ● ● ●
46 SEAL; ENG HOOD
4JK1 ENG<LKZ> THA 		8-97235-437-0 01 1 0607- ● ● ● ●
46 SEAL; ENG HOOD
4JJ1-TCS ENG<LFB> THA 		8-97380-860-0 01 1 0409-0608 ● ● ● ●
46 SEAL; ENG HOOD
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-97380-860-0 01 1 0609- ● ● ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0204-0207 ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-598-1 01 1 0204-0207 ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0208-0408 ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-598-1 01 1 0208-0408 ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0409-0606 ● ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-97234-598-1 01 1 0409-0606 ●
128 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607- ● ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-98024-523-0 01 1 0607- ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0204-0207 ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (B) THA 		8-97308-751-1 02 1 0204-0207 ● ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0208-0305 ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (B) THA 		8-97308-751-1 02 1 0208-0305 ● ●
128 SEAL; PLATFORM
4JA1-T ENG<LP0> (E) THA 		8-97312-538-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (E) THA 		8-97312-538-0 01 1 0409-0412 ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-97333-442-0 01 1 0409-0412 ● ● ● ●
128 SEAL; PLATFORM
(C) THA 		8-97333-442-0 01 1 0501-0507 ● ● ● ● ●
128 SEAL; PLATFORM
(C) THA 		8-98023-877-0 01 1 0508-0606 ● ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-98023-877-0 01 1 0607- ● ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0409-0608 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0609-0708 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0609-0708 ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0709-0709 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0710-0802 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0710-0802 ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0710-0802 ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0609-0708 ●

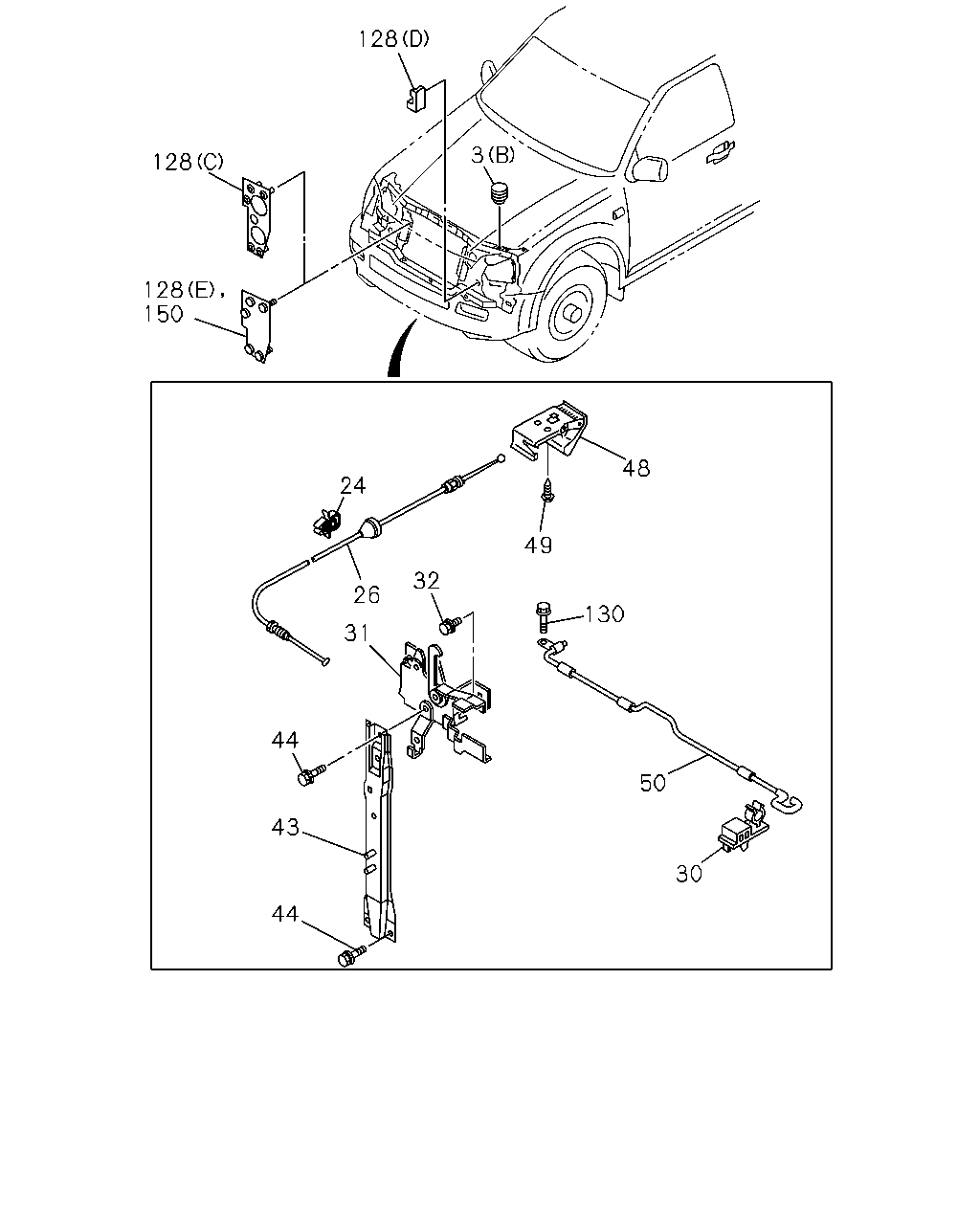

çizim 116509
128 3 128 128 150 48 24 49 32 26 130 31 44 50 43 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0204-0207 ● ● ●
3 BUFFER; ENG HOOD,FRT
(A) THA 		8-94358-581-0 02 1 0208- ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0204-0207 ● ● ●
3 BUFFER; ENG HOOD,FRT
(B) THA 		8-97311-876-0 02 1 0208- ● ● ● ● ●
24 CLIP; CONT CABLE
THA 		8-97182-405-0 02 1 0204-0207 ● ● ●
24 CLIP; CONT CABLE
THA 		8-97182-405-0 02 1 0208- ● ● ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-97333-143-1 01 1 0204-0207 ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-97333-143-2 01 1 0208-0612 ● ● ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-98072-367-0 01 1 0701- ● ● ● ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 0204-0207 ● ● ●
30 CLIP; SUPPORT ROD,HOOD
THA 		8-97301-356-0 01 1 0208- ● ● ● ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97241-147-1 01 1 0204-0207 ● ●
31 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97241-147-1 01 1 0208-0209 ● ● ● ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97235-915-1 01 1 0204-0207 ● ●
31 LOCK; ENG HOOD
THA 		8-97235-915-1 01 1 0204-0207 ●
31 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97235-915-1 01 1 0208-0209 ● ● ● ●
31 LOCK; ENG HOOD
THA 		8-97235-915-1 01 1 0208-0209 ●
31 LOCK; ENG HOOD
THA 		8-97235-915-1 01 1 0210- ● ● ● ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97249-670-1 02 1 0204-0207 ● ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97249-670-1 02 1 0208-0405 ● ● ● ● ●
32 BOLT; HOOD LK
M6X20 W/PL WASHER THA 		8-97370-668-0 02 1 0406- ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97241-153-0 01 1 0204-0207 ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97241-153-0 01 1 0208-0211 ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97362-229-0 01 1 0212-0606 ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
EXC. OUTSIDE TEMPERATURE GAGE<UJH> THA 		8-97362-229-0 01 1 0607- ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97362-229-0 01 1 0607- ●
43 STAY; ENG HOOD,FRT END
OUTSIDE TEMPERATURE GAGE<UJH> THA 		8-98031-229-0 01 1 0607- ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-98031-229-0 01 1 0607- ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97249-670-1 04 1 0204-0207 ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97249-670-1 04 1 0208-0405 ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0406-0408 ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97389-218-0 04 1 0409-0706 ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X20 W/PL WASHER THA 		8-97370-668-0 04 1 0707- ● ● ● ● ●
48 LEVER; ENG HOOD
THA 		8-97333-142-0 01 1 0204-0207 ● ● ●
48 LEVER; ENG HOOD
THA 		8-97333-142-0 01 1 0208-0308 ● ● ● ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97397-848-0 01 1 0309-0606 ● ● ● ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97397-849-0 01 1 0607-0612 ● ● ● ● ●
48 LEVER; ENG HOOD
DARK GRAY THA 		8-97411-781-0 01 1 0701- ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0701 ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98061-685-0 02 1 0702-1005 ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-97235-432-2 01 1 0204-0207 ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-97235-432-2 01 1 0208-0210 ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-97361-206-0 01 1 0211-0606 ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-98044-500-0 01 1 0607- ● ● ● ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0204-0207 ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-598-1 01 1 0204-0207 ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0208-0408 ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-598-1 01 1 0208-0408 ● ●
128 SEAL; PLATFORM
(A) THA 		8-97234-598-1 01 1 0409-0606 ● ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-97234-598-1 01 1 0409-0606 ●
128 SEAL; PLATFORM
(A) THA 		8-98024-523-0 01 1 0607- ● ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<C65> (A) THA 		8-98024-523-0 01 1 0607- ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0204-0207 ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (B) THA 		8-97308-751-1 02 1 0204-0207 ● ●
128 SEAL; PLATFORM
(B) THA 		8-97308-751-1 02 1 0208-0305 ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> (B) THA 		8-97308-751-1 02 1 0208-0305 ● ●
128 SEAL; PLATFORM
4JA1-T ENG<LP0> (E) THA 		8-97312-538-0 01 1 0409-0412 ● ●
128 SEAL; PLATFORM
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (E) THA 		8-97312-538-0 01 1 0409-0412 ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> (C) THA 		8-97333-442-0 01 1 0409-0412 ● ● ● ●
128 SEAL; PLATFORM
(C) THA 		8-97333-442-0 01 1 0501-0507 ● ● ● ● ●
128 SEAL; PLATFORM
(C) THA 		8-98023-877-0 01 1 0508-0606 ● ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (C) THA 		8-98023-877-0 01 1 0607- ● ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0409-0608 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0609-0708 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0609-0708 ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0709-0709 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0710-0802 ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0710-0802 ● ●
128 SEAL; PLATFORM
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97372-864-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (D) THA 		8-97372-864-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0710-0802 ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0803- ● ● ● ●
128 SEAL; PLATFORM
4JJ1-TCX ENG<LS0> (E) THA 		8-98023-875-0 01 1 0609-0708 ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28680-625-0 01 1 0204-0207 ● ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28680-625-0 01 1 0208-0601 ● ● ● ● ●
130 BOLT; SUPPORT ROD,HOOD
M6X25 FLANGE THA 		0-28650-625-0 01 1 0602- ● ● ● ● ●
150 SEAL; DEFLECTOR
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97312-538-0 01 1 0208-0408 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
